PoE komutatorius GETFORT 4+1+SFP, 65W, 2 vnt., gigabitinis Ethernet

Trumpai apie prekę

Prekė: PoE komutatorius GETFORT 4+1+SFP, 65W, 2 vnt., gigabitinis Ethernet. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: getfort
• Modelis: GF-106-4PG-S-65

Key features:

• 4 ports 1000Mbps RJ45
• 1 SFP port 1,25Gbps

• 4 PoE ports 802.3 af/at
• Support 803.3bt 60W Hi PoE (port1)
• Watchdog function
• PoE support: up to 30W per port
• Long range PoE mode, up to 250m
• Support for VLAN port isolation

Equipped with 4 Gigabit ports supporting the PoE (802.3af/at) standard, which provide power to PoE devices via Ethernet cable.

• The device enables communication via the 1,25Gbps SFP port

This allows you to power and communicate with your devices without the need for separate power cables.

Compliance with standards: PoE Switch compliant with international standards such as IEEE 802.3af (PoE) and 802.3at (PoE+), allowing compatibility with a variety of PoE devices. An additional feature is support for 802.3bt (HI-PoE) with support for up to 60W per port.

Power Management: Supports power management features such as automatic port shutdown in case of inactivity of the device connected to the PoE port, which helps to save energy.

Power range: It can supply power over Ethernet cable up to 100 meters away, which is standard for Cat 5e or Cat 6 cables.

Thanks to the Long-Range function, devices up to 250m from the device can be powered at a lower transfer.

Automatic PoE recognition: Switch Getfort can automatically recognize whether a connected device requires PoE power and adjust ports accordingly.

VLAN support: Port isolation mode allows you to segment traffic and increase network security.

Easy installation: It is simple to set up and use, allowing for quick installation even by those without advanced technical knowledge.

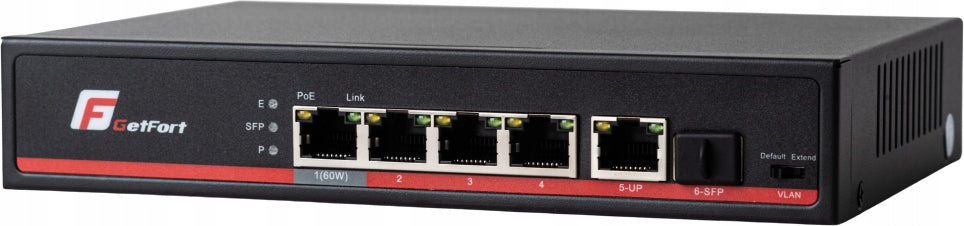

Built-in LEDs: Built-in LEDs on the front panel allow you to monitor the status of connections and power supply on individual ports.

Technical specification

• Model: GF-106-4PG-S-65
• Interface: 4*10/100/1000Base-TX PoE port（Data/Power）
• 1*10/100/1000Base-TX uplink RJ45 port (Date)
• 1*1000M SFP
• PoE ports: Ports 1-4 support 802.3 af/at (Port 1 Hi-PoE 60W support)
• Functions: N: Normal
• V: Port isolation
• E: Long Range Mode (Ultra Far)
• Network protocols: IEEE 802.3
• IEEE 802.3 and 10BASE-T
• IEEE 802.3u 100BASE-TX
• IEEE 802.3x
• IEEE 802.3af/at/PoE++
• PoE Standard: IEEE802.3af/at/PoE++/HiPoE
• Ports: 10/100/1000BaseT（X）Auto
• Broadcasting method: Store and Forward
• Capacity: 16Gbps
• Package transfer rate: 8.64Mpps
• MAC array size: 2K
• Buffer: 2.5K
• Transmission distance: 10BASE-T ： Cat3,4,5 UTP(≤250 m)
• 100BASE-TX ： Cat5 or later UTP(150 m)
• 1000BASE-TX ： Cat6 or later UTP(150 m)
• 1000BASE-SX:62.5μm/50μm MMF(2m~550m)
• 1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
• Port load capacity: 15.4W/30W (1 60W port)
• Power consumption: MAX 65W （AC100-240V）
• Standby ：＜3W
• PoE：＜65W
• LED: P: Power supply
• V: Port isolation
• E: (Ultra-far)
• Input power supply: Built-in AC：100～240V 50-60Hz 1A power supply
• Working temperatures: -10～+55°C
• Device dimensions: 190mm*130mm*35mm
• Weight: 0.9kg
• Protection level: 3KV 8/20us
• IP30

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	getfort
Parametry	Product weight with unit packaging	0.9 kg
Parametry	Number of ports	5
Parametry	EAN (GTIN)	5905817937424
Parametry	Manufacturer code	GF-106-4PG-S-65
