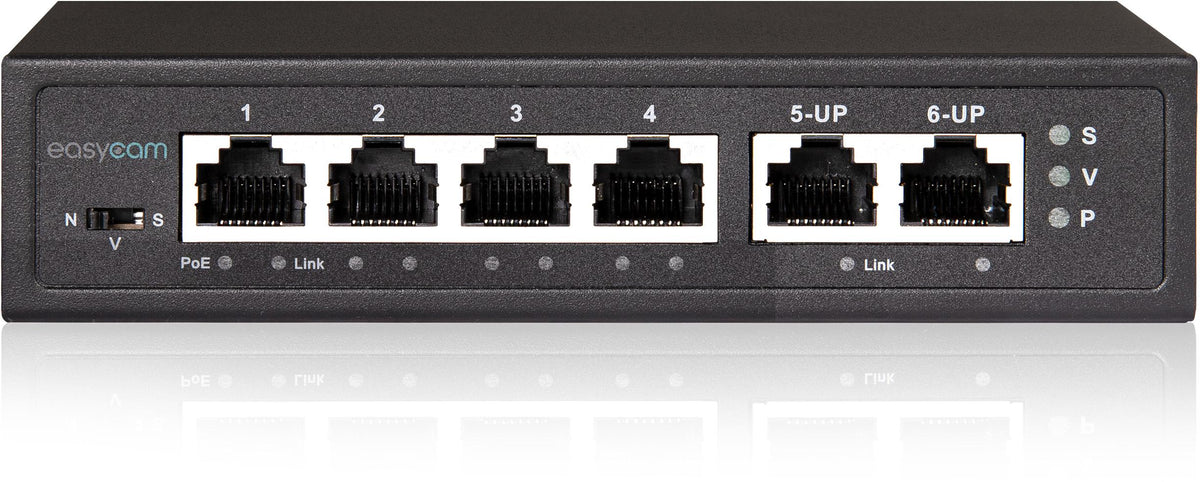

PoE komutatorius EasyCam 4FE, 2 vnt., 60W uplink

Trumpai apie prekę

Prekė: PoE komutatorius EasyCam 4FE, 2 vnt., 60W uplink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: EC-POE-SW42

Switch PoE EasyCam 4FE x POE + 2FE UPLINK 60W

✅ Power supply and transmission in one – Thanks to PoE support (IEEE 802.3af/at), each PoE port can power IP cameras, access points or VoIP phones without the need for separate power supplies. The maximum port power is 30W and the total PoE budget is 60W.

✅ Ideal for monitoring – VLAN mode enables port isolation, which protects the network against unwanted traffic and network attacks, and the Super Mode function allows data transmission over a distance of up to 250 meters – crucial for CCTV systems.

✅ Automatic stability control – The built-in watchdog continuously monitors the operation of connected devices and automatically resets the port if necessary, eliminating the risk of cameras or other network devices crashing.

✅ Reliability and resistance – Metal housing type desktop, surge protection 3KV and resistance to temperatures from 0°C to 40°C ensure stable operation even in difficult conditions.

✅ Flexible configuration – Three operating modes: Normal, VLAN and Super Mode allow you to adapt the device to different network applications.

✅ Support for Wi-Fi networks – The ability to directly power Wi-Fi access points compliant with PoE standards (802.3af/at) makes the switch perfect for expanding the wireless network. This allows you to create access points in places where there is no classic power supply, e.g. in corridors, warehouses or outside buildings.

Maximum efficiency and security of your network

EasyCam PoE Switch is a compact but extremely functional device that is an ideal solution for both video surveillance systems and the expansion of the ICT network infrastructure. With 4 PoE ports (10/100Mbps) and 2 uplink ports, it ensures efficient data transmission and power supply to network devices at the same time, eliminating the need for additional power supplies.

? IPTV systems – Power supply and data transmission for surveillance cameras, elimination of the need for additional power cables.

? Expansion of the company network – Stable and fast connections for computers, cash register terminals or VoIP phones.

? Wi-Fi infrastructure – Switch allows for efficient placement of access points, eliminating the need for additional power supplies, which facilitates the construction of wireless networks in offices, warehouses and public facilities.

? Networks in large-area buildings – The possibility of increasing the transmission range to 250m facilitates the construction of distributed network installations.

EasyCam PoE Switch is a reliable, energy-efficient and easy-to-install solution that will ensure the stability of the network both in monitoring systems and in extensive Wi-Fi infrastructures.

Technical specification

• Network standard: IEEE802.3 IEEE802.3U IEEE802.3x IEEE802.3af IEEE802.3at
• Ports: 4 x 10/100Mbps RJ45 PoE 2 x 10/100Mbps RJ54
• PoE Standard: IEEE802.3af/at (PoE Pin 12+/36-) Maximum port load: 30W
• Watchdog: Support automatic detection
• Function switch: Automatic device test with PING function, in the absence of communication, there is a reset at the output of the device.
• Transmission method: Store-and-Forward
• Switching speed: 1.6Gbps
• MAC address table: 1000
• Buffer: 768K
• Transmission range: 10BASE-TX: Cat3, 4, 5 UTP (250 meters) 100BASE-TX: Cat3, 4, 5 UTP (150 meters)
• LED status: P: Power status V: Port isolation mode (VLAN) S: Super mode (250m) PoE: PoE power supply (orange) Link: 10/100M Connection status (green)
• Usage environment: Working temperatures: 0°C - 40°C Storage temperature: -40°C – 75°C Air humidity: 10%-90%
• Weight: 0.55 kg
• Security level: 3KV 8/20 μf IP30
• Dimensions: Device: 98x145x33mm Packaging: 197x170x49mm
• Housing: Desktop
• Power supply: 110-240Vac 50/60Hz 1.1A Max
• PoE budget: 60W

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	no brand
Parametry	Product weight with unit packaging	2 kg
Parametry	Number of ports	6
Parametry	EAN (GTIN)	5908231258403
Parametry	Manufacturer code	EC-POE-SW42
Parametry	Certificates of conformity	CE
