PoE komutatorius DAHUA PFT1300, 3 jungtys, ilginimo funkcija

Trumpai apie prekę

Prekė: PoE komutatorius DAHUA PFT1300, 3 jungtys, ilginimo funkcija. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Dahua
• Modelis: 5902887024870

122,28

PFT1300

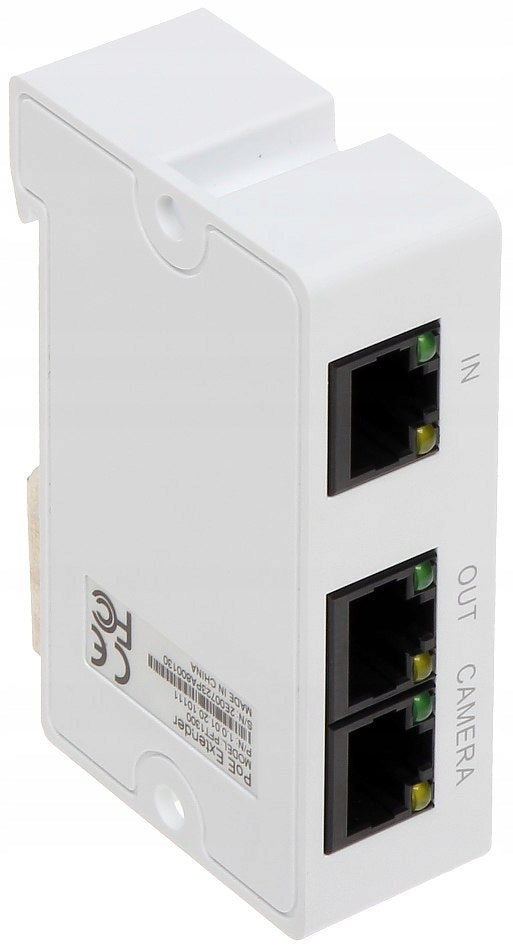

The PFT1300 allows you to connect 2 cameras with PoE power using one Ethernet line

Cascading combination of 2 extenders allows you to connect up to 3 cameras in this way

The device is powered from a PoE switch or other device compliant with this standard

Thanks to this, neither the extender nor the camera attached to it require additional power supply

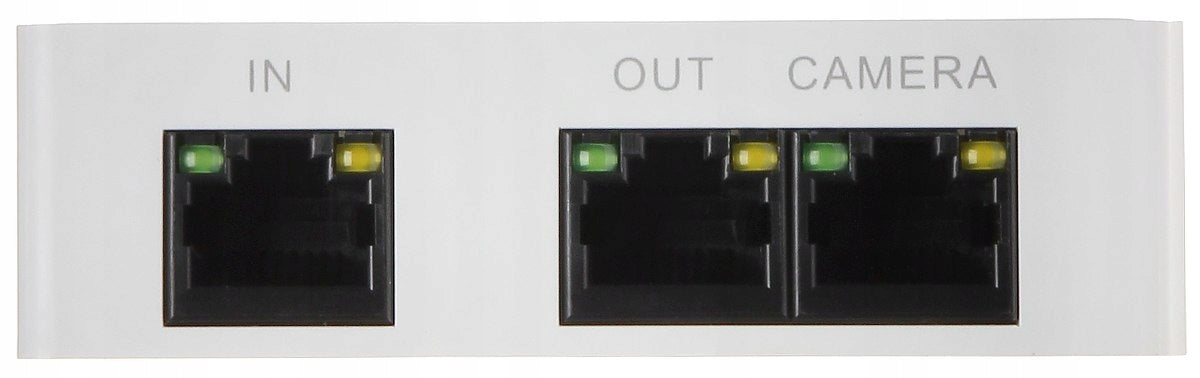

LAN ports:

• 1 x RJ45 10/100 Base-T + power input : PoE (802.3af/at),
• 2 x RJ45 10/100 Base-T + PoE (802.3af)

Management:

LEDs:

LAN, PoE

Transmission rate:

10 / 100 Mbps

Maximum output power:

• 15.4 W @ PoE port - First device
• 3 W @ PoE port - Second device in cascade

Selected features:

• Possibility of cascade connection
• The device can act as a LAN extender and PoE power supply

Power Consumption:

0.3 IN

Range:

100 m - Entrance

100 m - Exit

Security:

Anti-overvoltage

Housing:

Plastic, DIN rail mounting, TS-35

Power supply:

PoE (802.3af/at)

Operating temperature / relative humidity:

-30 ... 65 °C / 10 ... 90 %

Weight:

0.06 kg

Dimensions:

80 x 51 x 23 mm

Manufacturer / Brand:

DAHUA

3

Declaration of conformity CE

Manufacturer's data sheet EN

Instruction EN

Data act

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Dahua
Parametry	Product weight with unit packaging	0.106 kg
Parametry	Number of ports	3
Parametry	EAN (GTIN)	5902887024870
Parametry	Manufacturer code	5902887024870
Parametry	Packaging status	original
