PoE komutatorius 8 ATTE IPUPS-8-20-H kameroms, 2 vnt.

Trumpai apie prekę

Prekė: PoE komutatorius 8 ATTE IPUPS-8-20-H kameroms, 2 vnt.. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IPUPS-8-20-H

Product code: IPUPS-8-20-H

Key features and functions:

• Support for 4K Ultra HD cameras
• possibility of buffer power supply of 8 PoE 802.3at/af or PASSIVE receivers
• electronic fuse independently for each PoE channel (auto return)
• possibility of switching off power on PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W power on PoE ports (LAN_1 to LAN_8)
• easy and quick start-up without the need to configure parameters
• high efficiency of the power supply module (90%)
• two supply voltage values available: 12VDC and 48VDC
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by attaching additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any open part of the housing (raster system)
• space for 2 18Ah batteries
• space for video recorder (NVR)
• possibility of maintaining the supply of cables inside the housing
• Cable culverts on the back of the housing
• distance to wall/mounting surface

The set includes:

• 1x ABOX-H housing
• 1x AUPS-70-120-OF power supply
• 1x ASUC-100-480-OF converter
• 1x switch xPoE-10-20-OF

• No batteries included
• maximum dimensions of the recorder mounted inside the housing: 390x390x60mm

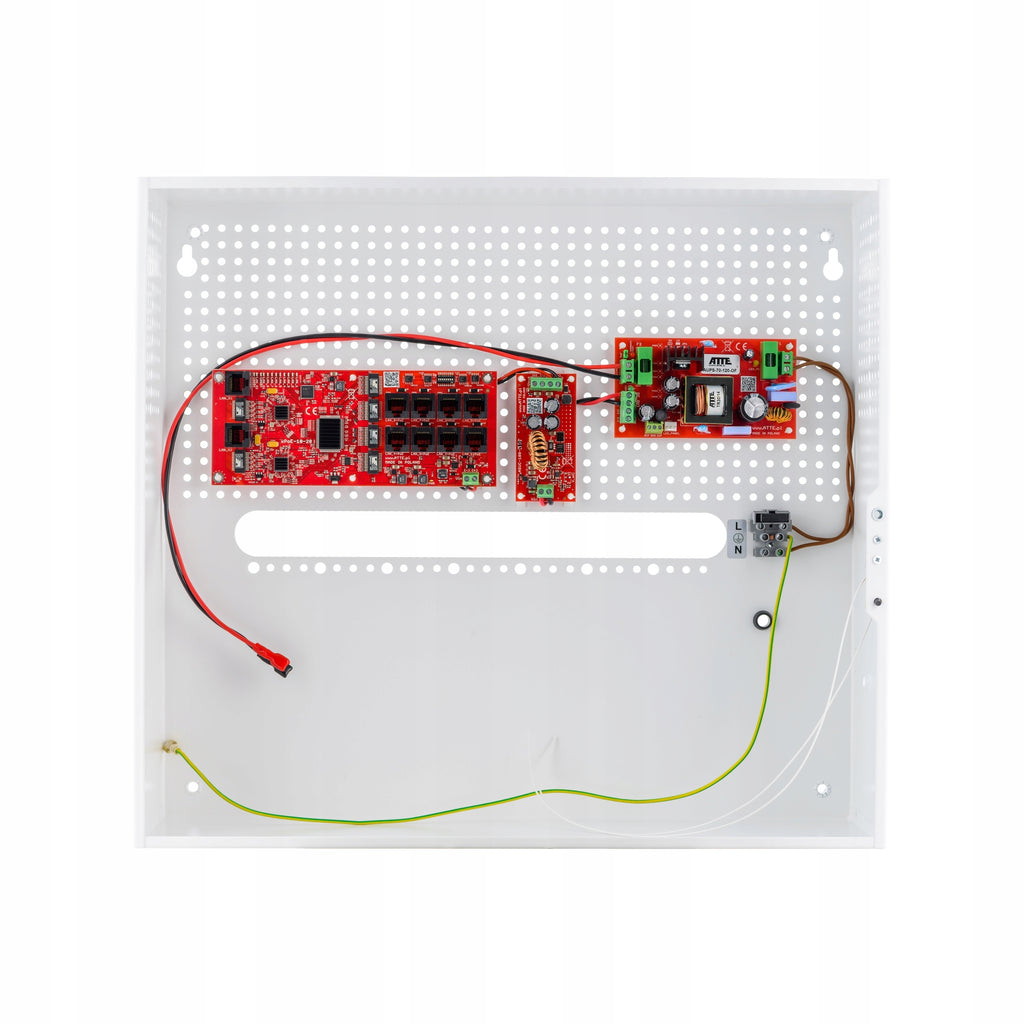

• photo with NVR shows an example configuration of devices in ABOX-H housing

Electronic protection of PoE outputs ensures continuity of operation of the entire system when short-circuiting or overloading individual power branches, and automatic return of voltage after failure. The device is used in systems requiring increased network bandwidth, such as CCTV 4K Ultra HD monitoring.

Unmanaged PoE switches with IPUPS series buffer power supply are designed to work with IP cameras and other network devices powered in PoE 802.3at/af and PoE PASSIVE standards. The inclusion of appropriate batteries ensures uninterrupted operation of the power supply system during periodic power outages.

Interior enclosures of the ABOX series are a convenient solution to the problem of aesthetic installation of devices and termination of wiring inside buildings. All housings are made of steel sheet, powder coated in semi-matte, white color. Production using a modern technological line ensures the highest quality and precision. Each case is equipped with a screw closure, removable door and opening tamper. The models available in the offer have a special hole in the pitch of 10,8mm. It is compatible with the mounting hole spacing of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any open part of the housing.

Technical data:

• LAN ports 10 RJ45 ports (8xLAN+PoE 10/100Mbps, 2x Gigabit UpLink)
• Supported PoE receivers (standard / power max) 802.3af - up to 15,4W LAN_1...LAN_8 (Vin > 48VDC) 802.3at - up to 30W LAN_1...LAN_8 (Vin > 48VDC) PoE PASSIVE - up to 40W LAN_1...LAN_8
• PoE outputs (standard / power mode) LAN_1...LAN_8 PoE PASSIVE, mode B (4,5+) (7,8-)
• PoE output protection (overcurrent / short circuit) LAN_1...LAN_8 0,75A / electronic (auto-return)
• Microswitches SW1 (DIP switch) switches 1...8 "PoE ON/OFF" - PoE power supply on LAN_1 ports...LAN_8
• AC adapter (type/type) SMPS/AUPS-70-120-OF switching power supply
• Power supply output protection (overcurrent / short circuit) 9A, electronic (power supply restart may be required after short circuit)
• Thermal protection of TSD (thermal shutdown) 130°C power supply, needs restart
• Power Supply Input Voltage Range / Input Protection 180...240VAC / T3,15A Fuse F1
• Power supply output (continuous) 72W shared dynamically with battery charging (priority has power output)
• Power Supply Efficiency 90% @60W
• Power supply output voltage 12V +/-15%
• PoE output voltage (camera power supply) 48V +/- 2%
• Power budget for PoE outputs (maximum) 65W
• Batteries / space in housing 12V battery (gel or AGM) / 2x18Ah
• Single battery charging current 1A/2A (selected by JP1 jumper)
• Battery circuit protection F6,3A fuse F2
• Battery protection battery disconnection at voltage below 10,2V
• Power supply signaling outputs / load capacity / OUF type - no output voltage, ACF - no voltage 230AC / 50mA / OC (open collector)
• Wall Mount Housing, 6mm Mounting Holes
• Operating temperature range -10°C...+40°C
• Installation of devices inside the housing system hole 4,8mm in pitch 10,8mm
• Housing (type / material / color / protection / cable passes) ABOX-H / metal / white / tamper opening / back of housing, distance to the wall
• Dimensions / net weight / degree of protection 400x450x140mm / 4,4kg / IP20

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Atte
Parametry	Product weight with unit packaging	4.816 kg
Parametry	Number of ports	8
Parametry	Number of LAN (RJ-45) ports	8
Parametry	LAN port operating standard	10/100/1000 Mbps
Parametry	EAN (GTIN)	5902143690436
Parametry	Manufacturer code	IPUPS-8-20-H
Parametry	Certificates of conformity	CE
