PoE jungiklis ULTIPOWER 0064afat, suderinamas su 802.3af/at

Trumpai apie prekę

Prekė: PoE jungiklis ULTIPOWER 0064afat, suderinamas su 802.3af/at. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: 0064afat

Product Code: 0064AFAT

Switch PoE ULTIPOWER 0064afat 6xFE(4xPoE), 802.3af/at 65W

• 6 ports 10/100 Mbps
• 4 PoE ports, data transfer and power supply of the device using one cable,
• No assembly or configuration is required,
• Single PoE port transfers power up to 30W
• Maximum total power of powered devices 65 W
• Support for PoE-powered devices operating in accordance with IEEE802.3af/at standard
• Support auto-learning and auto-aging MAC addresses (1K size table)
• LEDs informing about the status and speed of the connection, its activity and power supply
• Extended function for powering devices connected by twisted pair with a length of up to 250 m.

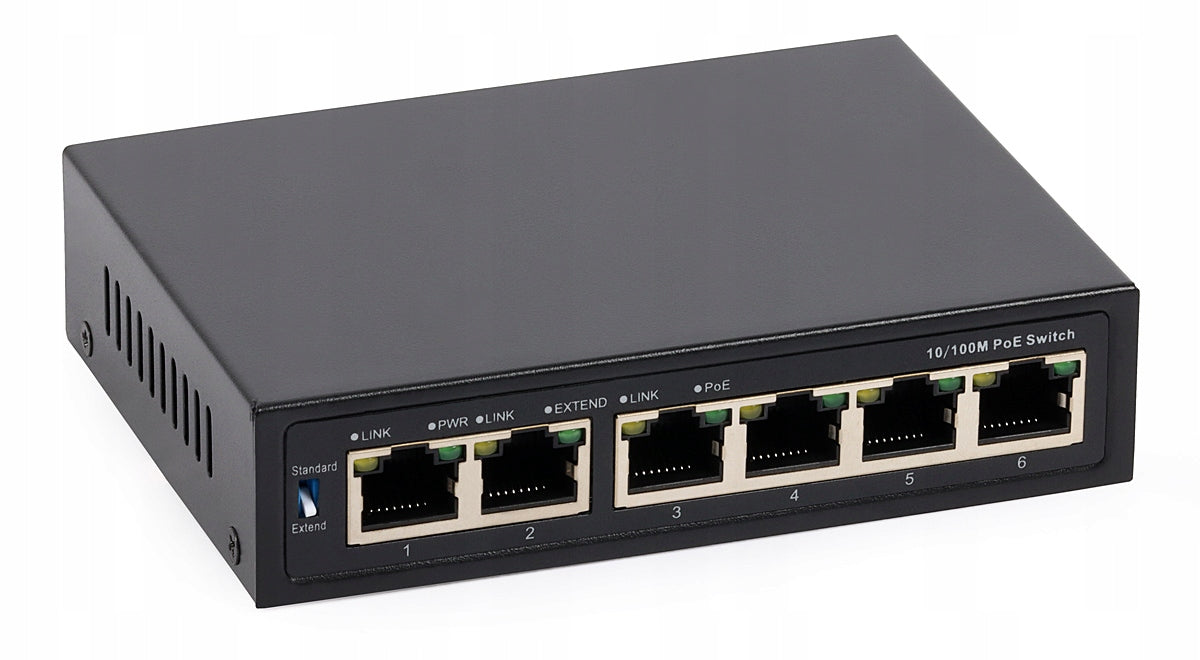

The ULTIPOWER 0064afat PoE Switch is a desktop device that provides seamless network transmission. It allows you to establish connections at speeds of 10 and 100Mbps. It has 6 RJ45 ports supporting automatic negotiation of connection speeds. 4 of them support Power over Ethernet (PoE). The switch automatically detects PD devices operating in the IEEE 802.3af or 802.3at standard and supplies them with power. This allows you to extend the range of the network in places where there is no access to sockets or power lines, and where there is a need to place access points, IP cameras, IP phones, etc. The maximum total power of powered devices must not exceed 65 W.

Technical data:

• Name Switch PoE ULTIPOWER 0064afat
• Model 0064afat
• Purpose Switch for home, Switch for office, Switch PoE
• Manufacturer ULTIPOWER
• Device interfaces
• Ethernet ports number of ports 6
• type of Fast Ethernet ports
• 10/100 Mb/s 6
• PoE 10/100 Mb/s 4
• Optical port SFP slot No
• Console port No
• Properties of PoE
• PoE Yes
• PoE standard 802.3af, 802.3at
• Power budget 65 W
• Maximum power for port 30 W
• Priority for PoE port No
• PoE Auto Check No
• Extend mode Yes
• Hardware properties
• Power supply 48...57 V DC
• Number of fans None
• Dimensions 120 x 87 x 30 mm
• Assembly method Desktop
• Redundant power No
• Certificates CE/FCC

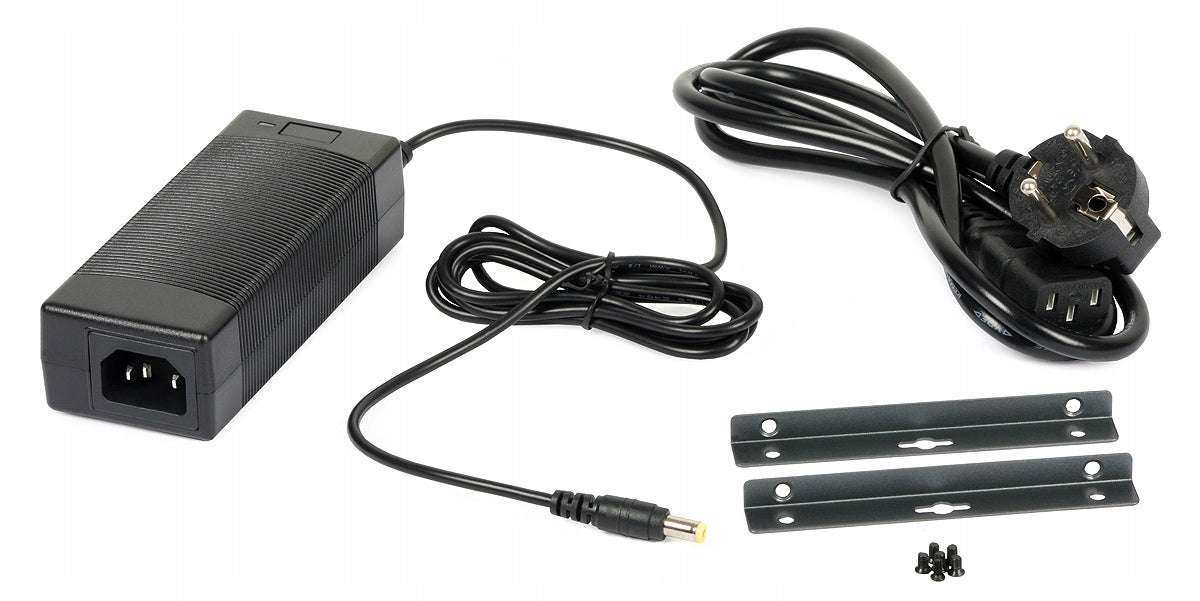

• Package Content Manual, Switch, Power Supply
• Working environment
• Temperature of work 0...+40 ℃
• storage -40...+70 ℃
• Humidity of air 10...90 %
• storage 5...90 %
