PoE jungiklis 2 kameroms ATTE IPUPS-5-11-XL2

Trumpai apie prekę

Prekė: PoE jungiklis 2 kameroms ATTE IPUPS-5-11-XL2. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: IPUPS-5-11-XL2

Product code: IPUPS-5-11-XL2

Most important features and functions:

• possibility of buffer power supply of 5 PoE 802.3at/af or PASSIVE receivers
• possibility of data transmission at 280m (in Long Range mode)
• electronic fuse independently for each PoE channel (auto return)
• possibility of switching off the power supply on selected PoE ports
• clear optical indication of power supply and data transmission status
• up to 40W of power on PoE ports
• easy and quick start-up without the need to configure parameters
• high efficiency of the power supply module (90%)
• two supply voltage values available: 12VDC and 48VDC
• easy and quick installation service thanks to modular design
• easy expansion and scaling of the system by attaching additional xPoE / IP and IPB / IPUPS series switches
• installation of modules in any open part of the housing (raster system)
• mounting plate with bend, "shelf" for 7Ah battery
• cover and housing connected by a fishing line for ease of service
• possibility of maintaining the supply of cables inside the housing
• cable input through glands mounted in the housing: 5xM16 and 1xM20
• 4 brackets included for mounting the housing without violating the IP56 degree of protection
• optional ADD-001 adapter for easy mounting on poles or lanterns

The set includes:

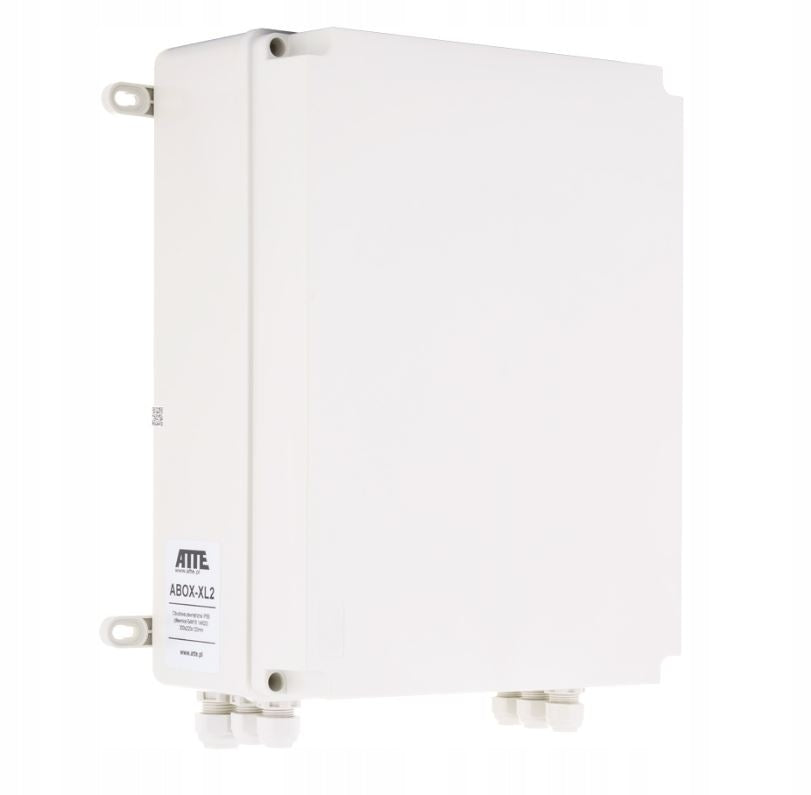

• 1x ABOX-XL2 housing
• 1x AUPS-70-120-F power supply
• 1x ASUC-50-480-OF converter
• 1x switch xPoE-6-11-OF

• No battery included

Electronic protection of PoE outputs ensures continuity of operation of the entire system at short circuit or overload of individual power branches, and automatic return of voltage after failure. The “Long Range” mode allows you to increase the transmission range to 280m using a standard UTP twisted pair cable. Unmanaged PoE switches with IPUPS series buffer power supply are designed to work with IP cameras and other network devices powered in PoE 802.3at/af and PoE PASSIVE standards. The inclusion of appropriate batteries ensures uninterrupted operation of the power supply system during periodic power outages.

The ABOX series external enclosures provide a convenient solution to the problem of protection of devices and cable connections installed in outdoor conditions. High-quality plastic provides resistance to UV radiation and other adverse weather conditions. The models available in the offer have been equipped with mounting plate, having a special hole in the pitch of 10,8mm. It is compatible with the mounting hole spacing of built-in modules. The system solution allows for vertical or horizontal installation of selected devices in any part of the mounting plate.

Technical data:

• LAN ports 6 RJ45 10/100Mbps ports (5xLAN+PoE, 1xUplink)
• Supported PoE receivers (standard / power max) 802.3af - up to 15,4W LAN_1...LAN_5 802.3at - up to 30W LAN_1...LAN_5 PoE PASSIVE - up to 70W LAN_5 / up to 40W LAN_1...LAN_4
• PoE outputs (standard / power mode) LAN_1...LAN_5 PoE PASSIVE, mode B (4,5+) (7,8-)
• PoE output protection (overcurrent / short circuit) LAN_1...LAN_4 0,75A / electronic (auto-return) LAN_5 1,25 / electronic (auto-return)
• Microswitches SW1 switch 1 "MODE" - switch mode switches 2...6 "PoE ON/OFF" - PoE power supply on LAN_1 ports...LAN_5
• Operating mode "Standard" switch 1 "MODE" in position OFF LAN_1...LAN_6 - range up to 100m (10/100Mbps)
• Operating mode "Long Range" switch 1 "MODE" in position ON LAN_1...LAN_4 - range up to 280m (10Mbps) LAN_5...LAN_6 - range up to 100m (10/100Mbps)
• AC adapter (type/type) SMPS/AUPS-70-120-F switching
• Power supply output protection (overcurrent / short circuit) 9A, electronic (power supply restart may be required after short circuit)
• Thermal protection of TSD (thermal shutdown) 130°C power supply, needs restart
• Power Supply Input Voltage Range / Input Protection 180...240VAC / T3,15A Fuse F1
• Power supply output (continuous) 72W shared dynamically with battery charging (priority has power output)
• Power Supply Efficiency 90% @60W
• Power supply output voltage 12V +/-15%
• PoE output voltage (camera power supply) 48V +/- 2%
• Power budget for PoE outputs (maximum) 50W
• Batteries / space in housing 1x 12V battery (gel or AGM) / 1x7Ah
• Battery charging current 1A/2A (selected by JP1 jumper)
• Battery circuit protection F6,3A fuse F2
• Battery protection battery disconnection at voltage below 10,2V
• Power supply signaling outputs / load capacity / OUF type - no output voltage, ACF - no voltage 230AC / 50mA / OC (open collector)
• Wall Mount Housing, Mounting Brackets
• Installation of devices inside the housing system hole 4,8mm in pitch 10,8mm
• Operating temperature range -25°C...+40°C
• Housing (type / material / color / cable passes) ABOX-XL2 / plastic / RAL7035 grey / glands 5xM16 and 1xM20
• Dimensions / net weight / degree of protection 300x220x120mm / 1,64kg (without wrapping) / IP56

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Atte
Parametry	Product weight with unit packaging	1.68 kg
Parametry	Number of ports	6
Parametry	Number of LAN (RJ-45) ports	6
Parametry	LAN port operating standard	10/100 Mbps
Parametry	EAN (GTIN)	5902143690429
Parametry	Manufacturer code	IPUPS-5-11-XL2
Parametry	Certificates of conformity	CE,WEEE
