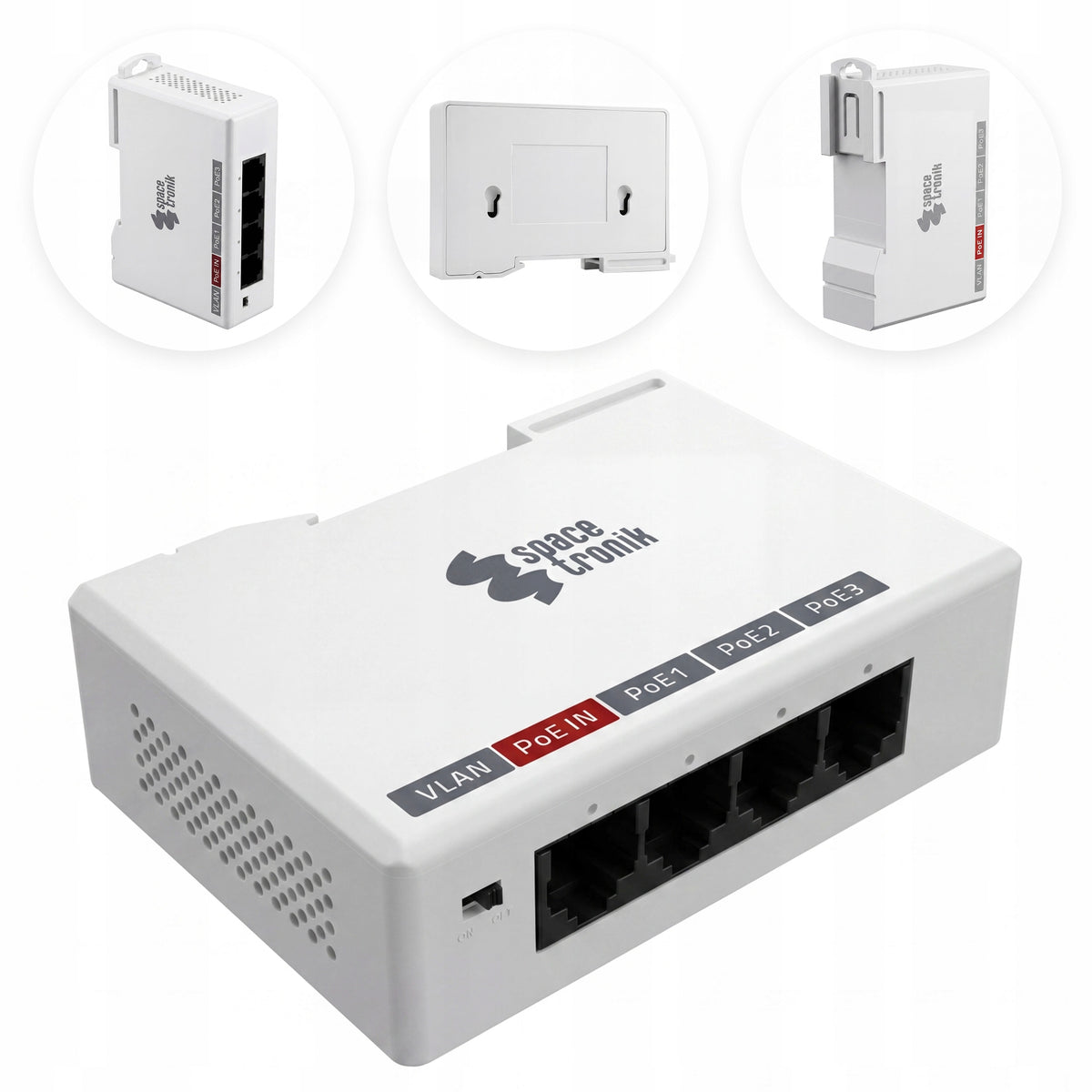

PoE gigabit jungiklis su 3 prievadais DIN bėgiui Spacetronik

Trumpai apie prekę

Prekė: PoE gigabit jungiklis su 3 prievadais DIN bėgiui Spacetronik. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Spacetronik
• Modelis: SP-EPOEG32

SKU: SP-EPOEG32

Key Features

☑ Power up to 3 cameras with 1 LAN cable: You save money and time on running new cables. The device cleverly splits one main signal, delivering power and data to three independent points.

☑ Smooth 4K image with 1000 Mbps bandwidth: Eliminate jams and transmission delays. Full Gigabit Ethernet standard allows for stable operation of advanced monitoring and access points.

☑ Additional 100 meters of range without loss of speed: You can easily reach distant points in the hall or plot with a signal. The device receives and amplifies data packets, acting as a reliable repeater.

☑ Automatic reset when suspension is detected with Watchdog: Save time and fuel on service commutes. The extender itself detects the suspended device and automatically restores its power supply.

☑ Hardware VLAN switch isolating ports: You increase the security and stability of the entire system. Port separation effectively blocks broadcast storms, protecting the network from paralysis, one point failure.

☑ 4 mounting options including DIN rail: You gain complete freedom in the organization of telecommunication space. You can hang the device on the wall, hook, integrate it with a DIN rail or lay it flat on a shelf.

☑ 25W energy supply for 3 standard cameras: You can power dome monitoring or VoIP phones with confidence, using intelligent and fully secure PoE power allocation.

☑ Silent operation 0 dB without cumbersome fans: You can install the equipment directly in your office or home space. Passive cooling guarantees absolute silence.

☑ Ready to work in 1 minute: You save time on tedious setup. You simply plug in the cables and the extender automatically negotiates the optimal speed and power supply.

No complicated configuration

The device automates all technical parameters, which saves time for both professionals and amateurs of Smart Home.

• Auto-negotiation: Automatically selects the maximum speed for each device.
• Auto MDI/MDIX: Automatically recognizes the type of cable (you do not need to check whether it is straight or patched).
• Ready to work: Just plug in the cables – the rest will be done by built-in algorithms.

Home Ecosystem Smart Home

Efficient home infrastructure node. The device integrates power supply and data transmission for security systems (cameras, video intercoms) and WiFi networks.

Eliminates the need for complex electrical installations by offering stable plug-and-play connectivity for your smart home.

Non-invasive Expansion

Using tonly one existing power cord, it allows you to connect and power up to three additional devices over a further distance of 100 meters.

• Saving time and costs: No need to forge walls and run additional cables.
• PoE power: The device draws power directly from the main switch.
• Universality: The ideal solution for compacting Wi-Fi networks in offices and expanding monitoring in warehouses.

Full freedom of installation

Thanks to its compact construction and silent operation, the extender will work both in professional telecommunication cabinets (installation on DIN rail), as well as at home or office.

The device offers full freedom of installation – you can:

• lay flat,
• screw to the wall,
• hang on the integrated handle.

Specification

Contents of the set:

• 1x PoE Extender
• 1x instructions

Basic information:

• Brand: SPACETRONIK
• Product Type: Gigabit Ethernet PoE Extender

Ports and network:

• Input: 1x PoE IN port (1 Gbps)
• Outputs: 3x PoE OUT ports (1 Gbps)
• Speed support: 10/100/1000 Mbps (auto-adaptive)
• Automatic cable detection: Auto MDI/MDIX

Power Supply and PoE:

• Standards: IEEE 802.3af (15.4W), IEEE 802.3at (30W)
• Output voltage: DC 44-57V
• maximum power per port: < 30W
• Total power budget: 25W

Performance:

• bandwidth (Switching Bandwidth): 8 Gbps
• packet forwarding: 5.952 Mpps
• MAC array: 2K addresses
• Transmission Mode: Store and Forward

Functions and operating modes:

• VLAN support
• PoE extender / relay mode
• flow control: full duplex (IEEE 802.3x), half duplex (Backpressure)
• indicators: LEDs (operation status and diagnostics)
• OFF mode (normal): communication between all ports, range up to 100 m
• ON mode (VLAN): PoE ports separated, communication only with uplink, active PoE watchdog

Dimensions and design:

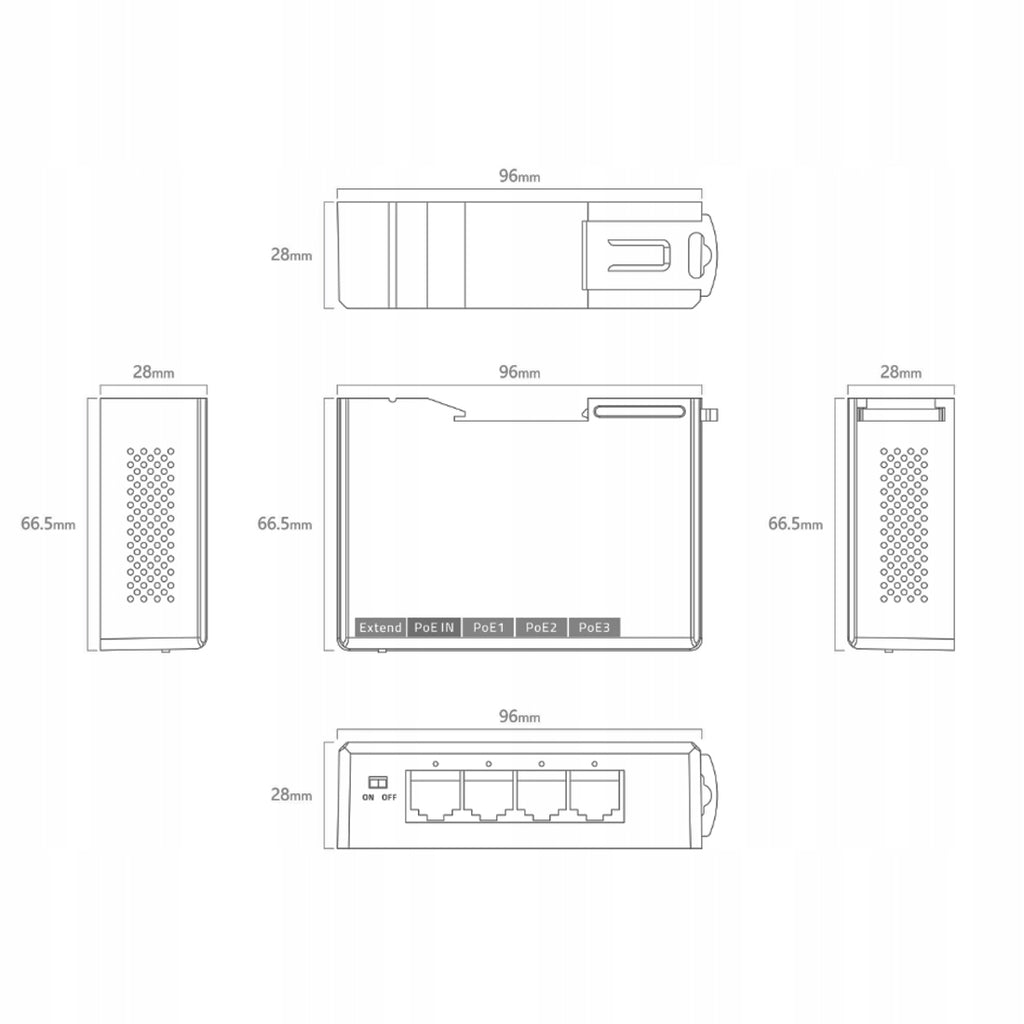

• dimensions: 96 x 66.5 x 28 mm
• Net weight: 0.078 kg
• installation: desk, wall, DIN rail, hook
• cooling: passive (no fan)

Working conditions and protection:

• Operating temperature: 0 ~ 40°C
• Storage temperature: -40~70°C
• working humidity: 10-90%
• storage humidity: 5-95%
• Surge protection: 4KV (differential mode)

Applications:

• Development of IP monitoring networks
• Wi-Fi access points power supply
• Smart Home systems and video intercoms
• office and storage installations

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Spacetronik
Parametry	Number of ports	3
Parametry	EAN (GTIN)	5907100021841
Parametry	Manufacturer code	SP-EPOEG32
Parametry	Packaging status	original
