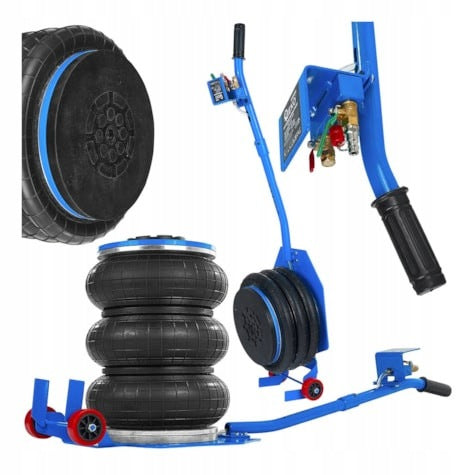

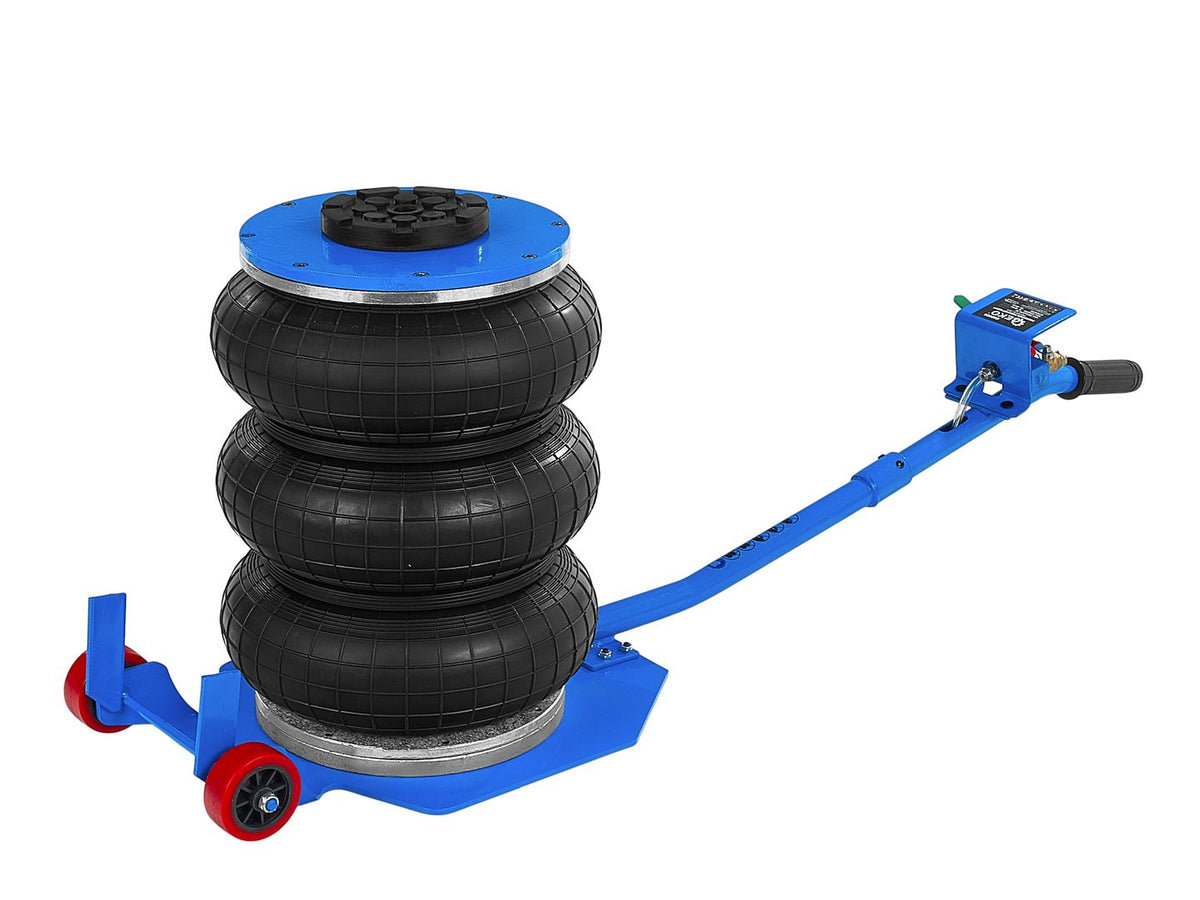

Pneumatinis keltuvas GEKO 6T

Trumpai apie prekę

Prekė: Pneumatinis keltuvas GEKO 6T. Kategorija: Pneumatiniai keltuvai.

• Gamintojas: Geko
• Modelis: G02059

Professional 6T Pneumatic Air Jack for Workshop and Garage

Looking for a robust 6T pneumatic air bag jack that ensures fast, safe, and stable vehicle lifting? This model is designed for intensive work in car workshops, tire service centers, and garages. With a lifting capacity of up to 6000 kg, three durable pneumatic air bags, and a lifting range of 150–400 mm, it's perfect for everyday car repairs and maintenance.

The jack uses compressed air, allowing it to lift vehicles quickly and with minimal operator effort. Simply connect to your pneumatic system, and control is conveniently managed via valves.

✅ Lifting Capacity up to 6000 kg (6 tons)

✅ Lifting Range 150–400 mm

✅ Three Durable Pneumatic Air Bags

✅ Stable Steel Construction

✅ Convenient Control Valves

✅ Transport Wheels for Easy Movement

✅ Rubber Pad to Protect Lifting Point

✅ Operates at 6–12 bar Pressure

✅ Burst Pressure up to 30 bar

This pneumatic air bag jack operates much faster than traditional hydraulic jacks that require manual pumping.

After connecting compressed air, the air bags lift the vehicle instantly, reducing time for wheel changes, suspension repairs, brake system work, or under-car servicing.

This solution is especially valuable for workshops where speed and work efficiency are crucial.

A maximum load capacity of 6 tons allows for safe servicing of:

• Passenger cars,
• SUVs,
• Vans,
• Light commercial vehicles,
• Off-road vehicles.

The generous lifting capacity provides increased stability when lifting heavier vehicles.

This working range makes the jack suitable for most vehicles.

150 mm minimum height

allows the jack to fit under many cars.

400 mm maximum height

provides sufficient clearance for service work.

The use of three strong pillows guarantees:

• uniform lifting,
• high stability,
• high durability,
• smooth operation even under heavy loads.

The diameter of each cushion is 330 mm , which provides an adequate support surface.

At the top of the lift there is a rubber pad with a diameter of 120 mm , which:

• increases adhesion,
• reduces the movement of the vehicle,
• Protects support points from damage.

An additional wide ring pad further improves stability during operation.

The lift is equipped with two convenient valves enabling:

• quick filling of pillows,
• controlled exit of the vehicle.

The operator retains full control over the entire lifting process.

The sturdy transport wheels and ergonomic handle allow you to easily move the lift between workstations.

There is no need to move the device – just slightly lift the handle and roll the lift.

The body is made of durable steel covered with a durable varnish coating.

Rigid construction ensures high resistance to intensive use and stable operation even at maximum load.

The lift works with most standard pneumatic systems used in workshops.

The working range of 6 to 12 bar allows you to achieve full performance of the device without the need for specialized compressors.

Pneumatic cushions are characterized by burst pressure 30 bar , which proves their high strength and high safety during operation.

• Type: Pneumatic Pillow Lift
• Number of Pillows: 3
• Maximum lifting capacity: 6000 kg
• Minimum height: 150 mm
• Maximum height: 400 mm
• Cushion diameter: 330 mm
• Diameter of rubber washer: 120 mm
• Operating pressure: 6 – 12 bar
• Breaking pressure: 30 bar

• 6T Pneumatic Pillow Lift
• Rubber pad for support point
• Additional ring washer
• Transport wheels
• Handle with control valve system
• Pneumatic quick coupler
• User manual

Why choose this pneumatic jack?

It is a professional cushion lifter 6 tons , which combines high load capacity, fast operation and solid workmanship. It is perfect for both professional car workshops, vulcanization services, and home garages. With its strong steel construction, three pneumatic cushions, and convenient control, it ensures safe and comfortable operation for a long time.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Geko
Parametry	Manufacturer code	G02059
Parametry	EAN (GTIN)	5903418305123
Parametry	Lifting capacity	6000 kg
Parametry	Minimum lifting height	150 mm
Parametry	Maximum lifting height	400 mm
