Plokštelių grotuvo įdėklas Ortofon 2M-Red su priežiūros priedais

Trumpai apie prekę

Prekė: Plokštelių grotuvo įdėklas Ortofon 2M-Red su priežiūros priedais. Kategorija: Grojaračių galvutės.

• Gamintojas: Ortofon
• Modelis: 2M Red

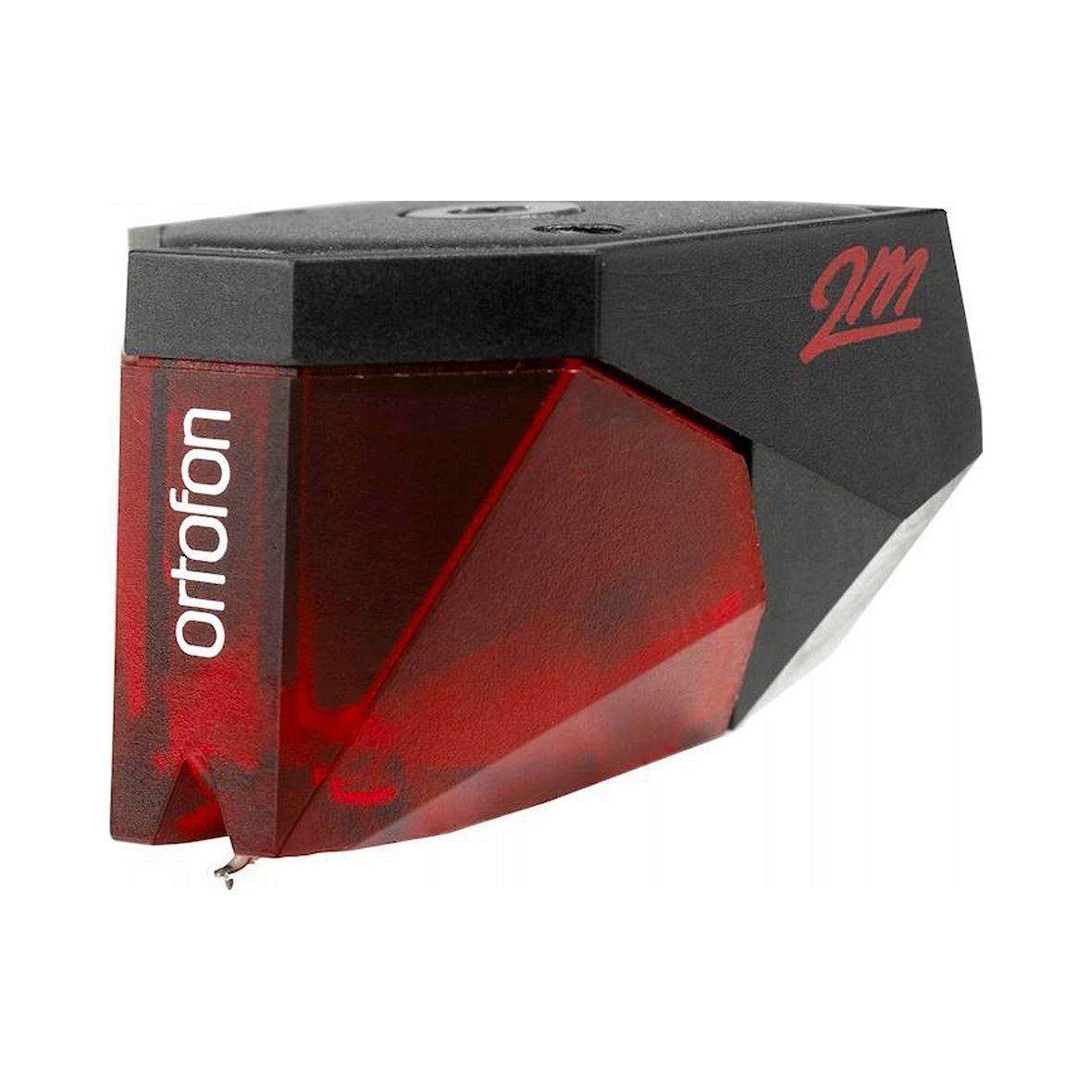

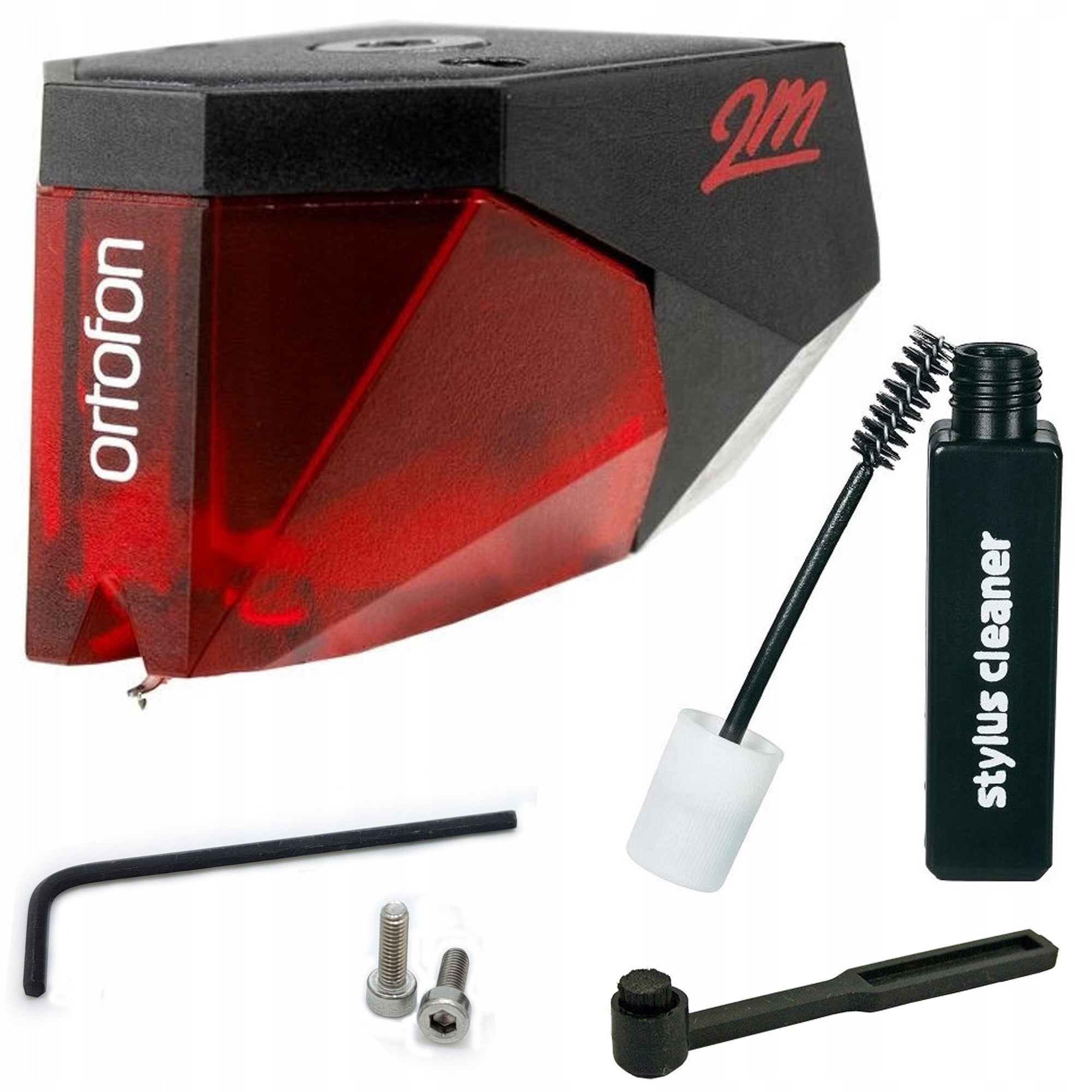

ORTOFON 2M RED PHONO CARTRIDGE MM

+ CARE ACCESSORIES

With 2M Red, you'll hear the music come to life on your own terms. It’s like taking a step towards the music itself. This is the basic insert in the series, but what an entry. With 2M Red, you'll hear the music come to life on your own terms. It’s like taking a step towards the music itself. This is our basic insert from this series, but what. 2M Red delivers an open, dynamic sound with a slight hint of warmth.

Key features

The 2M Red model is equipped with a Elliptical diamond tip and pole pins with a copper wire. An improved engine was used, which guarantees an increased output power of 5,5 mV, optimized sound reproduction and high precision of sonic reproduction.

The body of the insert is made of Hopelex, characterized by high rigidity and elimination of unwanted resonances.

The special design has been adapted for easiness of insert assembly, taking into account both weight and size, which allows for a seamless fit to most turntables available on the market. The 2M series is characterized by excellent compatibility with various playback systems and a wide range of phono preamplifiers.

2M Red is a universal insert, characterized by an open, dynamic sound with a delicate touch of warmth.

Insert mounting method from the 2M series

1. Before starting work, remove the needle module from the body along with the needle cover. Handle all parts carefully.

2. Pay attention to the colors and channel markings on the back side of the body to properly connect the wires with the turntable arm.

• White L+ (white)
• Red R+ (red)
• Green RG (green)
• Blue LG (blue)

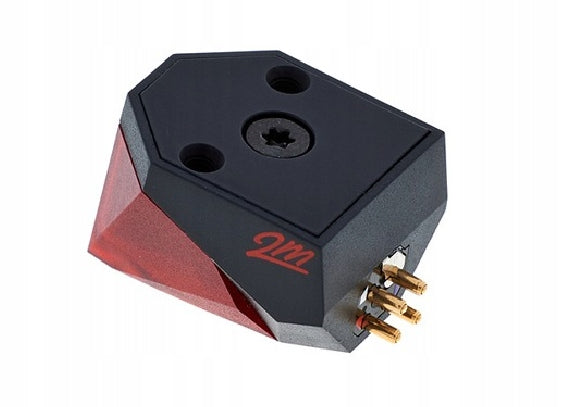

3. The set includes a pair of screws with a thread length of 5 mm. The supplied screws should be used with headshells (phono head) with a thickness of max. 3,5 mm. The 2M threaded mounting plate is 3 mm thick.

4. Position the turntable arm parallel to the surface of the record, adjusting the anti-skating and needle pressure according to the cartridge recommendations and the instruction manual of the turntable (arm).

Technical specification:

• Output voltage at 1000 Hz, 5cm/sec: 5.5 mV
• Channel Balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency Response 20-20000 Hz: +3 / -1 dB
• Frequency range at -3 dB: 20-22000 Hz
• Tracking capacity at 315Hz with recommended needle pressure: 70 µm
• Dynamic, lateral compatibility: 20 µm/mN
• Needle Grind/Type: Elliptical
• Needle tip radius: r/R 8/18 µm
• Pressure range: 1.6-2.0 g (16-20 mN)
• Recommended pressure: 1.8 g (18 mN)
• Tilt Angle: 20°
• Internal Impedance, DC Resistance: 1.3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacity: 150-300 pF
• Insert color, body/needle: black/red
• Weight: 7.2 g
• Replaceable needle: yes

Carbon toothbrush for phono needle.

It's so simple... cleaning the tip of the needle is done by lowering the needle on the brush, for a better effect you can gently press the insert and apply a special liquid.

We recommend regular treatment - this translates directly into the condition of the needle and plates.

Professional liquid for cleaning turntable stylus for wet cleaning.

It will allow you to easily remove dirt and contaminants from the turntable stylus. This will let you enjoy fantastic sound without crackles and hiss.

Thanks to high-quality ingredients, Analogis liquid allows you to remove even the toughest dirt, while remaining safe for the stylus.

The convenient 20ml bottle is equipped with a handy brush with soft bristles, which significantly makes applying the solution easier.
