Plastiko virinimo aparatas HQ 858D II, 960V, su 6 plastikų rinkiniu

Trumpai apie prekę

Prekė: Plastiko virinimo aparatas HQ 858D II, 960V, su 6 plastikų rinkiniu. Kategorija: Plastiko suvirinimo aparatai.

• Gamintojas: Technet
• Modelis: Zestaw spawarka + zgrzewarka 858D II 960V

❗ WARRANTY AND POST-WARRANTY SERVICE❗

CODE: Z13 CODE: SZ2

⭐858DII welding machine with LED display⭐50W - 960V⭐ stapler

⭐ Long nozzle for 45° angled welding in hard-to-reach places

⭐ The most popular plastics - 6 types of 300g. Each in 2 shapes: strip, triangle

⭐ Staples for joining stainless steel plastics - 4 types 500pcs.

⭐ Guide "Welding plastics" in paper version

⭐ BUT nozzle for fast towed welding

⭐ Grids strengthening the connection place 2pcs.

⭐ Solid staple cutters

The 858D II plastic welding machine is the second generation of 858D series welding machines, which have gained recognition necessary in the workshop and in plastic repairs. With an improved air blowing handle and a new metal housing, they are the best solution on the plastic welding machine market.

• thanks to the light weight of the hot air flask, welding does not cause fatigue
• electronic temperature control
• stepless regulation of air blowing

The 858D II welding machine with smooth temperature control, air blowing and temperature display is also suitable for shrinking and soldering electronic and electrical connections and connectors.

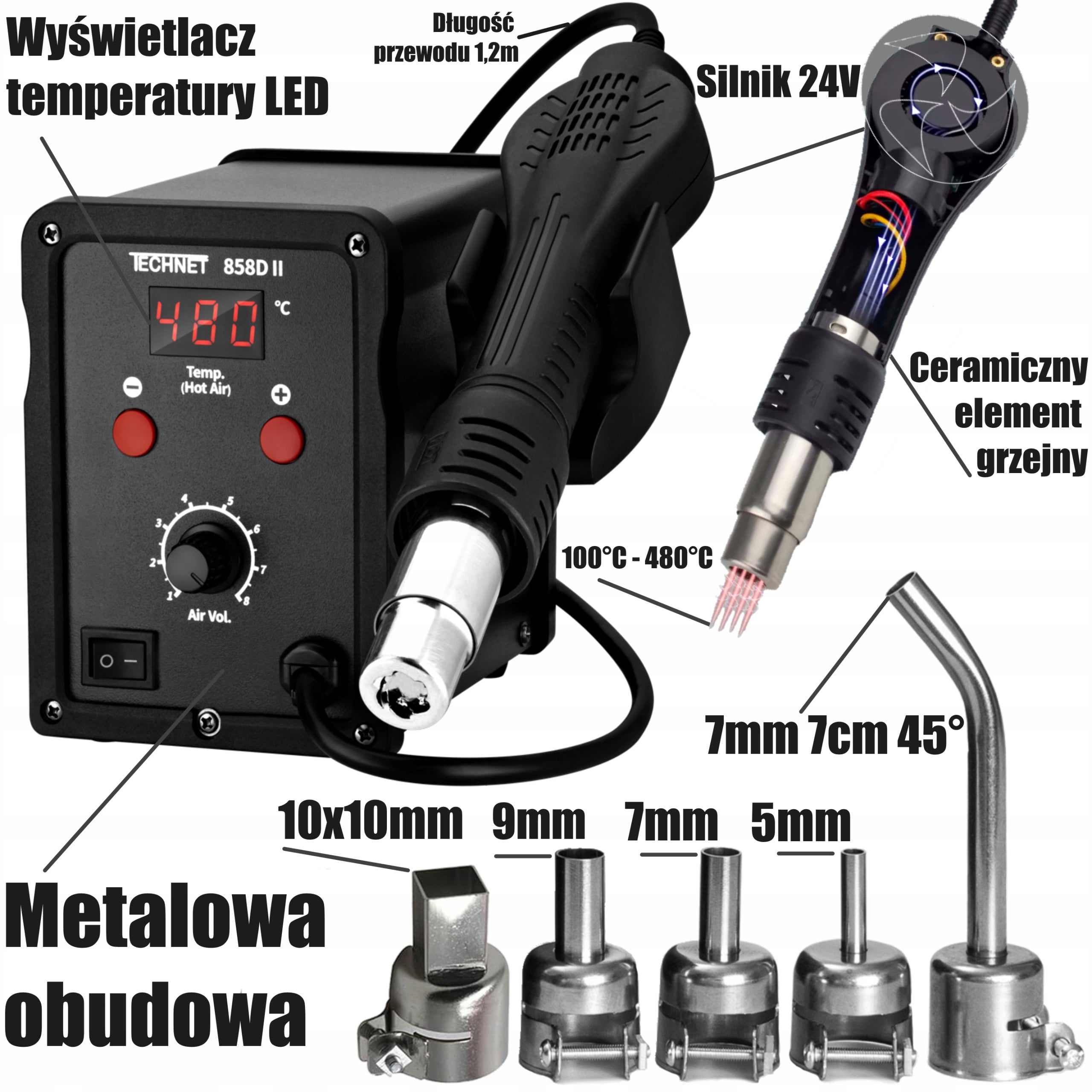

✅ Technical data:

• Power consumption: 700W HOT-AIR
• Air jet capacity: 120 l/min
• Brushless motor
• Air temperature: 100°C - 480°C
• Ceramic heating element
• Weight: 1,2 kg
• Set and real temperature display LED
• Power cord length: 1,3m
• Cable length with flask: 1,2m

• The hot air station has a sensor in the flask stand, which after putting the flask on the stand cools the heating element and then turns it off (the so-called WATCHING state). Thanks to this, the user saves energy, which allows for longer life of the heater, increased safety and comfort of work

✅ Process

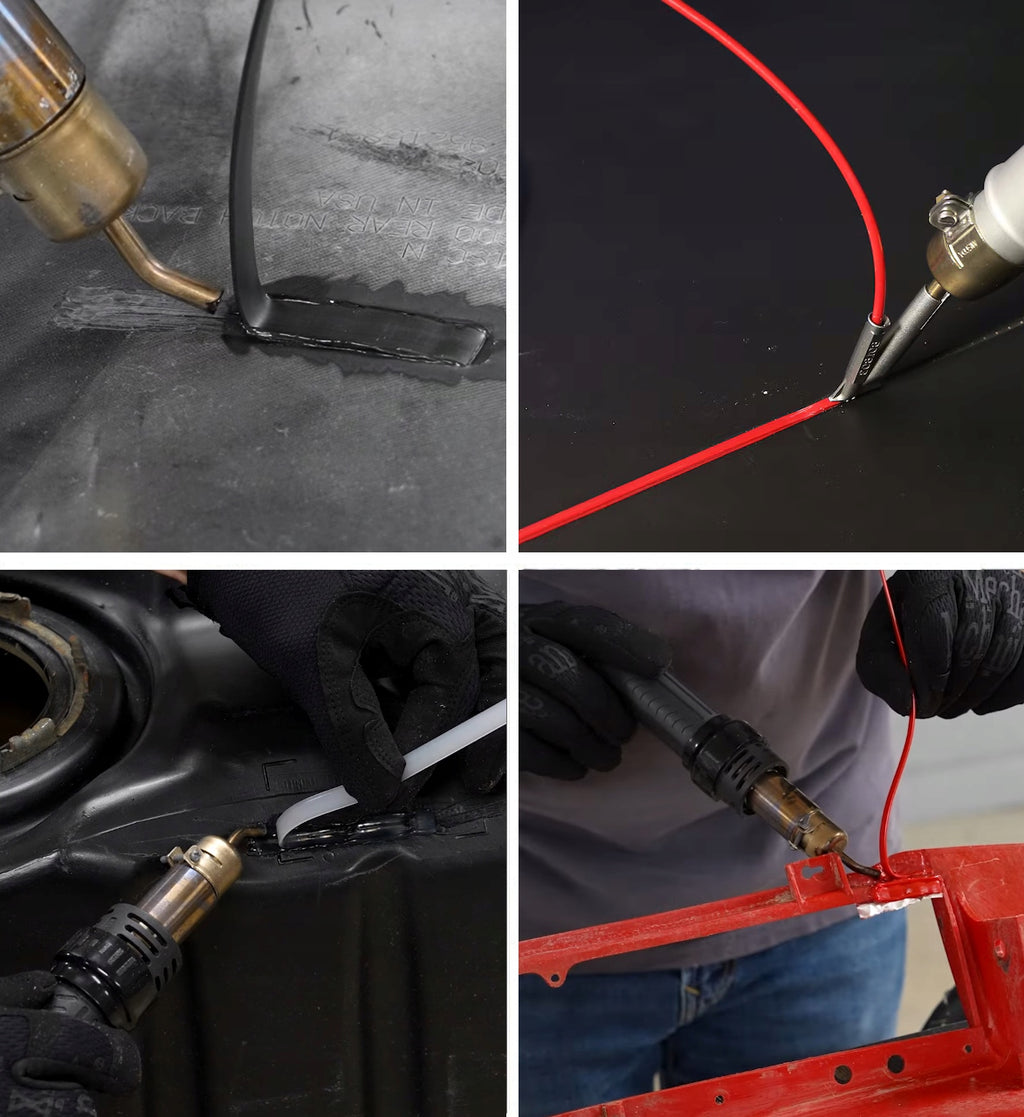

It is carried out by heating the plastic profile and the surface of the welded element, through hot air, to the temperature at which it will be plasticized. The connection is formed when the molten profile is pressed into the molten welded element. The clamping force should be about 2kg.

A well-made weld is characterized by the same physical properties as a homogeneous material.

✅ Application:

For the repair of all elements made of thermoplastic plastics, i.e. - plastics that soften during heating and harden after cooling.

With the help of a plastic welding machine, you can weld: bumpers, housings, covers, household appliances, spoilers, batteries, headlights, all kinds of tanks, radiators, garden equipment, etc.

Yihua 960V stapler - is a simple and reliable stapler for repairing plastic elements. It supports repair after welding or gluing heavily loaded or mechanically vibrating elements.

Ideally, it serves as a device for pre-joining plastics before welding, gluing or annealing. It replaces all other, less effective ways of joining materials, which is especially important when repairing components. It significantly speeds up and streamlines the repair process.

✅ Technical data:

• Voltage: 220-240 V
• Input Current: 0,5A
• Output voltage: 1,2V
• Output current: 15A
• Power: 50W
• Temperature: up to 750°C
• Power cord length: 130 cm
• Workplace lighting: two LEDs
• Weight: 0,44kg

✅ Process

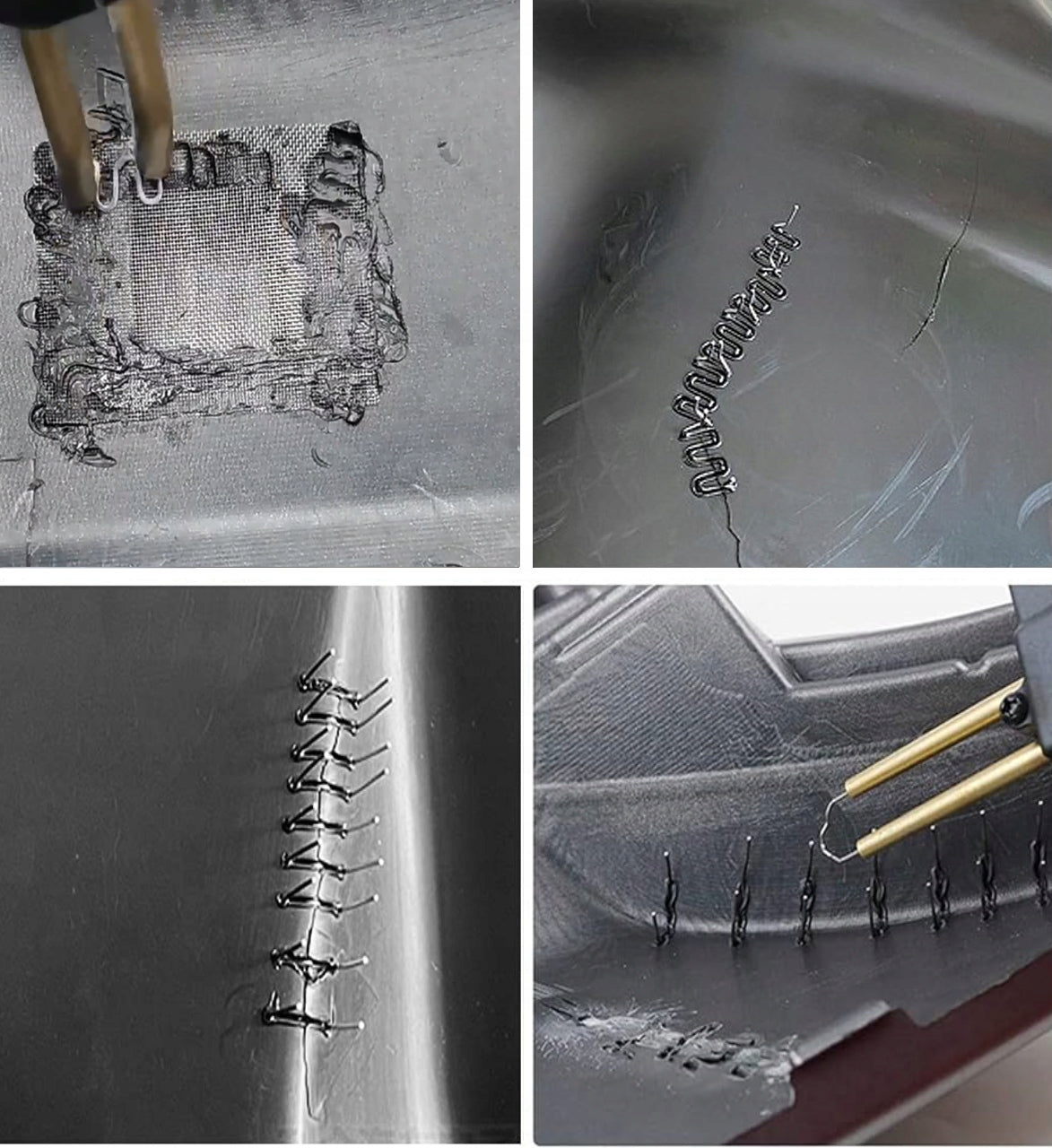

It is carried out by melting into the material, to the appropriate depth of the heated staple, anchoring (slight horizontal twisting), cooling and removing the excess with the help of clippers.

Then, in target reinforcement, you can cut the appropriate size mesh strip and blend into the place of joining with an RS28 staple (large wave)

✅ Application:

For connecting all elements made of plastic so-called. thermoplast or - plastics that soften during heating and harden after cooling

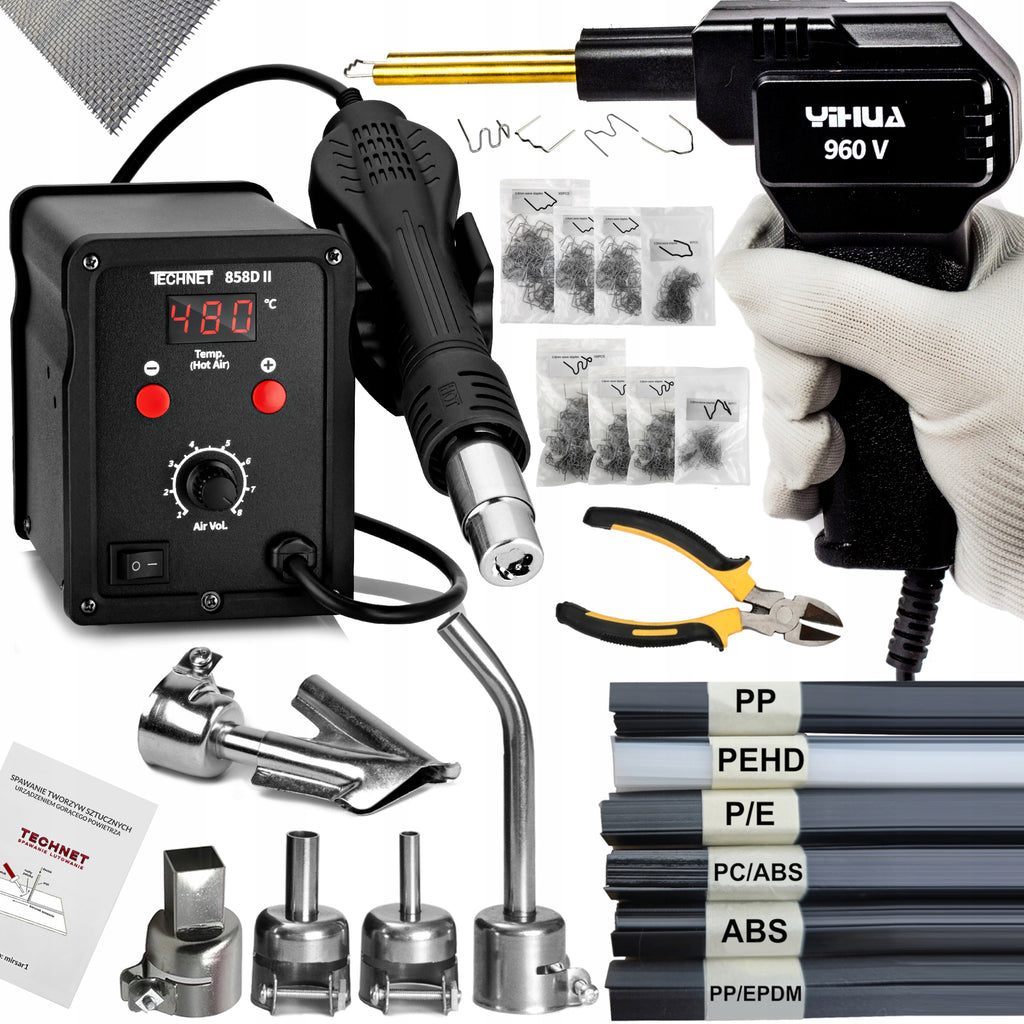

✅ The set includes:

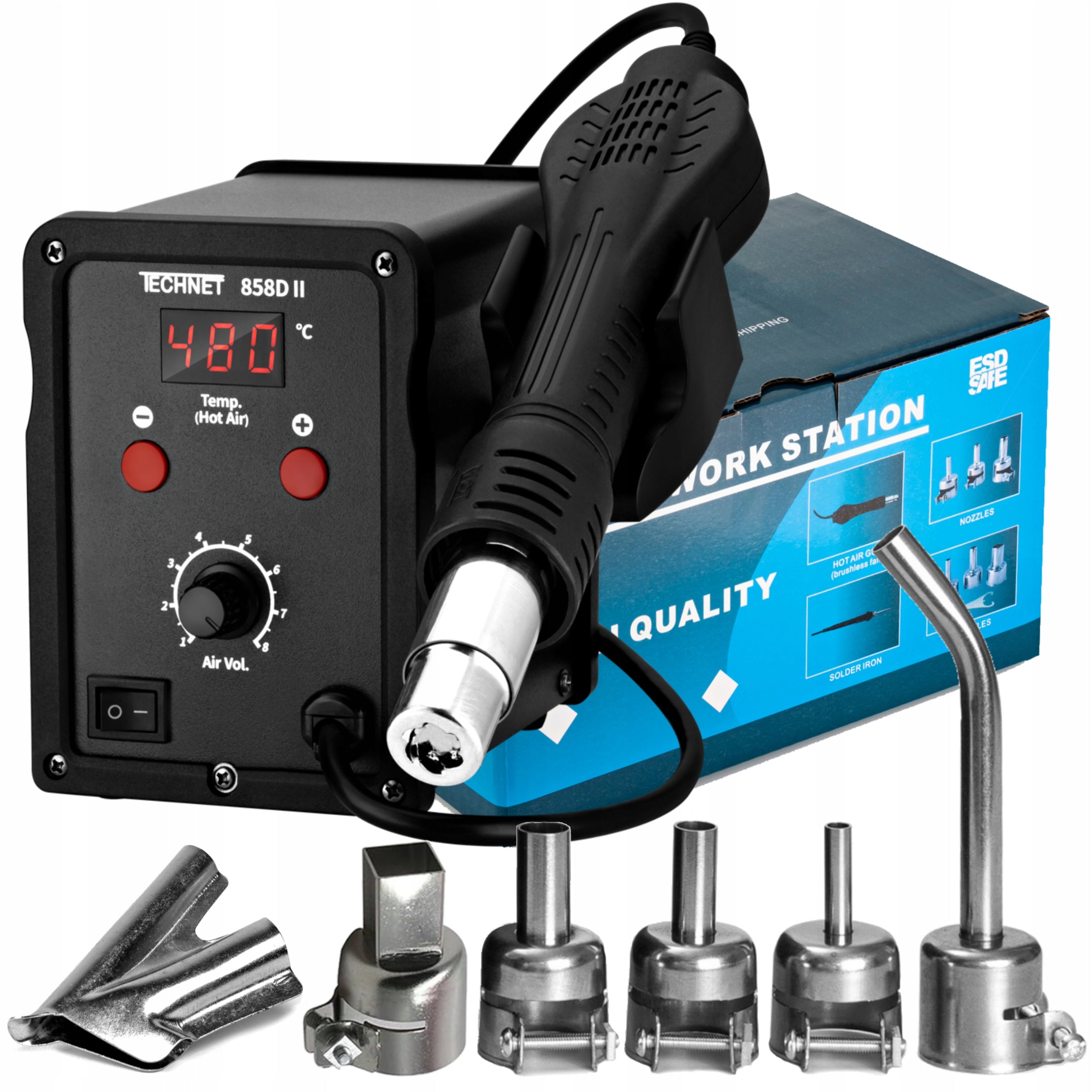

✔ PLASTIC WELDING MACHINE:

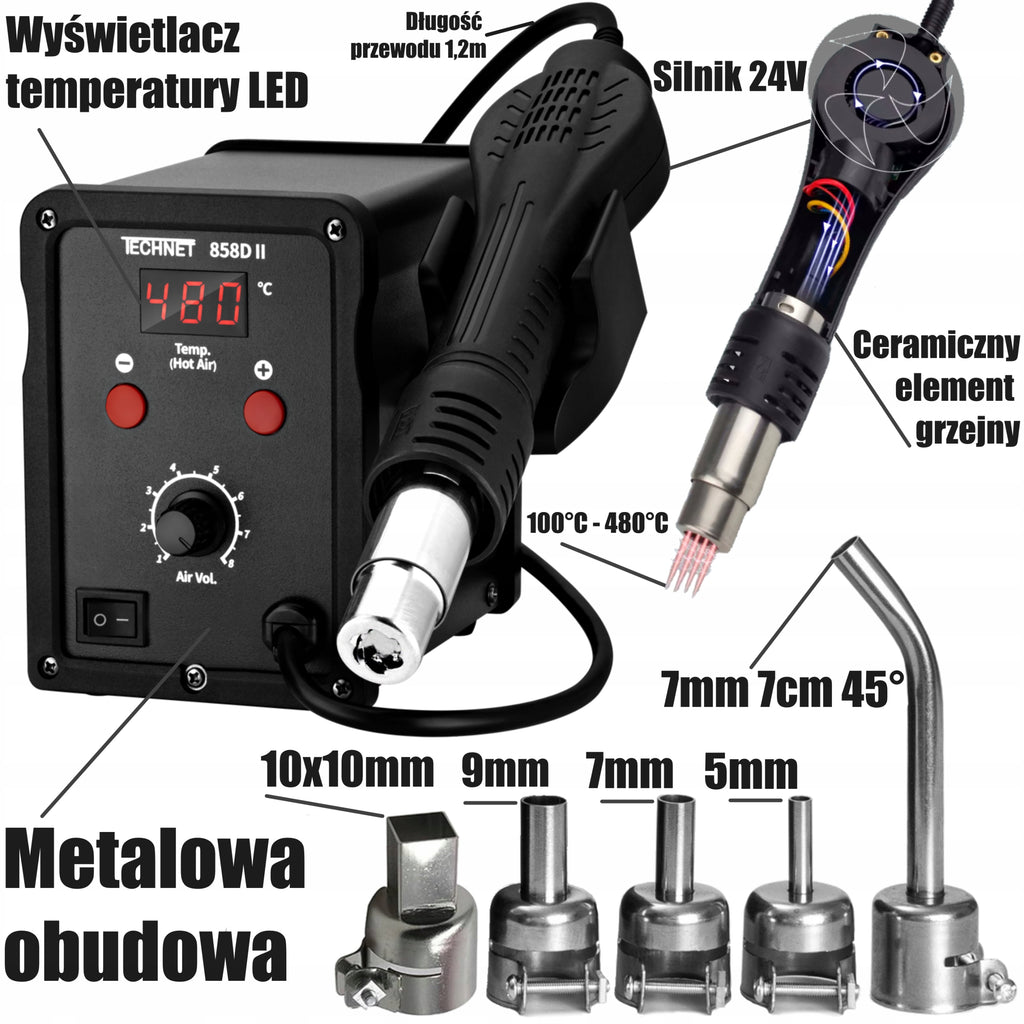

• Welder Technet 858D II

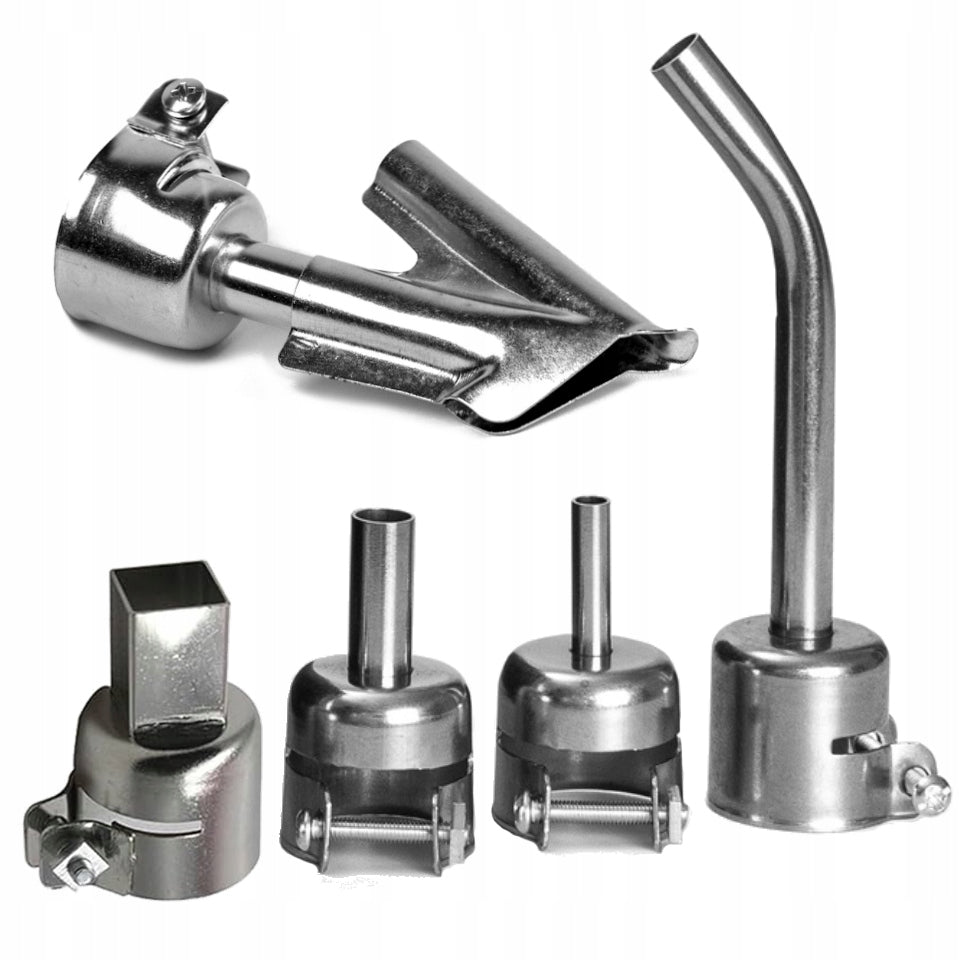

• Short nozzle - Ø9mm
• Short nozzle - Ø7mm
• Short nozzle - Ø5mm
• Square short nozzle - Ø10x10mm
• Long nozzle 7cm, Ø5mm, bent at an angle of 45° allowing, among other things, welding in hard-to-reach places
• BUT nozzle for fast and efficient towed welding of plastics. The uniqueness of the nozzle lies in the fact that its design allows the binder to melt inside the nozzle and its simultaneous pressing to the welded element

✔ PLASTIC STAPLER:

• Stapler 960V 50W
• Solid staple cutters
• Staples stainless steel - 4 types:

• 200 pcs. RS18 (small wave, 0,8mm wire)
• 100 pcs. RS28 (large wave, 0,8mm wire)
• 100 pcs. RS46 (inner angle, wire 0,6mm)
• 100 pcs. RS38 (outer angle, wire 0,8mm)

Total 500pcs staples!

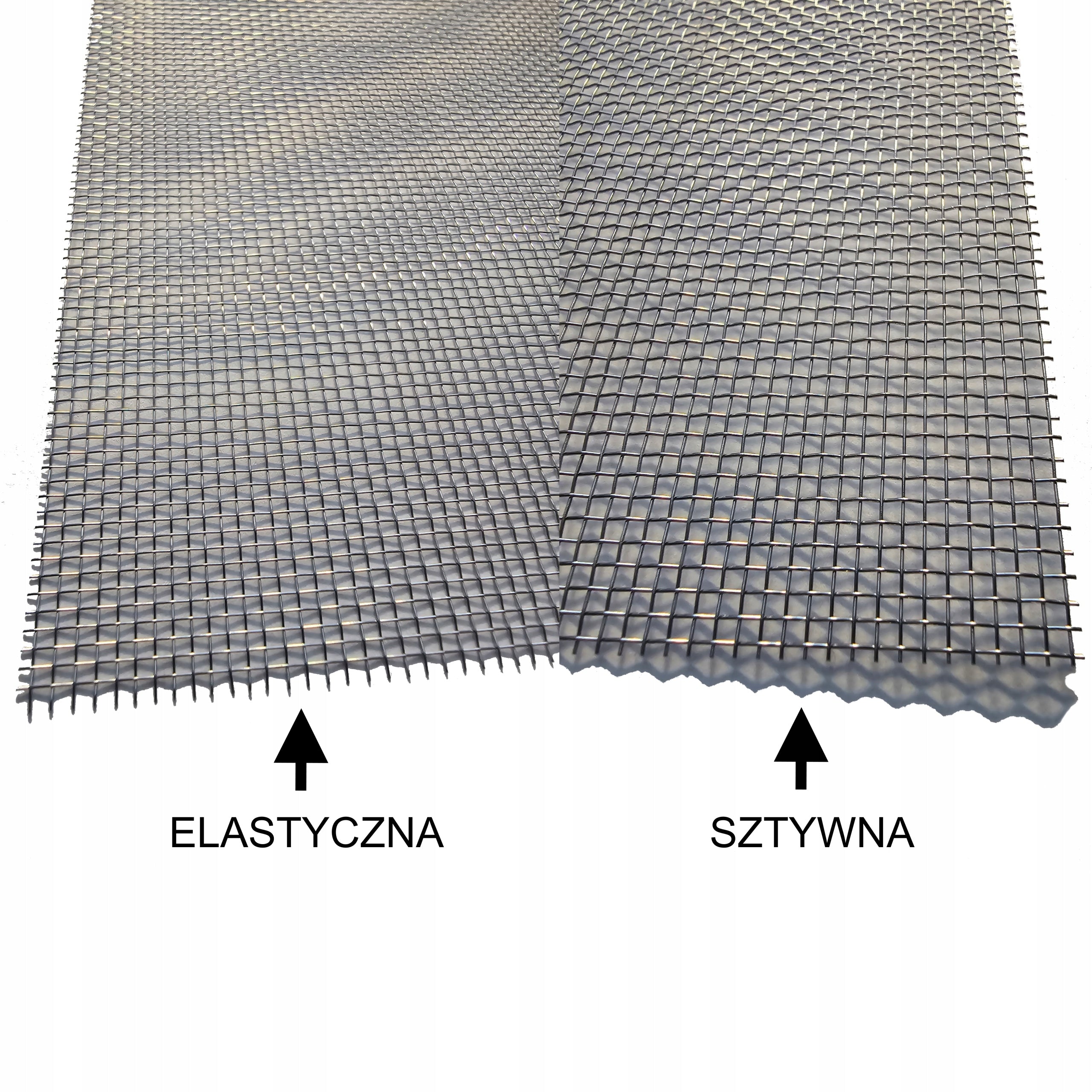

✔ MESH 2x reinforcing joining point

Meshes made of the highest quality chrome-nickel stainless steel. They are ideal for reinforcing welds and recreating missing elements such as bumper parts, lamp holders, etc.

• 1x Flexible

Dimension approximately 12,5cm x 17,5cm. Wire: Ø 0,2mm. Eyelet: 1mm

• 1x Hard

Dimension approximately 12,5cm x 17,5cm. Wire Ø 0,32mm. Eyelet: 1,6mm

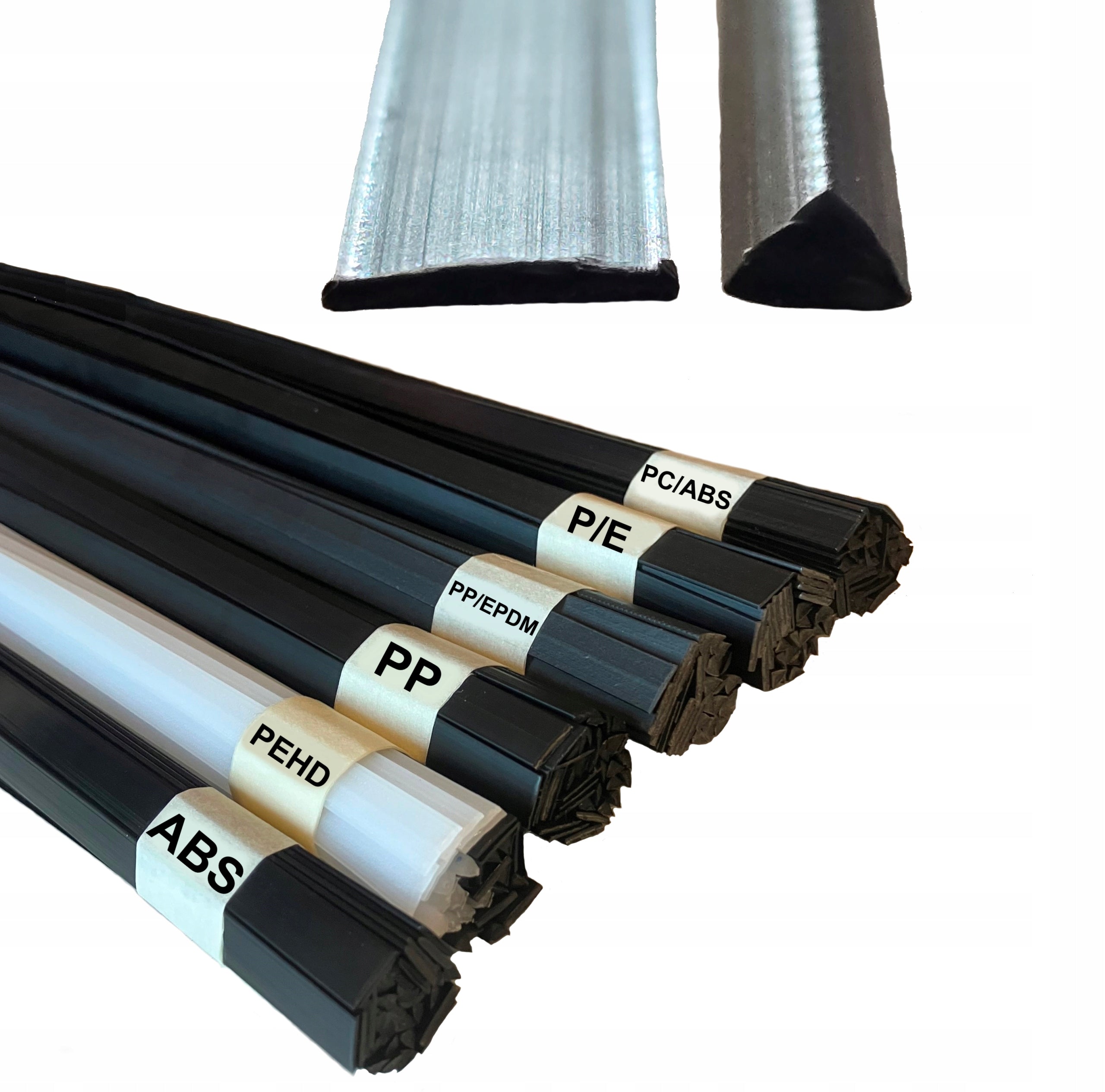

✔ PLASTIC PROFILES x6 types of 50g

In two shapes: 8x1,2mm strip and triangle with side approx. 4mm

>PC/ABS< 50g About 16 pieces including: 8 strips and 8 triangles with a length of about 42 cm. Ford and Mercedes bumpers, inlet grilles, headlight glasses, fairings, sunroofs, advertising elements, hubcaps. Welding temperature: 350°C

>P/E< 50g About 16 pieces including: 8 strips and 8 triangles with a length of about 42 cm. Washer expansion tanks, fenders, wheel arches. Welding temperature: 300°C

>PP/EPDM< 50g About 16 pieces including: 8 strips and 8 triangles with a length of about 42 cm. Bumpers. Welding temperature: 300°C

>PP< 50g About 16 pcs including: 8 strips and 8 triangles with a length of about 42cm. Bumper, filter housing, bacon, headlight, wheel arches, reservoirs. Welding temperature: 300°C

>PEHD< 50g About 16 pieces including: 8 strips and 8 triangles with a length of about 42 cm. Expansion tanks, fuels, food containers). Welding temperature: 300°C

>ABS< 50g About 16 pcs including: 8 strips and 8 triangles with a length of about 42 cm. Enclosures, switches, door handles, motorcycle fairings, mirrors. Welding temperature : 350°C

Quantity: 300g

✔ GUIDE "Welding plastics" in the form of a paper brochure

1. Recognition of plastics
2. Preparation of the external surface
3. Weld
4. Pre-merging
5. Welding
6. Pendulum welding
7. Welding errors
8. Welding seam treatment
9. Varnishing of plastics
10. Welding Process Technology
11. Welding rods for welds
12. General comments
13. Hand welding equipment
14. Manual Welding by Drawn Method

Welcome to the tab below "Our series of products"❗

• Welding binder (PP, ABS, PP/EPDM, P/E, PA, PMMA, PPE/PA, PC, TPO, PS, etc. )
• Plastic welding machines
• Staplers for plastic
• Staples
• Nozzles and spare parts for equipment
