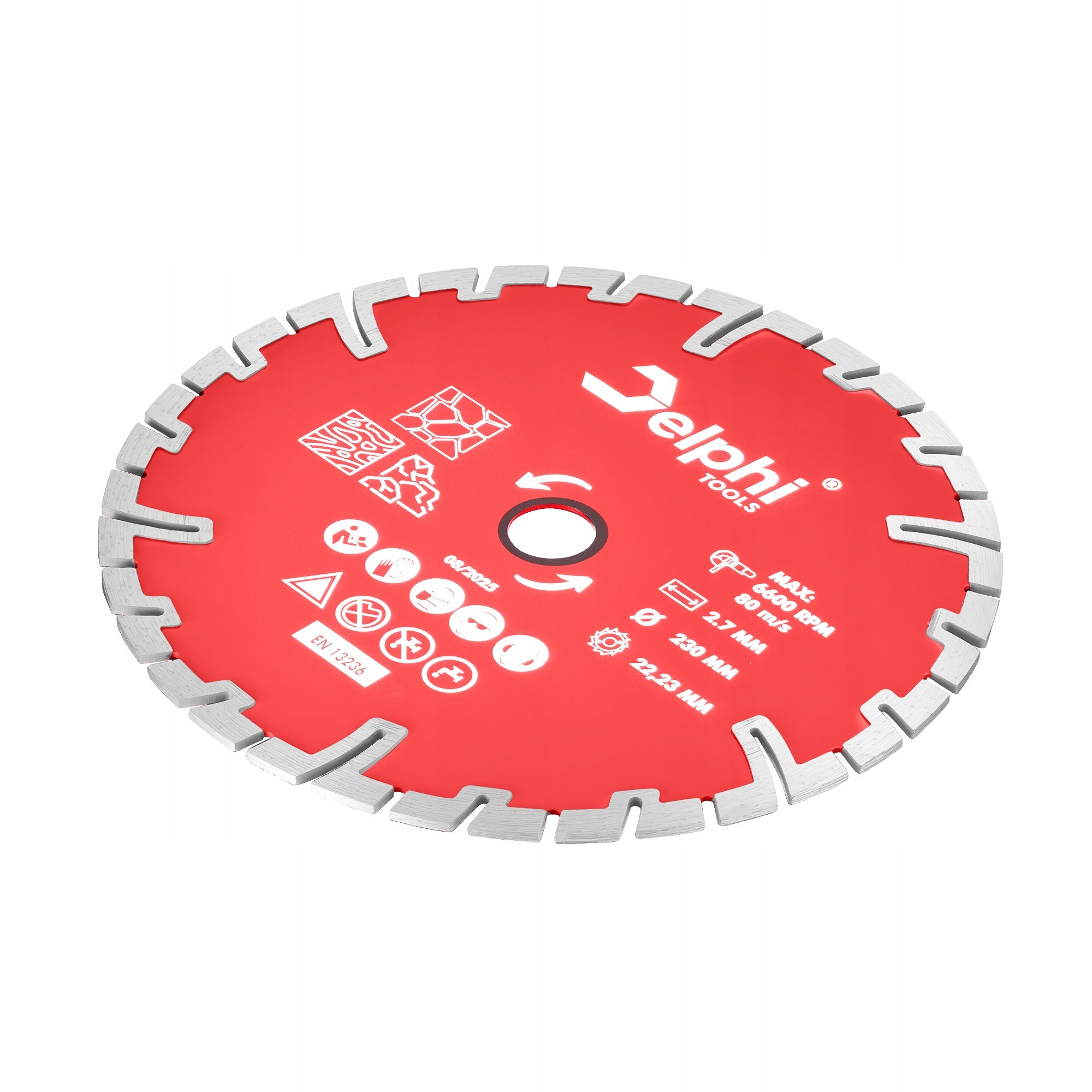

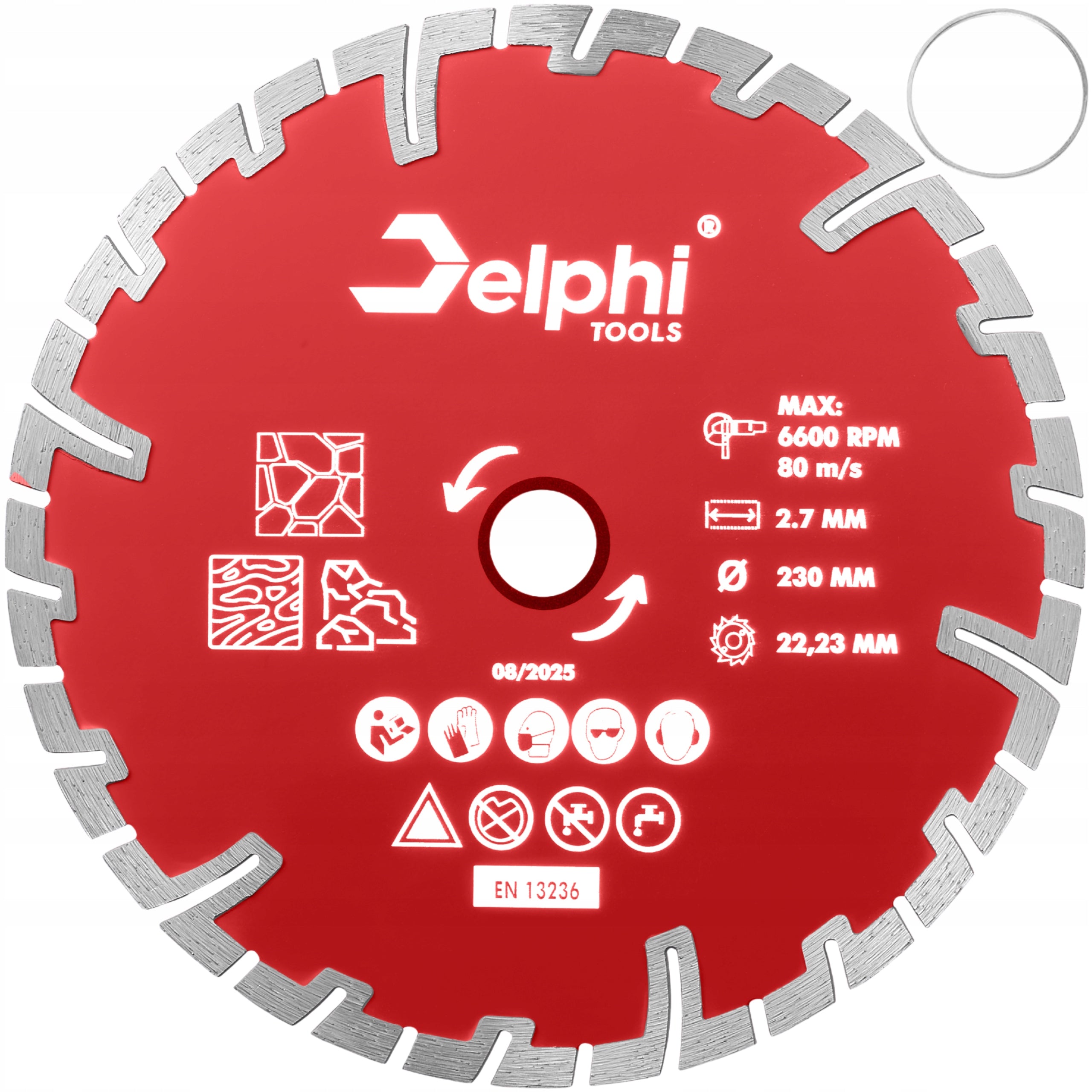

Pjovimo diskas 230 mm betonui, plytoms, akmeniui 230x22,23

Trumpai apie prekę

Prekė: Pjovimo diskas 230 mm betonui, plytoms, akmeniui 230x22,23. Kategorija: Diskiniai ratai.

• Gamintojas: Delphi tools
• Modelis: Tarcza do Betonu Kamienia 230x22,2mm Redukcja

The professional Delphi Tools diamond cutting disc with a 230 mm diameter is an efficient and precise tool for cutting a wide range of construction materials. Thanks to its segmented design and increased thickness of 2.7 mm, this disc is excellent for cutting concrete, natural stone, brick, paving stones, ceramics, and mixed construction materials.

➡️High Durability - made from high-quality diamond material, ensuring a long lifespan even with intensive use.

➡️Precise Cutting - the 2.7 mm thickness guarantees stable and clean cuts without damaging the material being worked on.

➡️High Working Speed - maximum 6600 RPM and up to 80 m/s, ensuring effective and efficient work.

➡️Standard 22.23 mm Arbor - fits most cutting saws and angle grinders available on the market.

➡️Reducer Ring - allows you to adapt the diamond disc to different models of machines and grinders.

✳ SPECIFICATION:

• Outer diameter: 230 mm
• Diameter of mounting hole: 22,23 mm
• Disc thickness: 2,7 mm
• Maximum rotational speed: 6600 rpm. /min
• Linear speed: up to 80 m/s
• Type: Sectional disc - provides better cooling and quick removal of excavation

✳ Application of diamond disc:

• Cutting bricks and blocks - works well on the construction site for fast and precise cutting of solid brick and hole.
• Concrete treatment - will work well with both fresh and old concrete (even with aggregate additives).
• Cutting concrete blocks and aerated concrete - fast work with light construction materials.
• Cutting natural stone - suitable for granite, sandstone, limestone and other hard rocks.
• Machining of ceramic tiles with a hard structure - in places where standard discs can not cope.

✳ Diamond embankment

The key to the effectiveness of the discs is diamond embankment, which is a layer of synthetic diamond particles that are responsible for fast and clean cutting even in extremely hard materials. The diamond used in the discs is not natural, but produced under controlled conditions, which ensures uniform quality and resistance. Thanks to this, the tool retains sharpness for a long time, and the cutting process is cooler and more controlled than using standard abrasive discs.

✳ Reduction ring

Discs are most often manufactured with a universal hole (e.g. 22,23mm), and machines such as grinders can sometimes have slightly different spindle diameters. For this reason, we add a reduction ring to the discs (which have a hole of 22,23 mm), which reduces the diameter of the hole to 20 mm and thus increases the versatility of our disc.

Advantages of reducing ring:

• reduces the disc opening to the correct spindle diameter,
• prevents beating and vibration of the shield,
• protects against shifting of the shield during operation,
• allows the use of one disc on different machines.

Gallery

Delphi Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate minor repairs and save time, and also meet the highest quality standards and exceed the expectations of users.
