PCIe x4 valdiklis Delock 90499, 3x SATA, 2x M.2 Key B, žemo profilio

Trumpai apie prekę

Prekė: PCIe x4 valdiklis Delock 90499, 3x SATA, 2x M.2 Key B, žemo profilio. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: Delock 90499

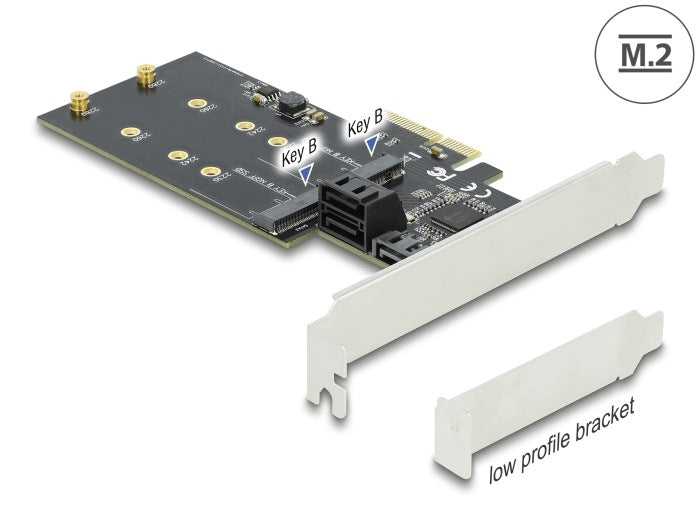

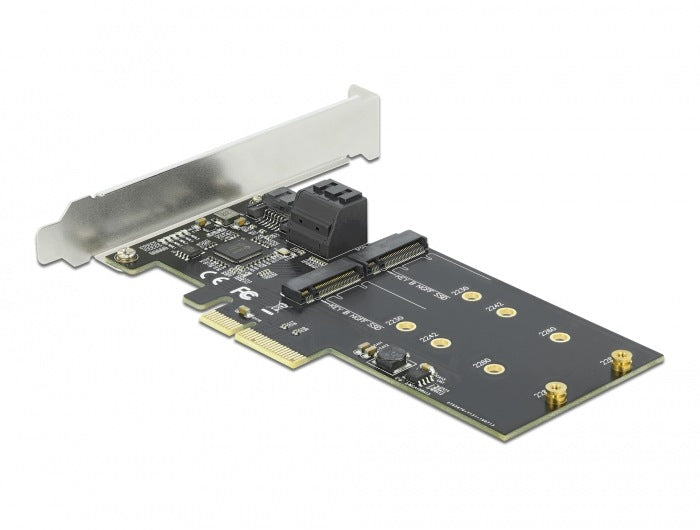

The Delock PCI Express card expands your computer with three SATA ports and two M.2 slots, allowing you to install SSDs, HDDs and M.2 modules. It supports NCQ, TRIM, S.M.A.R.T. and DevSleep functions, ensuring high performance, data security and the ability to boot from connected devices.

The Delock PCI Express card allows you to expand your computer with three internal SATA 6Gb/s ports and two M.2 slots. It allows you to simultaneously connect SSDs, hard drives, optical drives and M.2 SATA modules in various formats.

The card supports features that increase the efficiency and safety of media operation, such as NCQ, TRIM, S.M.A.R.T., DevSleep and Hot Swap. It also allows you to boot the operating system from connected SATA drives and M.2 modules.

Key features:

• 3 internal SATA 6Gb/s ports

• 2 M.2 sockets with key B

• Supports M.2 SATA modules in 2230, 2242, 2260 and 2280 formats

• Support NCQ, S.M.A.R.T., TRIM and DevSleep functions

• Ability to replace disks during operation (Hot Swap)

• Ability to boot from connected drives (Bootable)

• 5 LEDs to indicate port activity

Technical specification:

• PCI Express connector: 1x PCI Express x4 V3.0

• Internal connectors:

• 3x SATA 6Gb/s, 7-pin male
• 2x M.2, 67-pin, key B

• Chipset: JMicron JMB585

• Interface: SATA

• Supported M.2 modules:

• Key B or B+M
• SATA technology
• Formats: 2230, 2242, 2260, 2280

• Maximum height of elements on the module:

• 1,5 mm
• Support for double-sided modules

• Supported features:

• Native Command Queuing (NCQ)
• S.M.A.R.T.
• TRIM
• DevSleep
• Hot Swap
• Bootable

• LED Indicators:

• 5 LEDs indicating the operation of the device
