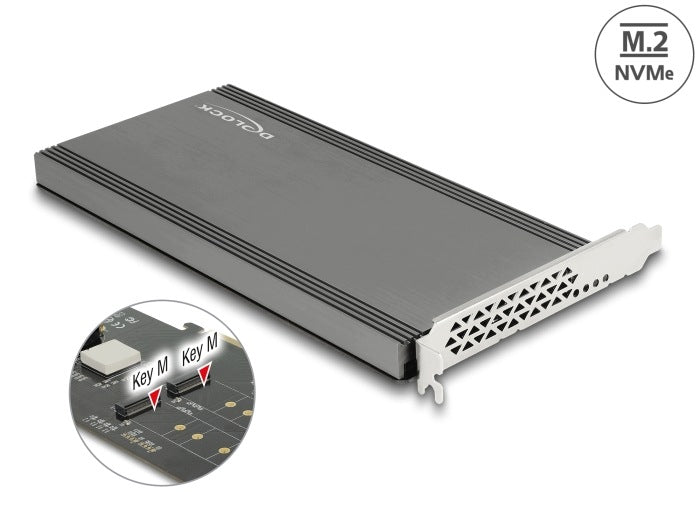

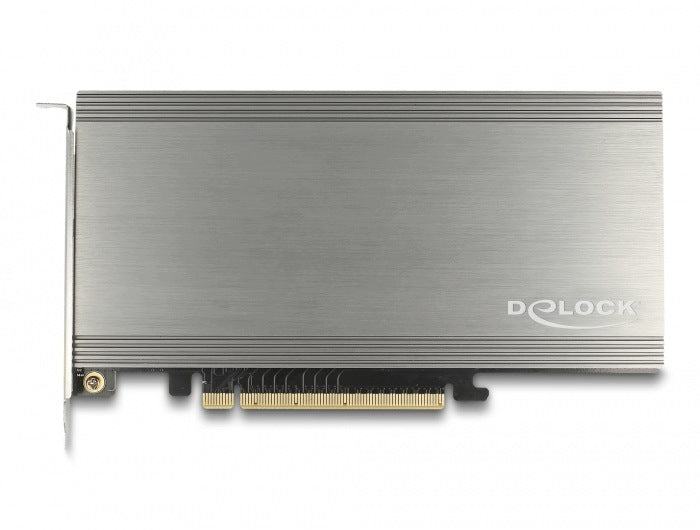

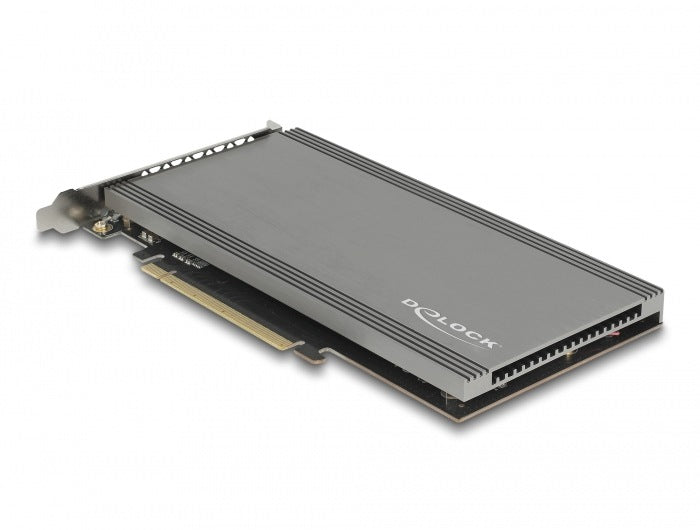

PCIe x16 adapteris 2x NVMe M.2 Key M Delock 89961

Trumpai apie prekę

Prekė: PCIe x16 adapteris 2x NVMe M.2 Key M Delock 89961. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 89961

The Delock PCI Express card allows you to install two M.2 NVMe drives, ensuring fast data transfer and stable operation thanks to active cooling with fan and heat sink. It is perfect for systems that require high performance and reliability of storage.

The Delock PCI Express card allows you to expand your computer with two M.2 PCIe (NVMe) slots, allowing you to simultaneously install two M.2 SSDs in 2230, 2242, 2260 and 2280 formats. By using the Asmedia ASM2824 chipset, both drives can run simultaneously, delivering high performance and reliability.

The large heat sink and 40 mm fan effectively dissipate heat, guaranteeing stable operation of the discs even during intense load. The card is suitable for gaming computers, workstations, and servers.

Key features:

• Simultaneous support for 2 M.2 PCIe NVMe drives

• Asmedia ASM2824 Chipset

• Supports 2230, 2242, 2260 and 2280 formats

• Bandwidth up to 32 Gbps

• NVM Express (NVMe) support

• Bootable function (CN1 socket)

• 40mm heatsink and fan for efficient cooling

• 2 LEDs to indicate disk operation

Technical specification:

• Connectors:

• 2x M.2 67-pin Key M socket
• 1x PCI Express x16 V3.0

• Chipset:

• Asmedia ASM2824

• Interface:

• PCI Express

• Supported modules:

• M.2 2230
• M.2 2242
• M.2 2260
• M.2 2280
• Key M or B+M
• PCIe interface

• Maximum height of elements per module: 1,5 mm

• Support for double-sided modules

• Maximum data rate:

• up to 32 Gbps

• NVM Express (NVMe) support

• Bootable function:

• Yes (CN1 socket)

• Cooling:

• 1x heat sink with dimensions approx. 202 × 95 × 8 mm
• 1x 40 mm fan

• LED Indicators:

• 2 pcs.
