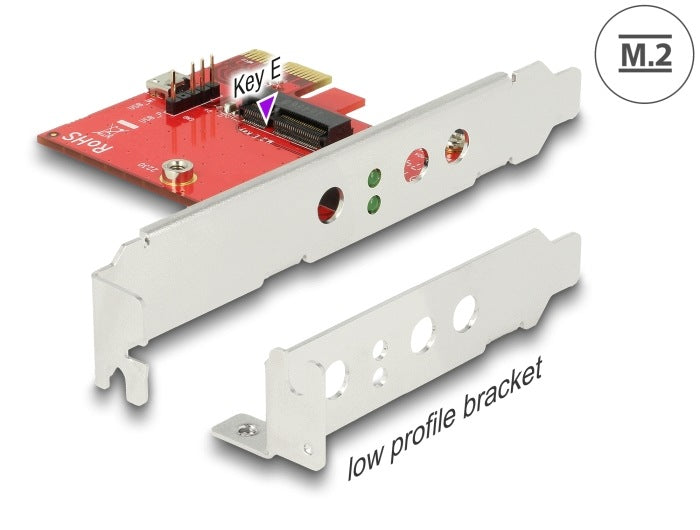

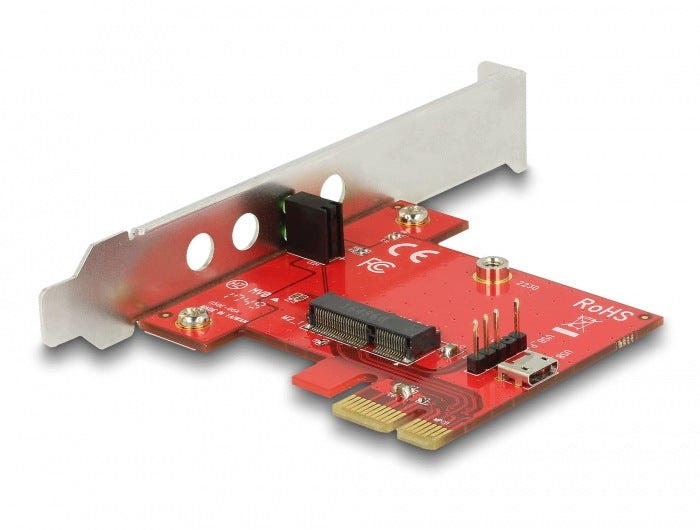

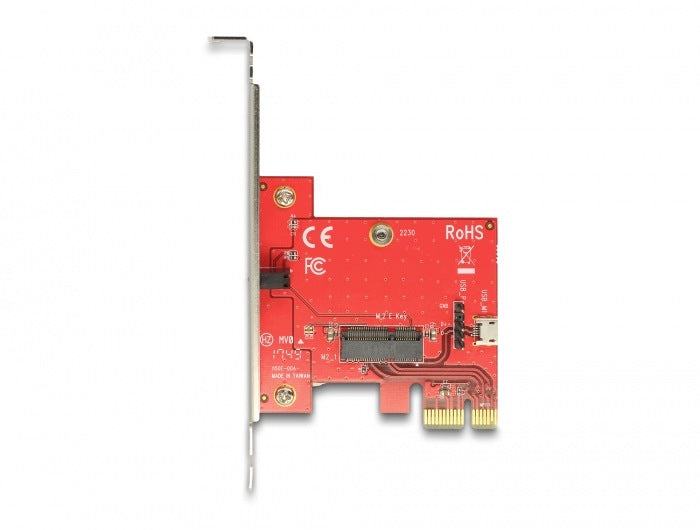

PCIe x1 M.2 Key E žemo profilio adapteris Delock 89889

Trumpai apie prekę

Prekė: PCIe x1 M.2 Key E žemo profilio adapteris Delock 89889. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 89889

The Delock PCI Express card allows you to connect M.2 modules with PCIe and USB signals, supporting WLAN, Bluetooth, GNSS, 3G, HSPA and NFC technologies. It is a universal solution for extending the communication functions of a computer with the possibility of connecting external antennas.

The Delock PCI Express card allows you to expand your computer with one M.2 Key E slot, designed for communication modules using PCIe or USB interfaces. It supports WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules, enabling the expansion of the computer with modern wireless communication functions.

Modules using the USB interface require connection to the internal USB 2.0 connector located on the card. The design of the card allows the use of different antennas thanks to the mounting holes in the herring holder. Installation does not require additional drivers.

Key features:

• M.2 Key E socket for communication modules

• Supports WLAN, Bluetooth, GNSS, 3G, HSPA and NFC modules

• Supports PCIe and USB interfaces

• Supports M.2 Key E and Key A+E modules

• 2 LEDs to indicate operation

• Possibility of mounting various antennas

• Installation without the need for additional drivers

Technical specification:

• Connectors:

• 1x M.2 67-pin Key E socket
• 1x PCI Express x1
• 1x USB 2.0 Micro-B female (for USB modules)
• 1x internal USB 2.0 pin strip (for USB modules)

• Interface:

• PCI Express
• USB

• Supported modules:

• M.2 1630
• M.2 2230
• M.2 3030
• Key E or A+E
• PCIe and USB interface

• Maximum height of elements per module: 1,5 mm

• Support for double-sided modules

• LED indicators: 2 pcs.

• Each socket holder has 3 holes for mounting antenna connectors

• Compatibility:

• Installation does not require additional drivers
• Compatible with any operating system
