PCIe x1 adapteris 2x M.2 NGFF Delock 89374

Trumpai apie prekę

Prekė: PCIe x1 adapteris 2x M.2 NGFF Delock 89374. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 89374

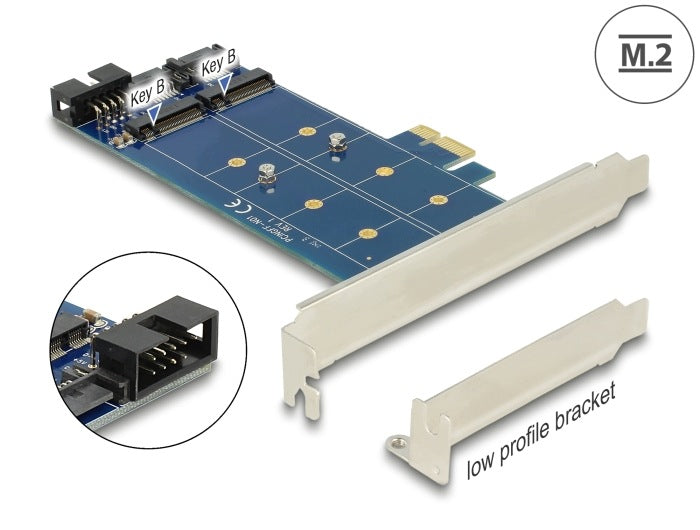

The Delock PCI Express card allows you to install two M.2 NGFF SATA or USB modules, providing flexible memory expansion in your PC. With support for bootable SATA modules and easy installation, it is a versatile solution for increasing system capacity and functionality.

The Delock PCI Express card allows you to expand your computer with two M.2 NGFF slots, allowing you to simultaneously install up to two M.2 modules based on SATA or USB interface. It is a convenient solution for expanding your computer with additional drives or communication modules compatible with M.2 Key B.

SATA modules require connection to the motherboard via SATA cables, while USB modules use an internal USB 2.0 connector. The adapter supports boot-up function from SATA (Bootable) drives and provides data transfer up to 6 Gbps.

Key features:

• 2 M.2 NGFF Key B slots

• Supports M.2 SATA and USB modules

• Supports 2230, 2242, 2260, 2280 and 22110 formats

• Bootable function for SATA modules

• Data transfer up to 6 Gbps

• Installation without the need for additional drivers

Technical specification:

• Connectors:

• 2x M.2 NGFF 67-pin Key B slot
• 2x SATA 7-pin female connector (for SATA modules)
• 1x internal USB 2.0 9-pin connector (for USB modules)
• 1x PCI Express x1 (Power Supply)

• Interface:

• SATA
• USB

• Supported modules:

• M.2 2230
• M.2 2242
• M.2 2260
• M.2 2280
• M.2 22110
• Key B or B+M
• SATA or USB interface

• Maximum height of elements per module: 1,35 mm

• Support for double-sided modules

• Bootable function:

• Yes (for SATA modules)

• Maximum data transfer rate: up to 6 Gbps

• Compatibility:

• Installation does not require additional drivers
• Compatible with any operating system

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer	Delock
Parametry	Interface	PCI-E
Parametry	Card type	internal
Parametry	Number of ports	2
Parametry	EAN (GTIN)	4043619893744
Parametry	Manufacturer code	89374
