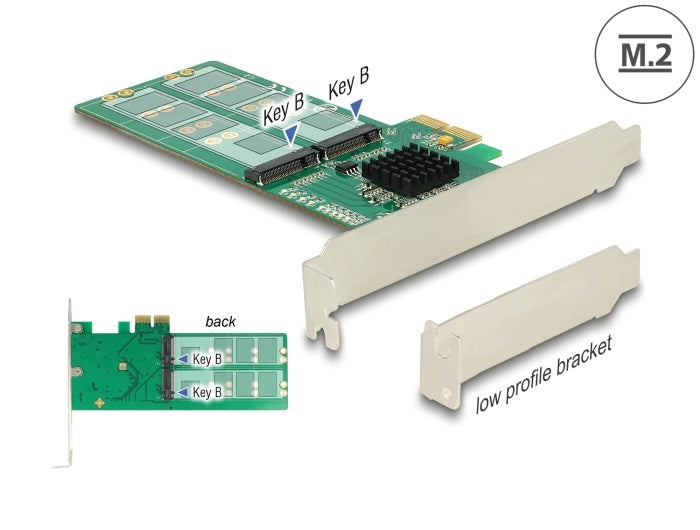

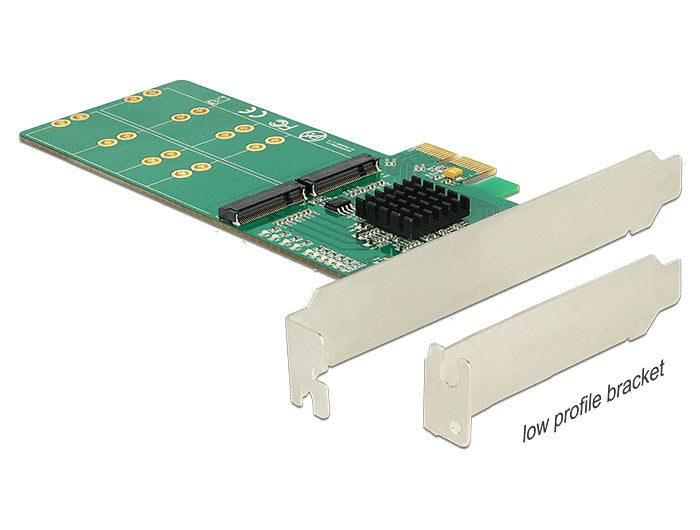

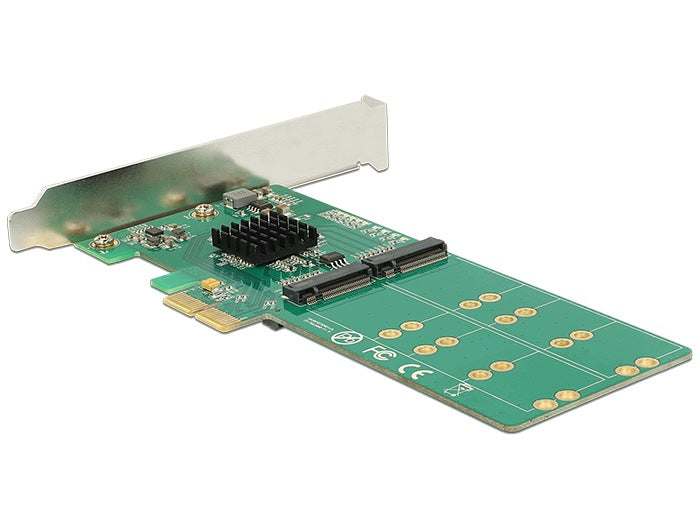

PCIe plokštė su 4x M.2 Key B, žemo profilio, Delock 89588

Trumpai apie prekę

Prekė: PCIe plokštė su 4x M.2 Key B, žemo profilio, Delock 89588. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 89588

The PCI Express card by Delock allows you to mount four M.2 SATA modules in your computer,providing fast data transfer up to 5 Gbps. Equipped with Marvell 88SE9235 chipset,It supports 2280, 2260, 2242 and 2230 formats, offering stable performance and support for NCQ and boot system functions.The PCI Express card by Delock allows you to mount four M.2 SATA modules in your computer,providing fast data transfer up to 5 Gbps. Equipped with Marvell 88SE9235 chipset,It supports 2280, 2260, 2242 and 2230 formats, offering stable performance and support for NCQ and boot system functions.

The Delock PCI Express card allows you to expand your computer with four M.2 SATA slots, allowing you to simultaneously install four M.2 SSDs in 2230, 2242, 2260 and 2280 formats. It is designed for desktop computers, workstations, and servers that require high storage capacity.

The card supports M.2 SATA drives with key B and B+M, offers data transfer up to 5 Gbps, supports Native Command Queuing (NCQ) technology and allows you to boot from the installed drive.

Key features:

• Simultaneous support for 4 M.2 SATA drives

• M.2 Key B sockets

• Supports 2230, 2242, 2260 and 2280 formats

• Data transfer up to 5 Gbps

• Native Command Queuing (NCQ) support

• Bootable feature

• LED to indicate operation

Technical specification:

• Connectors:

• 4x M.2 67-pin Key B socket
• 1x PCI Express x2 V2.0

• Interface:

• SATA

• Chipset:

• Marvell 88SE9235

• Supported modules:

• M.2 2230
• M.2 2242
• M.2 2260
• M.2 2280
• Key B or B+M
• SATA interface

• Maximum height of elements per module: 1,5 mm

• Support for double-sided modules

• Maximum data rate:

• up to 5 Gbps

• Supported technologies:

• Native Command Queuing (NCQ)

• LED indicator: 1 pc.

• Bootable feature
