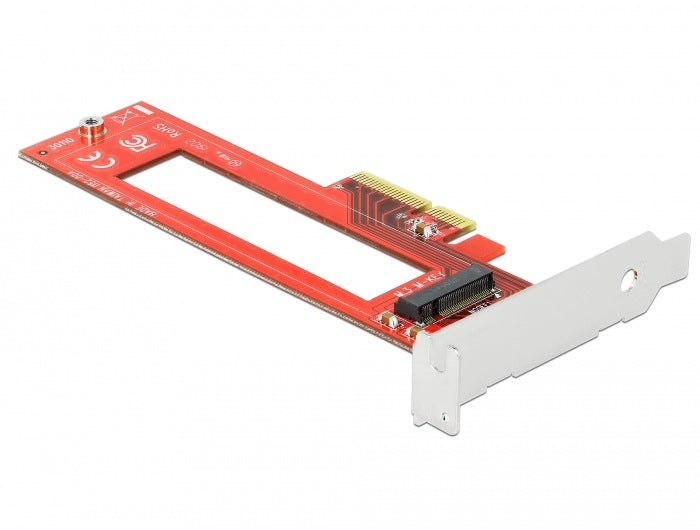

PCIe plokštė su 1x M.3/NF1 Low Profile lizdu Delock 90401

Trumpai apie prekę

Prekė: PCIe plokštė su 1x M.3/NF1 Low Profile lizdu Delock 90401. Kategorija: Tinklo plokštės.

• Gamintojas: Delock
• Modelis: 90401

The Delock PCI Express card allows you to connect an M.3/NF1 (NGSFF) drive, ensuring fast data transfer and full PCIe 3.0 compatibility. Thanks to the well-thought-out PCB design, it allows the use of an additional heat sink under the disk for better cooling.

The Delock PCI Express card allows you to expand your computer with one M.3/NF1 (NGSFF) slot, designed for installing SSDs in 30110 format. It is a solution dedicated to professional applications such as servers, workstations and systems requiring M.3/NF1 media.

The PCB has a special recess under the mounted SSD, which allows the use of an optional heat sink from the bottom of the carrier and improves heat dissipation during operation.

Key features:

• Supports 1 M.3/NF1 disk (NGSFF)

• PCIe/NVL interface

• Support M.3/NF1 drives in 30110 format

• Possibility of mounting an optional heat sink from the bottom of the disk

• Bootable feature

• NVM Express (NVMe) support

• Installation without the need for additional drivers

Technical specification:

• Connectors:

• 1x M.3/NF1 socket
• 1x PCI Express x4 V3.0

• Interface:

• PCI Express / NVMe

• Supported modules:

• M.3 / NF1 (NGSFF) 30110

• Maximum thickness of supported SSD:

• up to 4,8 mm

• NVM Express (NVMe) support

• Bootable function:

• Yes (UEFI 2.3.1 or later)

• Compatibility:

• Installation does not require additional drivers
• Compatible with any operating system
