PCIe adapteris GSM SIMCom, Quectel 4G/5G ir USB HAT+ plokštėms, skirta Raspberry Pi 5

Trumpai apie prekę

Prekė: PCIe adapteris GSM SIMCom, Quectel 4G/5G ir USB HAT+ plokštėms, skirta Raspberry Pi 5. Kategorija: Priedai.

• Gamintojas: WaveShare
• Modelis: PCIe TO 4G/5G M.2 USB3.2 HAT+ Waveshare 27698

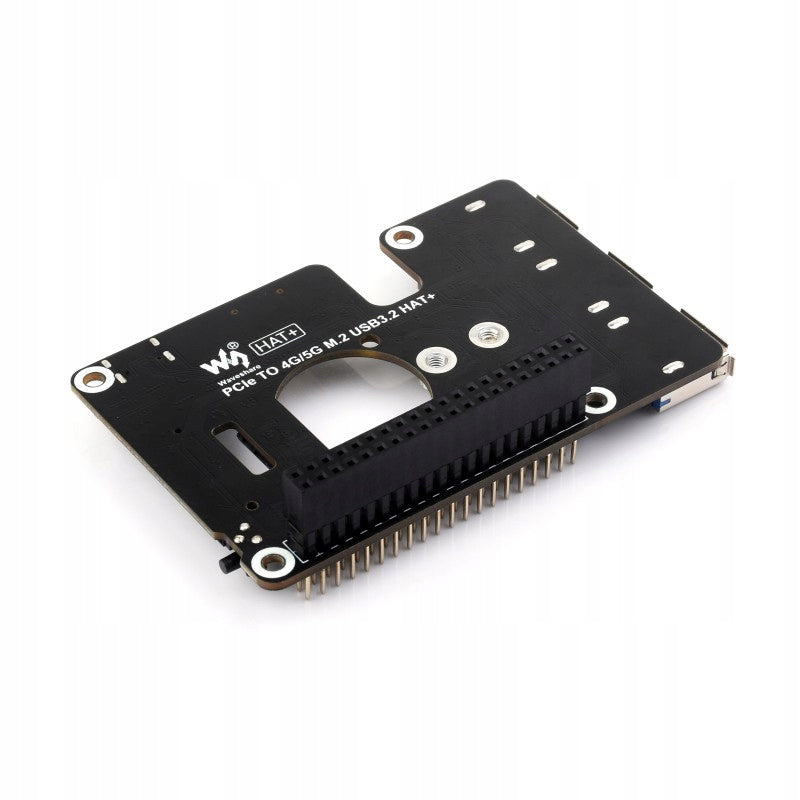

HAT+ expansion module for Raspberry Pi 5, which adds support for 4G/5G modems in the M.2 standard and extends the number of USB ports with 3 high-speed USB 3.2 Gen1 connectors. Equipped with a NANO-SIM card slot, power monitoring system and a dedicated antenna, it is a comprehensive solution for building projects requiring high-speed cellular connectivity.

Key features:

• Designed for Raspberry Pi 5, HAT+ standard with built-in I2C EEPROM memory.
• Expands with 3 high-speed USB 3.2 Gen1 ports for connecting additional peripherals.
• Built-in M.2 (NGFF) Key B socket, supports 4G/5G modules from the SIM7600XX-M.2, SIM82XX and RM5XX series (compatible with 3042/3052 enclosures).
• USB-C port for connecting to PC to support 4G/5G network, debugging and software updates, or as an external power input.
• Built-in power monitoring system for real-time measurement of voltage, current and power.
• NANO-SIM card slot.
• Reset button, power and network indicators for easy debugging and monitoring of operating status.
• Comes with a dedicated 5G-4IN1-PCB antenna, with the possibility of mounting on top or bottom.
• Preserved vents and mounting holes for the fan for better heat dissipation.

Compatible with 4G/5G SIMCom/Quectel modules

Built-in M.2 (NGFF) Key B socket, tested with SIM7600XX-M.2, SIM82XX and RM5XX series modules, compatible with 3042/3052 enclosures.

Comes with 5G-4IN1-PCB antenna

Supports top and bottom installation, easy to install, provides good communication effect.

Built-in power monitoring and EEPROM

It allows you to monitor the voltage, current and power of the module in real time by I2C.

Supports saving HAT+ ID and product information, according to HAT+ standard.

Ventilation holes for cooling

More air flow for Pi5, faster cooling effect, more stable operation.

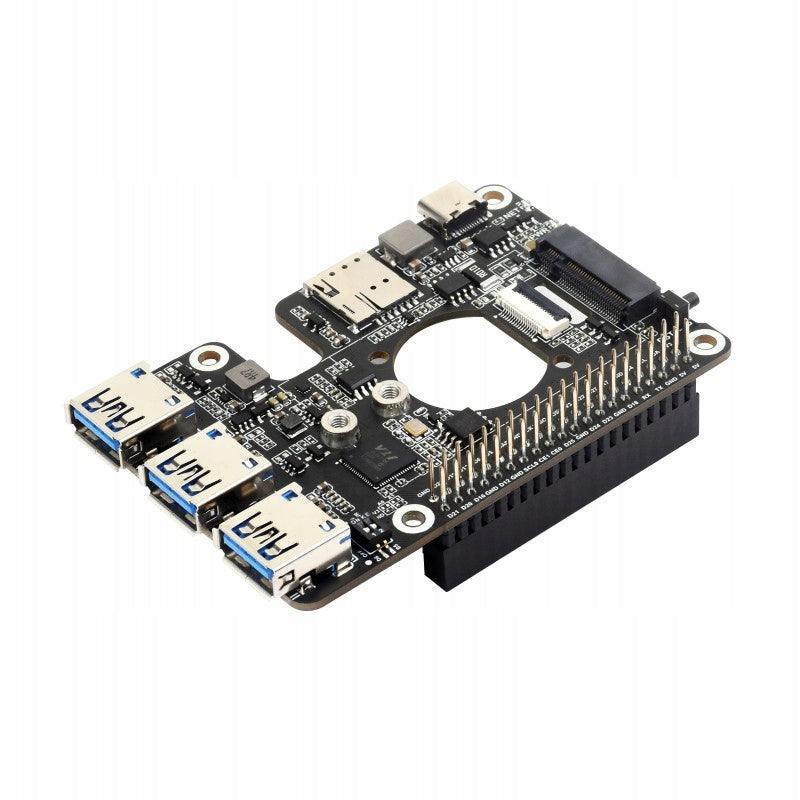

Description of the Plate

1. VL805PCIe to USB 3.2 Gen1 hub chip
2. EEPROMFor saving ID HAT and product information
3. INA219Power monitoring system
4. PCIe 16PINInterfaceFor connecting to PCIe Raspberry Pi 5 interface
5. M.2(NGFF) Key B Socket Compatible with 4G/5G M.2 modules in 3042/3052 enclosures
6. GPIO Raspberry PiConnectionFor connecting Raspberry Pi 5
7. Extended USB 3.2 Gen1USB1~USB3 ports
8. Nano SIM card slotFor Nano-SIM card installation
9. Type-C interfaceFor 4G/5G network support via Raspberry Pi or PC via USB cable, software update or external power input
10. DIP switchFor switching on/off control and resetting the module using GPIO pins
11. Reset buttonPress to reset the module
12. PWR indicatorPower indicator
13. NET indicatorModule network status indicator

Dimensions

Technical specification:

• PCIe interface: Connection to Raspberry Pi 5 (16PIN cable)
• USB ports: 3 × USB 3.2 Gen1
• M.2 socket: Key B, compatible with 3042/3052 enclosures
• Supported modules: SIMCom/Quectel series (e.g. SIM7600, SIM82XX, RM5XX)
• SIM card: NANO-SIM slot
• Power monitoring: INA219 (I2C)
• Power Supply: By GPIO Raspberry Pi or external via USB-C port
• Compatibility: Raspberry Pi 5
• Supported systems: Raspberry Pi OS, Ubuntu, OpenWRT

Contents of the set

1. PCIe TO 4G/5G M.2 USB3.2 HAT+ ×1
2. Antenna 5G-4IN1-PCB ×1
3. Cable 16P-Cable-40mm ×1
4. IPEX1 to IPEX4 cable (~13cm) 4pcs. ×1
5. Set of screws

Note: 4G/5G module is NOT included, it must be purchased separately depending on your needs.

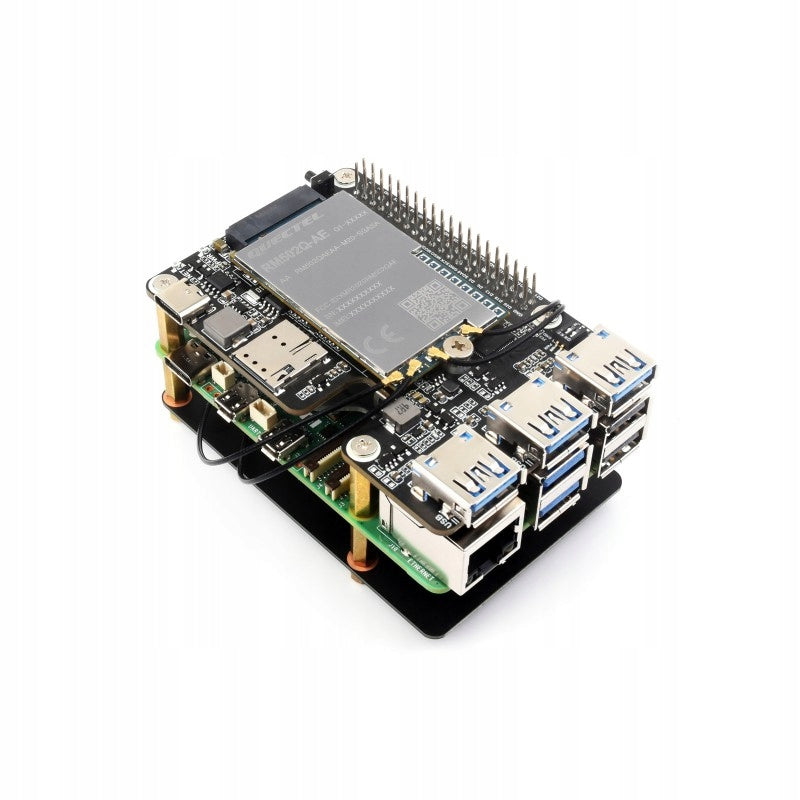

The Raspberry Pi shown in the pictures in the description is not included.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	PCIe TO 4G/5G M.2 USB3.2 HAT+ Waveshare 27698
Parametry	Manufacturer	WaveShare
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5906358321901
Parametry	Packaging status	original
Parametry	Batteries included	no
