Paviršinis 2x RJ45/8P8C Cat.5E UTP lizdas su LSA kontaktais

Trumpai apie prekę

Prekė: Paviršinis 2x RJ45/8P8C Cat.5E UTP lizdas su LSA kontaktais. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Stratos
• Modelis: 48940

Catalog No.: 48940

The data sheet, hyperlink to the manufacturer’s website and detailed specification are available at: www. stratos . pl/pages/48940.htm

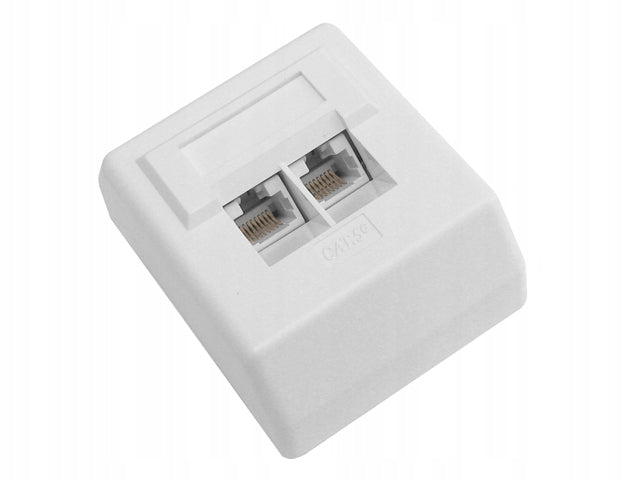

The offered item is an unshielded surface mounted wall socket with a double RJ45 cat.5e port (class D) used in computer Ethernet networks. The socket meets EIA/TIA 568 and ISO/IEC DIS 11801 standards and guarantees transmission frequency up to 100MHz. Color coding implemented according to the EIA/TIA 568A and 568B standards, i.e. the socket has the ability to connect twisted pair cables in both currently used standards. RJ45 modules are mounted at an angle of 45°.

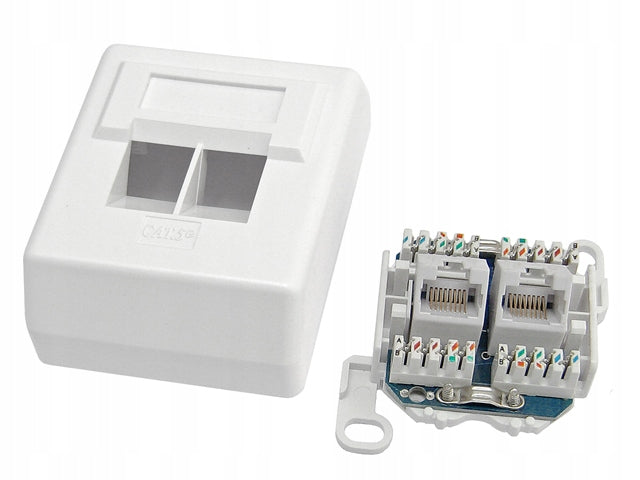

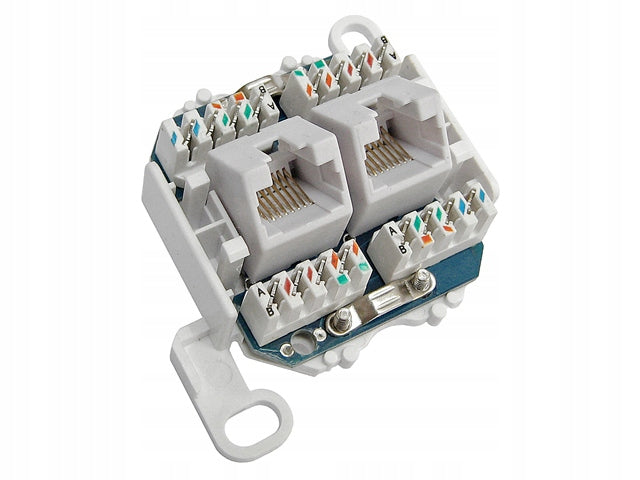

RJ45 ports are equipped with connection contacts made according to the LSA / KRONE standard, so pressers of this standard should be used for pressing. The socket housing is made of ABS, on the front the socket has an embossing to place a descriptive plate, the installation involves screwing to the ground with screws - on the bottom the socket has two technological holes. The socket comes with two mounting screws.

Attention! We offer a large selection of LSA pressers necessary for the correct connection of twisted pair to the offered RJ45 sockets. You can find in our offer by typing 'LSA pusher' in the field 'search in user objects'.

• Connectors: 2xRJ45 UTP unshielded female
• Category: 5e, Class D, EIA/TIA 568, ISO/IEC DIS 11801
• Bandwidth: 100MHz
• Contact Type: LSA/KRONE/110
• Contact colour coding: EIA/TIA 568A and 568B
• Housing Color: White
• Socket dimensions (length/width/height): 81/65/31mm
• Mounting screw spacing: 70mm
• Weight: approx. 49g

The product we offer is a new, unused, factory packed product. The offered item, like all items sold by us, is a product currently available in our warehouse, which allows immediate shipment.
