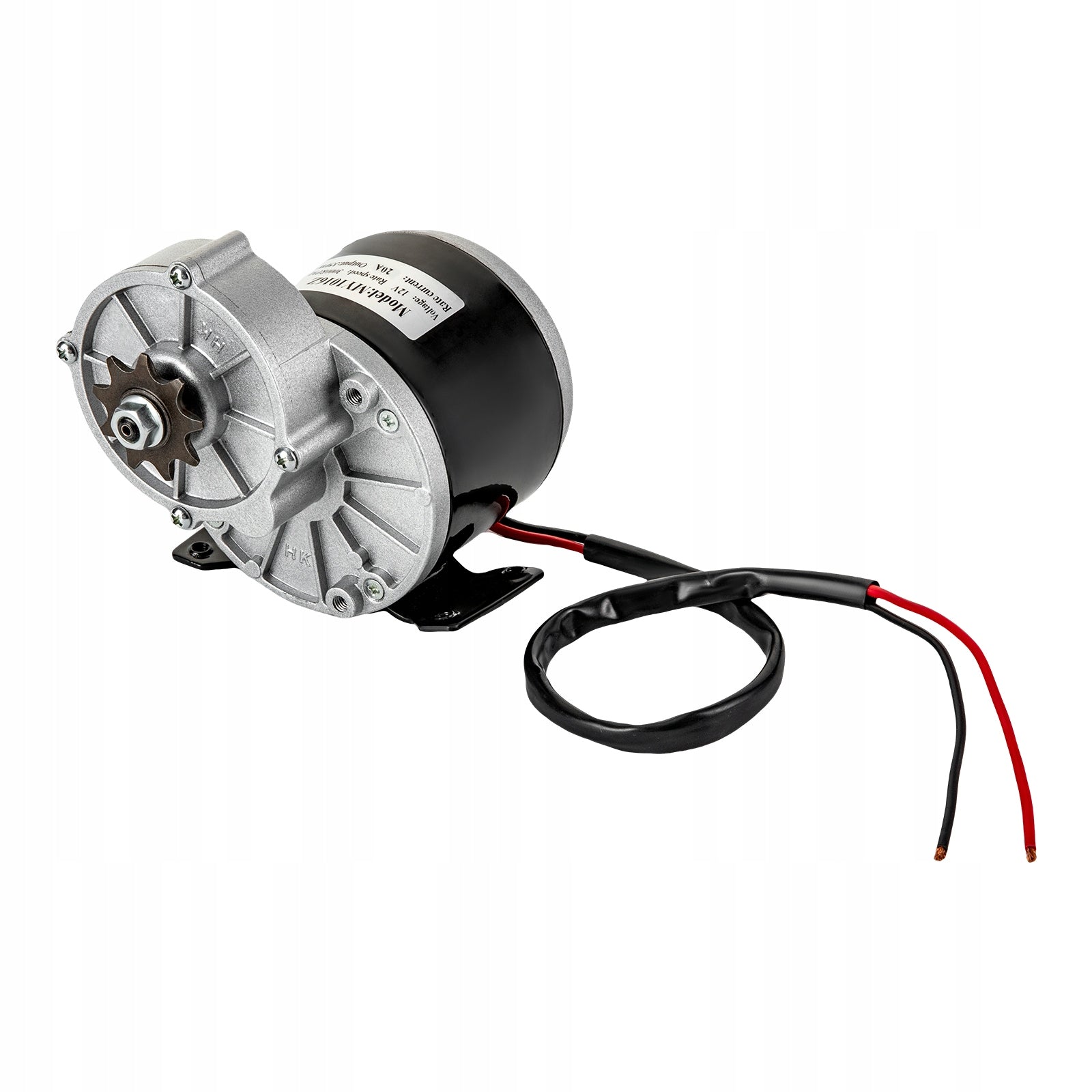

Pavarų reduktorius elektrinis variklis 250W 12V

Trumpai apie prekę

Prekė: Pavarų reduktorius elektrinis variklis 250W 12V. Kategorija: Pavarų perjungikliai.

• Gamintojas: no brand
• Modelis: 2718190019011
• Svoris: 1 g

Our 12V gear reduction electric motor can help you achieve high-performance delay for your e-bike. It is equipped with solid iron housing and high-performance 250W copper wire motor with the advantages of fast heat dissipation, long service life and robustness. It adopts gear transmission to reduce the speed of high speed motor to realize smooth start-up and low speed e-bike ride, which can bring users more comfortable and convenient driving experience.

The most important features

• High quality Material: The product is made of iron, with high hardness, high temperature resistance and corrosion resistance, ensuring a long service life.
• Excellent performance: The 250W pure copper brushed motor has a speed of 2750rpm and high torque to effectively release and withstand high loads.
• Thoughtful design: The DC gear motor can be changed to rotate clockwise or counterclockwise, reversing the motor power cord to increase flexibility and extend the life of the motor.
• High Load Capacity: Compared with high speed motors, this gear motor produces more low-end torque and can support a heavy load of up to 220 lbs, providing stronger operation.
• Smooth Operation: The pure copper brushed motor with low noise and solid base makes the product run smoother and quieter.
• Easy to Carry: Compact(3.74*2.95*5.04inch), lightweight design makes it easy to handle and carry anywhere.
• Assembly in Breeze: Simple structure and pre-drilled holes allow you to complete the installation in a short time.

Details

Smooth Edges: Smooth and burr-free edges emphasize the beauty of the product and better care for the skin during its assembly and cleaning.

Long Power Cable: The long power cable adds convenience and extraordinary mobility when using and installing this motor.

Application

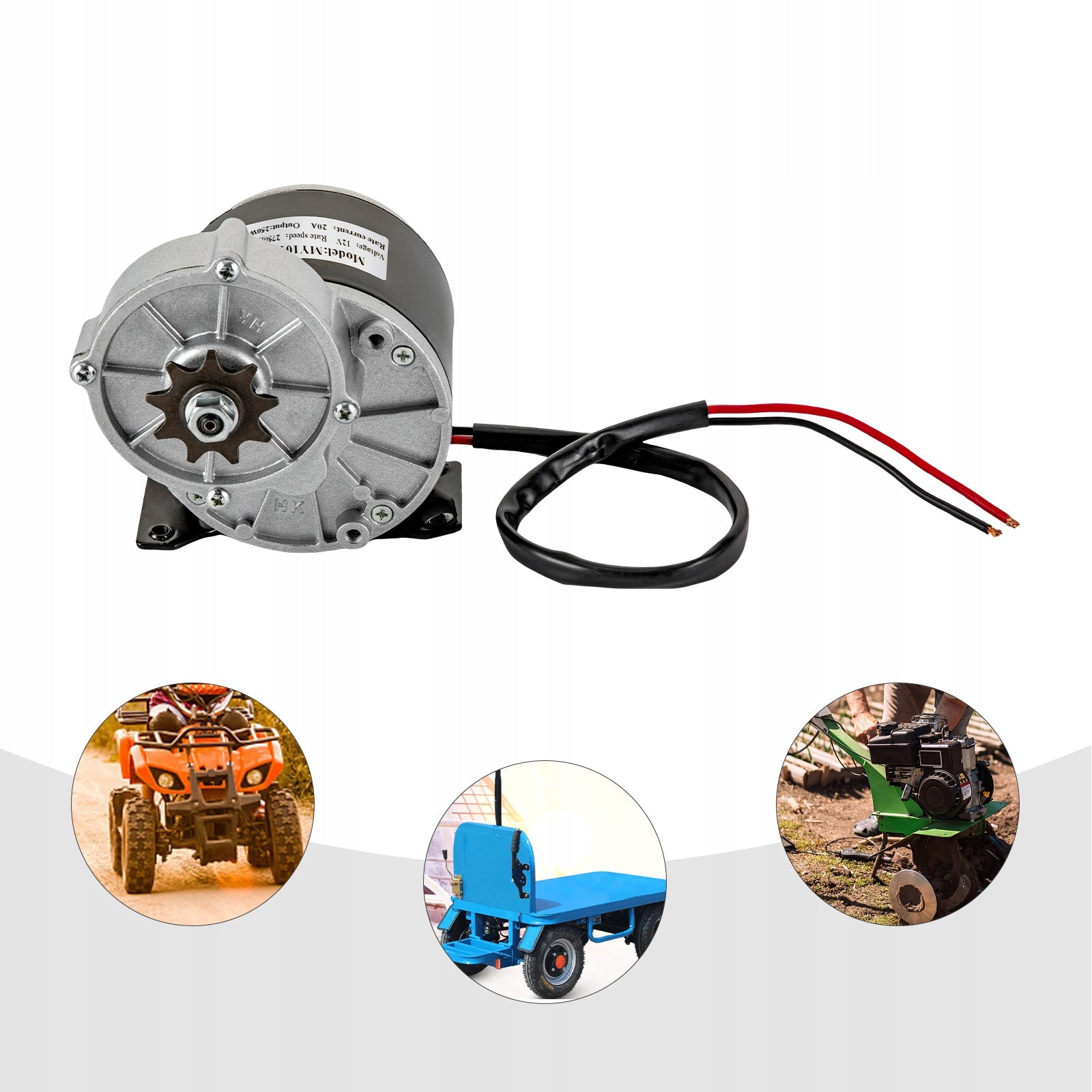

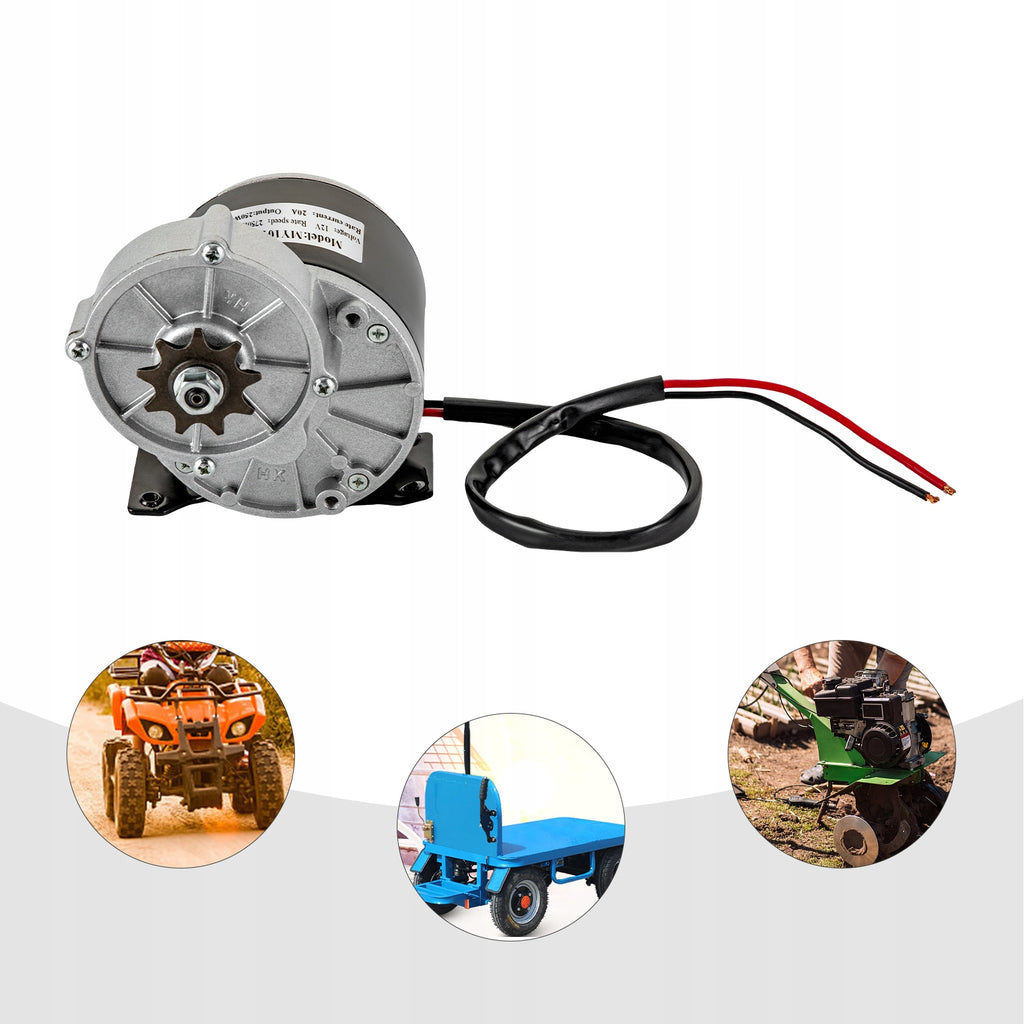

Suitable for motorized bikes, mopeds, bicycles, pocket bikes, electric dirt bikes, scooters, e-bikes, electric vehicles, modifications of electric vehicles and several small mechanical devices.

Specifications

• Model: MY1016Z
• Material: Iron, Pure Copper
• Color: Black, Silver
• Style: Modern
• Shape: Round
• Assembly Required: No
• Voltage: 12V
• Rated speed: 2750RPM
• Rated current: 20A
• Output: 250W
• Reduction ratio: Approximately 9:1
• Engine load capacity: About 100kg/220lbs
• Gross weight: 2.8kg/6.2lbs
• Gear diameter: 95mm/3.74inch
• Mounting foot hole spacing: 41mm/1.61inch

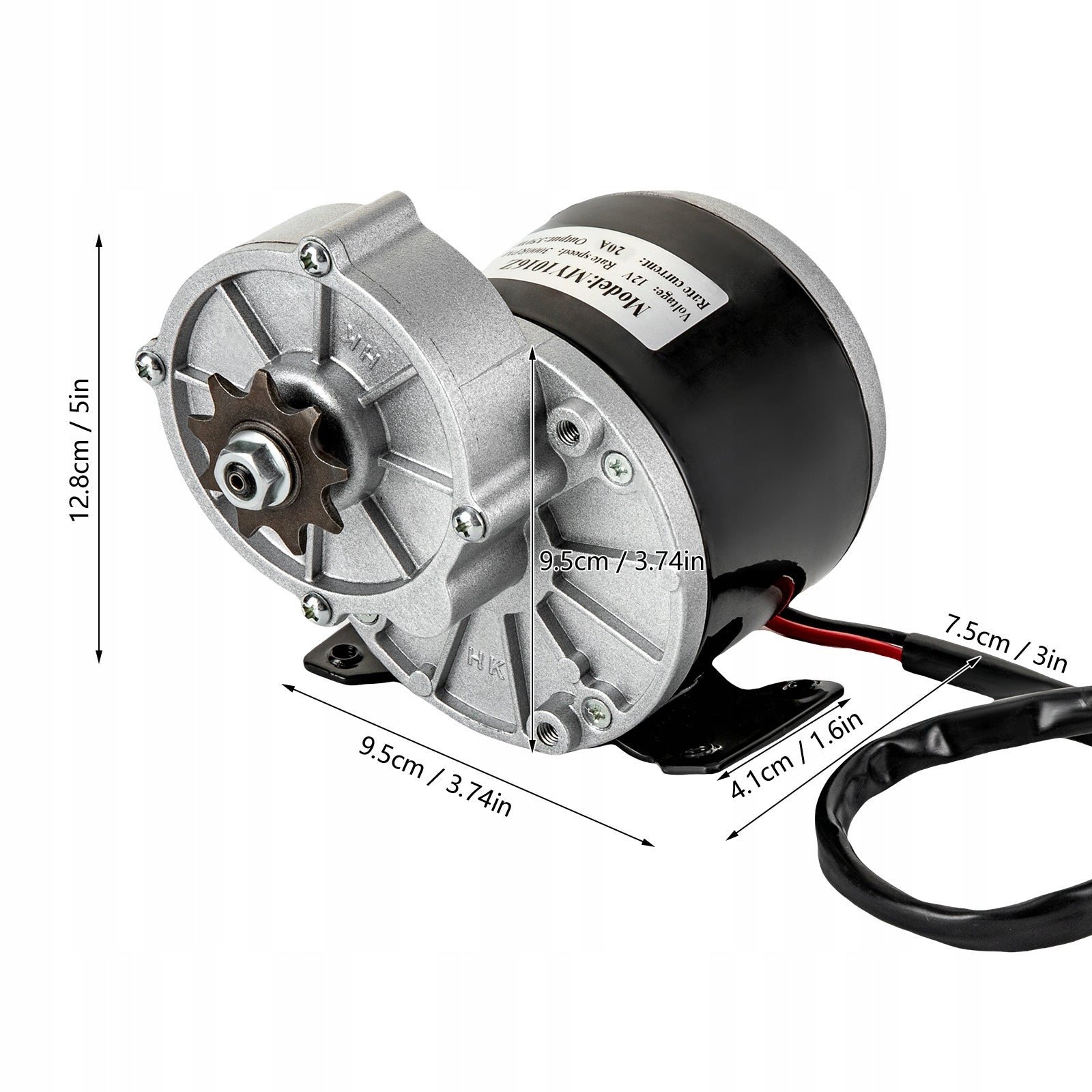

• Product Size: 95*75*128mm/3.74*2.95*5.04inch
• Package Size: 15*15*18cm/5.9*5.9*7.09in

Package included

1* Gear reduction electric motor

Notes

1. Please note that if you need to adjust the speed, you need to use it with the controller (not included).

2. Please note that this product does not include a cooling fan, please do not use in a small limited space.

3. Please allow slight color difference caused by shooting light and 1-3cm error due to manual measurement and make sure you don't mind before ordering.
