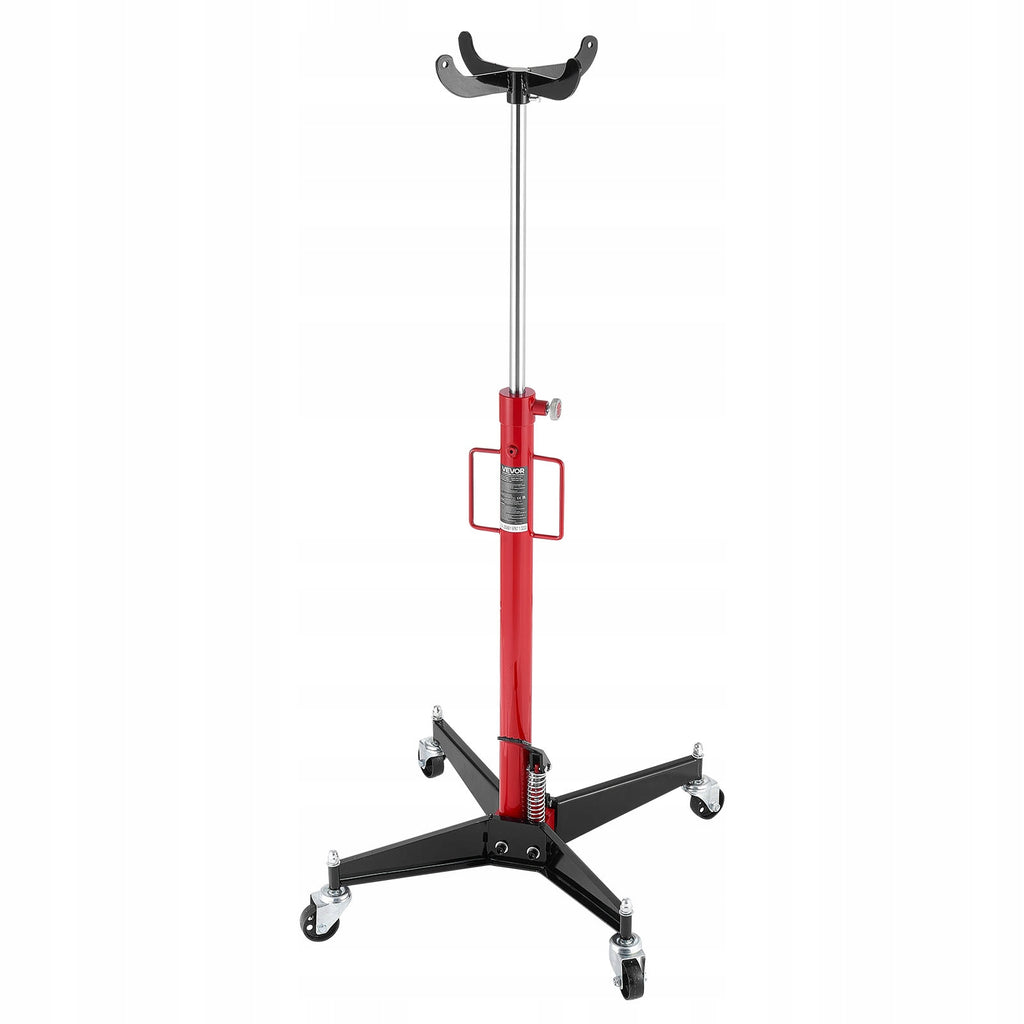

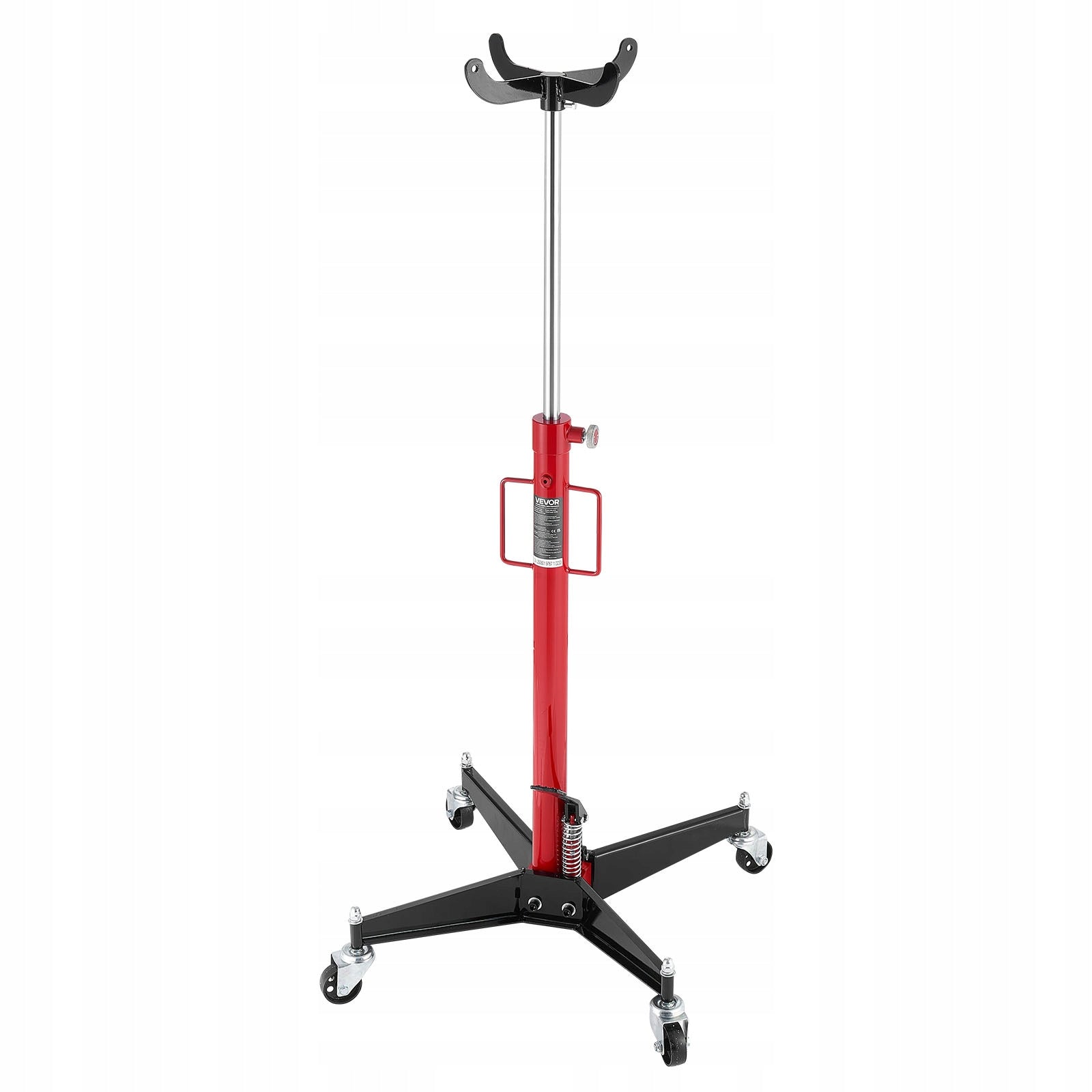

Pavarų dėžės keltuvas VEVOR, 500 kg, 112–187 cm

Trumpai apie prekę

Prekė: Pavarų dėžės keltuvas VEVOR, 500 kg, 112–187 cm. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Vevor
• Modelis: DGSHS1100LBSI5NXX

Hydraulic lift for gearboxes

Ideal for replacing and mounting your gearbox, this lift supports heavy gearboxes with its powerful hydraulic system and large platform. The large lifting height ensures easy positioning. Large cast iron castors ensure smooth movement and stable operation for professionals.

High lifting capacity

Large lifting range

Tray with four claws

Hydraulic, leg operated

Mobility 360°

Specifications

Product Model Number: GW-0.5D

Type: Four-arm gripper, European

Lifting capacity: 500 kg / 1100 lbs

Transport capacity: 250 kg / 550 lbs

Single or double piston: Single piston

Min. support height (from surface to ground): 1120 mm

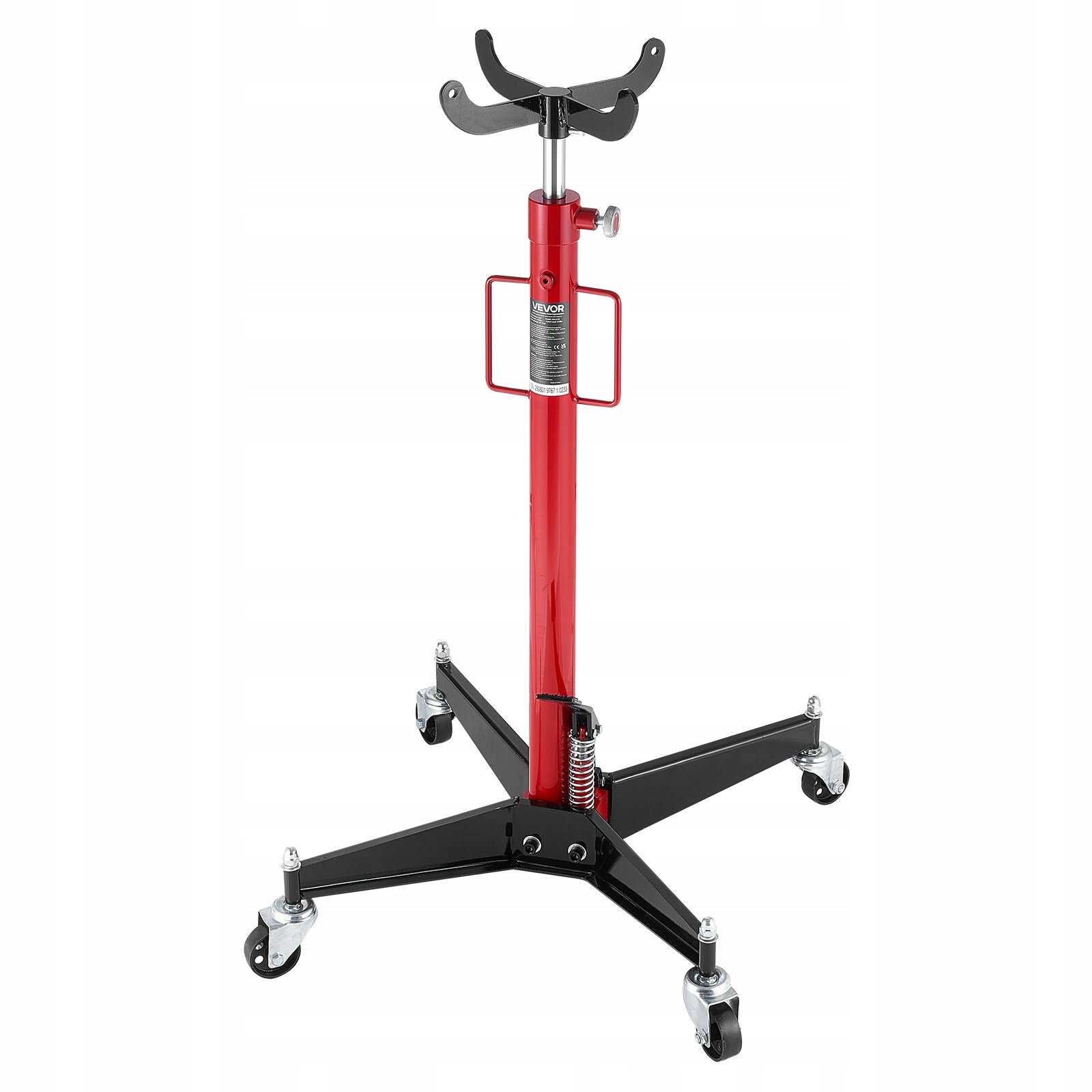

Max. Support height (from surface to ground): 73,6 inch / 1870 mm

Lifting stroke: 29,5 inch / 750 mm

Main Material: Frame: Q235B, Piston Rod: 45#

Net weight: 53,1 lbs / 24,1 kg

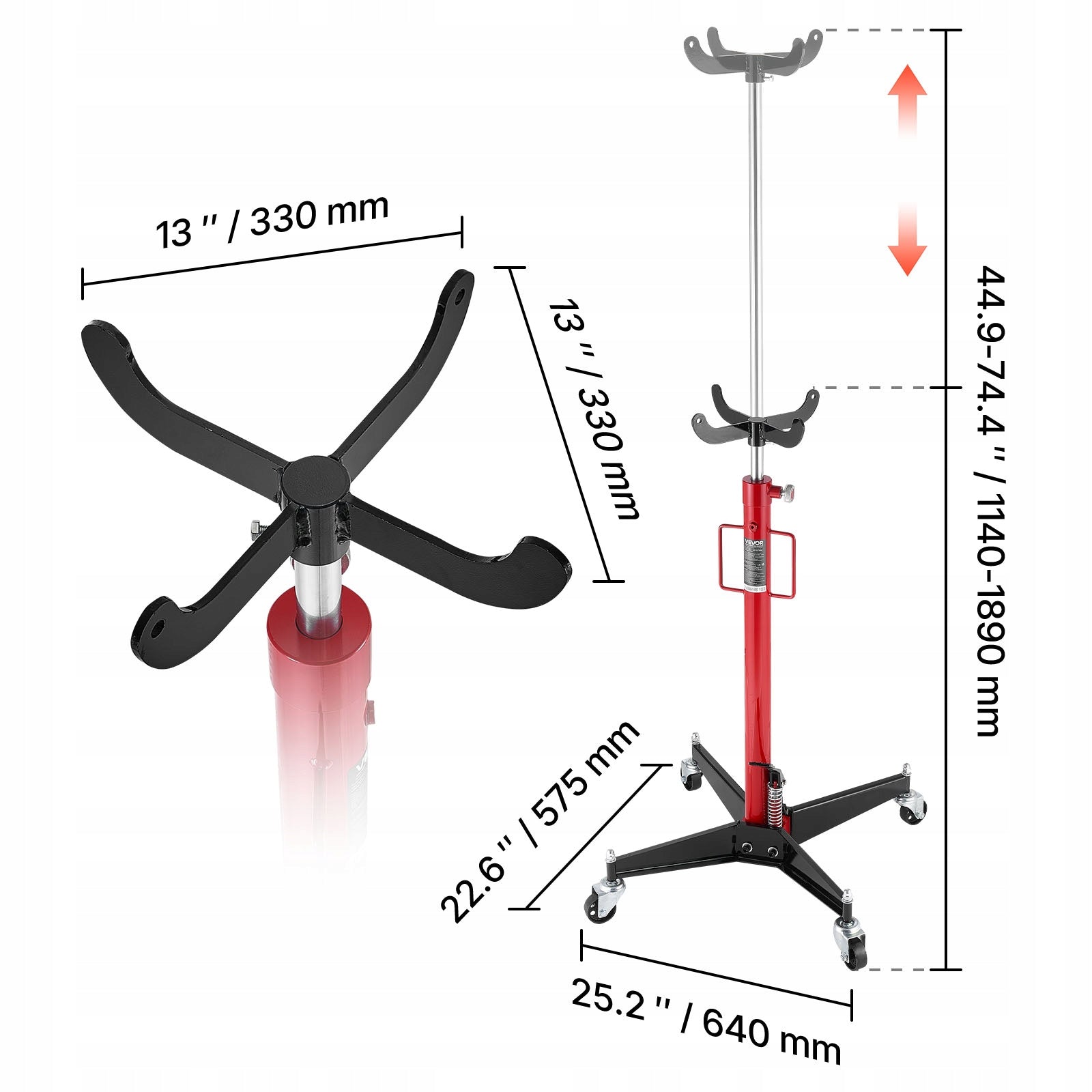

Product Dimensions: 25,2 x 22,6 x 44,9 – 74,4 inches / 640 x 575 x 1140 – 1890 mm

Heavy load

High lifting capacity is achieved thanks to strong and stable, durable steel construction. This lift is ideal for a variety of heavy-duty gearbox installation tasks, ensuring reliability when lifting and handling heavy loads.

Wide range of lifting

The lift offers a wide lifting range, with precise control from low to high positions. It meets the requirements for mounting gearboxes in various vehicles and ensures smooth lifting and lowering thanks to the hydraulic system.

Durable tray

The tray quickly adjusts to fit different gearbox mounting holes, ensuring a precise fit and stable support. This feature improves work efficiency and simplifies the complex assembly process.

Easy mobility

Featuring four heavy-duty castors, this lift allows for easy movement in your garage. Reduces the effort and time needed to move heavy gearboxes, streamlining disassembly, repair and assembly.

Hydraulic operation

The efficient hydraulic system provides a large and smooth lifting force, eliminating the need for strenuous operation. Regular lubrication of moving parts is required before and after use to prevent damage and wear.

Proper use and maintenance

The lift should only be used on hard, flat surfaces. When not in use, it should be lowered to a minimum position and stored in a dry, enclosed room to maintain its service life.

Package Contents

1 x Main Unit

1 x Cylinder

2 x Support Legs

1 x Lifting head

4 x Wheels

4 x Flat washers

4 x Screws

1 x Foot Pedal

1 x Cord

1 x Spring

1 x Gland

3 x Pins

3 x Pins

1 x User Manual

Key features

High lifting capacity: The hydraulic gearbox lift features a heavy-duty steel construction with a lifting capacity of 1100 lbs / 500 kg and a lifting capacity of 550 lbs / 250 kg, lifting gearboxes, drive shafts and axles with ease, while ensuring reliable operation.

High lifting range: Our heavy duty gearbox lifter offers a lifting range of 44 – 73,6 inches / 1120 – 1870 mm, allowing for easy adjustment to your desired height and providing ample working space. Note: Vehicles must be supported by a car lift.

Four-Claw Tray: The hydraulic telescopic lift features a thick, four-claw steel tray that supports gearboxes and chassis components such as hubs and brackets. Use belts to secure the pieces and prevent them from falling.

Hydraulic foot lift: The gearbox lift is operated with a foot pedal, which eliminates the need for manual lifting and ensures smooth, effortless lifting and lowering. The drain valve with knob allows for controlled lowering, reducing sudden falls.

360° mobility: The gearbox lift is equipped with four large swivel casters connected to an X-shaped base, which allows flexible movement in the garage while providing stability and stability during operation.
