Pavarų dėžės keltuvas 500 kg, profi OK-08.0100

Trumpai apie prekę

Prekė: Pavarų dėžės keltuvas 500 kg, profi OK-08.0100. Kategorija: Pavarų dėžės keltuvai.

• Gamintojas: Rooks
• Modelis: OK-08.0100

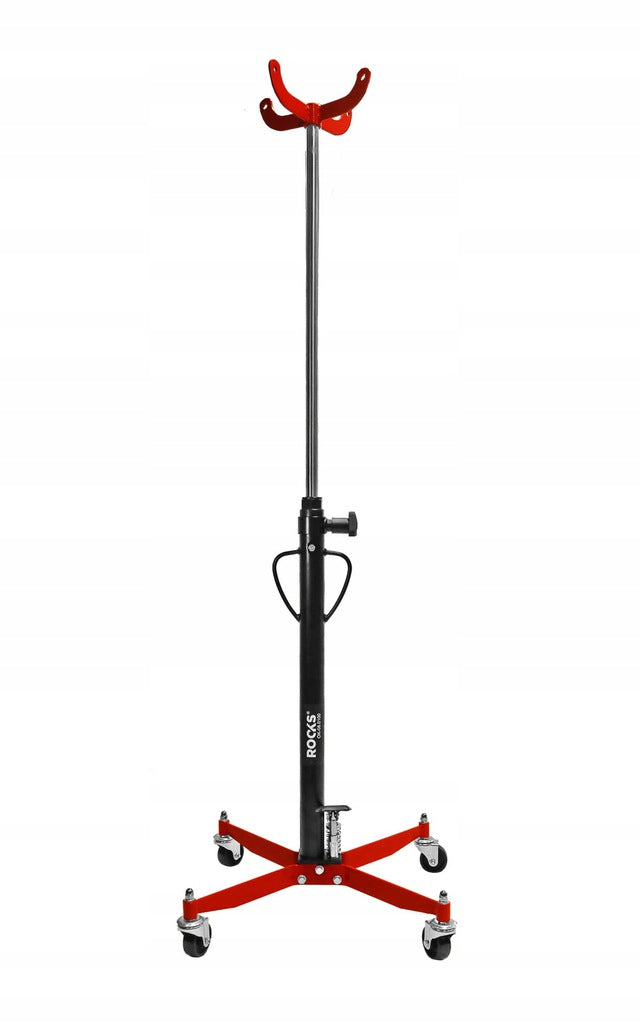

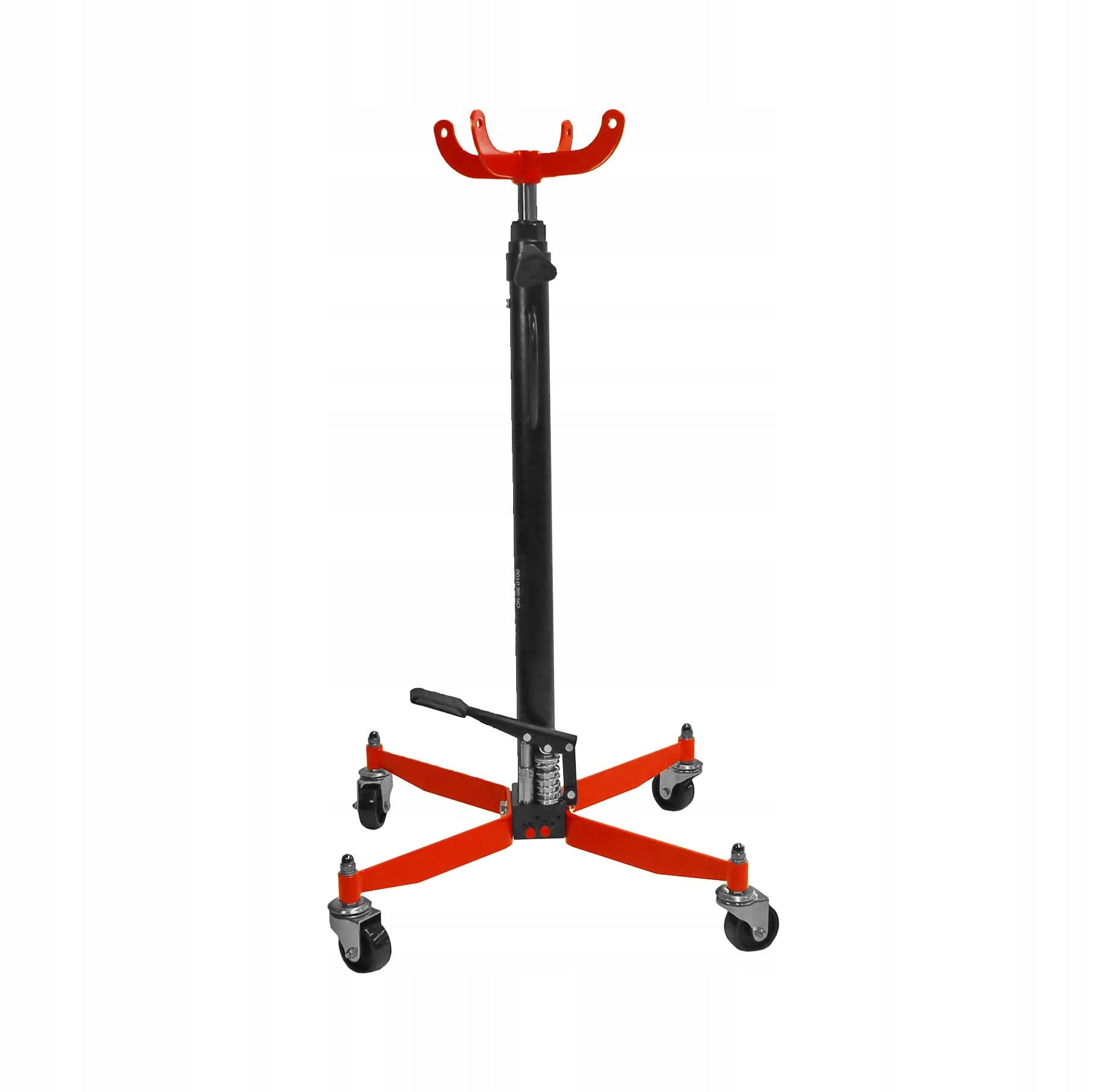

Gearbox lift 500kg,profi OK-08.0100

OK-08.0100

• Manufacturer: ROOKS

• Catalog No.: OK-08.0100

• Lifting capacity: 500kg

• Minimum lift height: 119cm

• Maximum lift height: 200cm

• 4 metal swivel casters

• Colour: red-black

• Weight: 28,5kg

Destiny

The gearbox lifter is an ideal device for mounting and disassembling gearboxes, axles or engines. It allows you to easily and quickly disassemble / install the element without much effort, which gives the pace of workshop work.

Simple work

The piston is ejected by means of a foot pump, while lowering the weight takes place after the "manual" release of the piston release valve. When the piston is aired next to the valve during operation, a vent is located. Thanks to this, you always have control over the rate of lowering the elements supported on the lift.

Security

A single-acting actuator has been placed in the lift, which means that the device is designed to lift the load upwards. It should be emphasized that the actuator does not have safety ratchets that could support the weight, so when the load is already lifted, additional support should be provided as soon as possible.

Convenient movement

With your convenience in mind, the lift is designed in 4 swivel metal wheels that allow you to transport the device to any place in the workshop.

Create a set!

You can buy a special adapter for the oil pan (OK-08.0101), thanks to which the lift will perform two functions: supporting heavy work when dismantling the engine or box and collecting the drained oil from the engine

Product Features:

• lifting capacity 500 kg
• working range 119-200 cm,
• precise and rigid piston rod,
• piston rod driven by a high-speed pump,
• stabilization - three sealing and stabilizing rings,
• HD design,
• frame on wheels,
• weight- 28,5,
• precise trigger mechanism,
• cross basket,
• Additional equipment: adapter for oil bowl and oil bowl - sold separately.
