Osmoso membranos skalavimo rinkinys RO BY-PASS AquaFloow

Trumpai apie prekę

Prekė: Osmoso membranos skalavimo rinkinys RO BY-PASS AquaFloow. Kategorija: Atvirkštinio osmoso sistemos.

• Gamintojas: AquaFloow
• Modelis: AOSM005

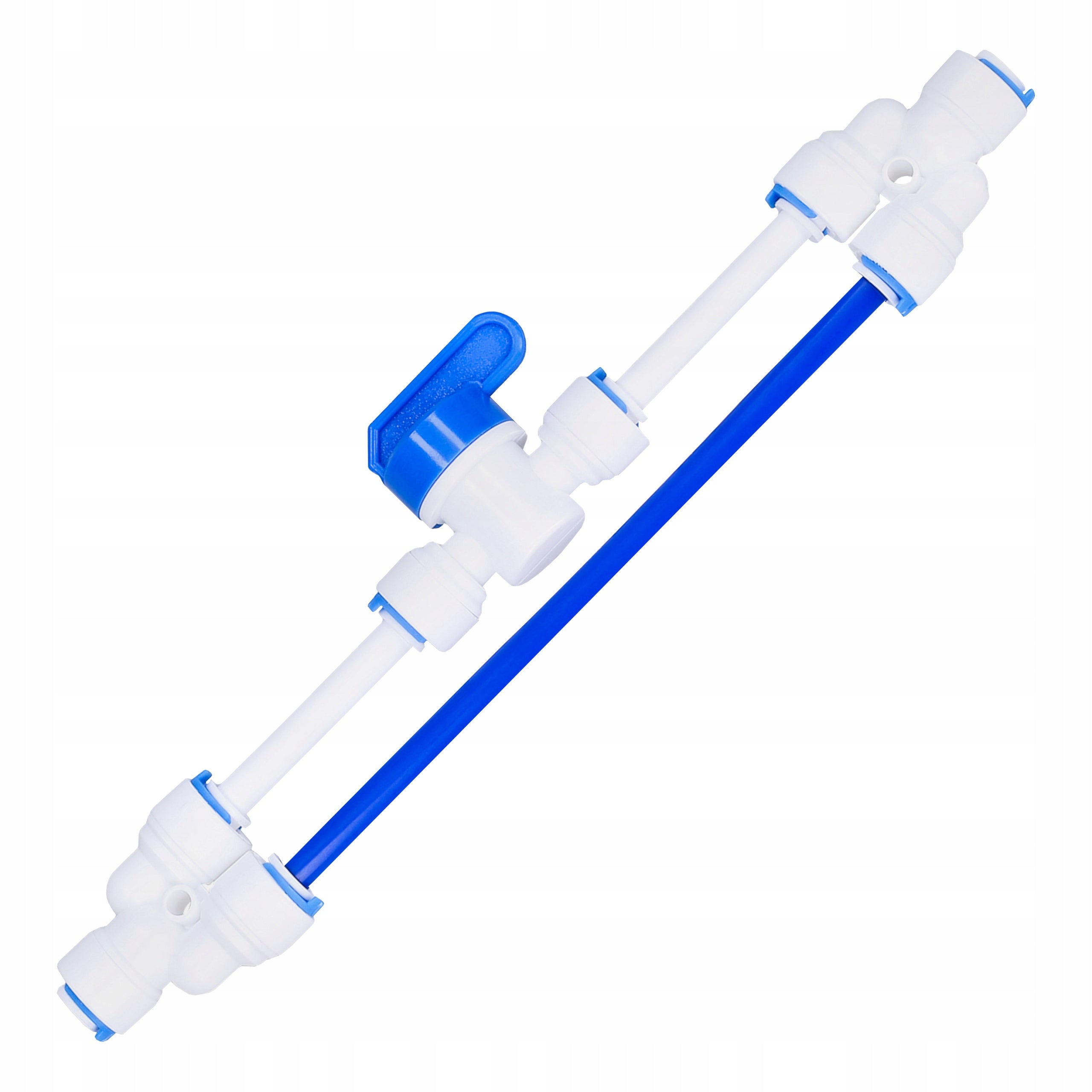

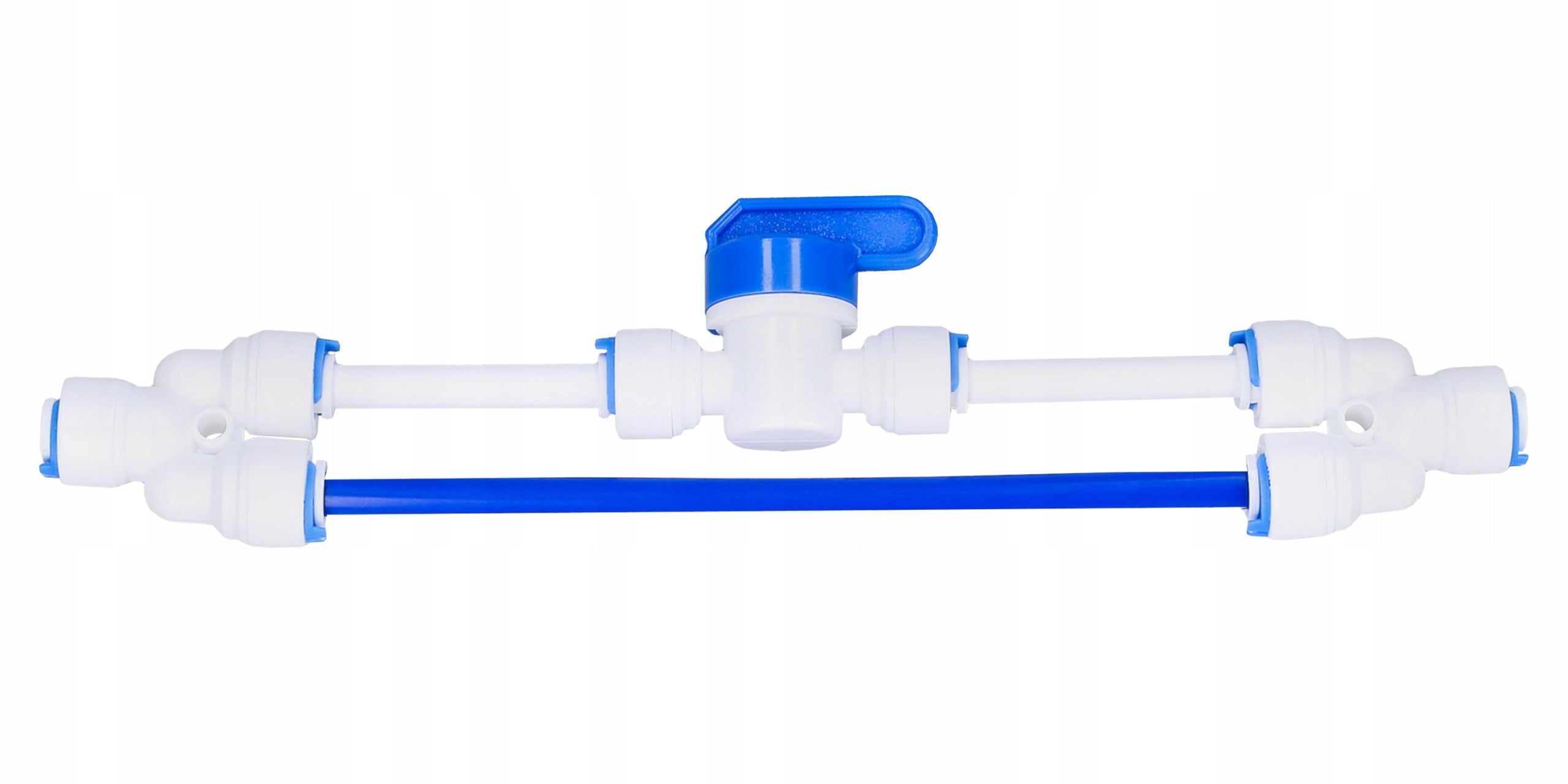

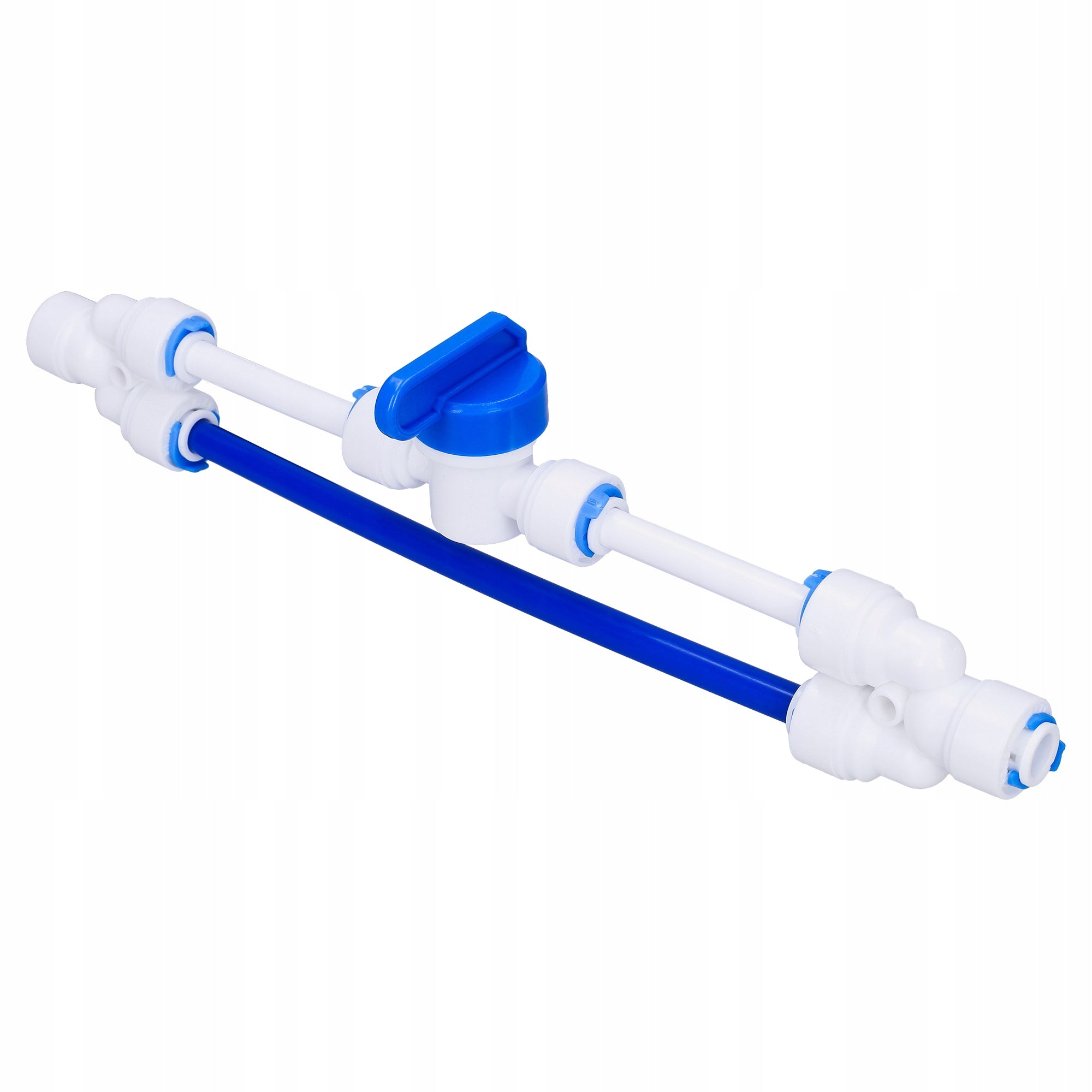

RO osmotic membrane flushing kit (BY-PASS)

Manufacturer: AquaFloow | Model: AOSM005

The RO membrane rinse kit is a practical accessory that allows to significantly extend the life of the osmotic membrane. Thanks to the water bypass function (BY-PASS), it enables flushing of sediment from the membrane under high pressure. Regular use of the kit (1 to 2 times a month) prevents the accumulation of impurities and can extend the efficiency of the membrane by up to several years.

The set is mounted directly to the water flow limiter in the RO system. It has QC quick couplers that allow efficient and tool-free installation.

✅ Elements of the set:

• IN/OUT ball valve
• 2x Linear Splitter
• 8x safety clips
• hoses with a total length of approx. 40 cm (in 3 sections)

✅ Technical specification:

• Type: membrane rinse kit (BY-PASS)
• Connections: 1/4" QC quick couplers (6,4 mm hose)
• Length of main module: about 20 cm
• Operating temperature range: 2-42 °C (cold drinking water)
• Working pressure: to 6 bar
• Material: plastic approved for contact with drinking water

✅ Product Features:

• Prolongs the life of the membrane - regular rinsing removes deposits and impurities.
• BY-PASS function - allows full flushing of the membrane without pressure reduction.
• Easy installation - QC quick couplers and a set of elements included.
• Safety of use - safety clips prevent accidental removal of the hose.
• Universal application - fits most reverse osmosis systems.

✅ Application:

• in home reverse osmosis (RO) systems,
• in water filtration systems with osmotic membranes,
• in the household and gastronomy, where a long service life of membranes is required.

✅ Compatibility:

Compatible with systems: Aquafilter, USTM, FITAQUA, Green Filter and other RO osmosis filters.

🔧 Assembly instructions:

1 Disconnect the water supply to the system.

2 Unhook the flow limiter from the membrane housing.

3 Cut the blue hose from the set to the appropriate length.

4 Connect the set to the flow limiter, paying attention to the direction of flow (arrow on the limiter and valve).

5 During system operation, open the BY-PASS valve so that the water rinses the membrane freely (approx. 2 minutes).

6 Close the valve and restore the normal operating mode of the system.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	AquaFloow
Parametry	Model	AOSM005
Parametry	Manufacturer code	AOSM005
Parametry	Packaging status	original
