Optinis SPDIF garso skirstytuvas 1x3 Toslink

Trumpai apie prekę

Prekė: Optinis SPDIF garso skirstytuvas 1x3 Toslink. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: no brand
• Modelis: SP3

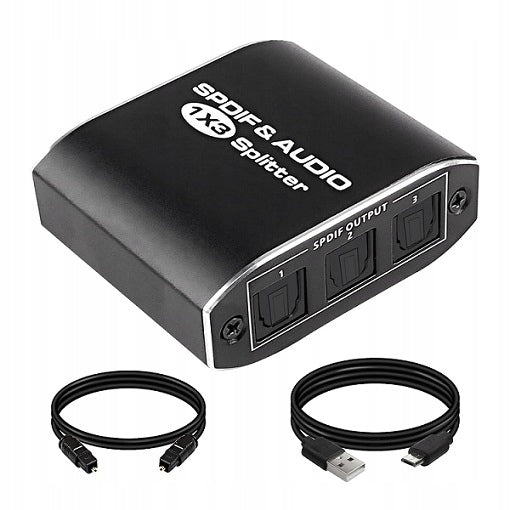

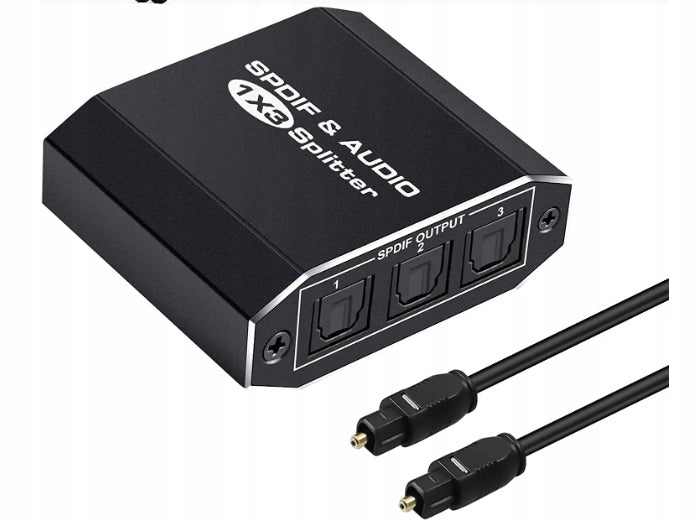

AUDIO SPLITTER 1x3 SPDIF TOSLINK OPTICAL SEPARATION

3 Port SPDIF Toslink Optical Splitter Digital Sound 1x3 Aluminum Alloy Material SPDIF Toslink 1 in 3 Out Supports LPCM 2.0 DTS -AC3 with 3 Optical Cable for PS3 XBOX DAC Converter Blue-Ray DVD HDTV STB

• 1x3 optical audio splitter, 1 in3 out optical splitter, can be connected to fiber optic signal input device, and then exported through fiber optic splitter to three groups of optical audio/toslink/sdif output devices, such as A/v receivers, speakers and TV devices.
• [voltage protection] optical phonograph can prevent damage caused by connecting the power connector to the machine and has overvoltage protection function.
• [Supported audio format] support Dolby Digital and DTS 5.1 DTS/PMC/lpm2.0, 32khz, 44,1khz, 48kHz, 96khz; Does not support 7.1ch Dolby Digital plus, Dolby trued, 7 mono audio that cannot be transmitted over fiber optic cable
• [signal transmission distance] the transmission distance of fiber optic sound splitter can reach 40 meters/130 feet, and the loss of fiber optic cable is less than 0,2DB/m.
• [Wide Compatibility] 1 input and 3 optical audio separators for TVs, Xbox 360, Xbox One, PS4, PS3, CD/DVD players, tvad, power amplifiers, speakers, soundbar, Bluetooth transmitters

Overview:

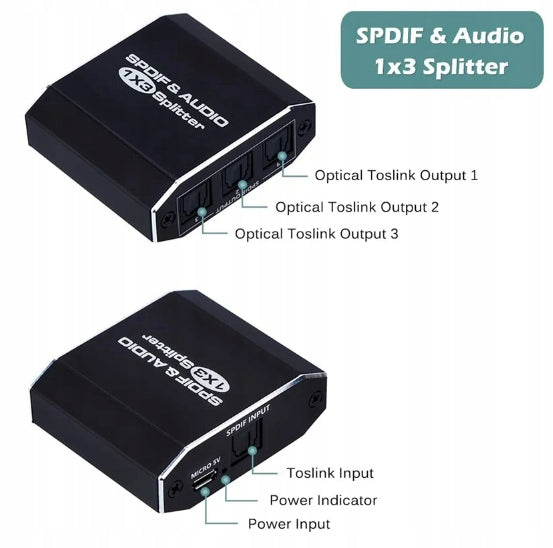

This SPDIF/TosLink Digital Optical Audio Splitter can allow users to connect one TosLink digital optical source to three TosLink optical inputs (SPDIF) on an AV amplifier.

Features:

1. One way to switch fiber optic signals to three sets of SPDIF/TosLink signal receiving device.

2. Audio format support: LPCM2.0/DTS/-AC3

3. Loss of used fiber optic cable reduced by 0,2 dB/m, output distance is up to 40m.

4. Excessive voltage protection can prevent damage caused by connecting an unparalleled power supply to the machine.

5. Indication of LED status.

6. Without loss of quality.

Specifications:

Support audio format: LPCM2.0/DTS/-AC3

Peak wavelength: 650nm

Max bit rate: 16Mbps0

Max working current: 100mA

Power Supply Format: Input: AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1000mA

Operating temperature range: (0 to + 40 ℃)

Operating humidity range: 5 to 90% RH (non-condensing)

Dimension (L x W x H): 48x48x20 (mm)

Weight: 70g

Includes micro usb cable and optical cable
