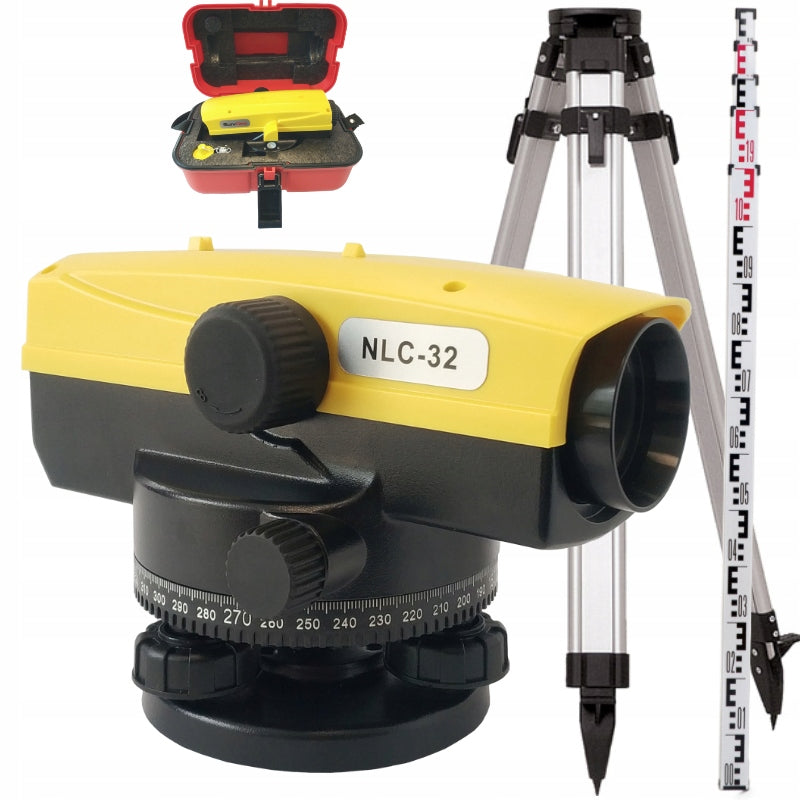

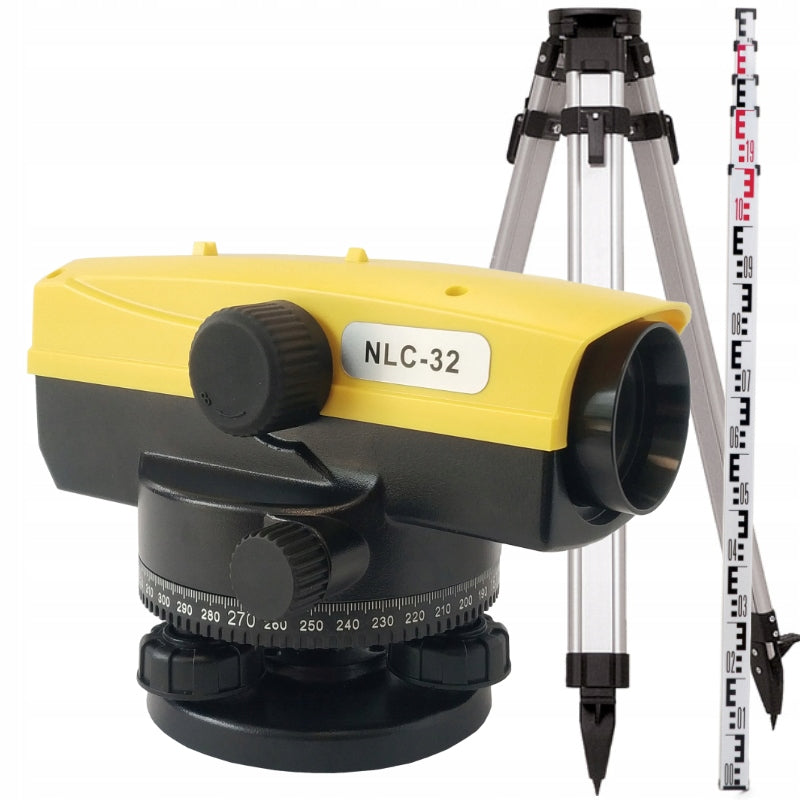

Optinis nivelyras SurvGeo NLC-32 32x su trikoju ir 5 m liniuote

Trumpai apie prekę

Prekė: Optinis nivelyras SurvGeo NLC-32 32x su trikoju ir 5 m liniuote. Kategorija: Optiniai nivelyrai.

• Gamintojas: Survgeo
• Modelis: NLC-32

Description of optical leveler SurvGeo NLC-32

• High quality optical leveler SurvGeo NLC-32 with high 32x magnification.
• The IP54 resistance standard guarantees high resistance to external conditions, enabling work in harsh weather conditions.
• The wide lens with a diameter of 40mm and the use of bright optics make reading from the patch extremely easy and readable, regardless of the weather.
• The gravity compensator used ensures fast vibration compensation and high accuracy of measurements at +/- 1,5mm / on a kilometer of double leveling.
• In addition, 32x magnification of the image allows measurements over long distances, exceeding even 120m, where the minimum reading from the leveling patch is only 0,6m.
• Robust workmanship and high quality of the components used at an attractive price make the NLC-32 leveler an ideal solution in terms of value for money.

Technical data

• Standard error on 1km double leveling: 1,5 mm
• Image: real (not inverted)
• Magnification: 32x
• Lens size: 40 mm
• Field of view: 1°20'
• Smallest target: 0,6 m
• Type of compensator: gravity
• Accuracy: +/- 0,5"
• Compensation range: +/- 15'
• Connecting thread: 5/8"
• IP standard: 54
• Libella Accuracy: 8'/2 mm
• Horizontal circle pitch: 1° / 1gon

Aluminum Surveying Patch 5m SurvGeo

Telescopic levelling staffs are made of high-quality, anodized aluminum tubes. The individual telescopic elements slide along massive plastic guides. The print on the front side of the patch is additionally protected by protruding profile strips. The innovative latching mechanism guarantees reliable locking of individual telescopic elements. To clean the patch, it can be unfolded and folded without the use of tools. Two types of division have been developed with different purposes in mind. At the front, there is a standard "E" leveling division and at the rear there is a millimeter division.

Technical data:

• Length: 5m
• Made of lightweight aluminum
• Number of sections: 5
• The front panel has a geodetic scale type E, and on the reverse a millimeter scale
• Sturdy latches to lock individual elements

Aluminium tripod for SECO buckles

Head, clamps and tips made of durable steel. Thanks to the eccentric clamps, the leg height adjustment is smooth and efficient. The stand has a practical carrying handle. It is very light, which makes it much easier to transport. The use of a universal screw (5/8") in combination with a flat head ensures a stable hold of the instrument. The tripod allows you to mount virtually all devices available on the market. It is ideal for optical and electronic levels, rotating lasers, cross-line lasers, point lasers, theodolites and tachymeters. It is resistant to unfavorable weather conditions, which guarantees its long-term use.

Technical data:

• Minimum height (transport): 88 cm
• Maximum height (monopod): 140 cm
• Material: Aluminum
• Head: flat 11 cm
• Heart Screw: 5/8"
• Lock Type: Buckles
• Weight: 3kg
• Resistant to weather conditions

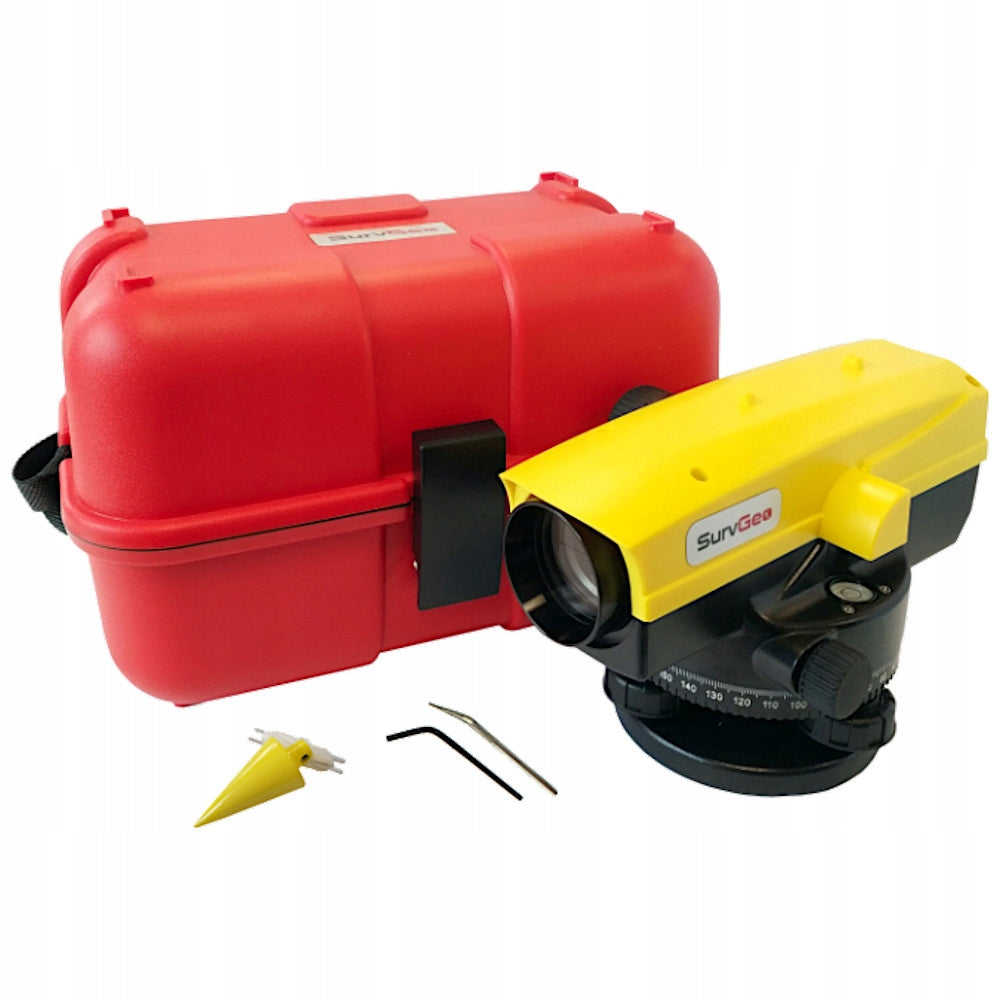

Scope of delivery

• Optical level SurvGeo NLC-32
• Aluminium stand for buckles 1,4m SECO
• Leveling patch 5m SurvGeo
• String Vertical
• Allen Wrench
• Rectification needle
• Suitcase
