Optinis nivelyras FIRECORE 32x, IP54, su kalibravimu geodezijai

Trumpai apie prekę

Prekė: Optinis nivelyras FIRECORE 32x, IP54, su kalibravimu geodezijai. Kategorija: Optiniai nivelyrai.

• Gamintojas: Firecore
• Modelis: FC-32N

✅ Magnification 32X ✅ Magnetic attenuation ✅ High precision (1.0 mm) ✅ Protection class IP54 ✅ Compensator with lock ✅ Ultra-short target (0.3 m)

📦 Contents of the pack:

1X Optical leveler Firecore FC-32N

1X Transport case

1X Setting pin

1X Allen Wrench

1X Corded Vertical

1X User Manual

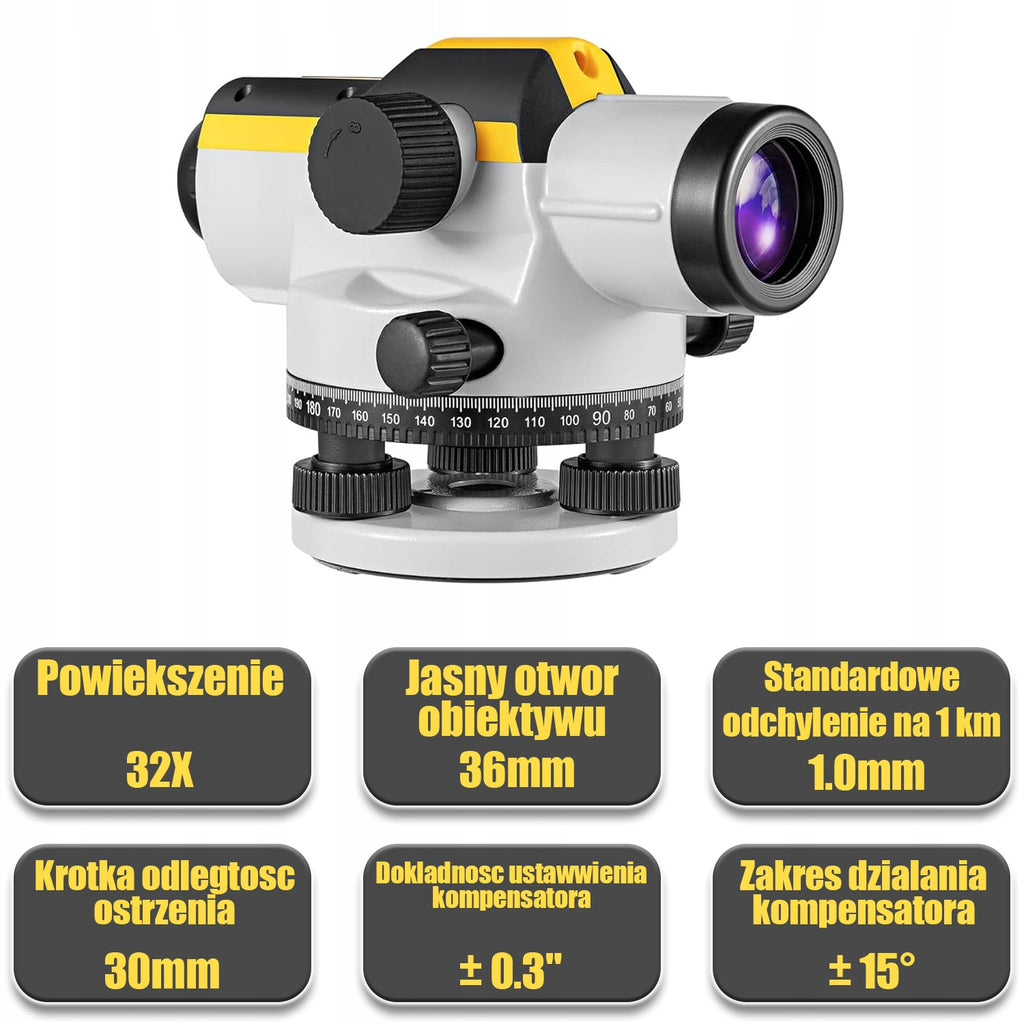

✅ Technical data:

• Error average per 1 km of double leveling [mm]: ±1,0 mm
• Scope magnification [x]: 32
• Scope diameter [mm]: 36
• compensator : Magnetic attenuation - Instant stabilization and High shock resistance
• Image: Simple
• Waterproof / Dustproof: IP54
• Shortest target : 0,3 m
• Compensator operating range: ±15'
• Libella Advantage: 8'/2 mm
• Addition constant: 0
• Multiplication constant : 100

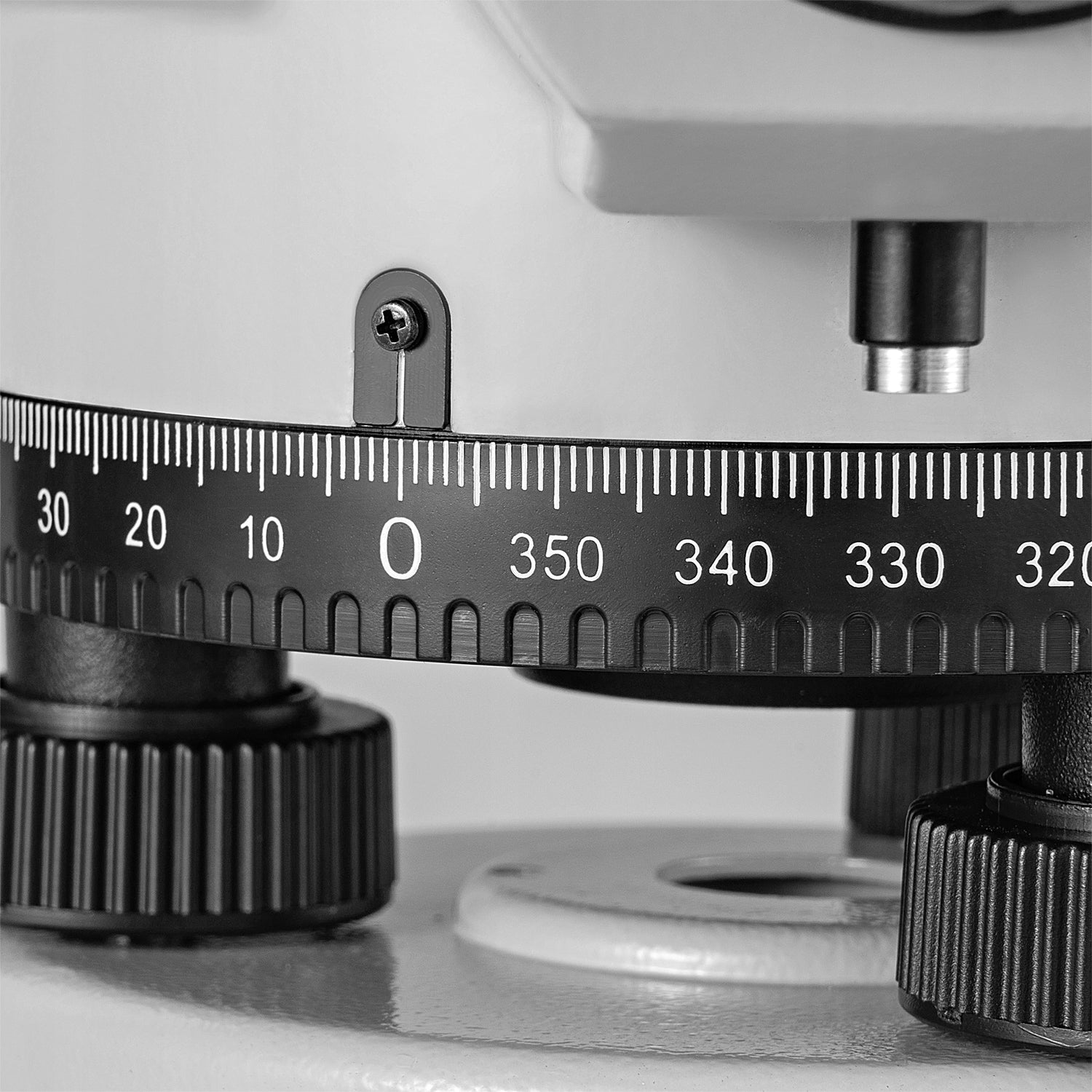

• Horizontal wheel pitch: 1° or 1 gon
• Heart screw thread: 5/8 or M16
• Weight [kg]: 1,8

✅ Professional leveling tool for field work

Thanks to the 32x magnification lens and the large 36 mm apparatus, the Firecore FC-32N automatic optical leveler allows for efficient operation within a range of up to 120 meters (393 ft). It provides an extremely sharp and clear image, even in difficult lighting conditions. In addition, the device offers an excellent accuracy of 1,6 mm by 30 m (1/16" by 100 ft), and the standard deviation per 1 km of double leveling reaches only 1,0 mm.

✅ Reinforced and durable construction

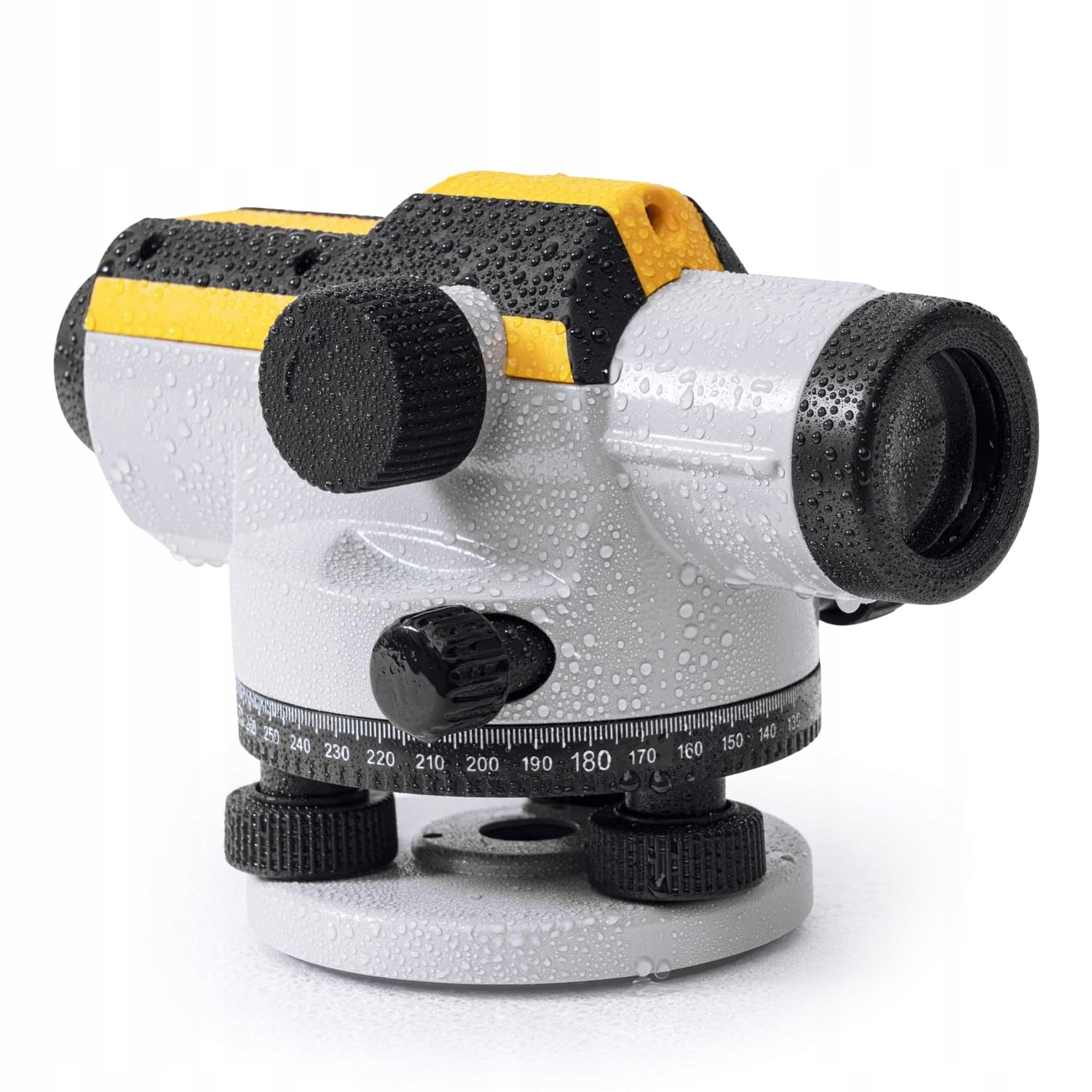

The leveler features a durable construction made of durable plastic, additionally reinforced with a rubber coating (overmold) in places most exposed to impact. The metal housing meets the IP54 tightness standard, which ensures full resistance to water and dust. The magnetic damping system instantly stabilizes the system and effectively reduces the impact of vibrations on the construction site, guaranteeing precise and repeatable measurements

✅ Quick setting and convenient aiming

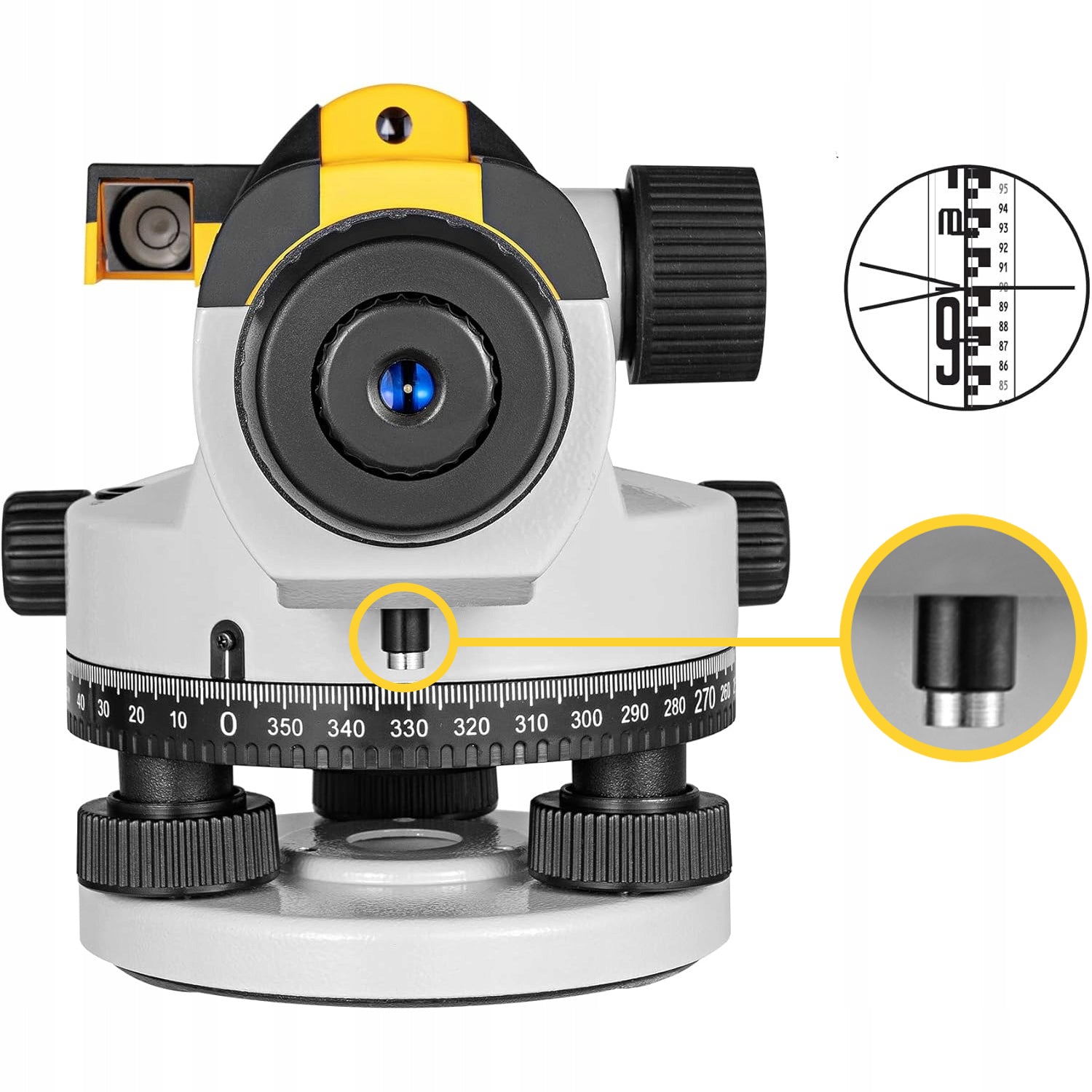

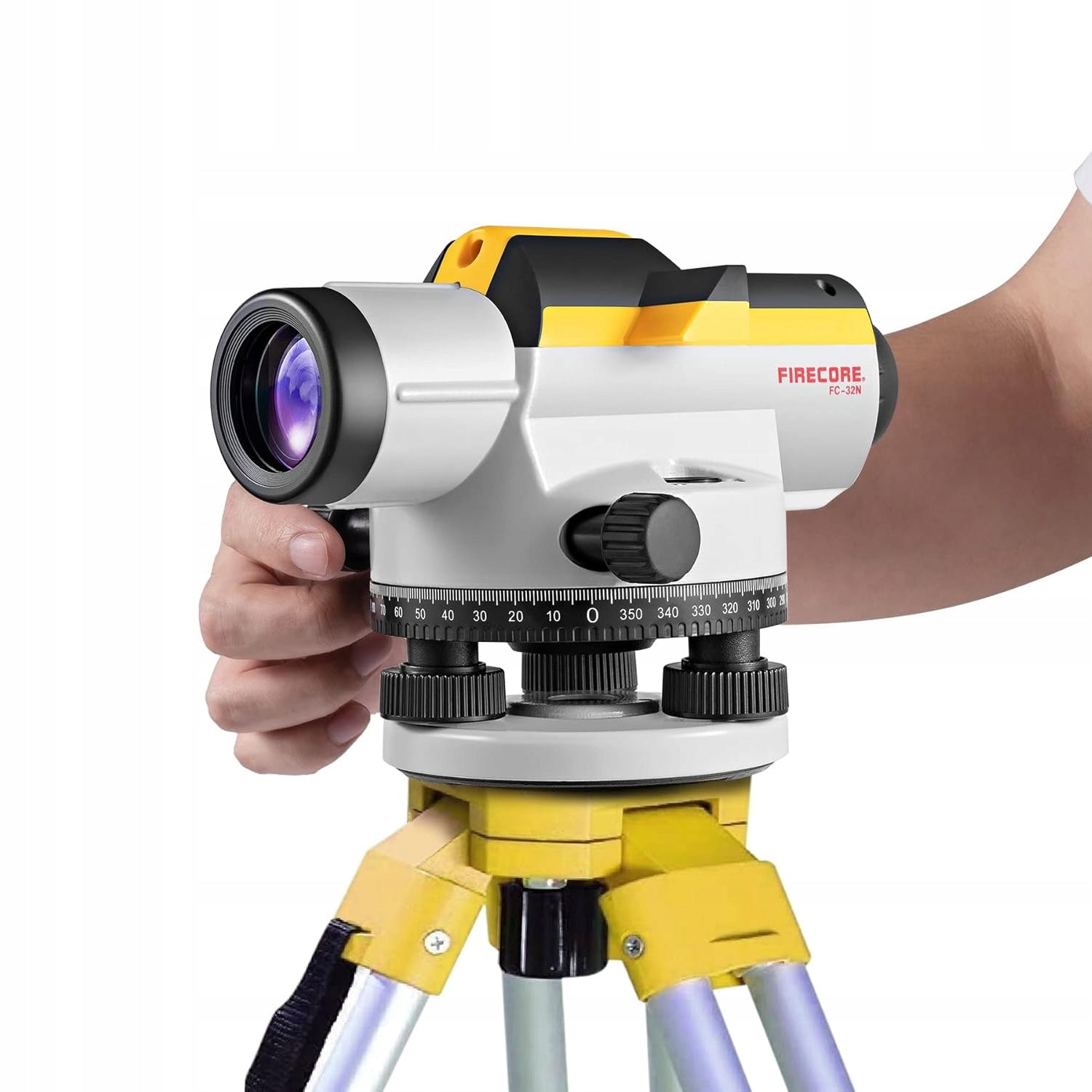

This high-end automatic leveler has three precision setting screws and a built-in prismatic mirror (90 degrees), which allows you to instantly center the box libella and prepare the workstation. The solid metal base is equipped with a standard mounting thread 5/8", allowing stable attachment to the tripod. The upper optical sight (collimator) allows you to quickly orient the instrument to a leveling patch. After setting up and roughly leveling, just use the focus knob to get a clear picture and start measuring immediately

✅ Self-leveling compensator with transport lock

The device is equipped with a self-leveling magnetic compensator with a mechanical transport lock. This lock effectively protects the delicate mechanism during handling and significantly extends the life of the instrument. In addition, the user can easily check the technical condition of the compensator and make sure that its suspension springs have not been damaged due to vibrations during transport.

✅ Four main features of magnetic compensator

Instant self-leveling (Instant stabilization and instant reading)

High resistance to microvibration (Effective elimination of vibrations on the construction site)

No mechanical wear and long service life (Contactless damping system)

Stability in extreme climatic conditions (Independence from temperature fluctuations)

💡NOTE:

During the transport of the instrument in the case, it is absolutely necessary to lock the compensator. Otherwise, strong shocks can lead to its damage.

Firecore Tools is a brand created for people involved in DIY both in their free time and on a daily basis. We focus on comfort in the use of equipment, which in addition to interesting design is characterized by high durability. For many years, we have been trying to provide you with tools that will facilitate repairs and save time, and also meet the highest quality standards and exceed the expectations of users.

Specifications
