Odinio siuvimo mašina batų taisymui, rankinė

Trumpai apie prekę

Prekė: Odinio siuvimo mašina batų taisymui, rankinė. Kategorija: Siuvimo mašinos.

• Gamintojas: no brand
• Modelis: tf

Durability: This product is made of high-quality iron, and its surface has been galvanized and painted, thanks to which it is characterized by high hardness, resistance to abrasion, corrosion and rust, and a long service life.

Adjustable direction 360°: The universal key, foot and needle with adjustable direction in the range of 360° allow to adjust the working route at any time. You can put on a high shoe and sew a full circle or something without turning the shoe.

Manual operation advantages: Hand crank operation allows you to capture the strength and accuracy of the machine well. You can freely control the speed and adjust it at any time, which is perfect for DIYers. It can be stopped as often as needed, while still allowing access to places inaccessible to most machines.

Easy to use: The convenient foot wrench allows you to control the lifting and falling of the foot by controlling the top and bottom plates (the foot rises when the top plate is under pressure and the foot lowers when the bottom plate is under pressure). The ergonomic handle is easy to grip, making it easy to operate manually. At the same time, a well-made bobbin makes the lines stronger, and the special operation of the turntable is easier to use.

Ingenious design: The pressure plate allows you to adjust the tension of the cotton thread, and the stitch length can be adjusted freely by turning the screw up/down (up to 0,24 inches wide), to optimize the curvature of the spindle to reduce friction, and the new spindle shape makes the machine run smoother, improves roughness or locked bearings, and makes the product look better.

Model: JX-JJ

Material: Iron

Color: Black

Process: Galvanization, Spraying

Type: Semi-automatic

Maximum stitch width: 6 mm/0,24 inch

Maximum cutting thickness: 3-5 mm / 0,12-0,2 inch (actual cutting thickness depends on the material)

Assembly Required: Yes

Mounting Type: Floor

Number of Items: 1

Gross weight: 11 kg / 24,25 lbs

Net weight: 10,5 kg / 23,15 lbs

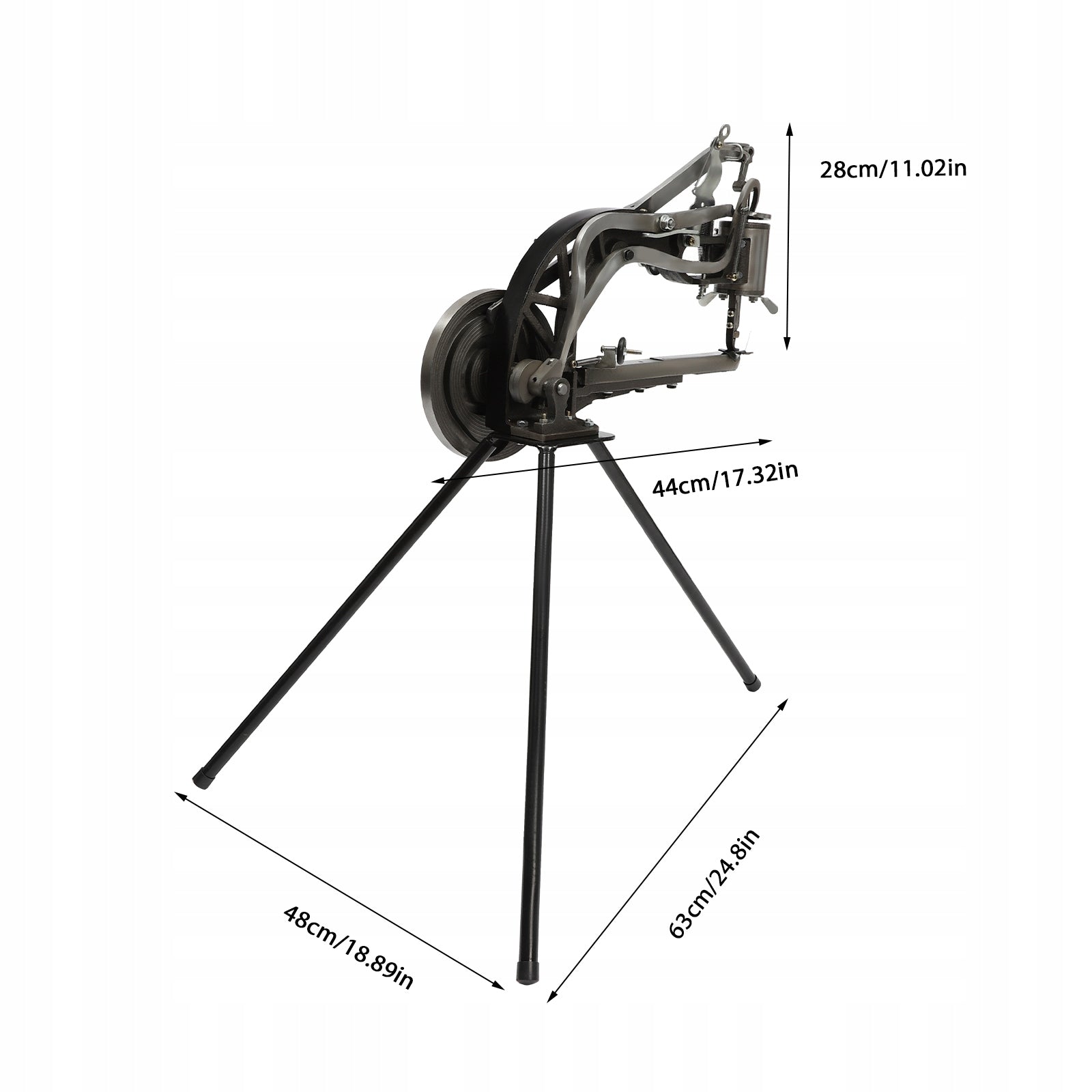

Product Size (L. * H. ): 44 * 28 cm / 17,32 * 11,02 inch

Stand Size: 63 * 48 cm / 24,8 * 18,9 inch

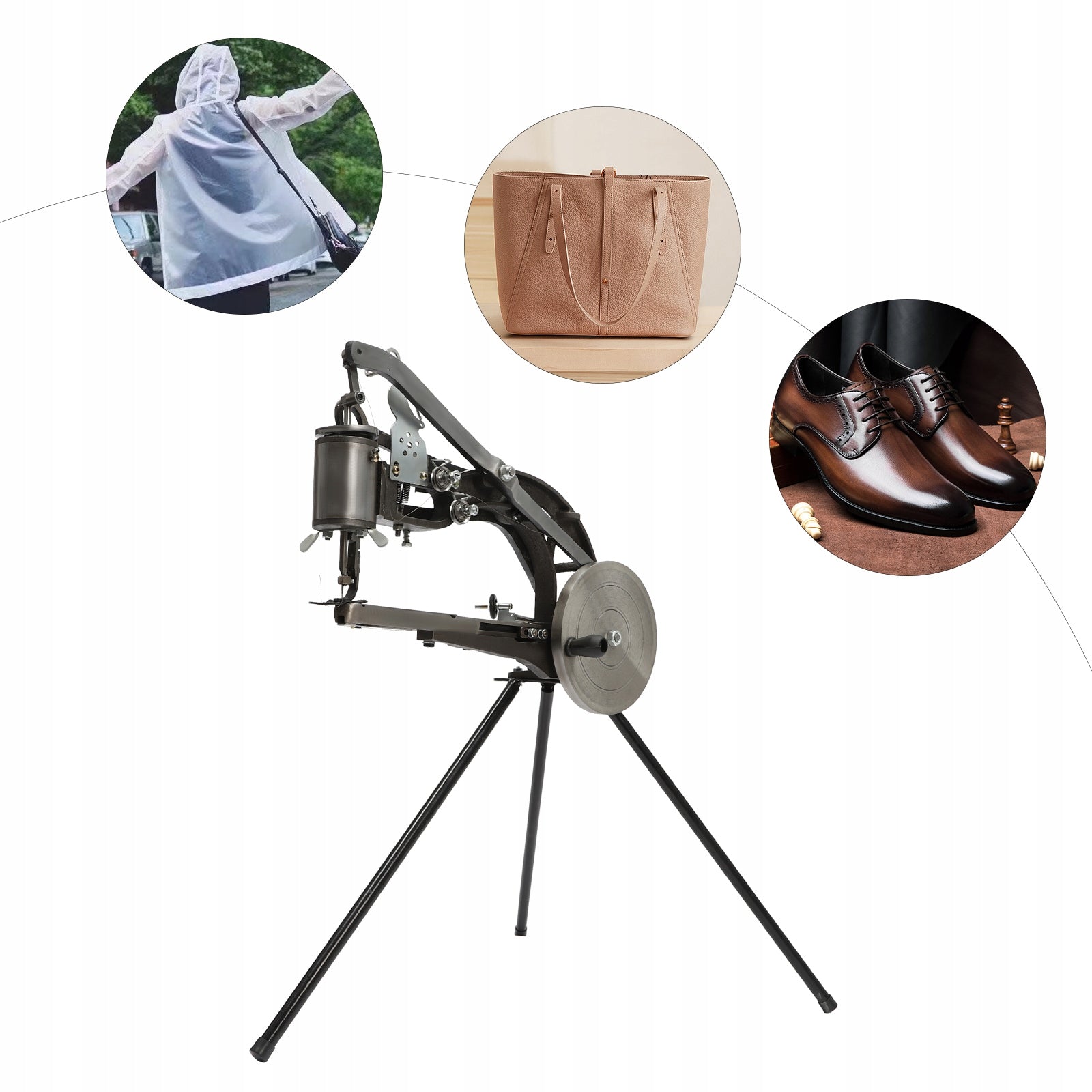

for sewing various sizes of fabric shoes, rubber shoes, leather shoes, travel bags, raincoats, etc. and suitable for nylon threads, silk threads and cotton threads.

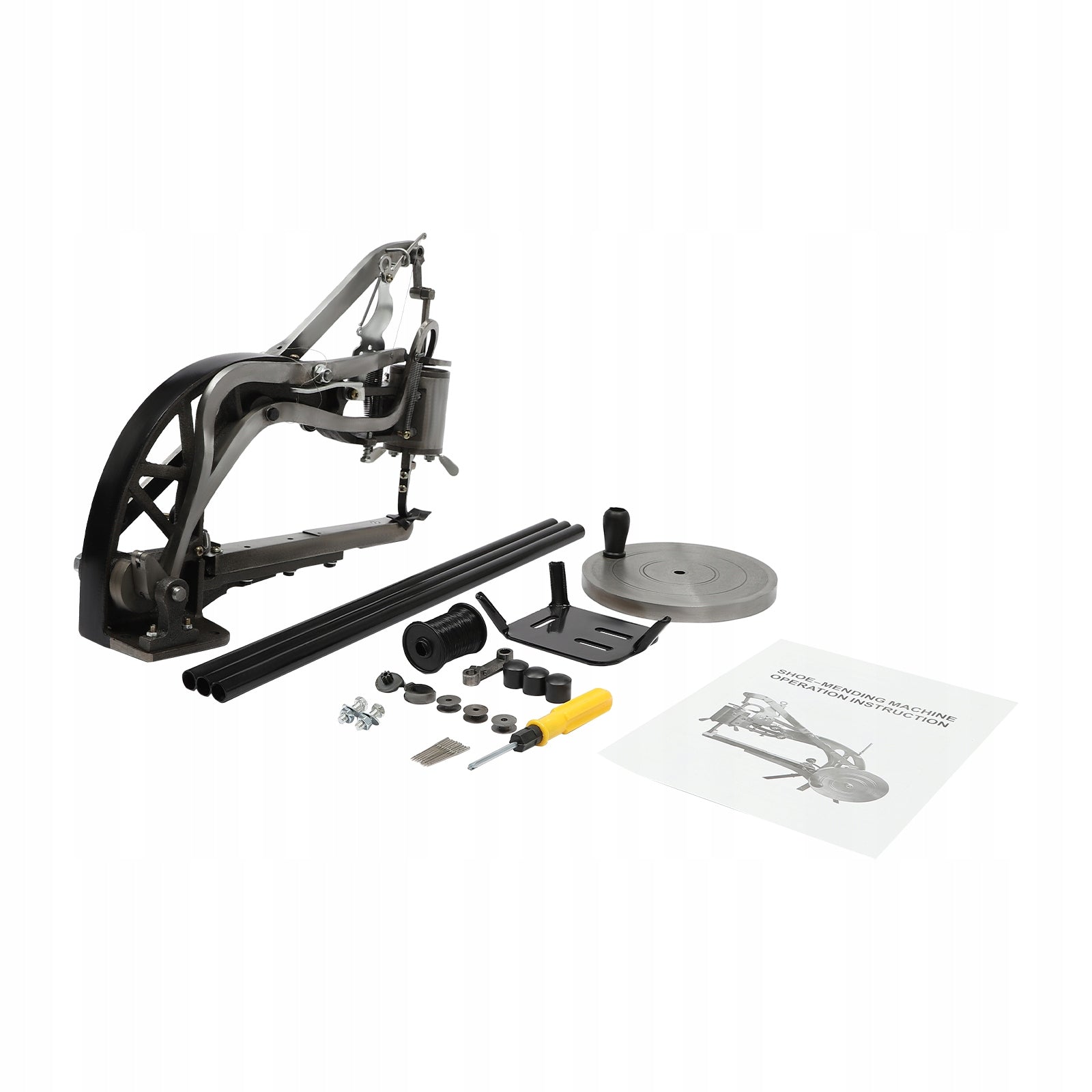

1 * Manual shoe repair machine

1 * Instruction in English

All akcesoria for installation

1. When adjusting the tension of the upper thread, it is enough to adjust only one of them.

2. The material of this product is iron, which rusts easily, so the surface of the machine is coated with anti-corrosion oil. One side of the machine bracket is stable, if not, it should be installed on one side.

3. It is handmade by a master blacksmith, so the product will leave a tapping mark and is not as smooth as a machine made in form.

4. The moving parts of this product must be refueled regularly to ensure that the machine operates lightly, without noise, improves efficiency and extends service life. It is recommended that a machine that has not been used for a long time be lubricated before use.

5.

6. Do not shake the handle backwards while working to avoid tying the bobbin inside. The needle hole must be directed outwards to avoid breaking the thread.

7. Please read the instruction manual in its entirety before use. Particular attention should be paid to the included safety instructions.

8.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	Dominant color	black
Parametry	Model	tf
Parametry	Sewing features	repairing
Parametry	Types of stitches	other
Parametry	Hook	other
Parametry	Foot type	other
Parametry	Product weight with unit packaging	11 kg
Parametry	Manufacturer code	q2552
Parametry	EAN (GTIN)	4037185874719
