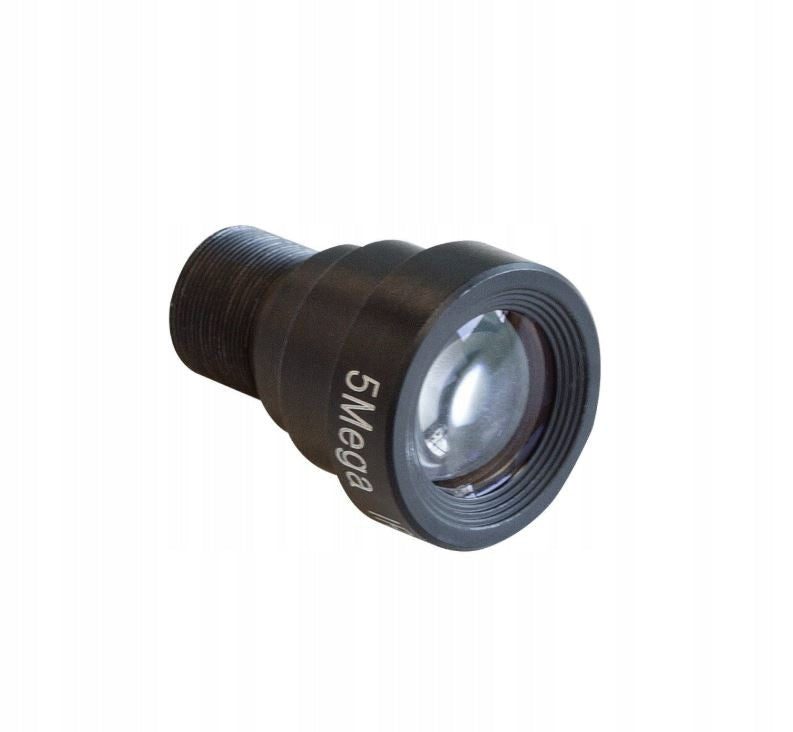

Objektyvas M12 35 mm 8°, 1/1.7" su adapteriu, tinka Raspberry Pi HQ, ArduCam LN059

Trumpai apie prekę

Prekė: Objektyvas M12 35 mm 8°, 1/1.7" su adapteriu, tinka Raspberry Pi HQ, ArduCam LN059. Kategorija: Priedai.

• Gamintojas: ArduCam
• Modelis: LN059

Lens M12 35mm 8° 1/1.7" + adapter for Raspberry Pi HQ-ArduCam LN059

Description

The lens with M12 mount and constant focal length 35mm is used in vision systems requiring a narrow field of view and observation of objects from a greater distance. The 8° viewing angle allows for precise framing of the scene, which is used in monitoring, vision inspection and projects requiring high image approximation.

The design has been adapted to work with 1/1.7" format matrices. The included adapter allows you to mount the M12 lens on a Raspberry Pi High Quality camera, equipped with a standard C/CS mount. This solution allows the use of compact M12 optics in applications based on the HQ camera, without interfering with the module design.

The metal lens housing provides mechanical stability when working in vision applications and prototype environments.

Properties

• Lens Type: Fixed Focal
• Focal length: 35 mm
• Mount: M12 (S-mount)
• Compatible Matrix Format: 1/1.7"
• Aperture (F/NO): F3.0
• Focal length equivalent to 35 mm: 257 mm
• Rear focal distance (BFL): 5.5 mm
• Field of view on camera HQ 1/2.3" (HFOV): 8°
• Field of view on RPi 1/4" (HFOV) camera: 5°
• Optical design: 5G
• IR filter: none
• Operating wavelength range: all pass
• Minimum sharpening distance (MOD): 0.35 m
• Lens holder height: 13 mm
• Dimensions: 22 x 29.3 mm
• Weight: 16 g
• Focus Adjustment: Manual

Comes with

• 1x M12 35 mm lens
• 1x Mounting Adapter for Raspberry Pi High Quality Camera

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	LN059
Parametry	Manufacturer	ArduCam
Parametry	Kind	Camera
Parametry	EAN (GTIN)	5902186334113
