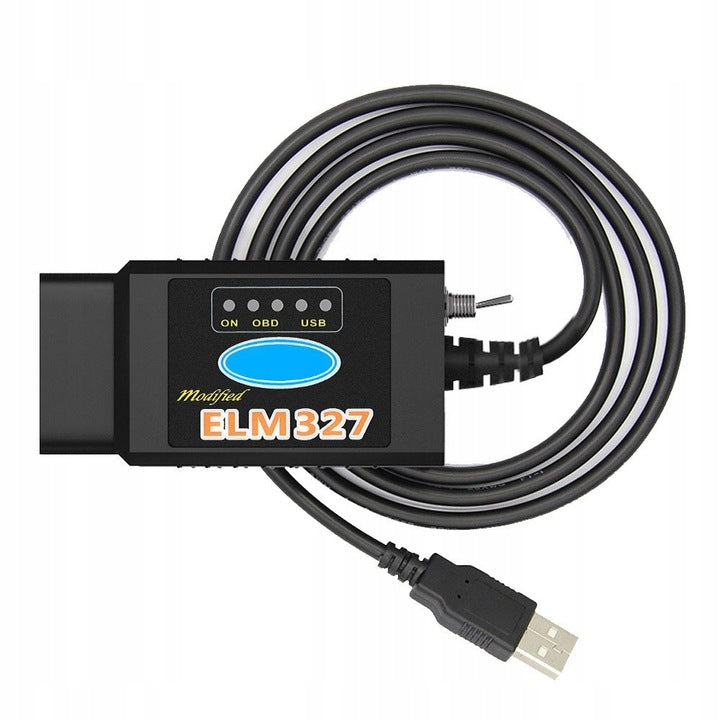

OBD2 kodų skaitytuvas USB kabelis PIC18F25K80 CH340 HS MS CAN ELMConfig

Trumpai apie prekę

Prekė: OBD2 kodų skaitytuvas USB kabelis PIC18F25K80 CH340 HS MS CAN ELMConfig. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: 100
• Modelis: 748415788990

⚙ Advanced diagnostics of your car at home

Professional USB diagnostic interface allows you to read and delete errors in the car yourself.

The built-in switch allows full communication with Ford and Mazda vehicle modules without any barriers.

With this device, you can quickly diagnose a fault, avoiding costly visits to an authorized repair service.

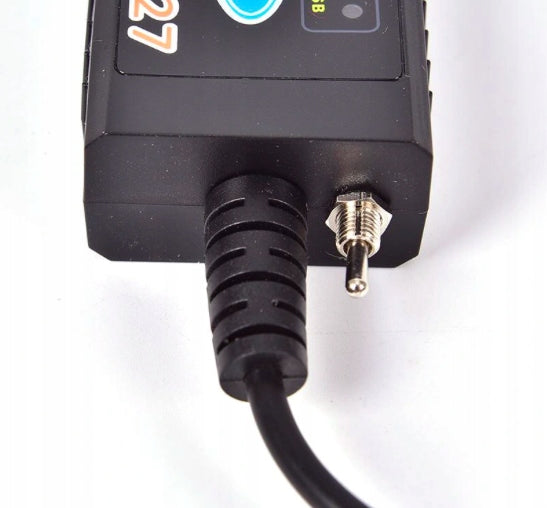

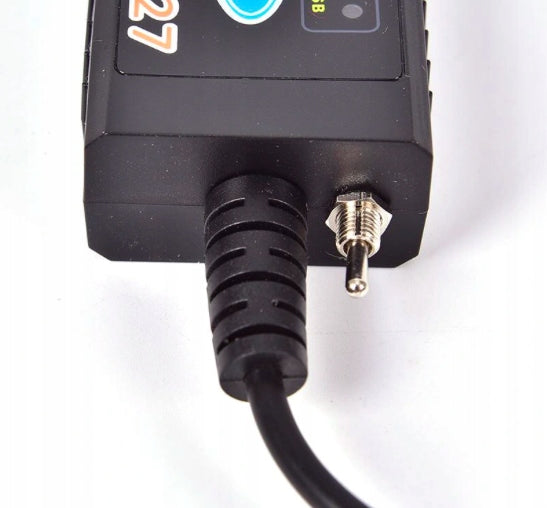

🔘 Full support for MS CAN and HS CAN bus with built-in switch

The innovative mechanical switch provides seamless access to medium and high speed networks in vehicles.

The device guarantees a stable connection with hidden modules, such as ABS, airbags or air conditioning.

◾ Switch: HS and MS CAN | HS Pins: 6 and 14 | MS Pins: 3 and 11

🔳 Reliable electronic circuits for maximum stability

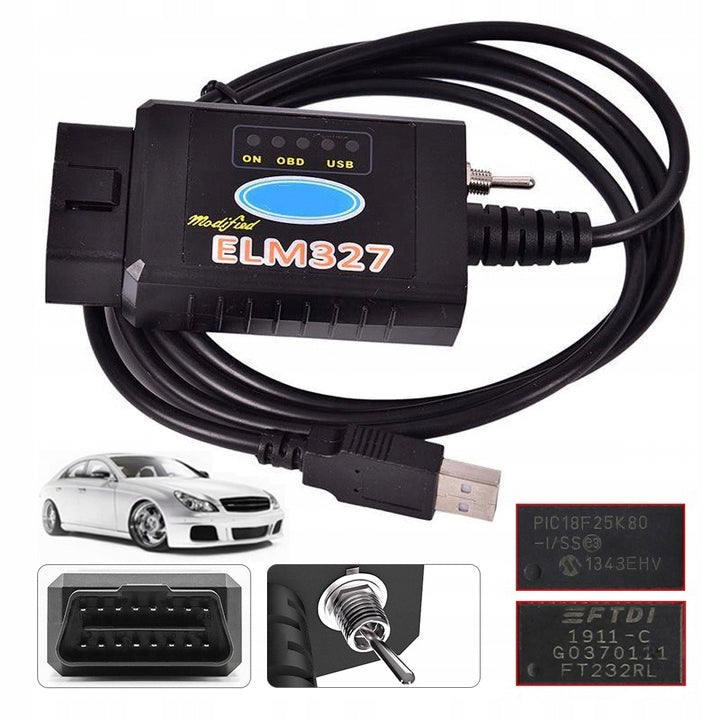

The heart of the device are high-quality CH340 and PIC18F25K80 chips, which guarantees smooth and safe transmission.

Advanced electronics protect against interruption of the connection during critical diagnostic operations in the car.

◾ Main chip: PIC18F25K80 | USB chip: CH340 | Connector type: OBD2

⚫ Unlock hidden functions and full control of the vehicle

The interface works perfectly with FORScan, ELMConfig and FoCCCus software, giving great possibilities.

You can live monitor engine performance, encode injectors and activate additional vehicle functions.

◾ PC compatibility: Windows OS | Dedicated programs: FORScan, ELMConfig

Contents of the set

▫ 1 x ELM327 USB Diagnostic Interface with HS/MS CAN Switch

Note ❕

❕ The device requires the installation of drivers on a Windows computer (supports versions from XP to 10, 32/64-bit).

❕ For advanced diagnostics of Ford and Mazda cars, the free FORScan program is recommended. The product does not support smartphones.

📋 Detailed specification

Model: ELM327 USB Modified

Integrated Circuits: CH340 + PIC18F25K80

Diagnostic connector: 16-pin OBD2

PC Connector: USB Type-A Plug

HS CAN protocol: Pins 6 and 14

MS CAN protocol: Pins 3 and 11 (Ford / Mazda)

Compatible Software: FORScan, ELMConfig, FoCCCus, ScanTool, PCMSCAN

System Compatibility: Windows 98, XP, Vista, 7, 8, 10 (32-bit and 64-bit)

Support standards: J1850 PWM/VPW, ISO 9141-2, ISO KWP, ISO CAN
