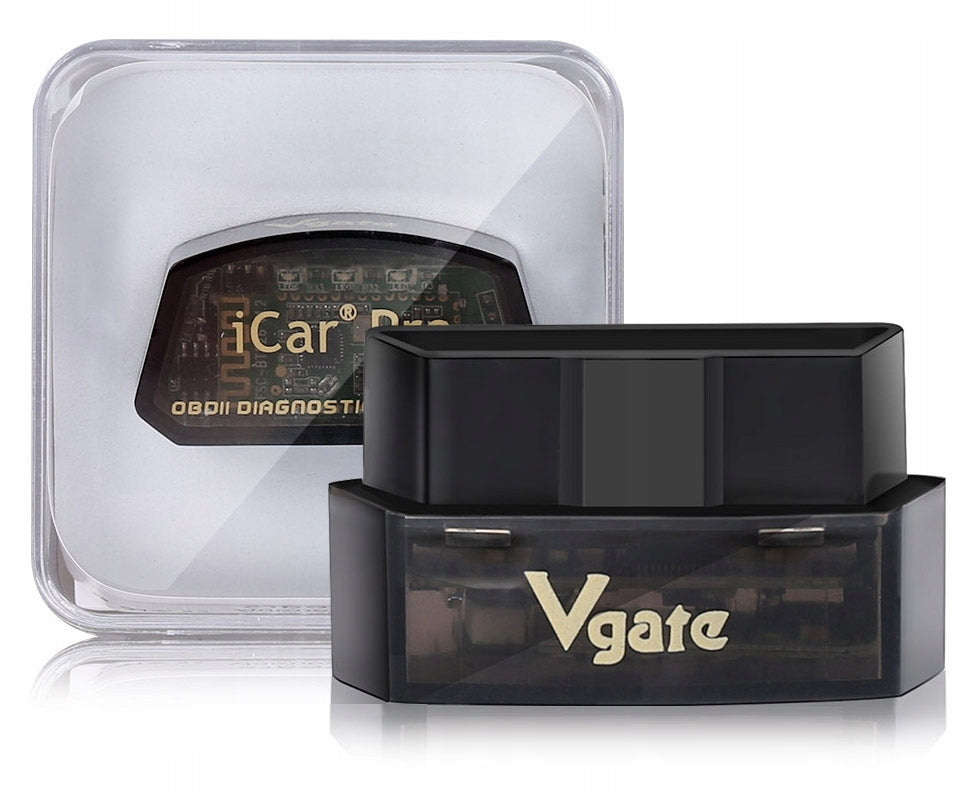

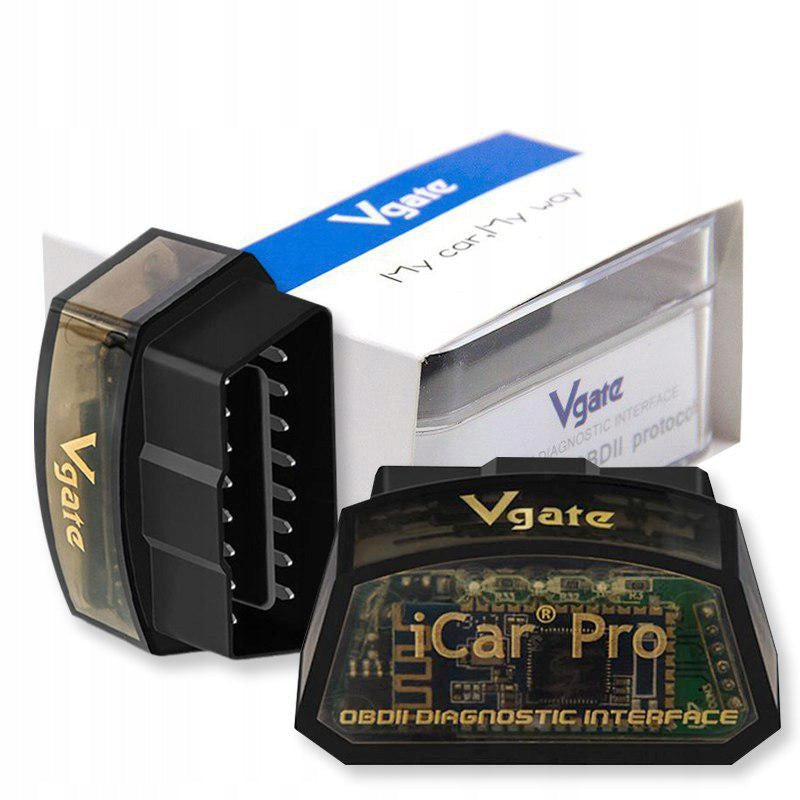

OBD2 diagnostinė sąsaja Vgate iCar Pro BT3.0

Trumpai apie prekę

Prekė: OBD2 diagnostinė sąsaja Vgate iCar Pro BT3.0. Kategorija: Diagnostikos testeriai ir sąsajos.

• Gamintojas: Vgate
• Modelis: Kostka BT3.0 PL

How to use the interface?

• Connect the interface to the OBD port in the car, pair Bluetooth with your phone, connect your device to the appropriate app and you're done!
• The interface is a universal device and works with almost all models of vehicles with a standard OBD2 connector.
• Europe: from 2001 year cars with petrol engine, from 2004 year cars with diesel engine.

• Will the interface work with my phone, laptop or car radio?

• The device works with all phones with Bluetooth (version 3.0, 4.x or 5.0) and the Android operation system.

The interface must work with the appropriate software and enables:

• Reading and erasing OBD-II errors
• Deleting the CHECK ENGINE lamp
• Reading error codes waiting when the MIL light is not yet on
• Reading the error codes recorded that caused the MIL lamp to light
• Reading general and manufacturer characteristic error codes
• Preview of frozen frames - FREEZE FRAMES
• Monitoring engine operating parameters in real time - LIVE DATA
• Reading parameters online
• Checking the meaning of error codes
• Engine power measurement (HP)
• Measurement of parameters such as time from 0-100 km/h
• Reading information DPF for cars:
• OPEL using the OPL Monitor- Android application: supported engines:2.0 CDTI, A20DT, A20DTC A20DTE, A20DTJ, A20DTH, A20DTL, A20DTR, B20DTH, B16DTH
• from the VW group, using the VAG DPF application -Android; supported engines: DETA,CBC, CFHD,CUNA, CFFB, CFWA(*), CLHA, CXXB, CAYC ,CAHA,CXHA, DTTC, CDUC, CFGB(*), CFGC, CJCA, CRMB, CUPA, CUSA,CXFA, CAYB, CAYD, CRLB, CUTA, CFHC, CAGA(*), CSHA, CJCD,DFSB, CLAB, DFLA, DCXA, CFCA, CGLC, CFJB, CFHA, CRUA,DDYA, DFFA, CRKB, DCYA, DFCA, CUUB, CGLB, CUAA, CUSB,CAPA(*), DFGA, DFSF, DFHA, CNHA, DGTA, DGTE(*), CCWA,DGDA, DLUB, CJCB, DGTD, CDUD, CSUD, DEUA, DAUA, DJGA,CXXA, DFEA, DBGC, CAYA, CRTD, DGDB, CUUA, DAVA, CKFC,CRCA, CGQB(*)(*) = partial support or depending on software version
• FORD using the Fdpf app - DPF Monitor for FORD - Android: supported engines: 1.6 Duratorq 2011-> (without ECONETIC), 2.0 Duratorq 2011, 2.2 Duratorq 2011, 3.2 Duratorq 2011, 1.5 EcoBlue, 2.0 EcoBlue
• Citroen/Peugeot using the FAPlite Citroen/Peugeot OBD2 app -Android: supported engines:EDC15C2, EDC17C10, EDC17C10_BR2, DCM3.5, DCM3.5_BR2,HDI_SID803, EDC16CP39, DCM3.4, HDI_SID807_BR2, MED17.4.2,MM6LPB, MEV17.4_EURO4, DCM3.4P, HDI_SID807, MEV17.4_EURO5,MEV17.4.2, ME745, MED17_4_EURO5, SID201, DCM35_HY, J34P,MM6LP, ME749, MM6KP, EDC17CP42, EDC17CP11, MED17_4_EURO4,V46, DCM6.2, ME747, DCN2, V34.1, V46.21, EDC17C60, MED17.4.4,S2000PM2, MEVD17.4.4, VD46, V34.4, S2000P, SID801, ME7.4.4,ME749_EC5, M7.4.4, V46_6, V46_52, V34.3, DCM71v5, MD1CS003
• BMW (E60, E83**, E81, E87, F10, F30, F25) using the bimmer-tool application - Android: supported engines: M47N/M57N (DDE5)
• Fiat, Alfa Romeo using the application DPF Monitor - Fiat,Alfa Romeo - Android: supported engines:Alfa Romeo: 159/Brera/Spider 1.9 2.4 2.0, Giulietta 1.6 2.0,Giulia 2.2, Stelvio 2.2, MiTo 1.3 1.6 / Fiat:500 1.3 1.6, 500L, 500X 1.3 1.6 2.0, Panda 1.3 1.9,Bravo 1.6 1.9 2.0, Croma 1.9 2.4, Doblo 1.3 1.6 1.9 2.0,Ducato 2.0, 2.2, 2.3, 3.0, Idea 1.6, Linea 1.3 1.6,Sedici 1.9 2.0, Stilo 1.9, Ducato 2.3, Egea 1.6, Fiorino 1.3,Punto 1.3 1.9, Punto Evo 1.3, 1.6, Grande Punto 1.3 1.6 1.9,Idea 1.3 1.6 1.9, Qubo 1.3, Strada 1.3, Tipo 1.3 1.6,2.0, Toro 2.0, Freemont 2.0 / Lancia:Delta 1.6 1.9 2.0, Musa 1.3 1.6 1.9, Thesis 2.4, Delta 2014 1.6 2.0,Ypsilon 1.3 / Dodge: Journey 2.0, Dodge Neon 1.3 1.6 / Jeep:Cherokee 2.0, Compass 1.6, 2.0, Renegade 1.6, 2.0 /Suzuki: SX4 1.9 2.0 DDiS
• The device cannot read or remove safety-related errors such as airbags, ABS, ESP, seat belt, etc.

In the case of an oil change lamp and a tire pressure lamp, they can be removed by themselves without special devices (VW Group cars).

What applications does the interface support?

• For diagnostics, we recommend the Car Scanner application.

In addition, the interface also works with other applications available on the market, such as:

• Torque
• Piston

The set includes:

• Diagnostic interface

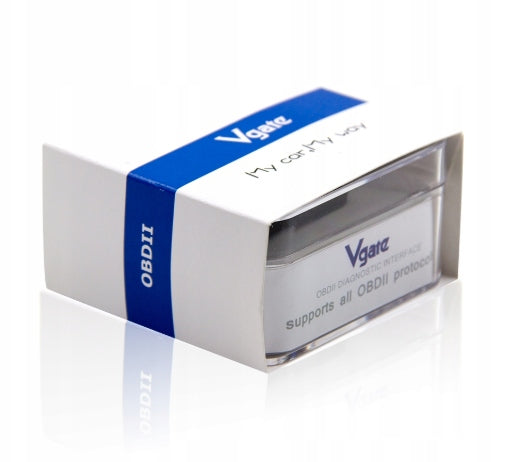

• Box
• Instructions in English

Specifications
