Trumpai apie prekę
Prekė: Nuolatinės srovės variklio valdiklis su krypties keitimu. Kategorija: Įrankių rinkiniai.
- Gamintojas: no brand
- Modelis: 750749742586

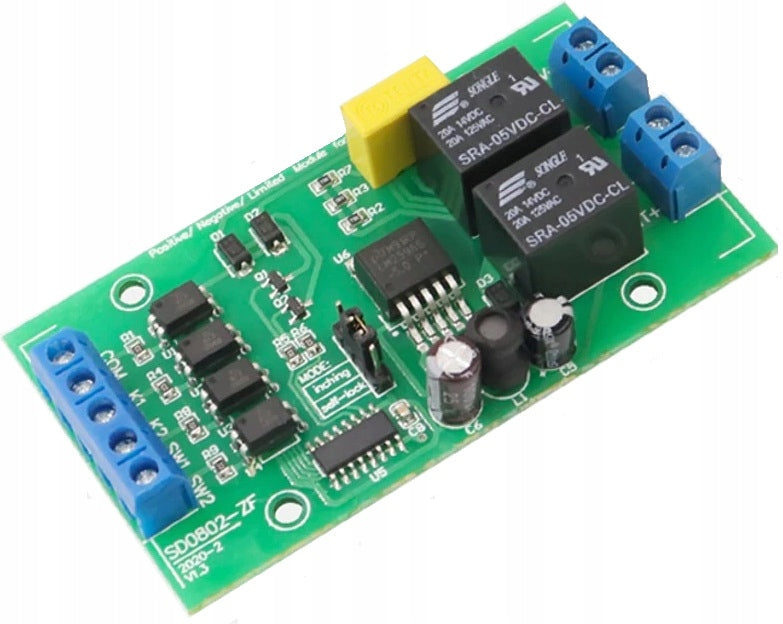

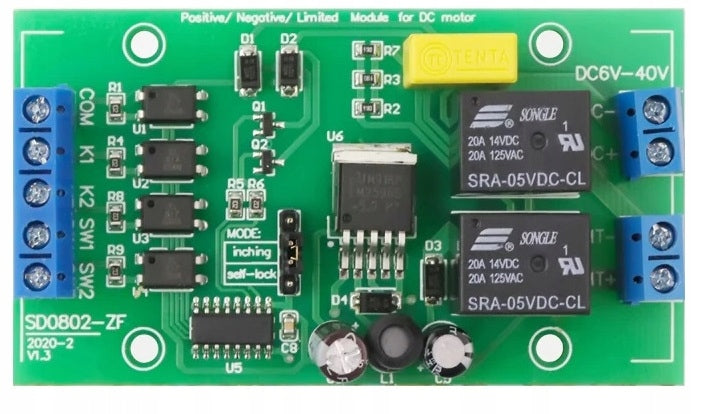

DC Motor Direction Change Controller
The device allows you to change the direction of rotation of the DC motor along with the operation of limit switches.

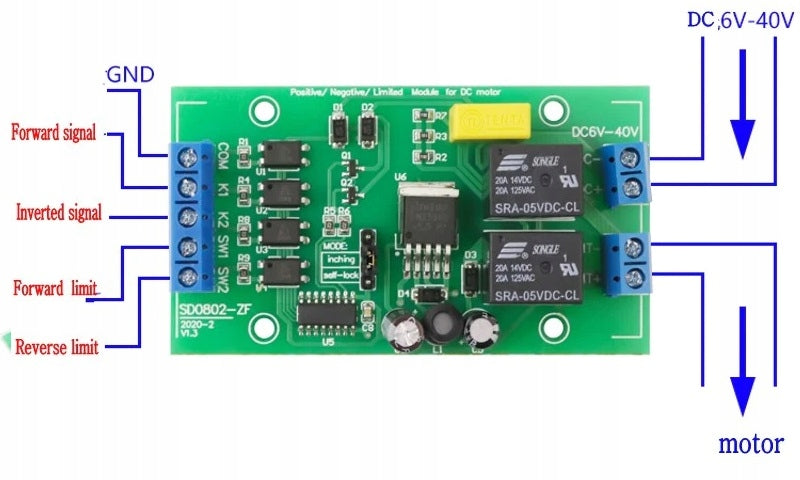

The following input signals are available:
- COM common terminal signals
- K1 button direction front
- K2 button direction rear
- SW1 limit switch direction K1 (front)
- SW2 limit switch direction K2 (Rear)
All input signals K1, K2, SW1, SW2 are monostable (instantaneous) of the push-button type (i.e. without action normally open "do not conduct").
The controller enables cyclical front-back work with support for ends, performing one cycle, etc. (the following diagrams).
Technical parameters
- Supply Voltage 8-40VDC
- Power consumption 2 W
- Support NO input signals (normally open)
- Maximum motor output current 10A
- Response delay to 20ms input signals
- Operating temperature -20 C to 50 C
- Operating humidity 0-95% without condensation
- PCB dimensions 84x46x15 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | no brand |
| Parametry | Manufacturer code | 750749742586 |
| Parametry | EAN (GTIN) | 750749742586 |
| Parametry | Number of items in the set | 1 |
