Trumpai apie prekę
Prekė: Nuolatinės srovės keitiklis DC/DC 36–72 V į 12 V, 10 A. Kategorija: Dviračių pompų priedai ir dalys.
- Gamintojas: no brand
- Modelis: PNSD72/12
- Ilgis: 100 cm
- Svoris: 80 g
- Spalva: white

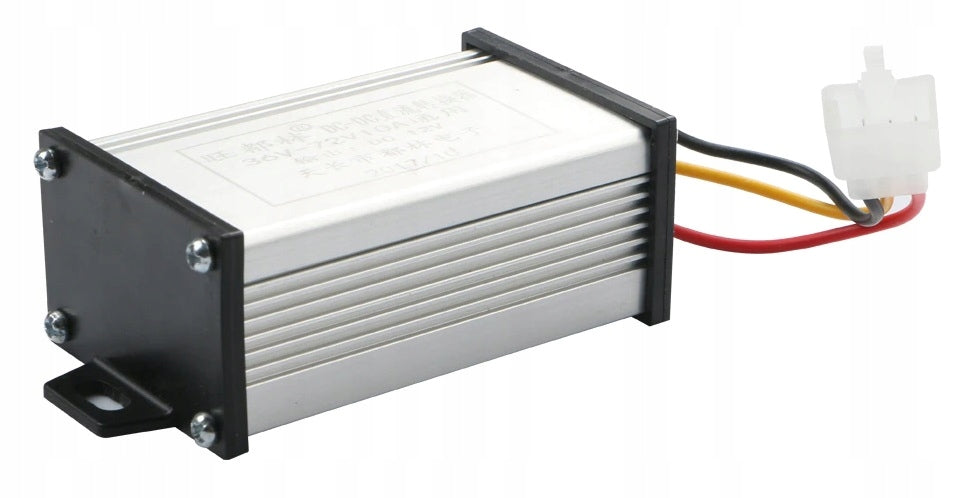

Lowering converter from 36-72VDC to 12V 10A
DC STEP DOWN voltage lowering converter module with a maximum current of 10A.
The converter allows you to power 12VDC receivers in a vehicle with a 36-85VDC installation.
Very simple connection:
- Black (mass, common for input/output)
- Red +power supply
- Yellow- output +12VDC
Technical parameters:
- Supply Voltage 36-72VDC(30-85VDC)
- Output voltage 12VDC
- Maximum output current 10 A
- Efficiency about 92%
- Operating temperature -40 C to 80 C
- Protection against polarity change NO
- Dimensions 90x50x30mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | PNSD72/12 |
| Parametry | Brand | no brand |
| Parametry | Kind | other |
| Parametry | Color | white |
| Parametry | Dominant material | aluminum |
| Parametry | Weight | 80 g |
| Parametry | Length | 100 cm |
| Parametry | EAN (GTIN) | 5205340964271 |
| Parametry | Model | PNSD72/12 |
| Parametry | Batteries included | no |
