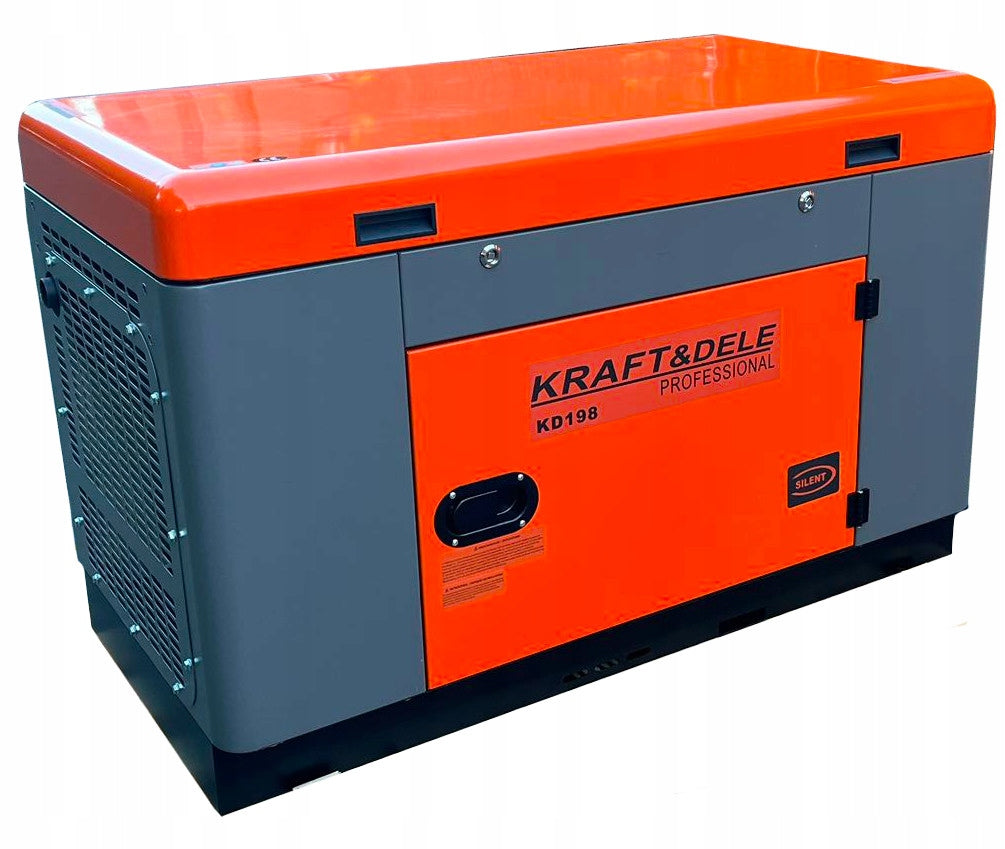

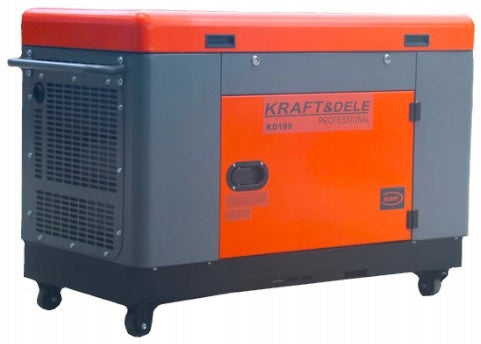

Nešiojamas vienfazis dyzelinis generatorius Kraft&Dele, 15500 W

Trumpai apie prekę

Prekė: Nešiojamas vienfazis dyzelinis generatorius Kraft&Dele, 15500 W. Kategorija: Elektros generatoriai.

• Gamintojas: Kraft&Dele
• Modelis: KD198
• Įtampa: 230 V

Silent single-phase generator set KD198

• Aggregate powered by a very fuel-efficient Diesel engine
• Reliable, polish brand KRAFT&DELE
• Generator with copper winding
• Silencing bodywork
• Glow plugs for easy starting in winter
• Set of wheels and transport handles
• Low fuel consumption
• Large battery
• Clean energy, thanks to AVR voltage regulation

Advantages of our aggregator:

• 2 swivel (4 inch) and 2 fixed (6 inch) - rubber transport wheels.
• Side handles - for easy maneuverability of the unit
• Efficient battery charged during operation with a generator.
• Easy access to emergency stop, fuel filter, oil filter and oil filler and drain.
• Equipped with a voltmeter and fuses.
• Starting the unit - electric (with key).

Advantages of our housing

✔ Smaller dimensions of the housing compared to other offers on the market

✔ Even stronger mute thanks to the silencing mat

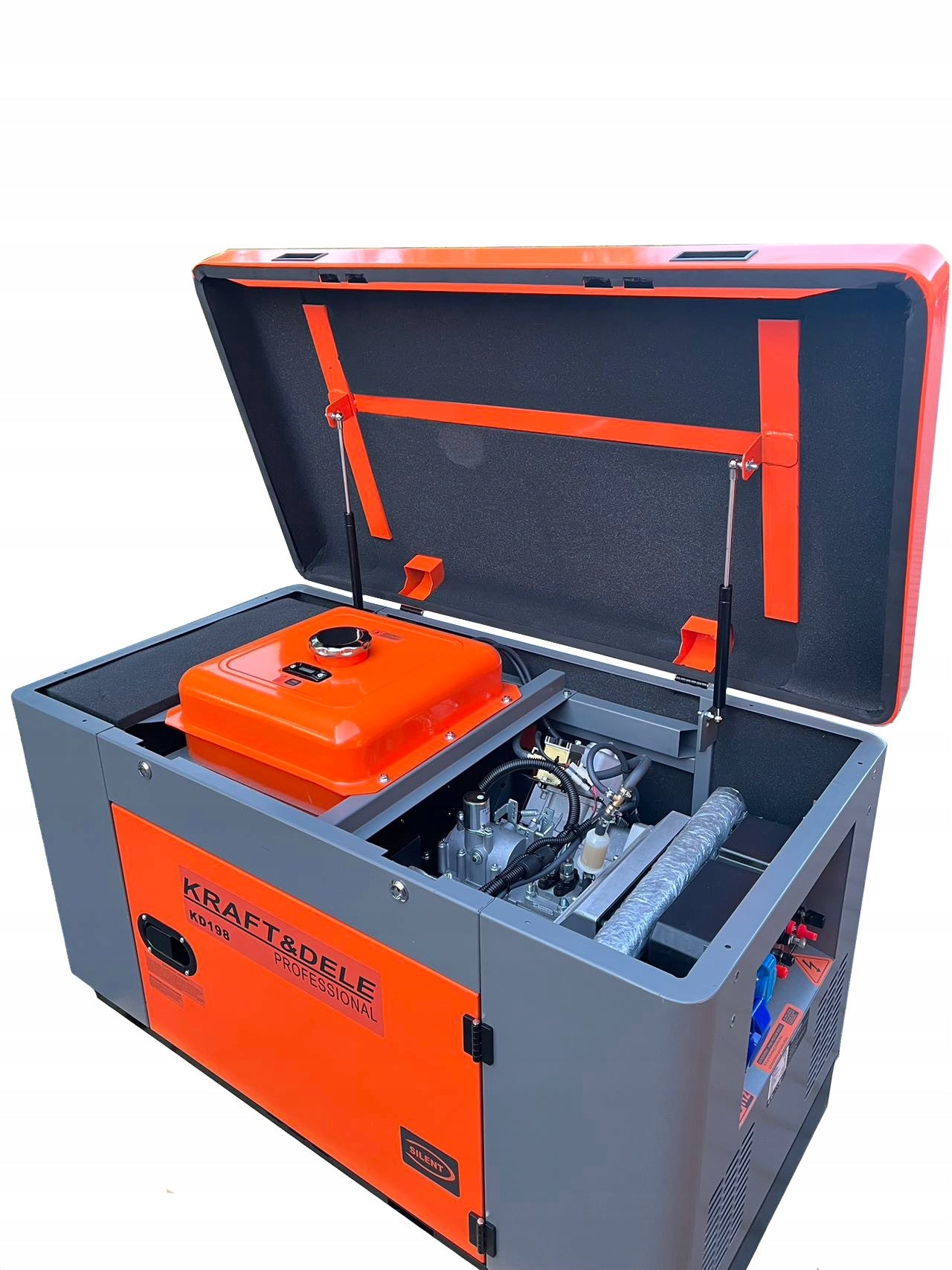

✔ One-door service system, not requiring opening the other side of the unit

The engines we use in our devices are CE certified, which coincides with compliance with applicable standards and are EPA certified, which is a certificate that our engines meet the standards of even markets such as the North American market. In addition, what distinguishes the unit is:

• Steel reinforced construction
• Fuel tank with a capacity of 25L (8 hours of operation)
• Easy access to service activities
• 100% COPPER winding
• Electric start-up
• Full transport wheels
• The generator set is equipped with overload protection
• Possibility of extending the exhaust pipe
• Lifting hitch
• Dimensions - 1190x660x875cm
• Weight - 280kg

Reliable engine

Very low combustion is undoubtedly the quality of the presented engine. We want the engine to be trouble-free, which is why the offered engine is supported by high-quality components.

• Two-cylinder diesel engine (diesel)
• Direct injection
• Oil filter; metal, reusable
• Detailed fuel filter
• Gear-driven valve timing
• Engine with oil pump (forced lubrication)
• Electric starter
• Oil level/pressure sensor
• Solenoid valve controlled by a single electromagnet
• Automatic motor speed control

Long-lasting generator

Another advantage of the generator is a reliable generator. KRAFT&DELE generator set is equipped with copper windings, which increase the durability of the generator and do not generate unnecessary problems. In addition, the generator has been equipped with a device whose task is to stabilize the voltage.

The speed change function used in the generator provides many advantages:

• increases the life of the device by reducing engine wear,
• efficiently manages fuel and is economical in operation,
• is environmentally friendly,
• protected against possible failures and damage,
• has a switch of economical mode of operation,
• produces electric current with a clean, smoothed sine wave.

Intelligent Throttle Technology

Unlike traditional generators that operate at a constant speed/number of revolutions per minute, the portable generator from KRAFT&DELE is equipped with a microprocessor controlled by Intelligent Throttle Technology, which adjusts the speed of the motor to accurately meet the load. If the generator does not power many devices, it operates at slower speeds.

In this way, the generator reduces fuel consumption, extending the life of the engine and increasing the intervals between filling the fuel tank. When the load increases, the generator will automatically increase speed and revolutions, adapting to the energy demand.

Multifunctional control board

The unit has a multifunctional control panel.

• LCD display (Voltmeter, Motor Hours, Frequency)
• Fuse Board (On/Off)
• Automation socket (ATS)
• Amperemeter
• Socket for rectifier 12V 8.3A
• Incandescent candle (heater)
• Grounding
• Ignition
• Single-phase 230V sockets

The tank has an indicative fuel level indicator.

The strainer installed in the fuel tank will effectively catch solid impurities that may be in the fuel.

Lockable keyed doors on both sides allow you to leave the unit in less bystander places for additional security.

Efficient battery charged during operation with a generator.

Easy access to emergency stop, fuel filter, oil filter and oil filler and drain.

The unit is equipped with a connector adapted to connect the ATS module.

(Automatic Transfer Switch) - this system allows automatic start-up of the unit in the event of a power outage in the network, when the power supply returns, the unit automatically turns off.

Technical data:

• Brand: KRAFT&DELE
• Model: KD198
• Frequency: 50Hz
• Speed (RPM) /min): 3000
• Rated power: 14kW
• Max power: 15,5KW
• Engine:air-cooled
• Number of phases: 1
• Power factor: 1,0
• Excitation method: Constant voltage AVR
• Engine type: V-twin two-liner, air-cooled
• Rated power (kW/rpm) /min): 14.8/3000
• Voltage Stabilizer: Yes, AVR
• Fuel: Diesel
• Copper generator: Yes
• Fuel consumption (g/KW.h): 290
• Tank capacity: 25 L
• Weight: 280 kg
• Dimensions: 1190x660x875 mm
• Startup: Electric
• Cooling:Air

Contents of the pack

• Generator set model KD198
• User manual in Polish

Specifications
