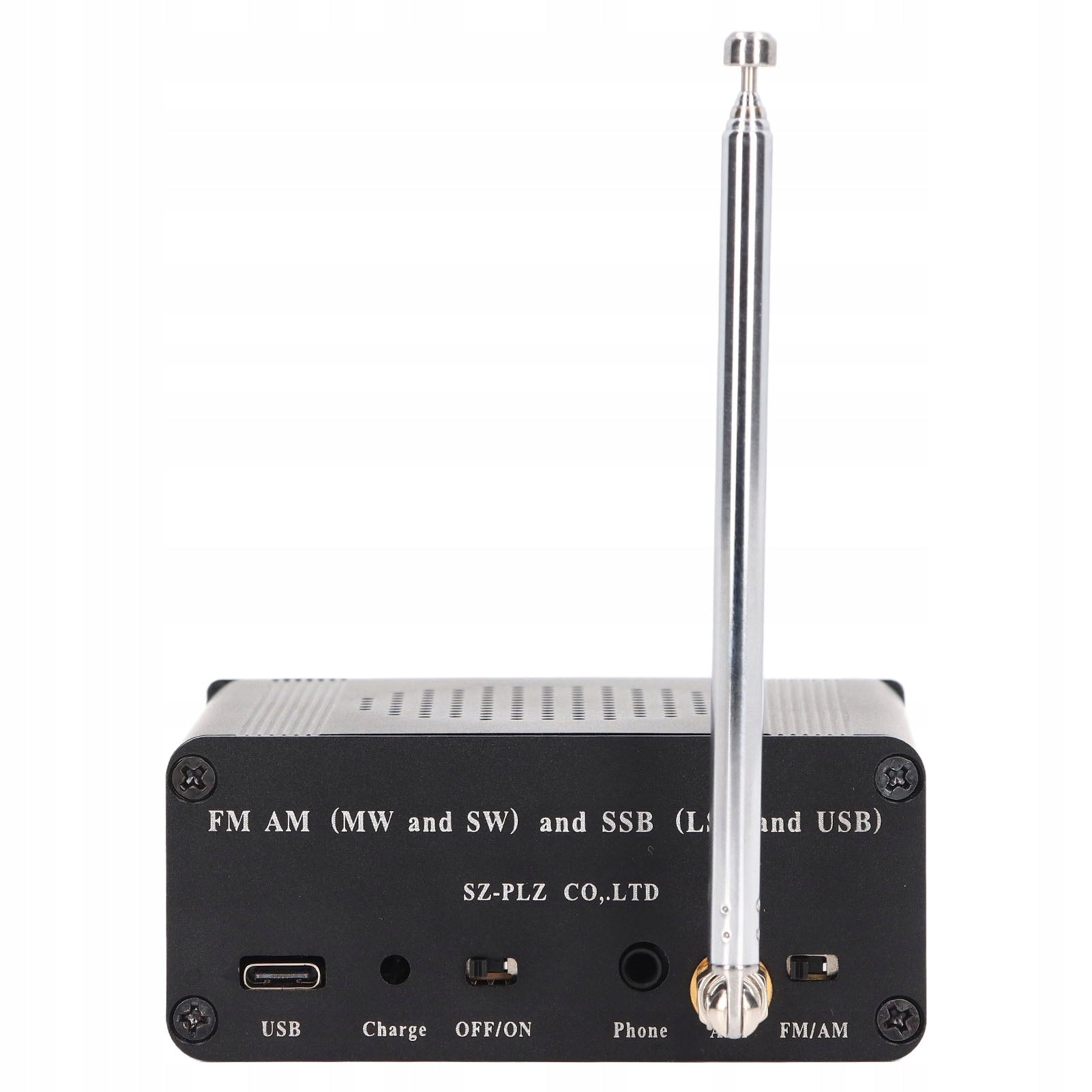

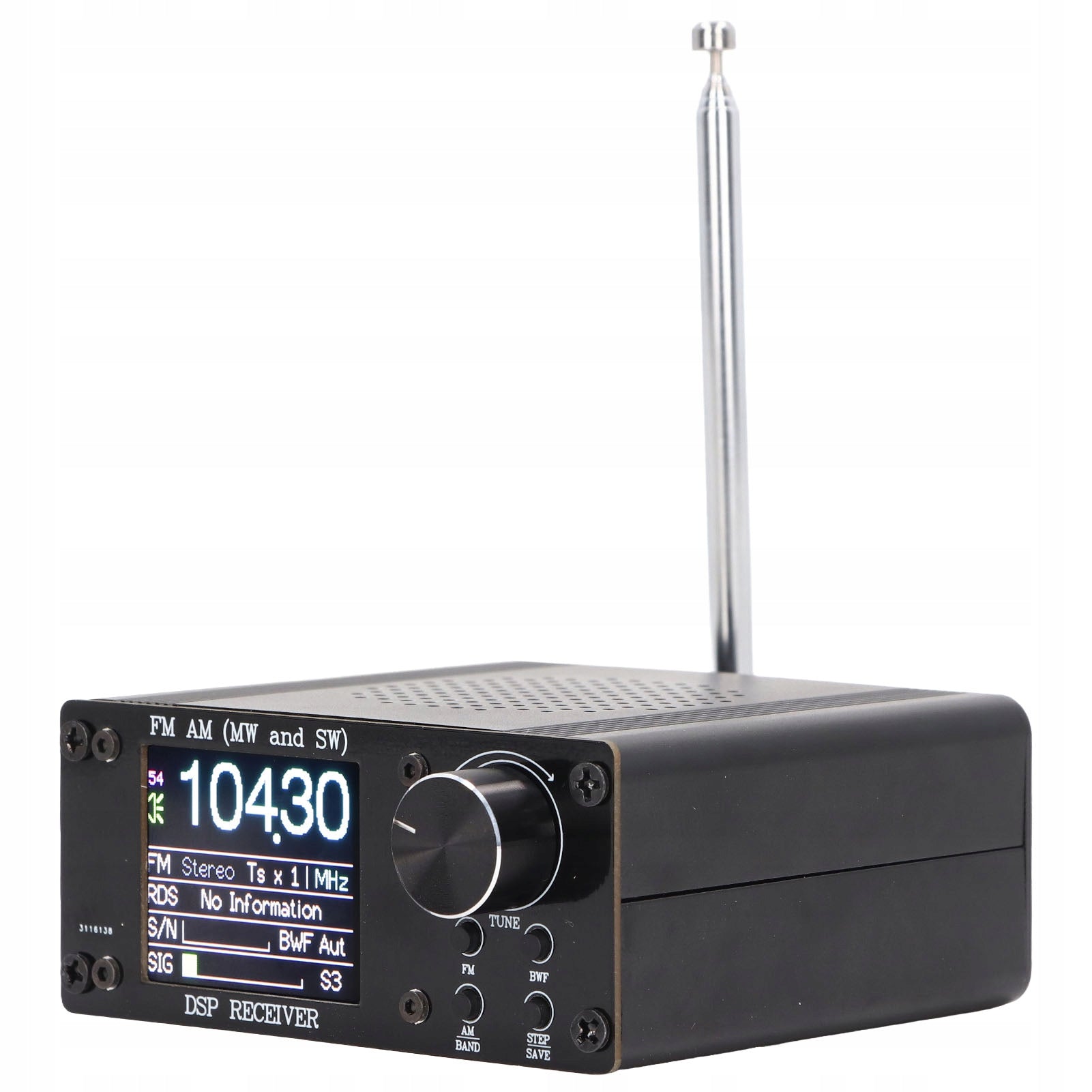

Nešiojamas AM/FM imtuvas ATS-80 150kHz-108MHz

Trumpai apie prekę

Prekė: Nešiojamas AM/FM imtuvas ATS-80 150kHz-108MHz. Kategorija: Radijo imtuvai.

• Gamintojas: no brand
• Modelis: 086589
• Spalva: black

FM AM Receiver from 150K to 108MHz High Accuracy Portable Short Wave With Battery

1. Large Range: The working range of this receiver is 150kHz to 30MHz and FM 64 to 108MHz, with 0,5ppm precision TCXO clock, frequency change is NaMoMost accurate.

2. Intuitive knot chart indicator: with a knot chart indicator for siy signal and 20 band settings, providing excellent sound quality enjoyment.

3. Portable Design: The compact design is an atwa to carry around, whether at home, in the office, or on the go, to meet the needs of drying various occasions.

4. High stability and accuracy: Adopting advanced receiving technologies and premium components, FM AM receiver has high stability and accuracy, this and effective.

5. Excellent Material: Made of precision printed python, stainless steel and aluminum shell, it has a long service life for long-term use.

Specification Position Type: FM AM Receiver AM

Matter: PCB, stainless steel, aluminum shell

Operating range: AM: 150 kHz to 30 MHz, FM: 64 to 108 MHz

Power Mode: 3,7V 1000mAh Polymer LI Battery (Built-in)

FM mode:

1. Rotate the encoder knob: adjust the volume or frequency. When the encoder is rotated on the thread, the knob can adjust the hostivity, press the encoder once, the knob can adjust the frequency.

2. FM: When the page is in AM mode, press the FM button once, the page becomes FM mode.

3. BWF: bandwidth, press the button to change the bandwidth size, there are five options: Auto, 40K, 60K, 84K, 110K.

4. AM:

When the page is in FM mode, press the AM button once, the page turns into AM mode.

When the page is in AM mode, press the AM button to increase the frequency, press the AM button to reduce the frequency.

5. Sav:

Short press to change TS size (step frequency), there are five gears: 0,1MHz, 1MHz, 2MHz, 5MHz, 10MHz.

Duga press to save the changed TS (step frequency).

AM mode:

1. Rotate the encoder knob: adjust the volume or frequency. When the encoder is rotated on the thread, the knob can adjust the hostivity, press the encoder once, the knob can adjust the frequency.

2. FM: When the page is in AM mode, press the FM button once, the page becomes FM mode.

3. BWF: bandwidth, press the button to change the bandwidth size, there are five options: 0,1K, 1K, 2K, 5K, 10K.

4. AM:

When the page is in FM mode, press the AM button once, the page turns into AM mode.

When the page is in AM mode, press the AM button to increase the frequency, press the AM button to reduce the frequency.

5. Sav:

Short press to change TS size (step frequency), there are four gears: 1kmHz, 5kmHz, 10kmHz, 100kmHz.

Duga press to save the changed TS (step frequency).

Download the list

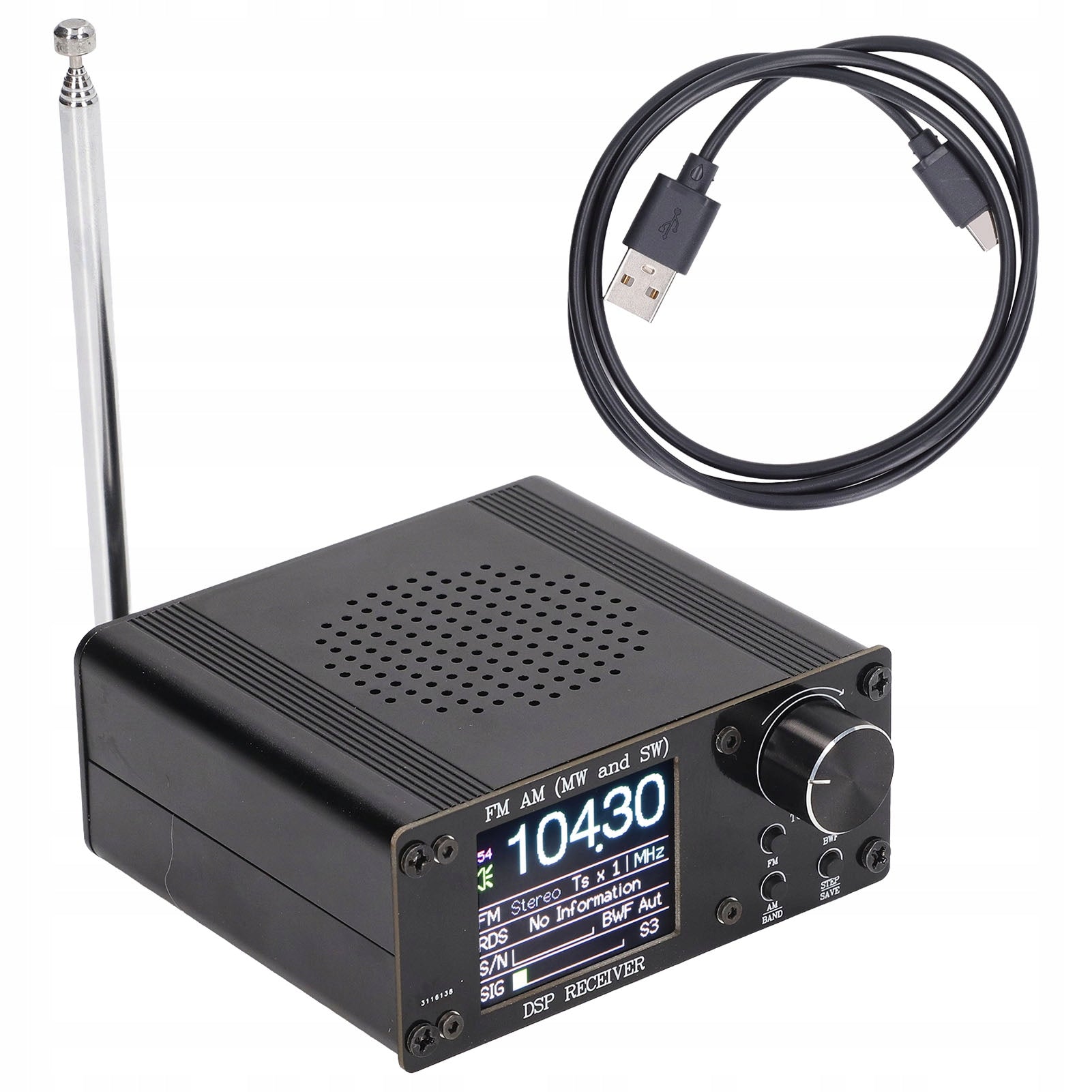

1 x FM AM receiver

1 x Antenna

1 x USB cable
