Trumpai apie prekę

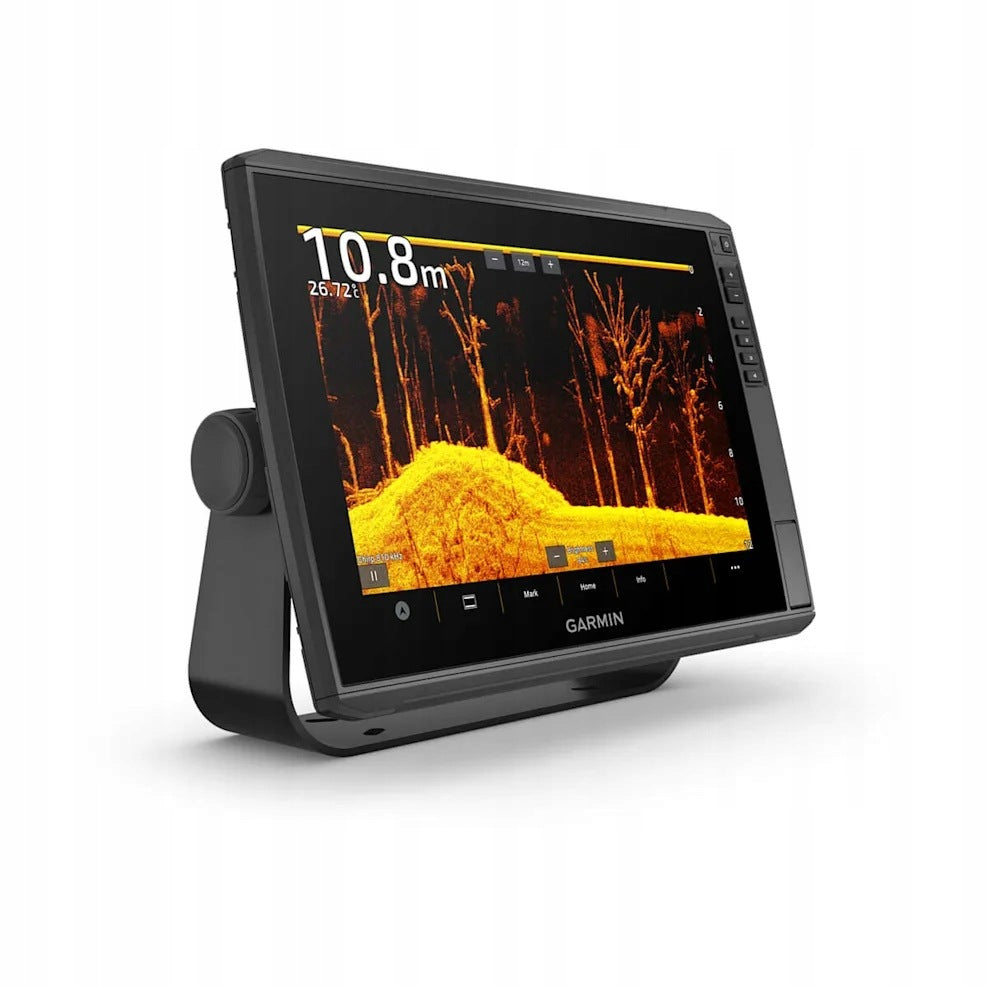

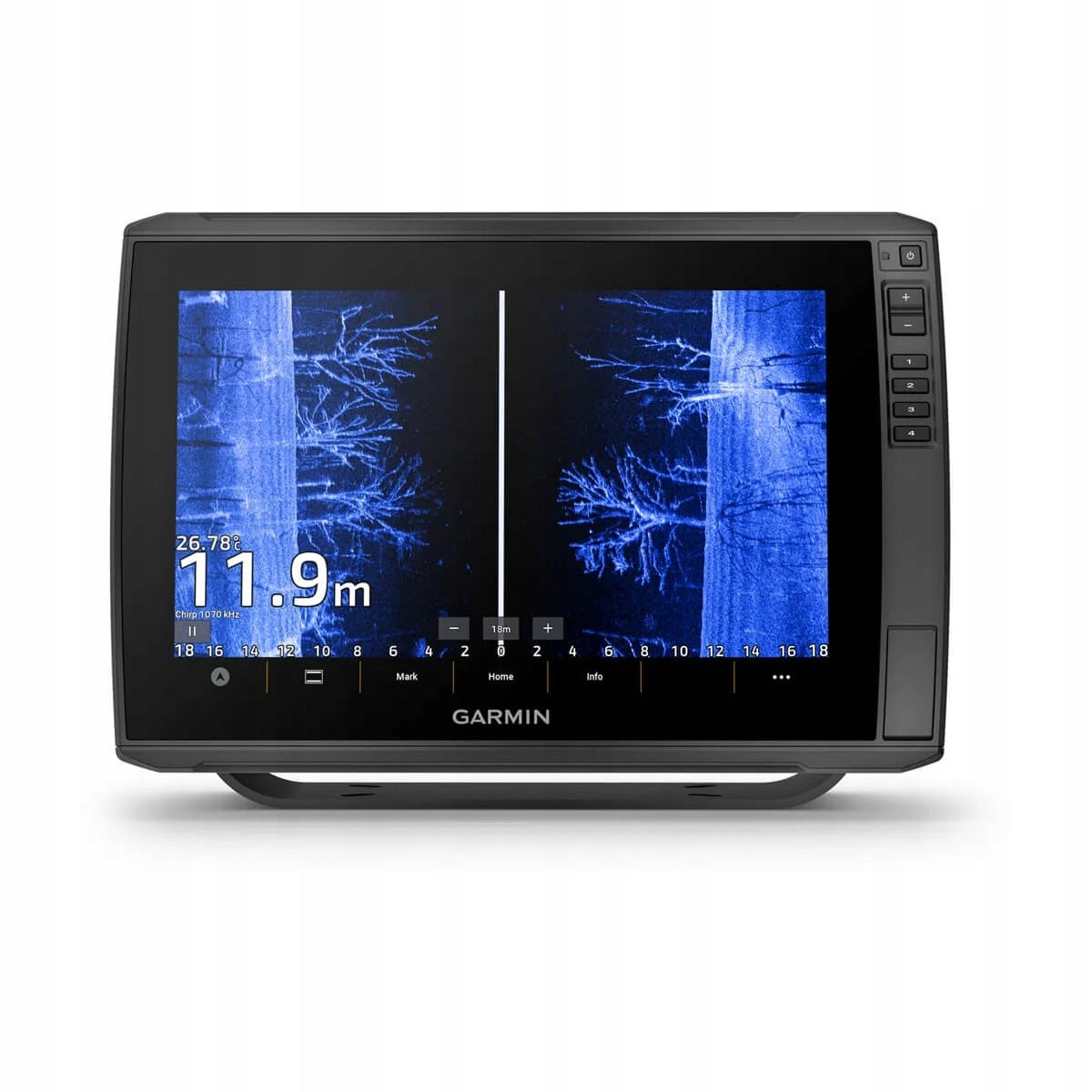

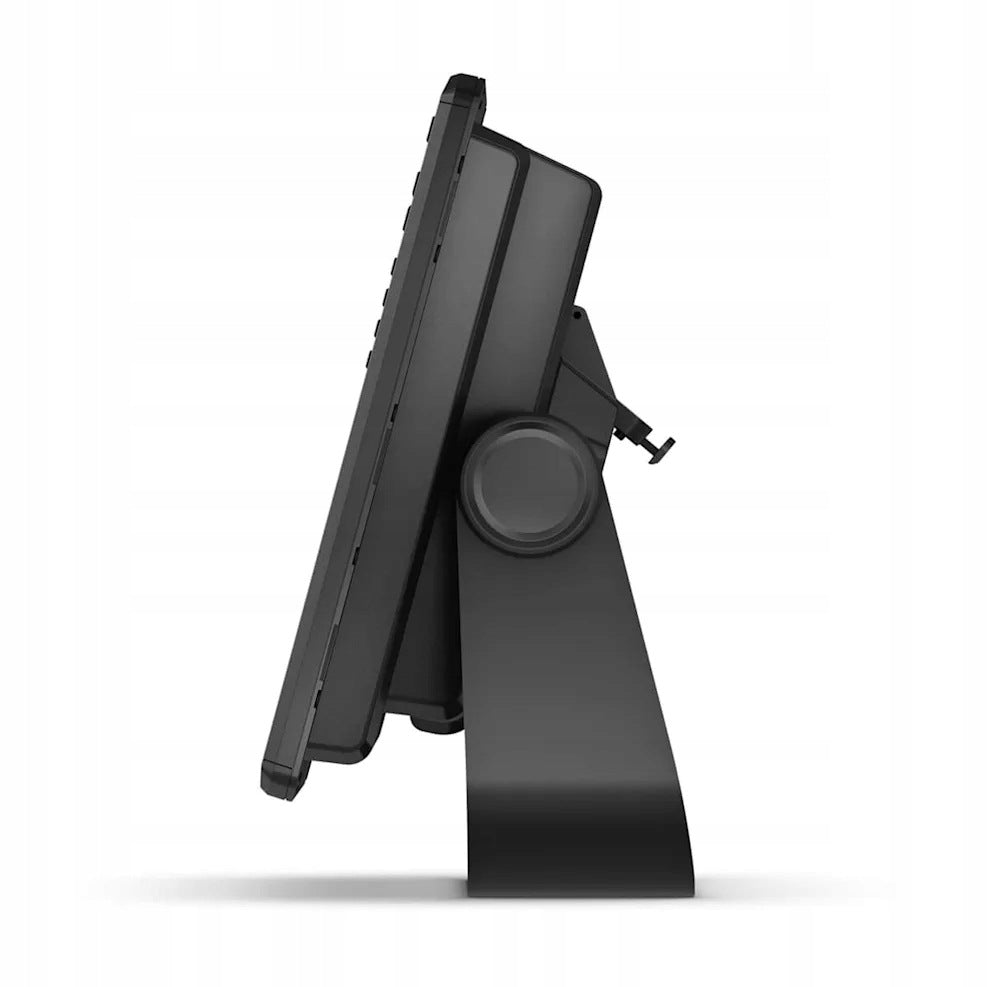

Prekė: Navigacijos ploteris 12″ ECHOMAP Ultra 2 122sv su davikliu Marinero. Kategorija: Echolotai.
- Gamintojas: Garmin
- Modelis: Ultra 2 12″ 122sv z przetwornikiem GT56UHD-TM
Model 122sv with GT56UHD-TM converter
Catalog number: 010-02881-01
Modern marine navigation plotter and sonar designed for maximum readability and ease of use. The large 12-inch display provides excellent visibility in all conditions, while the advanced sonar and navigation features allow for complete control on the water. .
Precise navigation and sonar
The device offers advanced sonar functions, allowing accurate imaging of the bottom and underwater structures. It is the perfect solution for those who want the highest precision when swimming and fishing.
The most important features
- Large 12” high-resolution display
- Advanced sonar functions
- Intuitive operation
- Integration with Garmin Marine systems
Application
The Garmin marine navigation plotter is perfect for both motor boats and fishing vessels, offering reliability, precision and convenience of use.
Technical data
- Physical dimensions: 34,1 x 22,9 x 9,8 cm (13,4″ x 9″ x 3,9″)
- Weight: 2,5 kg (5,5 lbs)
- Water resistance class: IPX7
- Touch screen: ✔
- Display type: WXGA, IPS
- Display dimensions, width x H : 26,1 × 16,3 cm; diagonal 30,7 cm (10,3″ × 6,4″; diagonal 12,1″)
- Display resolution, width x H : 1280 × 800 pixels
- Modes of mounting: Headband holder or recessed mounting bracket
- With push button and touch screen: Touch screen with push button operation
Maps and memory
- Ability to use data cards: 2 microSD cards
- Indicative points: 5000
- Tracking points: 50,000
- Traces: 50 saved traces
- Routes: 100
Sensors
- GPS: ✔
- GLONASS: ✔
- Galileo: ✔
- BeiDou: ✔
- It has a built-in receiver: ✔
- RECEIVER: 10 Hz
- Compliance with NMEA 2000®: ✔
- Supports WAAS: ✔
- Allows support for multi-band and multi-system location systems: ✔
Optional map support
- BlueChart g3: ✔
- BlueChart g3 Vision: ✔
- Garmin Navionics+™: ✔
- Garmin Navionics Vision+™: ✔
- TOPO 100K: ✔
- Standard mapping: ✔
- Garmin Quickdraw Contours: ✔
Navigation plotter functions
- AIS support (tracking the position of the target vessel): ✔
- Support DSC (displaying positions from VHF radio with DSC support): ✔
- Compatibility with FUSION-Link™ enabled radios: ✔
- Compatibility with ActiveCaptain: Yes
- Sailing functions: ✔
Electrical
- Input power: 9 to 18 V DC
- Typical current consumption at 12 V DC: 2,5 A
- Max. power consumption at 12 V DC: 5 A
- Max. energy consumption at 10 V DC: 36 W
Functions and specifications of sonar
- Displays sonar: ✔
- Output power: 600 W
- Traditional echo sounder (two-frequency/two-beam): Built-in (single-channel CHIRP frequency, 70/83/200 kHz, L, M, H CHIRP)
- ClearVü: Built-in frequency 260/455/800/1000/1200 kHz
- SideVü: Built-in frequency 260/455/800/1000/1200 kHz
- Echo sounder Panoptix™: ✔
- LiveScope: ✔
Connections
- NMEA ports 2000®: 1
- Ports Garmin Marine Network: 2 (large connectors)
- 12-pin transducer ports: 12-pin scanning sonar
- ANT® (Connectivity): ✔
- Wi-Fi® network of Garmin (local connection): ✔
In the box:
- ECHOMAP Ultra 122sv
- GT56UHD-TM transducer
- Power cord
- Headband holder with quick disconnect mechanism
- Protective sunshade
- Equipment
- Documentation
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Brand | Garmin |
| Parametry | Manufacturer code | 010-02881-01 |
| Parametry | Model | Ultra 2 12″ 122sv z przetwornikiem GT56UHD-TM |
| Parametry | Product weight with unit packaging | 3 kg |
| Parametry | EAN (GTIN) | 753759325541 |
| Parametry | Batteries included | no |
| Parametry | Packaging status | original |
