Motociklų hidraulinis stovas FARYS 680 kg ATV Quad

Trumpai apie prekę

Prekė: Motociklų hidraulinis stovas FARYS 680 kg ATV Quad. Kategorija: Motociklų keltuvai.

• Gamintojas: Farys
• Modelis: FR5048

Convenient access to the motorcycle and quad during service

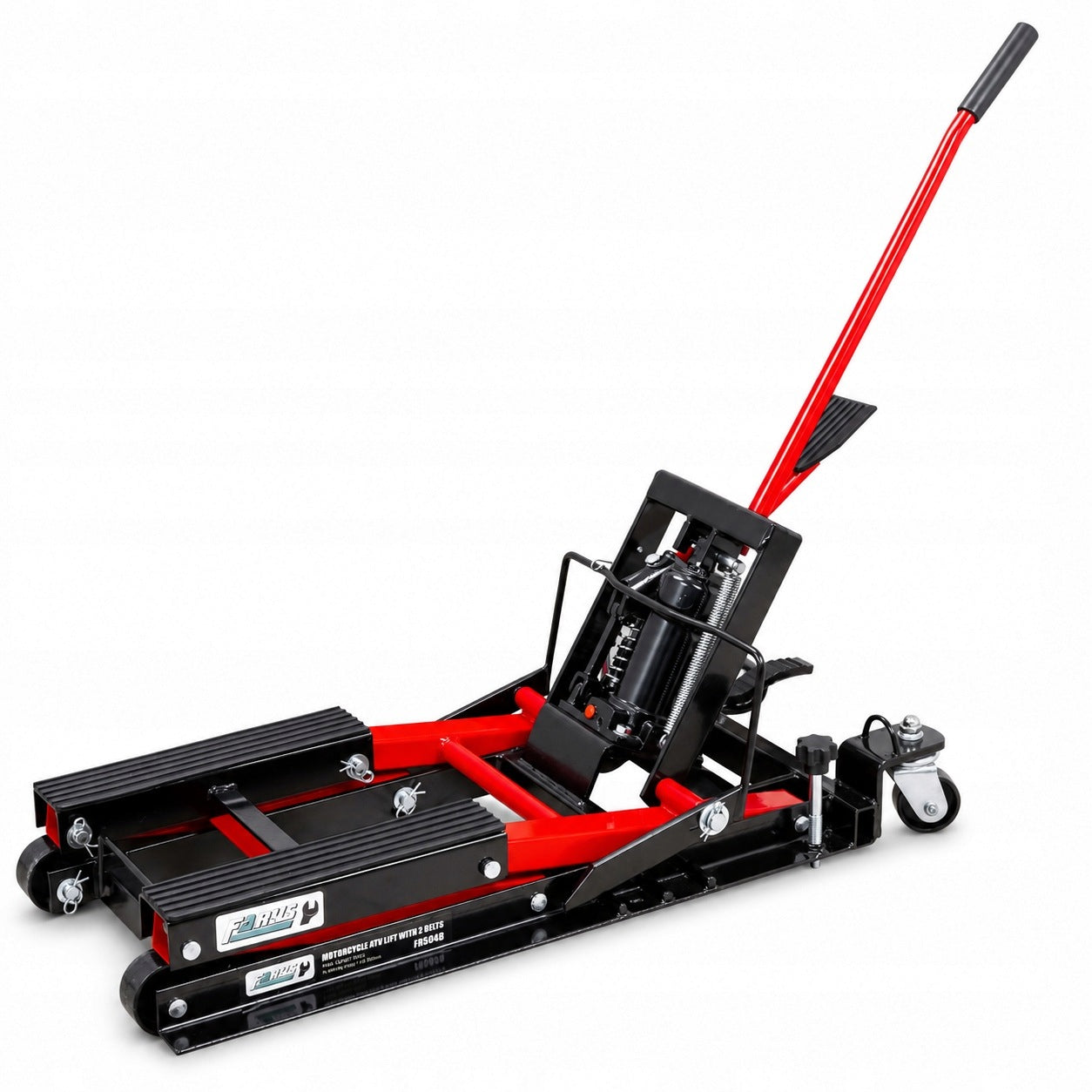

FARYS FR5048 is a workshop lift with a lifting capacity of up to 680 kg, designed for motorcycles, ATVs and vehicles with similar design. It lifts the vehicle from 11 cm to 38 cm, making it easy to access the frame, wheels, suspension, and components that require inspection or maintenance.

Instead of doing the work just above the floor, you can set the vehicle at a more comfortable height and better control the next stages of service. With a length of 79 cm and a width of 36 cm, it creates a compact stand that is suitable for both professional workshops and well-equipped garages.

680 kg lifting capacity – one design for multiple vehicles

The maximum load of 680 kg allows you to handle a wide range of motorcycles, scooters and quads. The lift can be used during ongoing inspections, cleaning, maintenance and repairs requiring lifting of the vehicle.

· service of road, touring and off-road motorcycles

· support for quads and ATVs

· work on scooters and vehicles with a similar frame layout

· Chassis cleaning, maintenance and detailing

· work on wheels, suspension and elements available after lifting the vehicle

Range 11 to 38 cm — low-entry, high-lifting

The minimum height of 11 cm makes it easy to slide the lift under a low-lying frame. When lifted, the working surface reaches a height of 38 cm, providing 27 cm of working range.

The lifting bed measures 31 × 29 cm. Before starting lifting, check that the vehicle support points are correctly positioned relative to the working surface of the lift.

Separate lifting and lowering control

The FR5048 has two independent levers: one is responsible for lifting and the other for lowering. Separate control reduces the risk of confusion and allows you to better control the movement of the platform when setting up the vehicle.

The lowering mechanism responds to the load – as the weight of the vehicle increases, lowering takes place more slowly. This makes it easier to bring the vehicle to its lower position without sudden movement.

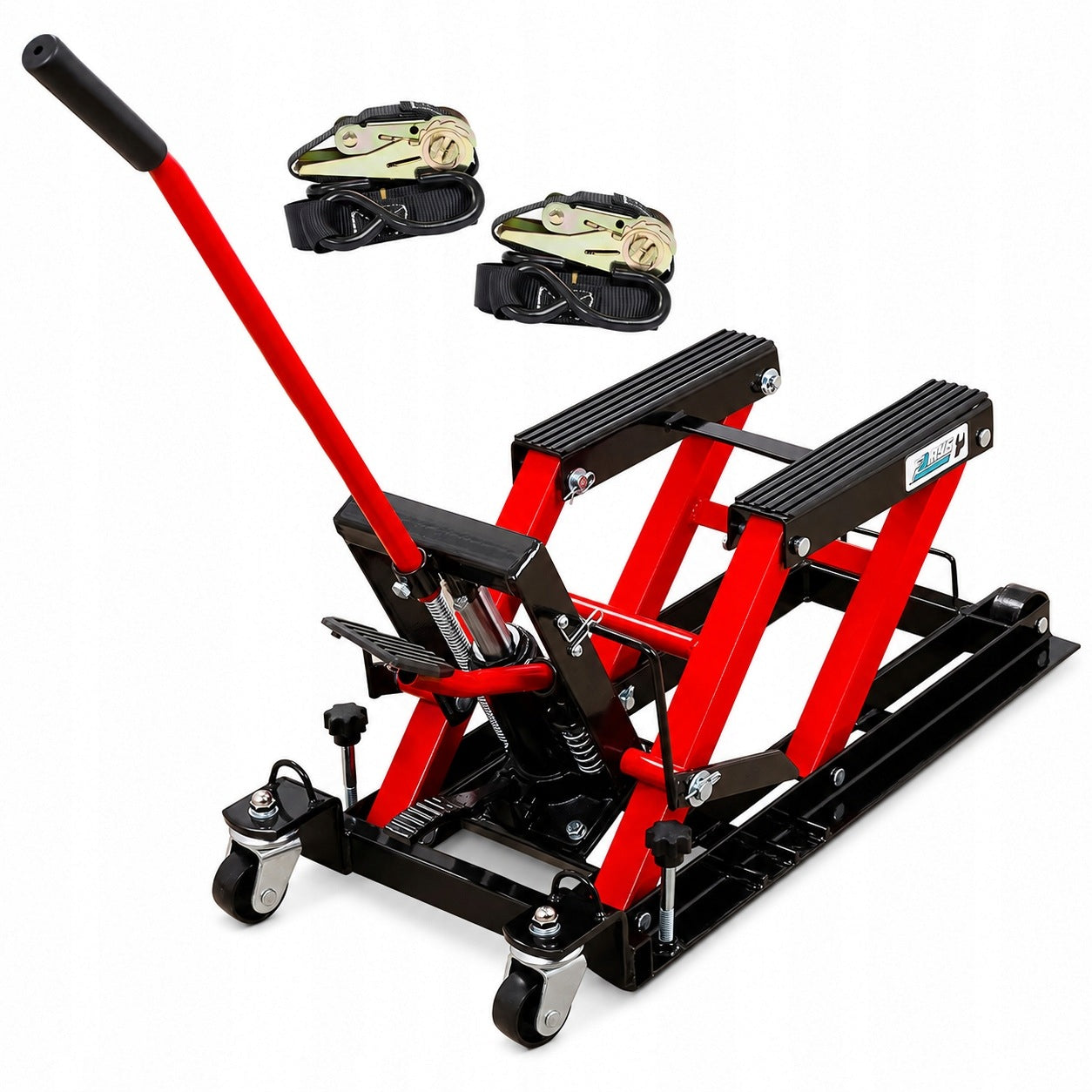

Lock, stabilizing screws and two straps included

During operation, not only the lifting force counts, but also the proper protection of the vehicle. The mechanical lock helps prevent accidental lowering, and the stabilizing screws allow you to rest the structure on the floor when the lift is set up in the workplace.

The set includes two safety belts. The vehicle must be pinned before starting lifting and working. The straps limit the possibility of the motorcycle or quad moving relative to the support surface.

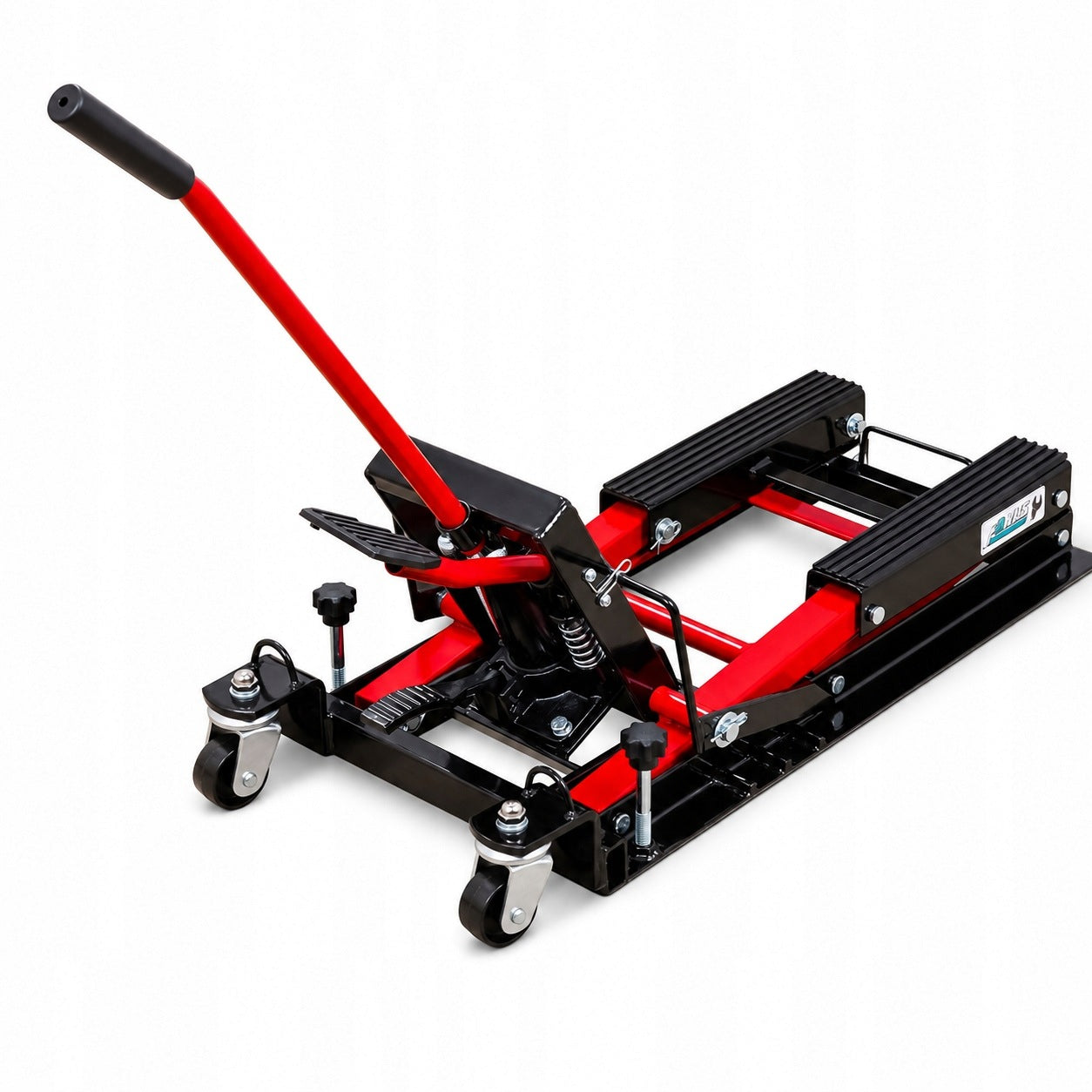

Easier to set up on the job

Two swivel casters make it easy to maneuver the unloaded lift and position it in the selected part of the workshop. The weight of the device of 30 kg supports the stability of the structure, while allowing the lift to move around the prepared station.

After setting the device, use stabilizing screws and make sure that the lift stands on an even, hard and load-bearing floor.

Technical data

• Parameter: Value
• Brand: FARYS
• Model / product number: FR5048
• Type: Motorcycle lift for motorcycles, quads and ATVs
• Maximum lifting capacity: 680 kg
• Minimum height: 11 cm
• Maximum height: 38 cm
• Lifting range: 27 cm
• Dimensions of lifting bed: 31 × 29 cm
• Total width: 36 cm
• Total length: 79 cm
• Weight: 30 kg
• Color: Red
• Control: Two independent levers: lifting and lowering
• Security: Mechanical lock, stabilizing screws, 2 belts
• Mobility: 2 swivel casters

Safe work step by step

· Set the lift on an even, hard and load-bearing floor.

· Check the weight of the vehicle, support points and do not exceed the lifting capacity of 680 kg.

· Slide the bed centrally under the correct points of the frame according to the vehicle instructions.

· It is mandatory to protect the vehicle with both belts against its elevation.

· Lift the vehicle with the correct lever and attach the mechanical lock.

· Tighten the stabilizing screws before starting work.

· Before leaving, remove the tools from the traffic zone, release the protection according to the instructions and use the correct lever.

The lift does not replace the correct service procedures. Always follow the instructions of the lift and vehicle manufacturer and the health and safety rules applicable to the station.

What vehicles is FARYS FR5048 intended for?

For motorcycles, ATVs, scooters and other vehicles with a compatible design and weight up to 680 kg.

What is the lifting height?

The lift works from 11 cm to 38 cm, which gives 27 cm of range.

Does the vehicle need to be fastened with belts?

Yes. Before lifting, it is mandatory to secure the vehicle with two belts included in the set.

How is the lift protected against lowering?

It has a mechanical lock to help prevent accidental lowering. It must be properly attached before work.

Can the lift be maneuvered?

Two swivel casters make it easy to set up an unloaded unit. Stabilizing screws should be used before work.

How is lifting and lowering controlled?

Two independent levers are used for this – separate for lifting and separate for lowering.

Work more comfortably with your motorcycle or quad

The FARYS FR5048 combines a lifting capacity of 680 kg, compact dimensions, a range of 11 to 38 cm and solutions to help control the vehicle during operation. Separate levers, lock, stabilizing screws and two belts form a coherent station service system.

If you need a lift for regular servicing of your motorcycle, scooter or ATV, the FR5048 provides the parameters you need for a more comfortable and better organized job.
