Modulis Raspberry Pi: 1x CAN magistralė MCP2515, 2x RS485 SC16IS1752

Trumpai apie prekę

Prekė: Modulis Raspberry Pi: 1x CAN magistralė MCP2515, 2x RS485 SC16IS1752. Kategorija: Priedai.

• Gamintojas: no brand
• Modelis: MODUŁ RS485 CAN HAT Raspberry Pi

⭐ MODULE RS485 + CAN HAT FOR RASPBERRY PI

➡ Communication at the highest level – reliability, speed and transmission security!

✅ Are you looking for a module that expands the capabilities of your Raspberry Pi and provides professional communication in industrial projects, IoT or automation? This RS485 CAN HAT is a real data harvester – reliable, protected and compatible with a wide range of Raspberry models!

⭐ Key Features That Give You an Advantage:

➡ 2x RS485 + 1x CAN – full communication flexibility

The module supports two RS485 buses and one CAN bus at the same time – ideal for advanced multi-device systems.

➡ Compatibility with Raspberry Pi 4 / Zero / 3B+ and others

Seamless operation with popular models – without the need for hardware modification. Saves GPIO and leaves room for more expansions!

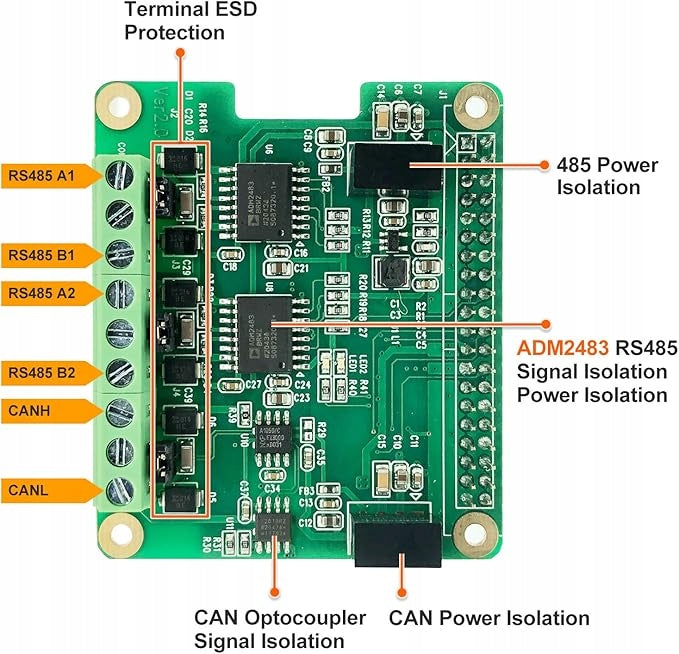

➡ CAN Bus with MCP2515 controller and ADUM1201BRZ insulation

Professional CAN bus with fast transceiver and digital isolation provides speed up to 1 Mbps and stability even in difficult conditions.

➡ RS485 with SC16IS1752 chip and ADM2483 insulation

Built-in ESD and surge protection, automatic TX/RX control without coding – just plug in and go!

⭐ Why this module?

✅ Stable work with the latest Raspbian (kernel v5.4)

✅ Built-in 120 Ohm final resistor – no soldering required!

✅ Power and signal isolation – data security and Raspberry

✅ Quick installation, well thought out design, industrial-grade reliability

⭐ Technical Specification – For Enthusiasts and Professionals:

• Busbars: 2x RS485, 1x CAN
• CAN Controller: MCP2515 (SPI)
• CAN isolation: ADUM1201BRZ
• CAN Transceiver: fast, up to 1 Mbps
• RS485: SC16IS1752 (SPI/UART)
• Insulation RS485: ADM2483
• RS485 communication: half duplex, automatic TX/RX
• Compatibility: Raspberry Pi 4, 3B+, 3B, 2B, Zero, Zero W
• System: Raspbian kernel v5.4 and later
• Power supply and signal: galvanic separation, ESD and surge protection
• Resistor: 120 Ohms built-in

⭐ What do you gain?

➡ Professional combination of devices and sensors

➡ Reliable and stable communication

➡ Complete security of data and equipment

➡ Enhanced functionality of your Raspberry Pi

➡ Hassle-free installation and ready to go

⭐To sum up :

➡ This module is ideal if you are building advanced IoT systems, industrial automation or your own projects with RS485 and CAN bus.

✅Professional quality, transmission stability and ease of implementation make it a choice you will not regret!

MI7 magazine

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Manufacturer code	MODUŁ RS485 CAN HAT Raspberry Pi
Parametry	Manufacturer	no brand
Parametry	Kind	Expansion board
Parametry	EAN (GTIN)	5901368962793
Parametry	Product weight with unit packaging	0.1 kg
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
