Trumpai apie prekę
Prekė: Mobilus žirklinis keltuvas 3,5T NORMET PX-3500X. Kategorija: Žirkliniai keltuvai.
- Gamintojas: Normet
- Modelis: PX-3500X
MOBILE SCISSOR LIFT NORMET PX-3500X
The most popular scissor lift for
- Vulcanization workshops
- Mechanical workshops
- Auto Detailing
- Backyard Garages
WITHOUT ANCHORING, YOU WILL PUT IT ON ALMOST ANY PAVED SURFACE
Includes oil pads and mobile kit.
Very quick and easy installation
Dismountable beam facilitates work under the lift

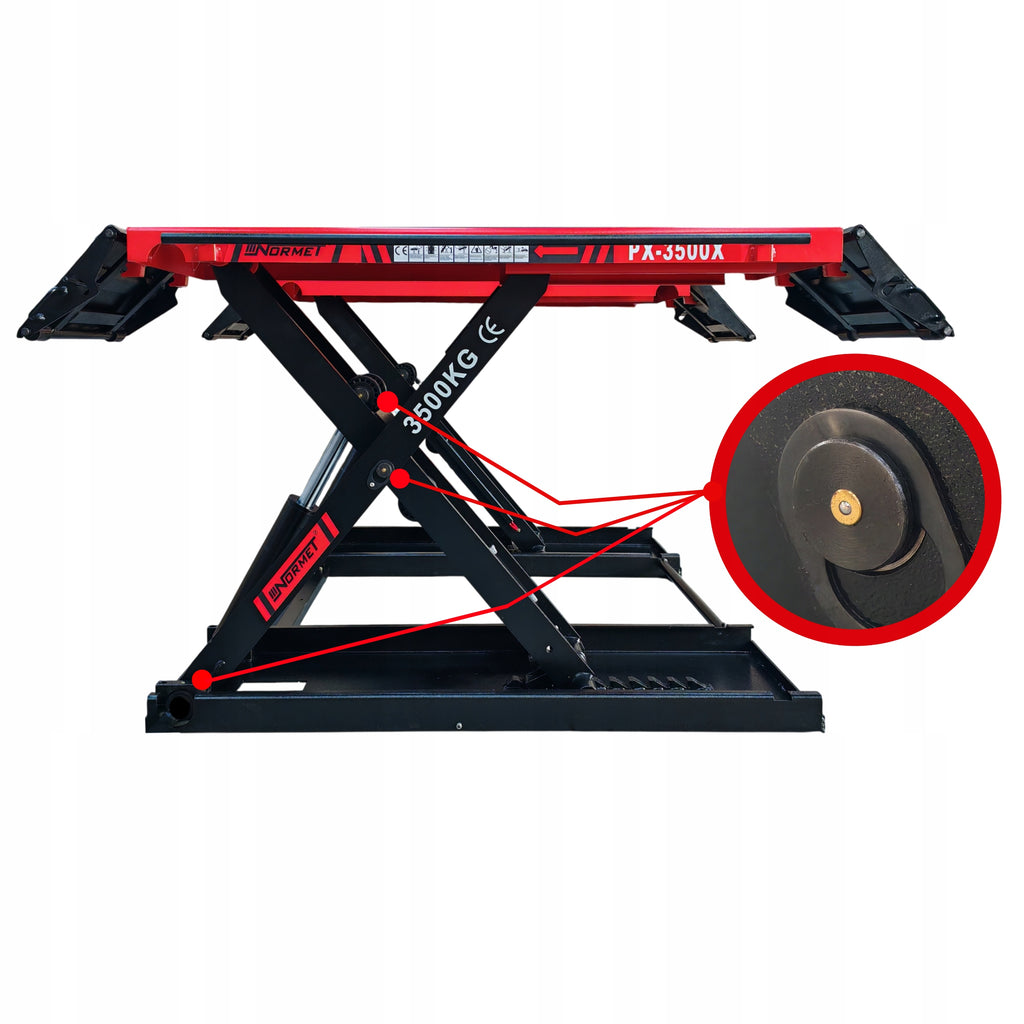

LUBRICATION POINTS
The lift is designed for intensive work, which is why it has lubrication points in the most important moving elements.

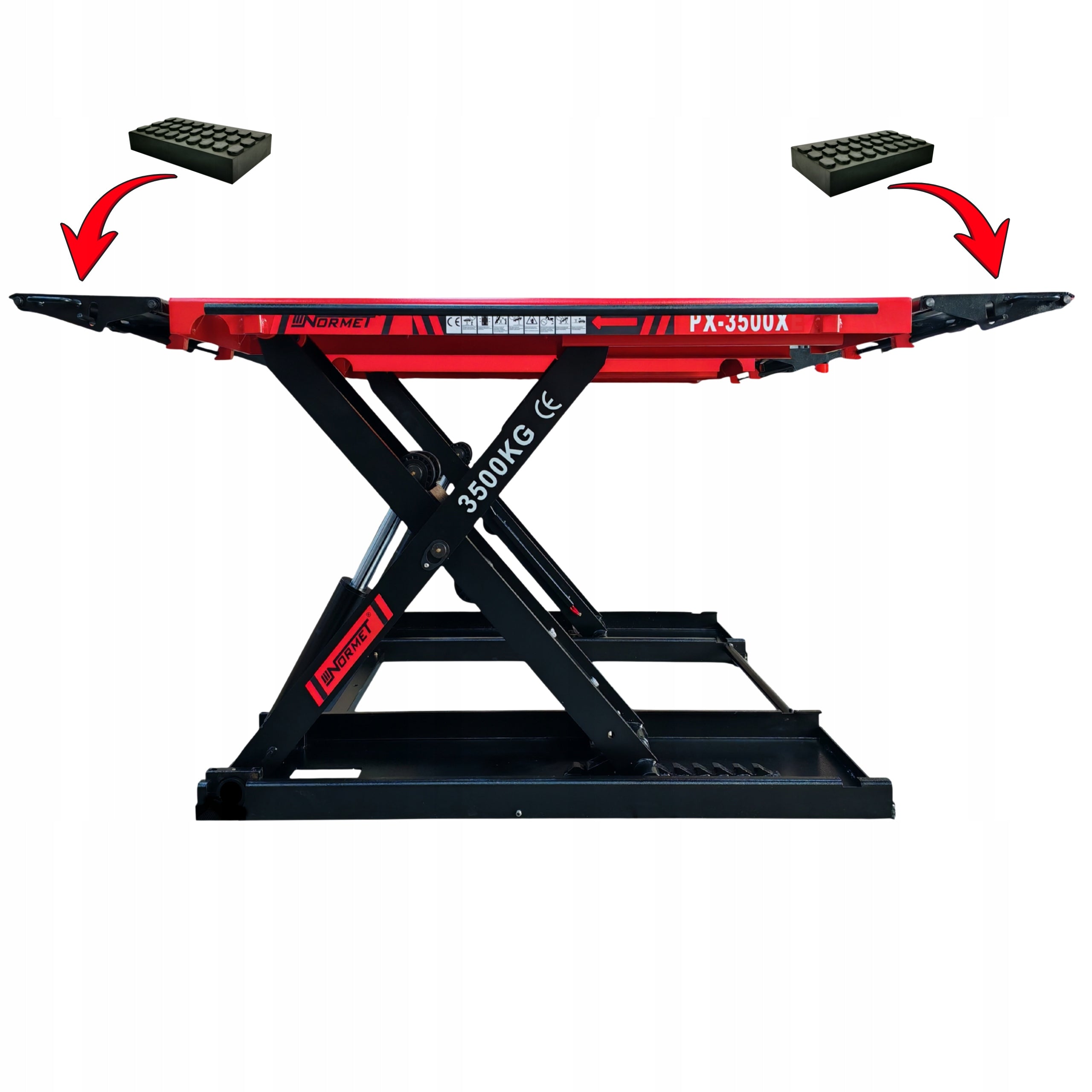

BLOCKING RAIDS
Thanks to the overrun locking function, you can extend the platforms on which you can easily put rubber blocks and handle longer vehicles.

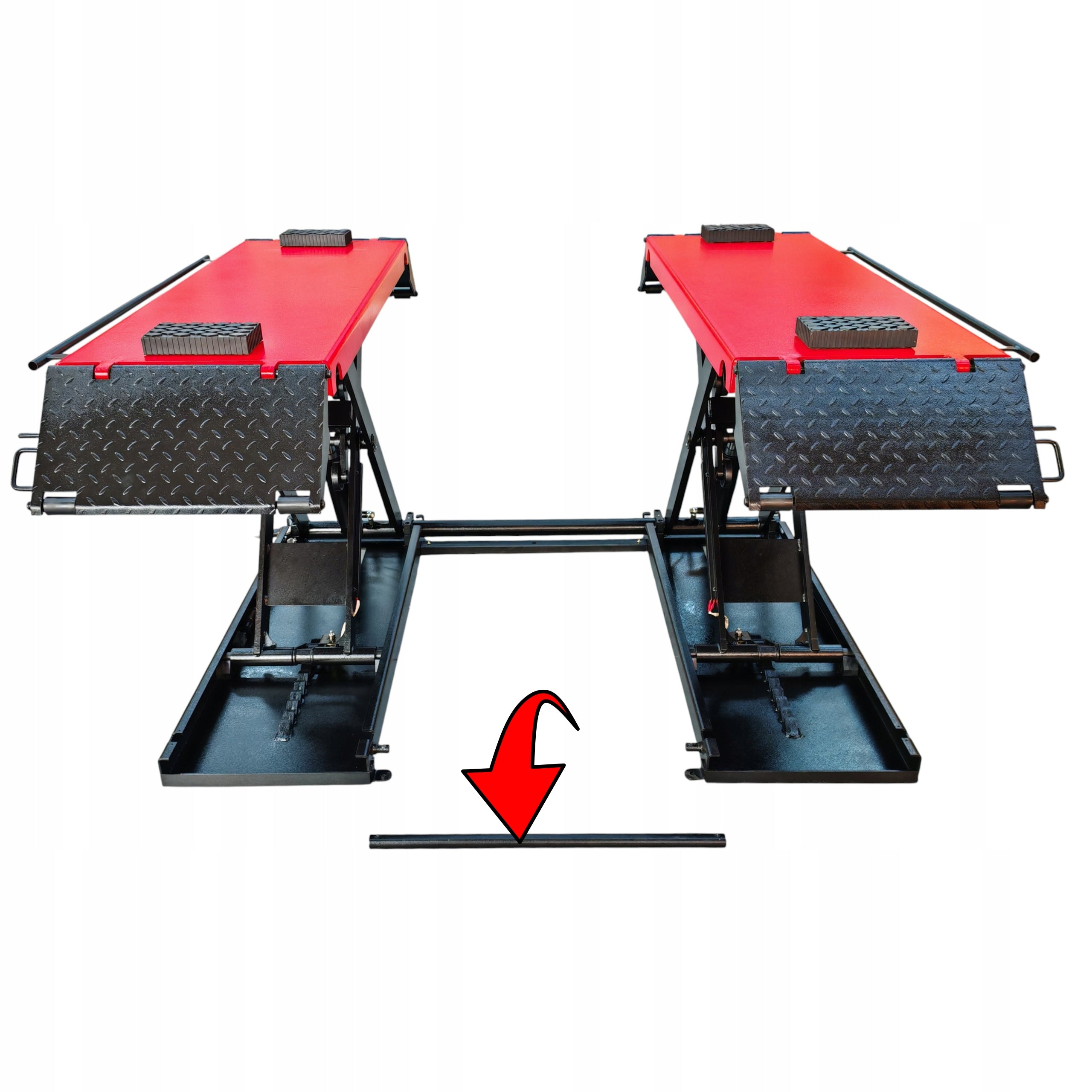

DISMOUNTABLE BEAM
With the ability to remove the beam, you have better access to your vehicle.
This is especially important if you are using a lift, e.g. on the channel.

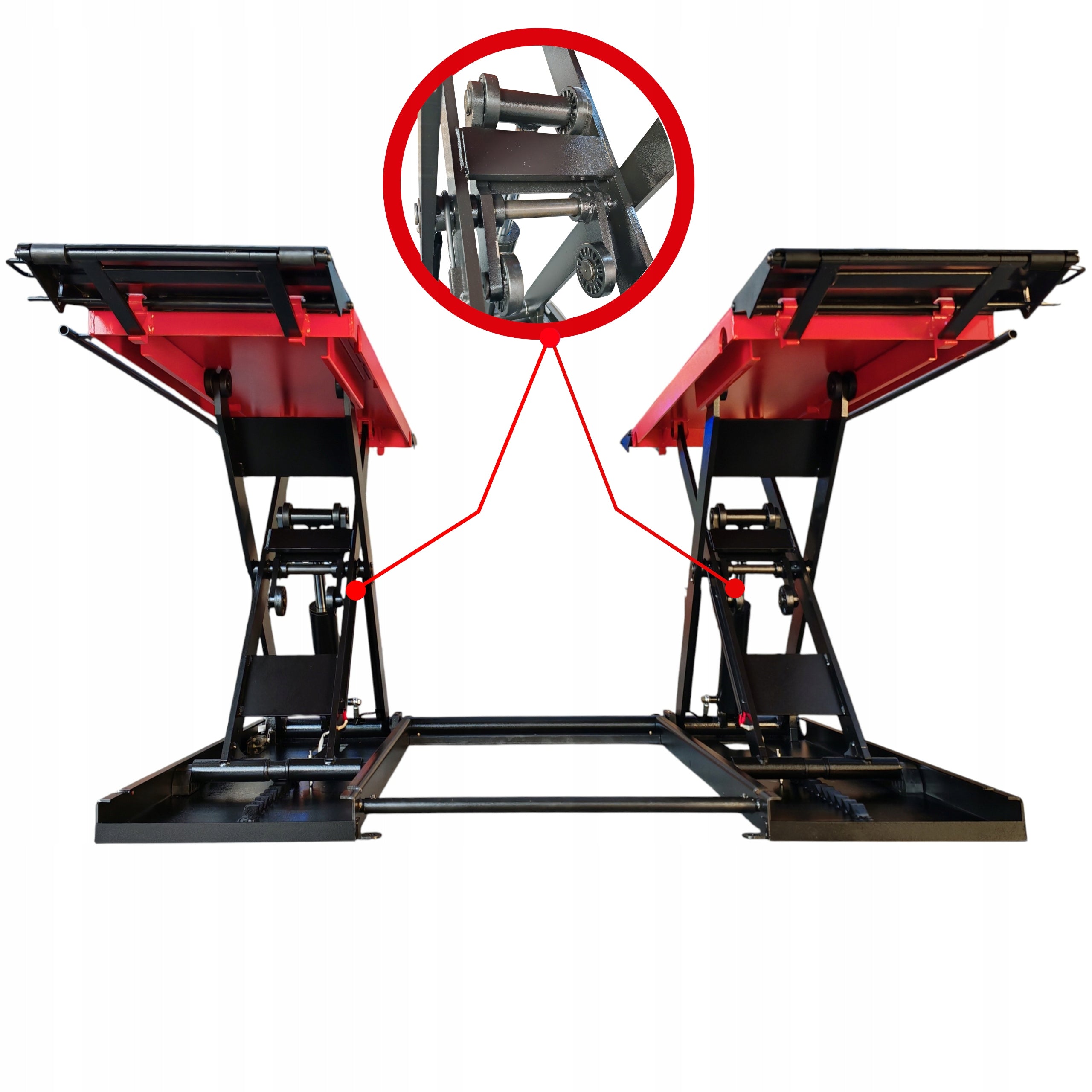

SUPPORTING THE LIFT
An additional small shear provides full lifting power from the very bottom. Therefore, now low vehicles are not a problem

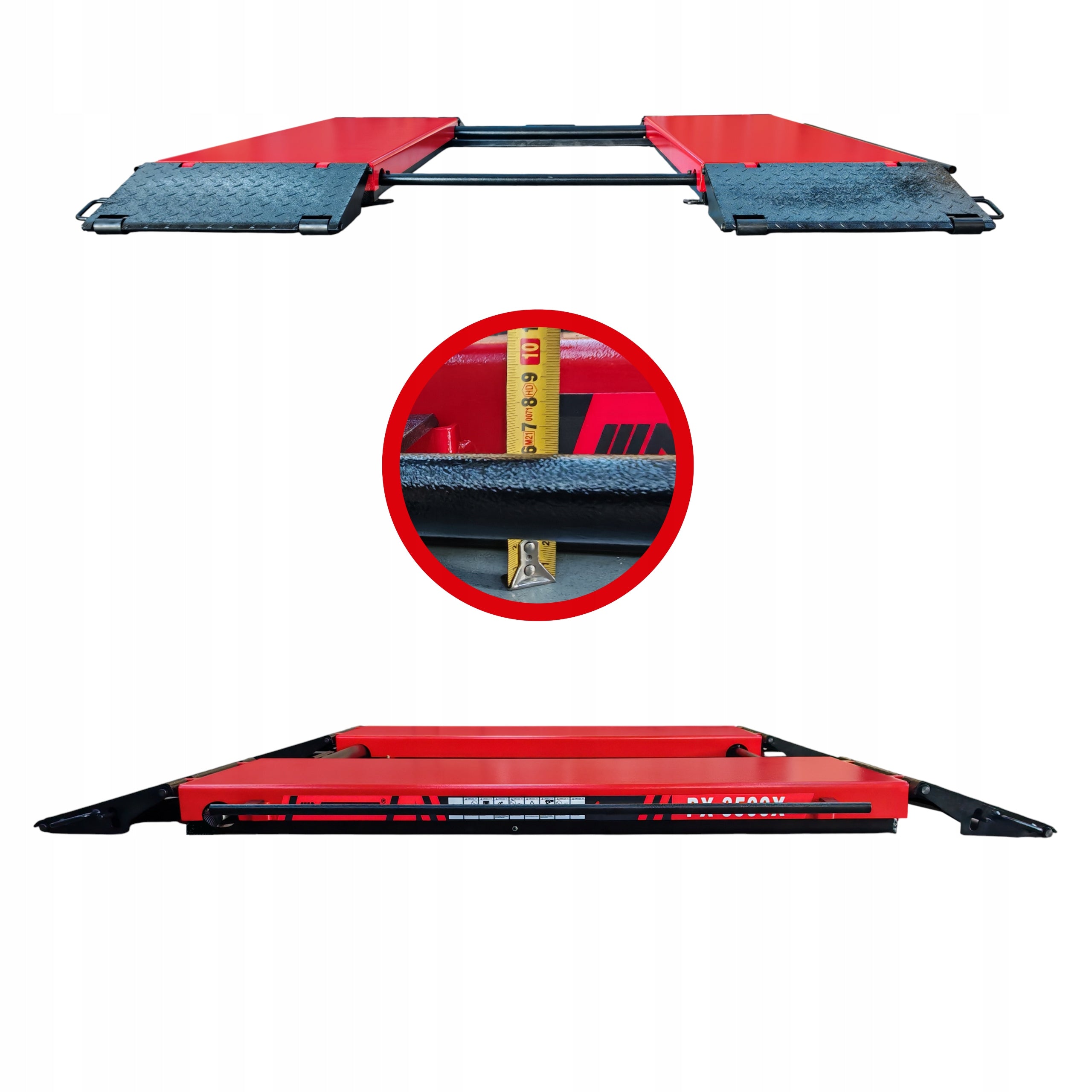

MINIMUM HEIGHT ONLY 10,5cm
The folded lift is only 10,5cm high, which allows you to operate most vehicles with sports low suspension
Extensions for ramps are also optionally available

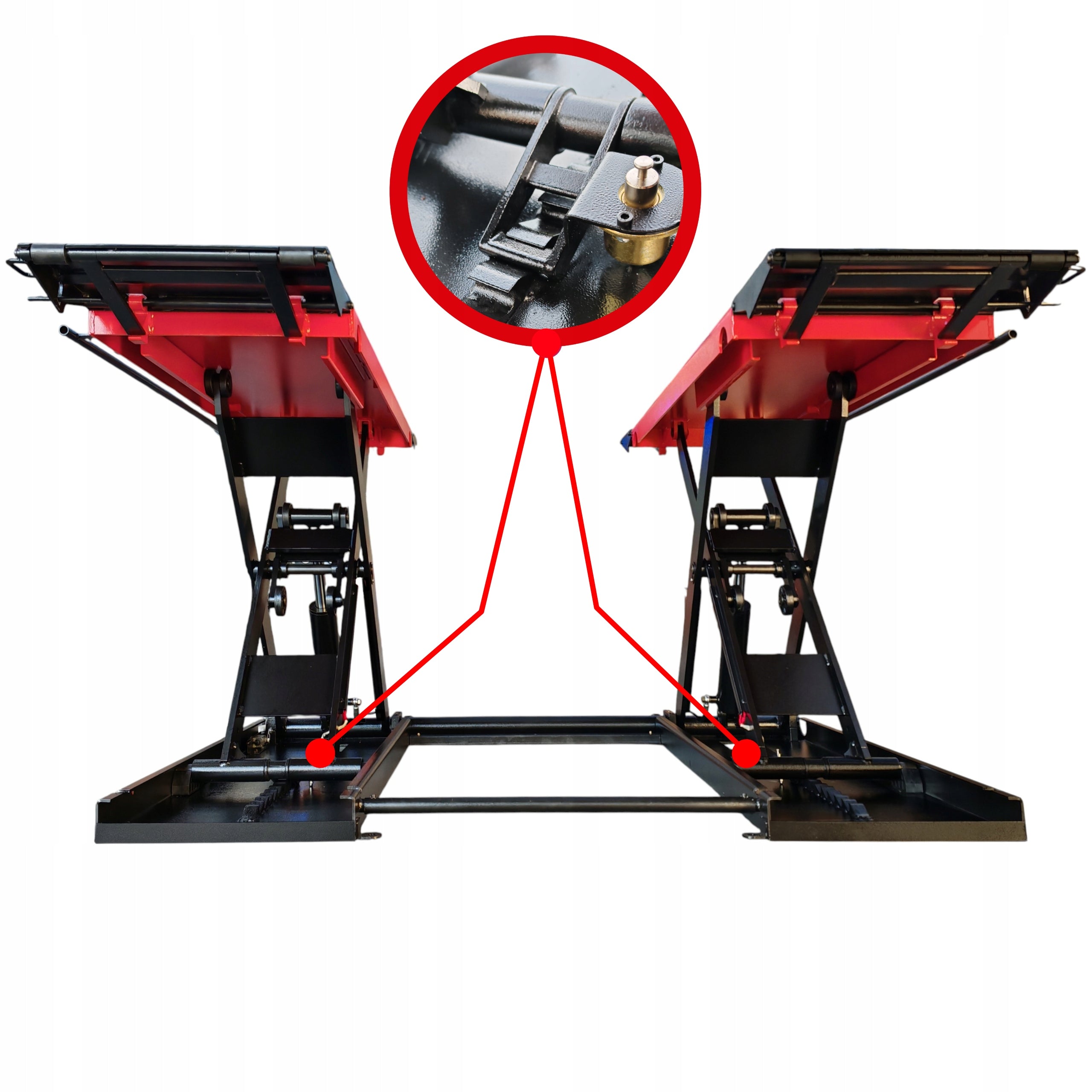

SAFETY RATCHETS
To ensure safe operation, the lift has electric safety ratchets on both platforms. You no longer need to connect additional air only 230V

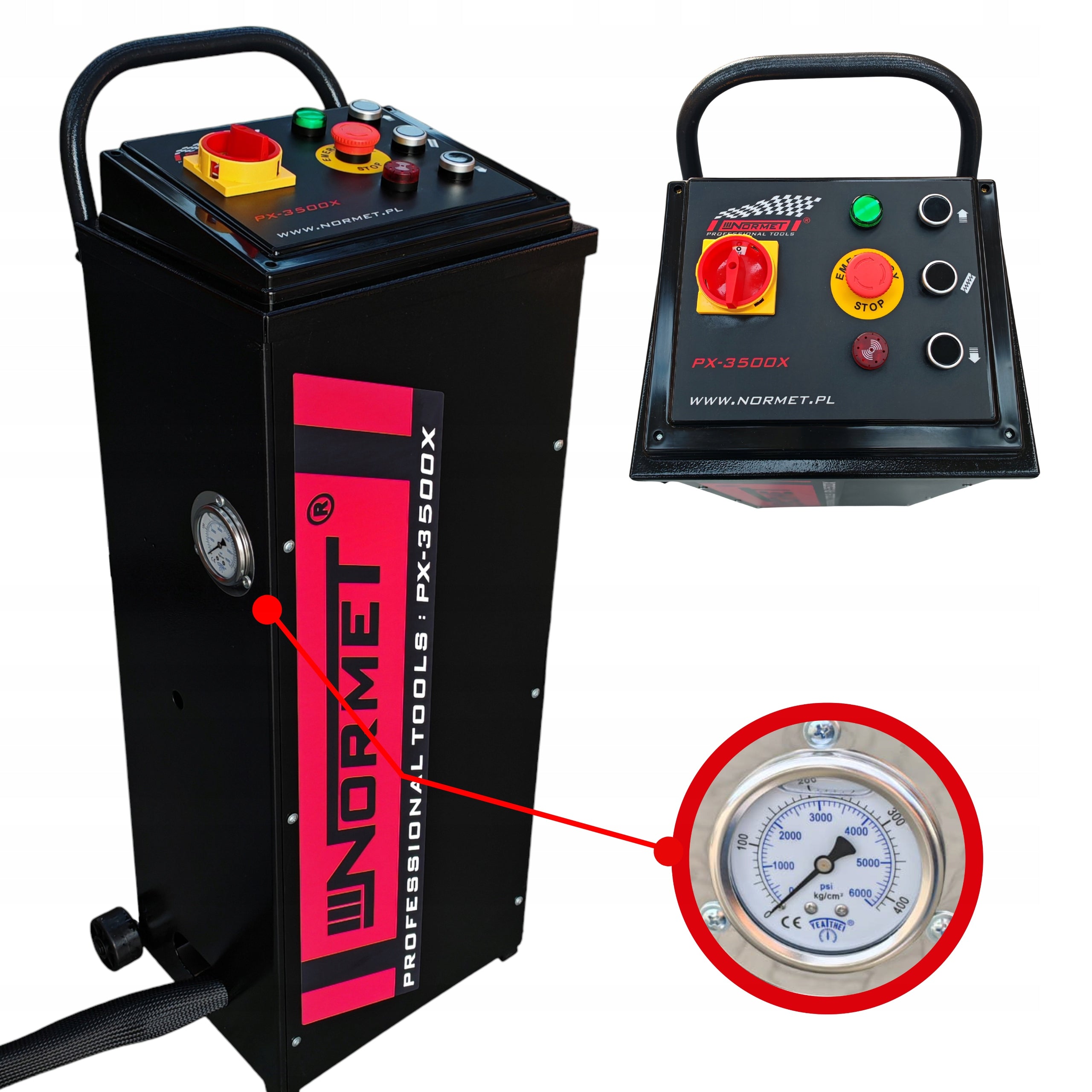

CONTROL BOX
The lift is controlled by buttons on the control box.
The lift has a locking function on the ratchets and
Automatic unlocking of ratchets
In addition, it has light and sound signaling to warn during the lowering process as well as a main and emergency switch
On the side of the control box there is a pressure gauge indicating the pressure in the hydraulic system
MOBILE SET
With a mobile kit, you can easily move the lift anywhere.

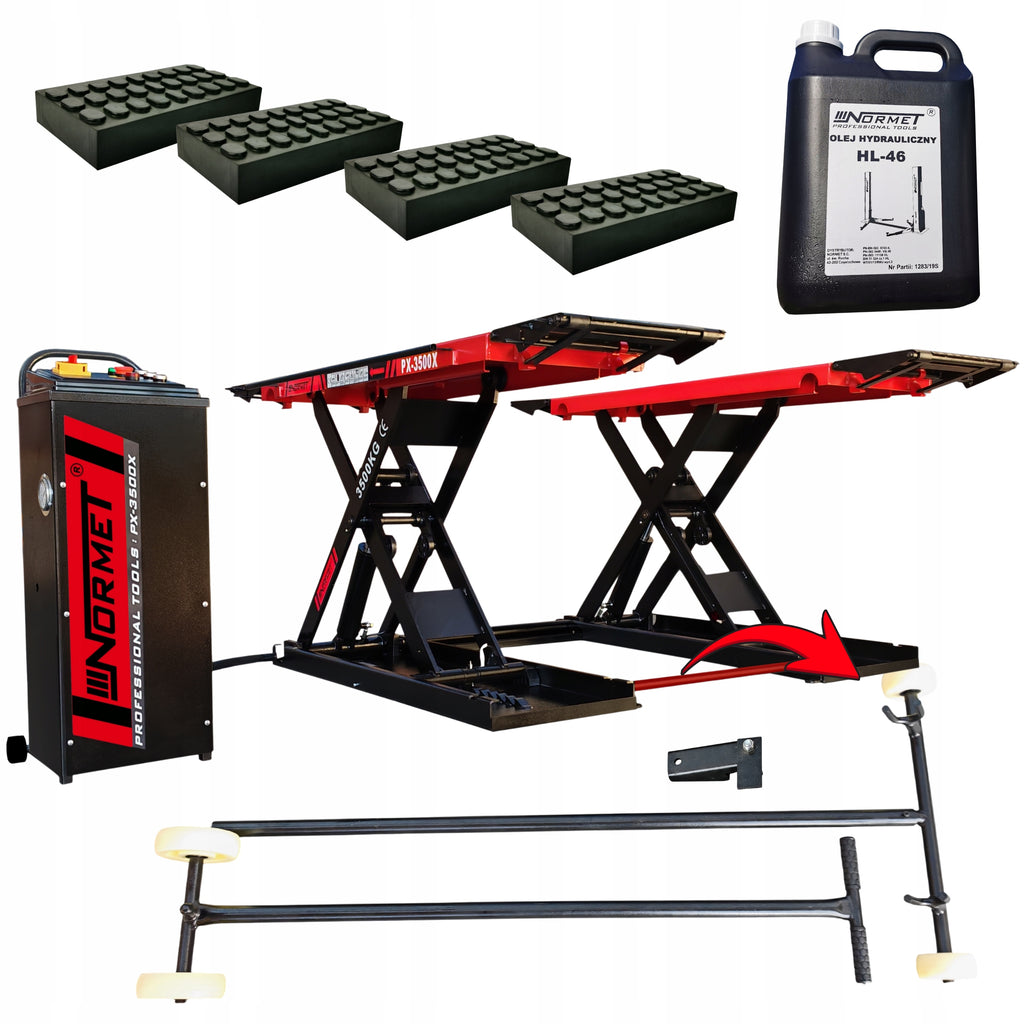

SET INCLUDES
- 4 rubber blocks
- Mobile set
- Hydraulic oil
- Instructions for use
- Catalog number: PX-3500X
- Total lift [kg]: 3500 kg
- Lifting height max. [mm]: 1000 mm
- Lifting height min. [mm]: 105 mm
- Lifting time [s]: 19 s
- Powered [V]: 230V
- Engine power [kW]: 2,2 kW
- Type of drive: Hydraulic
- Sync: Fixed
- Ratchet system: Electric
- Width [mm]: 1895
- Length [mm]: 2010
- Weight [kg]: 650 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Product weight with unit packaging | 650 kg |
| Parametry | Brand | Normet |
| Parametry | Manufacturer code | PX-3500X |
| Parametry | EAN (GTIN) | 5907106271226 |
| Parametry | Overall width | 1895 mm |
| Parametry | Overall height | 1000 mm |
| Parametry | Total length | 2010 mm |
| Parametry | Power supply | 230 V |
| Parametry | Engine power | 2.2 kW |
| Parametry | Lifting capacity | 3500 kg |
| Parametry | Minimum lifting height | 105 mm |
| Parametry | Maximum lifting height | 1000 mm |
