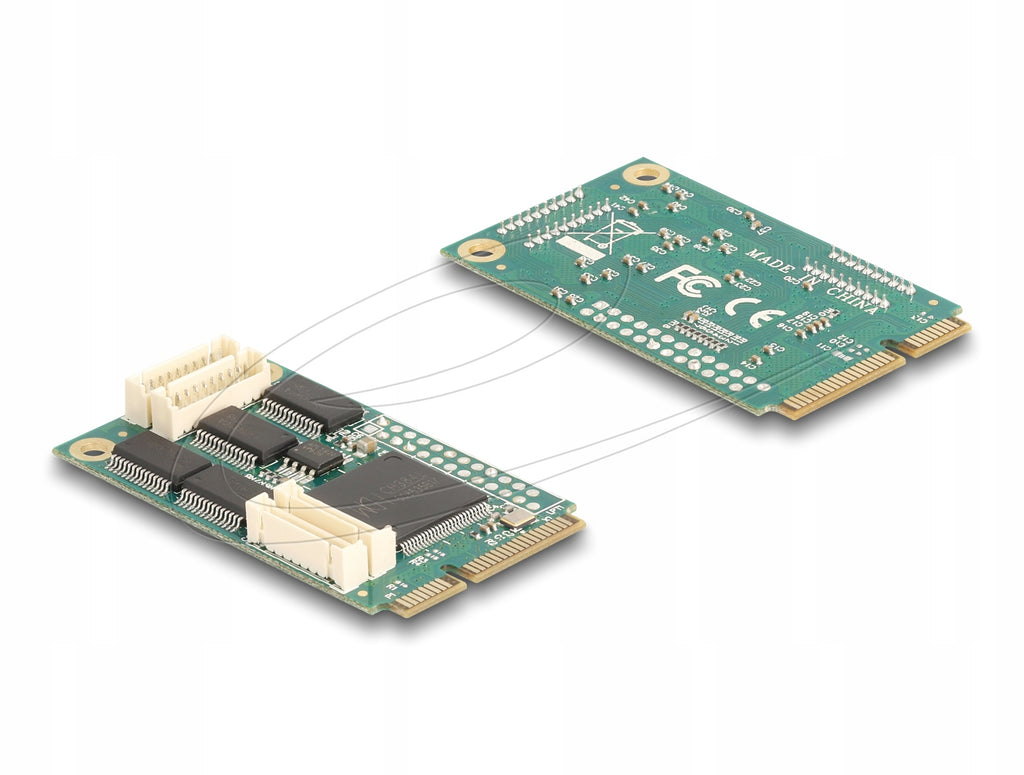

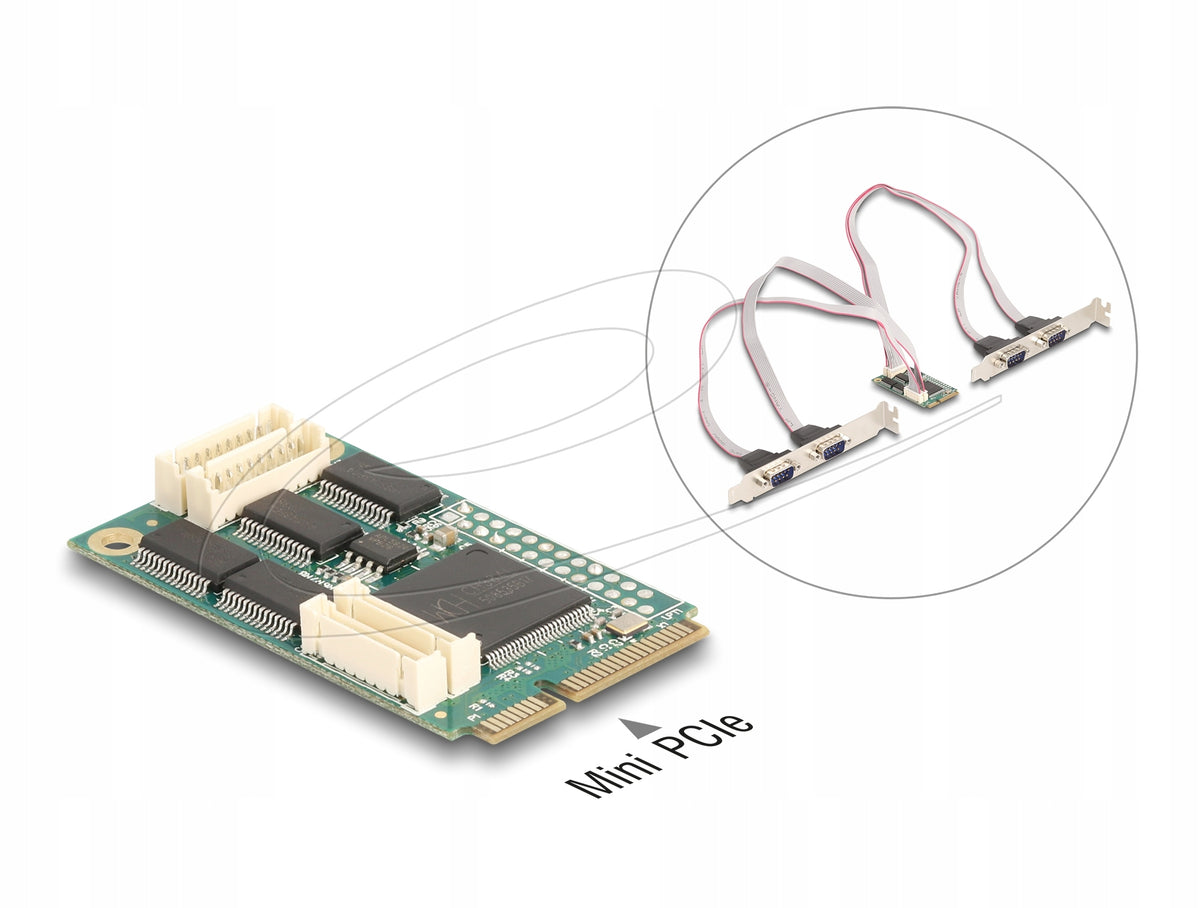

Mini PCIe plokštė Delock 95278, 4 RS-232 serial portai, pilno dydžio

Trumpai apie prekę

Prekė: Mini PCIe plokštė Delock 95278, 4 RS-232 serial portai, pilno dydžio. Kategorija: Tinklo plokštės.

• Gamintojas: Tragant
• Modelis: 95278

The Delock Mini PCI Express card extends the system with four RS-232 DB9 ports, enabling connection of industrial, POS and automation devices. The WCH382L chipset provides stable data transmission up to 460,8 Kbps and supports bit configuration, parity and flow control, making the module a versatile solution for professional applications.

The Delock Mini PCIe card allows you to expand the system with four RS-232 serial ports in DB9 format, which allows you to connect a variety of industrial and communication devices, such as printers, modems, POS systems or automation controllers. The module uses the WCH382L chipset and provides stable data transmission up to 460,8 Kbps. Support for multiple configurations of data bits, stop bits, parity and flow control makes the card a universal solution for professional applications. The full-size format and four independent head connectors allow for flexible routing of wires inside the housing.

Specification:

• External connectors: 4x RS-232 DB9 male
• Internal Connectors: 1 x Mini PCI Express 1.2, 4x 10-pin male head connectors
• Chipset: WCH382L
• Format: Mini PCIe full size
• Transmission rate: up to 460,8 Kbps
• FIFO: 4x 256 bytes
• Databits: 5 / 6 / 7 / 8
• Stopbits: 1 / 2
• Parity: even / odd / none / mark / space
• Flow control: none / hardware RTS/CTS / software XON/XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI
• Cable length with connector: approx. 25 cm
• Dimensions: approx. 51 x 30 x 10 mm
