Trumpai apie prekę

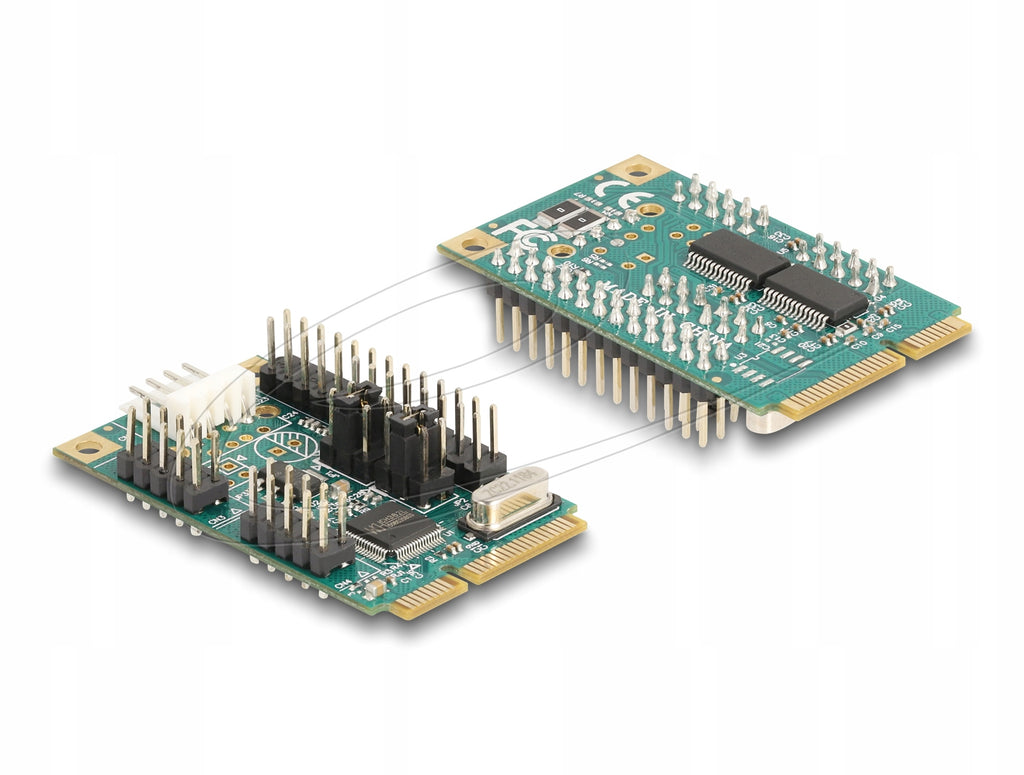

Prekė: Mini PCIe plokštė Delock 95277, 1x lygiagretus, 2x RS-232, 5V/12V. Kategorija: Tinklo plokštės.
- Gamintojas: Tragant
- Modelis: 95277
The Delock Mini PCIe module extends the system with two RS-232 ports and one parallel port, offering power to devices via a serial interface with 5V or 12V voltage. The WCH382L chipset supports transmission up to 460,8 Kbps to RS-232 and 1Mbps on the LPT port, which ensures wide compatibility in industrial, POS and automation applications.

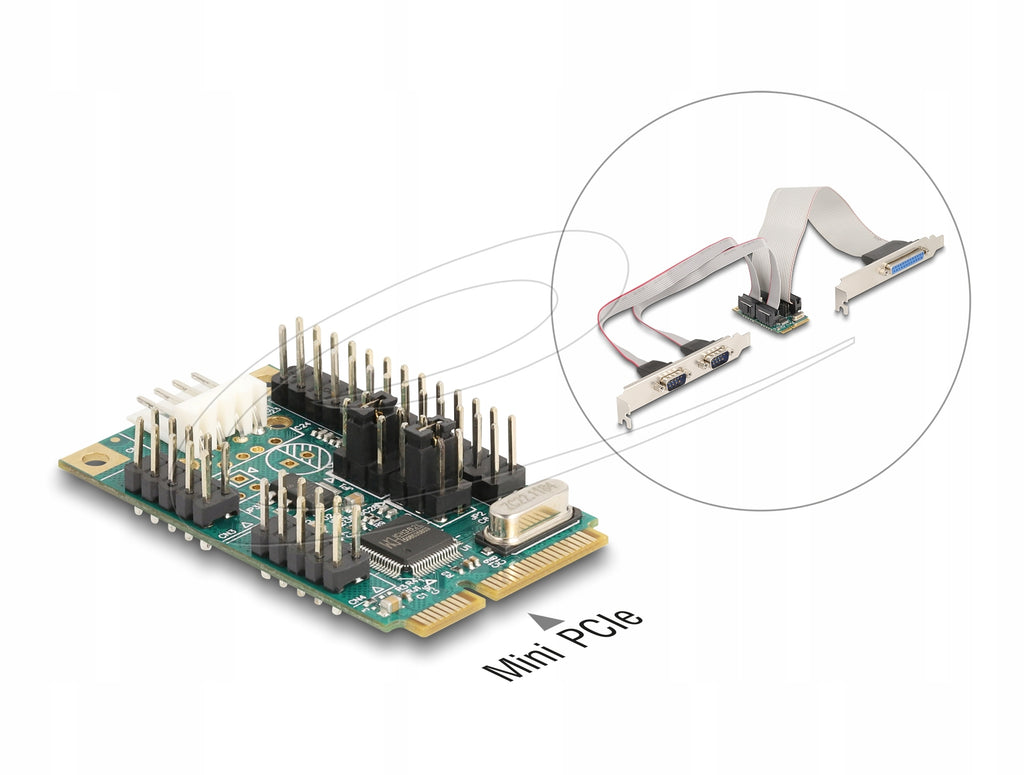

The Mini PCIe module from Delock allows you to expand the system with two RS-232 serial interfaces and one parallel interface, which can be output to the outside of the computer case using a socket bracket. Thanks to the ability to power connected devices via serial ports with a voltage of 5 V or 12 V, the adapter is suitable for industrial, POS, automation and retro-periphery applications. The WCH382L chipset provides support for data transmission up to 460,8 Kbps on RS-232 ports and up to 1 Mbps on a parallel port. The module supports numerous transmission modes, flow control and configuration of signal and power parameters on pin 9.
Specification:
- External connectors: 2x RS-232 DB9 male, 1 x D-Sub 25-pin female (parallel)
- Internal Connectors: 1 x Mini PCI Express 1.2, 2x 10-pin male head connectors, 1 x 26-pin male head connector, 1 x 4-pin male Floppy connector
- Chipset: WCH382L
- Format: Mini PCIe full size
- RS-232 serial ports:
- Transmission rate: up to 460,8 Kbps
- FIFO: 2x 256 bytes
- Databits: 5 / 6 / 7 / 8
- Stopbits: 1 / 2
- Parity: even / odd / none / mark / space
- Flow control: none / hardware RTS/CTS / software XON/XOFF
- Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
- Voltage setting on pin 9: RI / 5 V / 12 V (jumper)
- Power supply per port: up to 20W (5V/4A) or up to 48W (12V/4A)
- Parallel port:
- Transmission rate: up to 1 Mbps
- Modes: SPP/PS2/EPP/ECP (IEEE 1284 compatibility)
- Cable length with connectors: approx. 25 cm
- Dimensions: approx. 51 x 30 x 10 mm
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer | Tragant |
| Parametry | Interface | PCI-E |
| Parametry | Card type | internal |
| Parametry | Port type | Ethernet (RJ-45) |
| Parametry | EAN (GTIN) | 4043619952779 |
| Parametry | Manufacturer code | 95277 |
| Parametry | Packaging status | original |
