Mini PCIe plokštė Delock 95276, 2x RS-232 jungtys, 5V / 12V

Trumpai apie prekę

Prekė: Mini PCIe plokštė Delock 95276, 2x RS-232 jungtys, 5V / 12V. Kategorija: Tinklo plokštės.

• Gamintojas: Tragant
• Modelis: 95276

The Delock Mini PCI Express card adds two RS-232 DB9 ports to the system with the ability to power devices directly through the interface. With its WCH382L chipset, it provides stable transmission up to 460,8 Kbps and configurable voltage, data bits and flow control parameters, making it an ideal solution for automation and industrial systems.

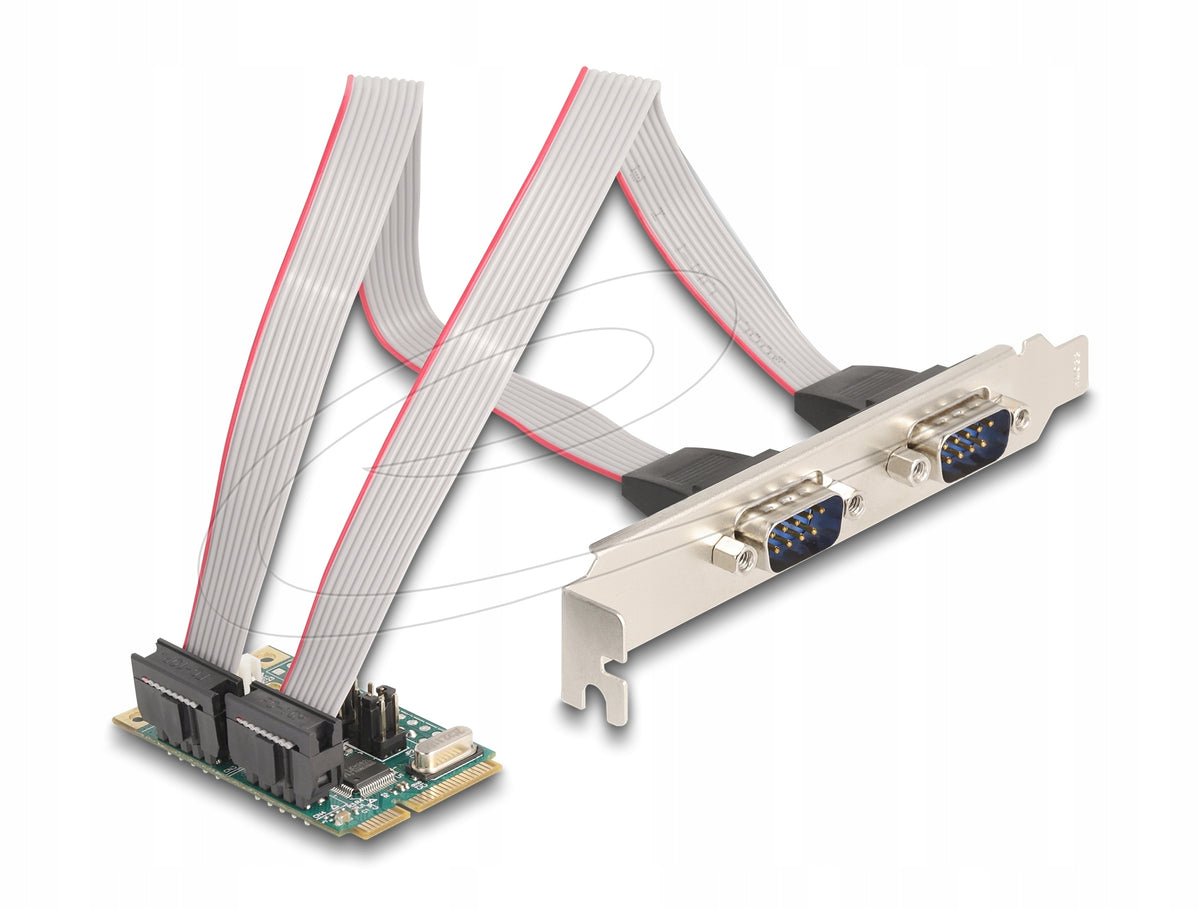

The Mini PCI Express card from Delock allows you to expand the system with two RS-232 serial ports in DB9 format, which allows you to connect devices such as printers, modems, POS systems or industrial controllers. Thanks to the option of power supply via RS-232 port (up to 5 V or 12 V), it is possible to power connected devices directly from the module, with a maximum power of up to 48 W per port. The WCH382L chipset provides reliable data transmission up to 460,8 Kbps, with full support for data bit, stop bit, flow control and parity configurations. The jumper setting allows you to select the supply voltage for pin 9 of each port.

Specification:

• External connectors: 2x 9-pin RS-232 DB9 male

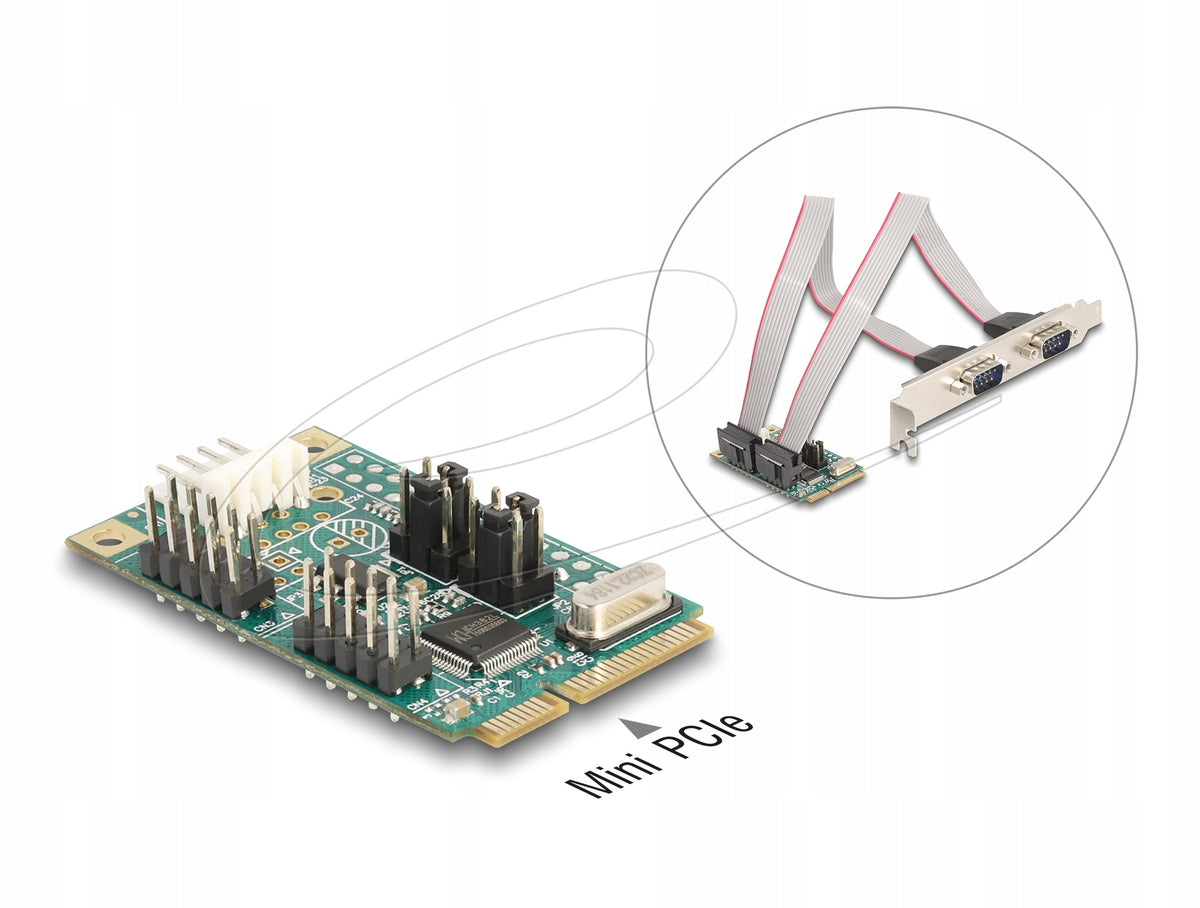

• Internal Connectors: 1 x Mini PCI Express 1.2, 2x 10-pin male head connector, 1 x 4-pin male Floppy connector

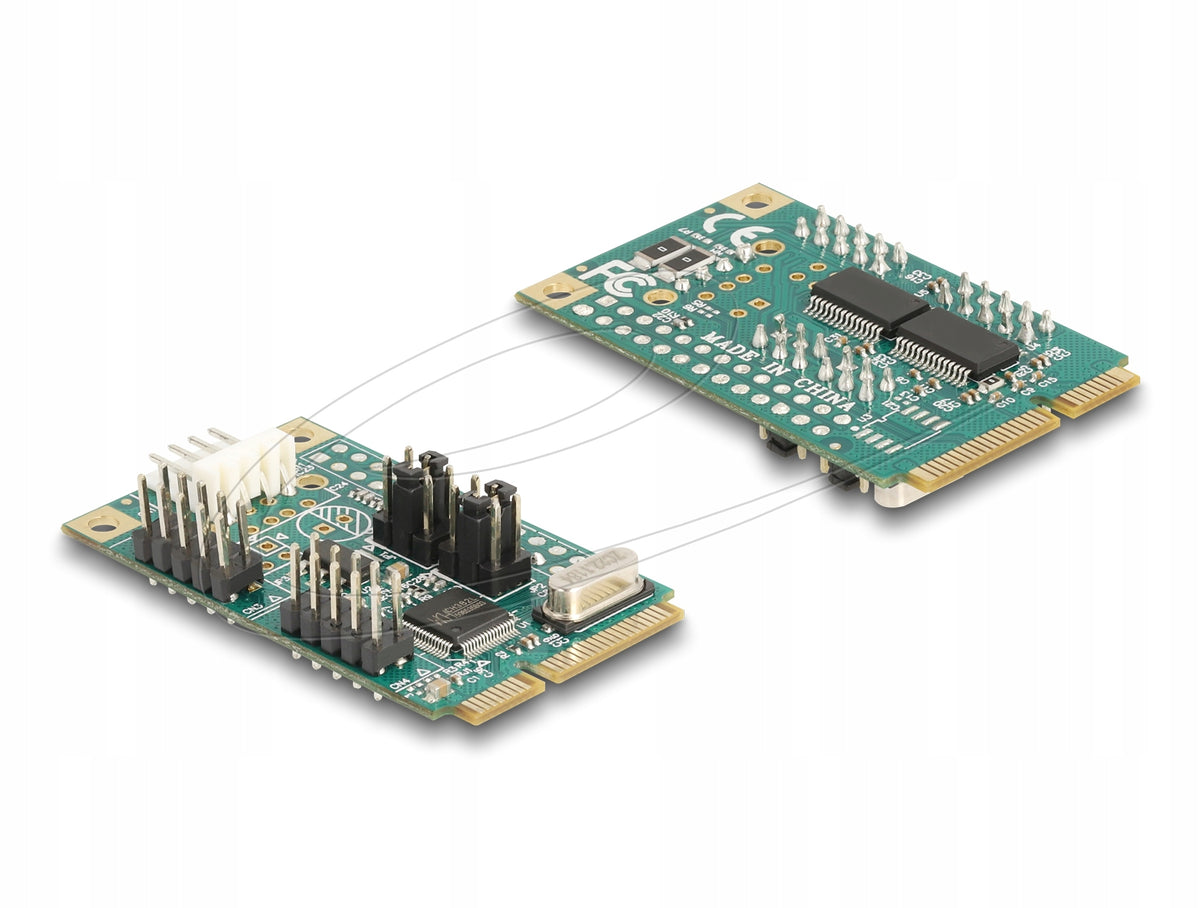

• Chipset: WCH382L
• Format: Mini PCIe full size
• Transmission rate: up to 460,8 Kbps
• FIFO: 2x 256 bytes
• Databits: 5 / 6 / 7 / 8
• Stopbits: 1 / 2
• Parity: even / odd / none / mark / space
• Flow control: none / hardware RTS/CTS / software XON/XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Voltage setting on pin 9: RI/5V/12V (jumper)
• Power supply per port: max. 20 W (5V/4 A) or max. 48 IN (12V/4A)
• Cable length with connector: approx. 25 cm
• Dimensions: approx. 51 x 30 x 10 mm
