Mini PCIe plokštė Delock 2x RS-232 ir 1x LPT (MCS9901)

Trumpai apie prekę

Prekė: Mini PCIe plokštė Delock 2x RS-232 ir 1x LPT (MCS9901). Kategorija: Tinklo plokštės.

• Gamintojas: Tragant
• Modelis: 95232

Characteristics

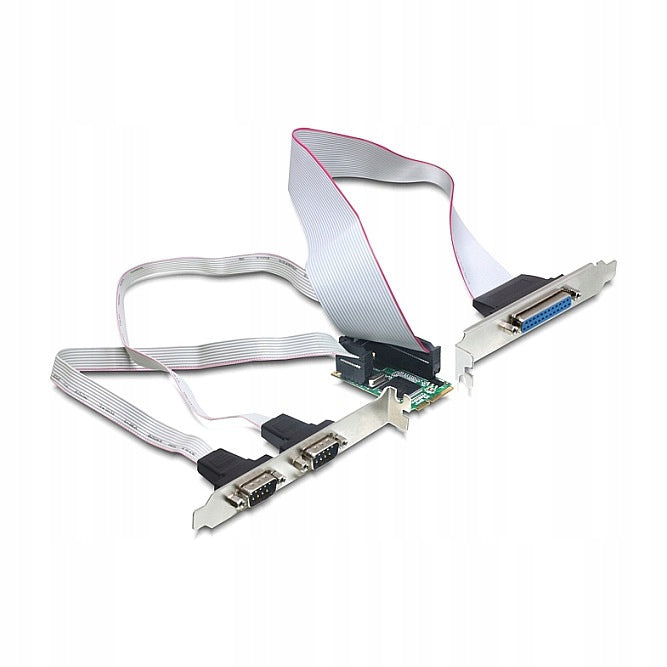

Mini PCIe expansion card designed for internal addition of serial and parallel ports in desktop computers, industrial devices and workstations. It provides physical RS-232 connectors and a parallel port in the Mini PCI Express module format, which allows you to extend the functionality of systems with a limited number of interfaces.

Interfaces and ports

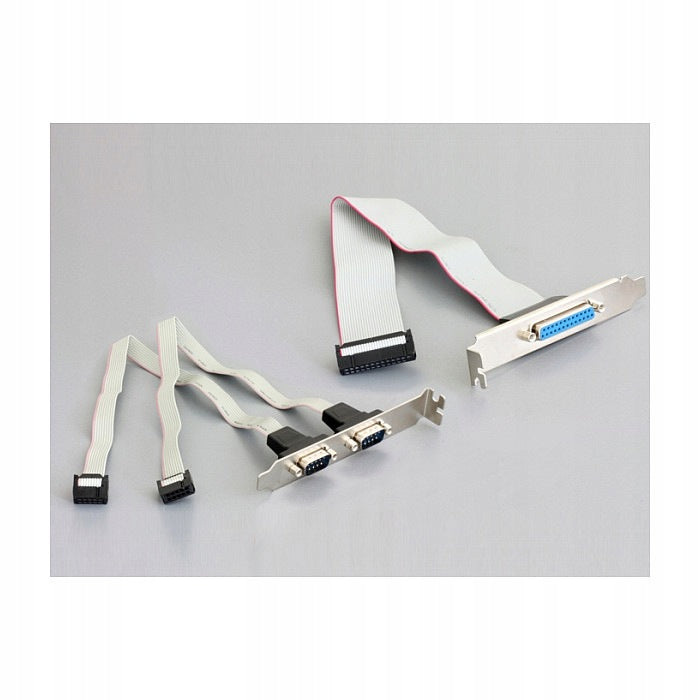

The card provides two serial ports compliant with RS-232 standard and one parallel port. The host interface is implemented via the Mini PCI Express connector, and the card is designed for internal mounting in the Mini PCIe slot of the motherboard. Connections are wired and require appropriate wiring and leads compatible with the system installation.

Chipset and System Compatibility

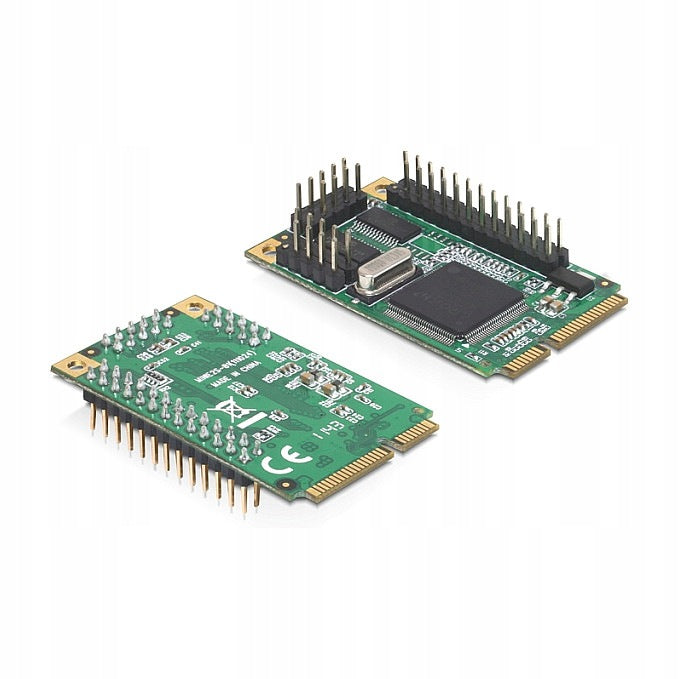

The chip responsible for handling interfaces is Moschip MCS9901. The manufacturer provides drivers for Windows XP/XP-64, Vista/Vista-64, Windows 7/7-64 and for Linux kernels version 2.6, which allows the card to be used in older hardware and system environments.

Applications and installation

The solution is used where it is necessary to support devices using RS-232 ports or a parallel interface, for example in automation, measurement, industrial equipment or for communication with older printers and terminals. Installation requires the installation of a card in the Mini PCIe slot of the motherboard and an appropriate cable connection to external output modules or I/O panels.

Specification

• Host Interface: Mini PCI Express
• Systems: Moschip MCS9901
• Connectivity Technology: Wired
