Mini jungiklis PoE ATTE xPoE-3-10, 3 jungtys

Trumpai apie prekę

Prekė: Mini jungiklis PoE ATTE xPoE-3-10, 3 jungtys. Kategorija: Jungikliai ir koncentratoriai.

• Gamintojas: Atte
• Modelis: XPOE-3-10

3-Port ATTE xPoE-3-10 Miniature PoE Switch

Attention

The xPoE-3-10 version can only be powered from the PoE PASSIVE switch or adapter and all ATTE Power devices. If you have a PoE switch operating in the 802.3af/at standard, use the xPoE-3-11A version

Key features and functions:

• miniature design allows installation in a can under the camera
• Powered by another PoE Passive switch
• distributes power to up to 2 PoE 802.3at/af cameras
• One device can power another (Atte Power Tree)
• amplifies and separates the network signal (fully functional 100Mbps switch)
• up to 70W total power for all ports
• easy and quick start-up without the need to configure parameters
• wide operating temperature range
• very low power consumption (< 1W)

Extender (repeater) of LAN and PoE power supply

xPoE-3-10 regenerates the network signal and transfers the PoE power supply to selected outputs. Most commonly used as a "amplifier" for network extensions on sections longer than 100m.

In addition, it is ideally suited as a "active splitter" in situations where we need to run several PoE receivers on one cable (e.g. several IP cameras), or when we need to create an additional network branch.

Unmanaged PoE switches and extenders are designed to work with IP cameras and other network devices powered in the PoE 802.3at/af and PoE PASSIVE standards.

Thoughtful design

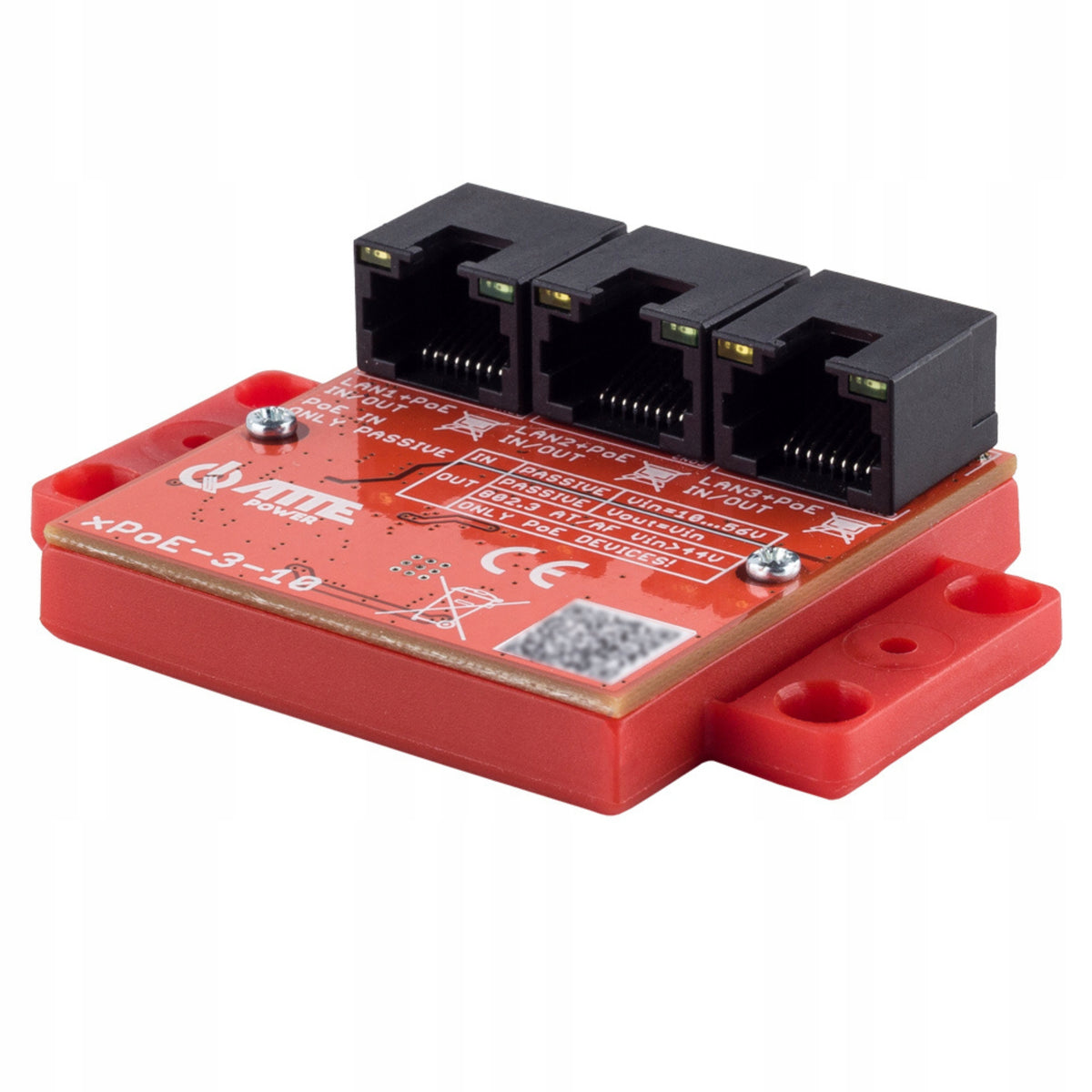

The device itself is a housing. The combination of laminate with milled polycarbonate provides shield, insulation with the smallest possible dimensions of the device.

Setting the RJ-45 connectors also is not accidental - thanks to it plugged cables do not take up additional space.

Example of using xPoE-3-10

Specifications
