MIG/MAG suvirinimo aparatas 250A Dual Pulse Synergy Magnum MIG 250/2 230V 400V

Trumpai apie prekę

Prekė: MIG/MAG suvirinimo aparatas 250A Dual Pulse Synergy Magnum MIG 250/2 230V 400V. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Magnum
• Modelis: MIG 250/2 Dual Puls Synergia
• Ilgis: 750 mm
• Plotis: 290 mm
• Aukštis: 510 mm

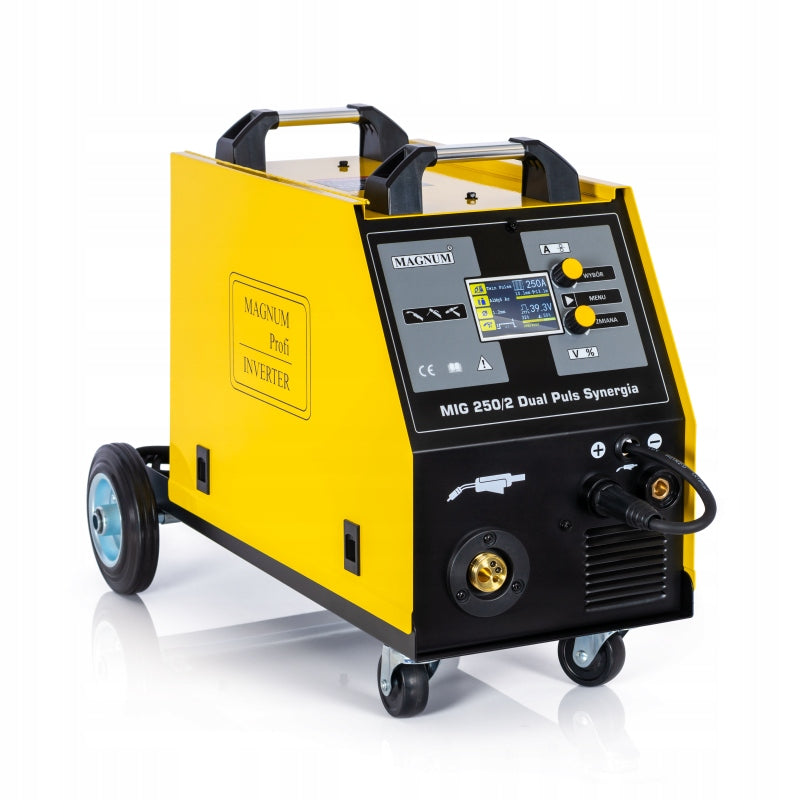

Magnum MIG 250/2 Dual Pulse Synergy - Professional 3in1 Welding Machine

The advanced Magnum MIG 250/2 Dual Pulse Synergy inverter device ensures precise MIG/MAG, MMA and TIG Lift welding, offering high weld quality thanks to double pulsation. This versatile power source is perfect for professional locksmith and repair shops.

• Maximum welding current: 250 A (400 V)
• Power supply: dual voltage 230V / 400V
• Technology: Dual Pulse and Full Synergy
• Feeder: professional, metal 4-roller
• Working methods: MIG/MAG, MMA, TIG Lift, Soldering

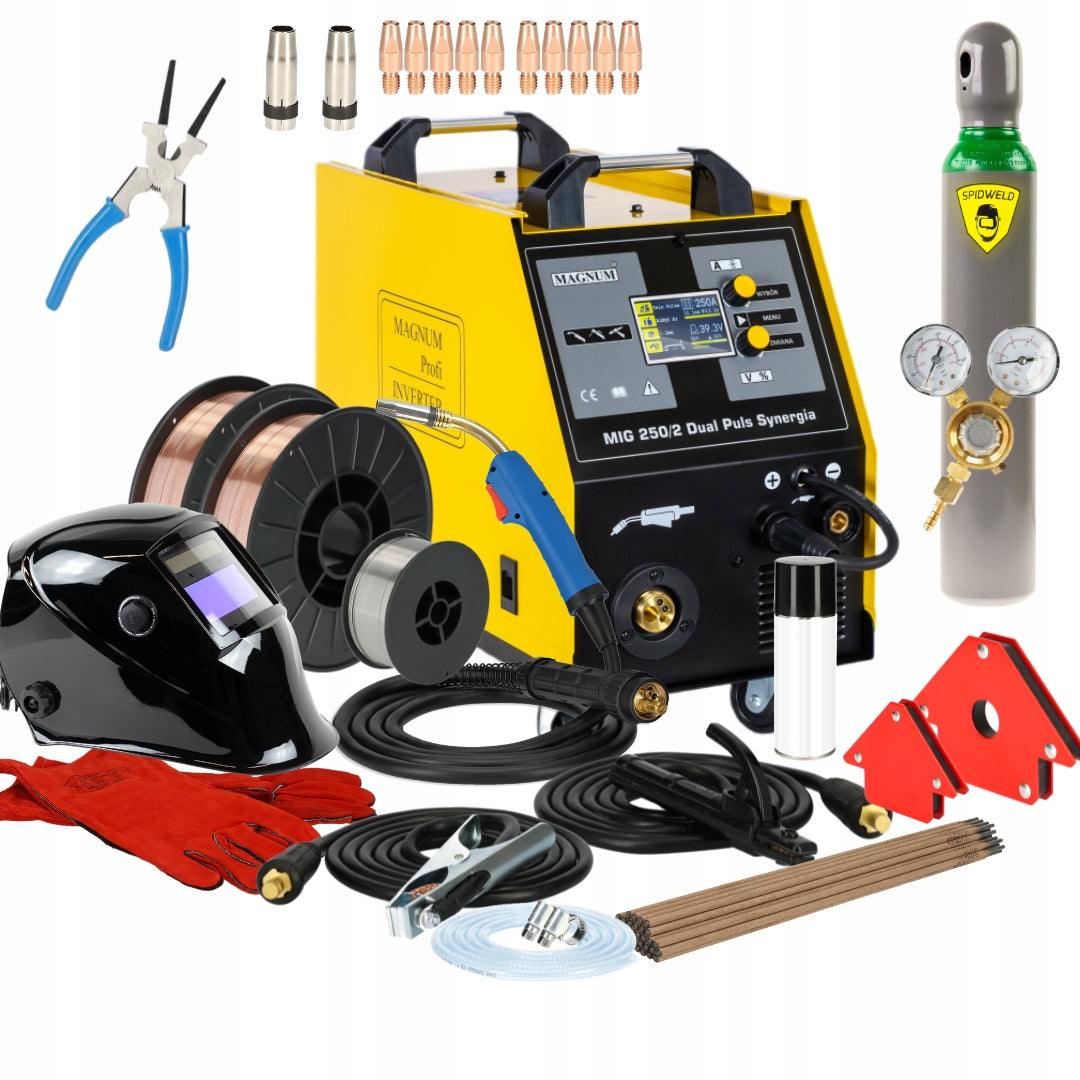

📦 Included

• Welding device
• MIG MB-24 / 3 m welding torch
• Bulk cable with forceps clamp 250 A / plug 35-50 / OS 25 mm2 / 2 m
• Electrode holder with MMA holder 250 A / plug 35-50 / OS 25 mm2 / 2 m
• Adapter (adapter) power supply 230/400 V
• Feeder rollers type 2RA fi 1,0/1,2 mm U for aluminium (mounted in the feeder)
• Feeder rollers type 2RA fi 0,8/1,0 mm V for steel
• Teflon cartridge red for aluminium (mounted in the holder)
• Blue spiral steel insert / 3 m
• User manual in Polish
• Self-tinting visor 510G
• Cylinder with mixture ARG/CO2 8 liters (new, full, 10-year legalization, valve cap)
• Gas reducer MINI 2 pressure gauges
• SG2 0,8 mm / 5,0 kg welding wire
• SG2 1,0 mm / 5,0 kg welding wire
• Self-shielding welding wire FLUX 0,8 mm / 0,45 kg
• Anti-chipping preparation 400 ml
• Magnetic angle 11,0 kg
• Magnetic angle 22,0 kg
• MIG/MAG welding pliers
• MIG Welding Gloves / 1 Pair
• Gas nozzle / 2 pcs.
• Current terminal fi 0,8 mm / 5 pcs.
• Current terminal fi 1,0 mm / 5 pcs.
• Rutile welding electrodes / 1,0 kg
• Hose for gas connection + clamps

⚡ Universal power supply 230 V and 400 V

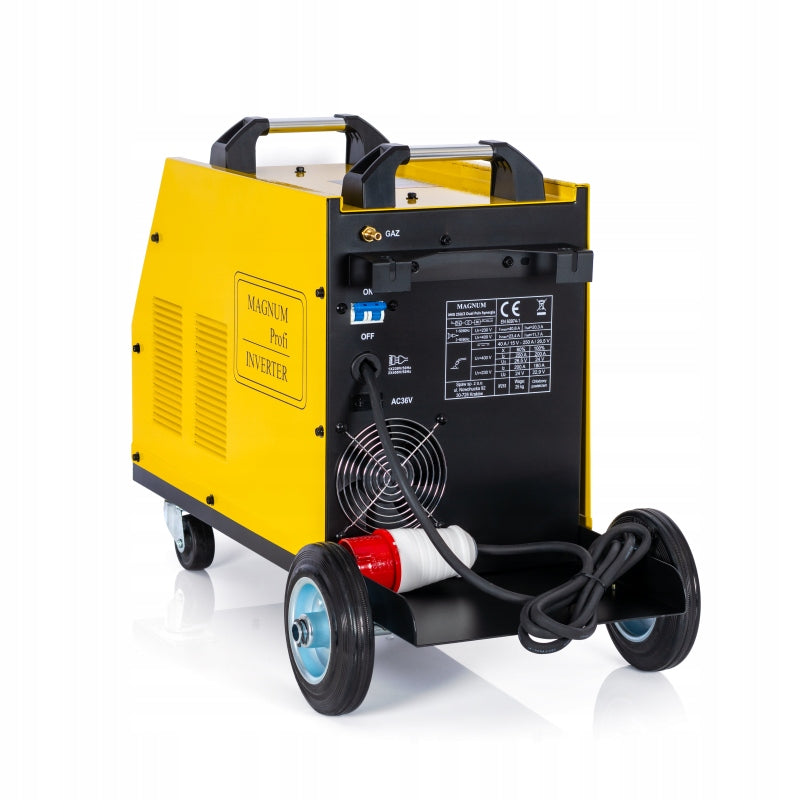

The Magnum MIG 250/2 Dual Pulse Synergy model is distinguished by its unique ability to work under two voltages. Thanks to the included adapter, the device can be connected to a standard 230 V household outlet or to a 400 V industrial network, which ensures full mobility and readiness to work in any workshop conditions.

🎛 Intuitive LCD control panel

The digital interface allows you to quickly set parameters thanks to built-in synergistic programs. The panel allows precise control over the welding process:

• Easy-to-read LCD display showing parameters in real time
• Multifunction knob for adjusting current and selecting functions in the menu
• Quick access button to device settings
• Voltage correction and tuning of welding parameters
• Up to 35 user programs can be saved

🛡 Robust construction and precise feeder

Inside the Magnum MIG 250/2 Dual Pulse Synergy there is a fully metal 4-roll feeding mechanism. It provides smooth and stable wire routing, which is crucial when welding aluminum and using long welding handles. The whole is mounted on a durable chassis with space for a full-size gas cylinder.

💡 Advanced welding functions

The device based on IGBT transistors offers a number of functions to facilitate work:

• Dual Pulse — double pulsation for aesthetic scale welds
• Synergy — automatic selection of parameters for thickness and type of material
• Lutowelding – ideal for joining galvanized sheets in the automotive industry
• 2T/4T/S2T/S4T modes and spot and cyclic welding
• Hot Start and Arc Force — MMA arc stabilization

🔧 Full technical specification

• power supply: AC 230 / 400 V, 50/60 Hz
• Protection required: 25 A [C] (230 V); 16 A (400 V)
• MIG/MAG welding current*: 40 ÷ 200 A (230 V); 40 ÷ 250 A (400 V)
• MIG/MAG welding voltage: 15 ÷ 26,5 V
• MMA welding current: 20 ÷ 180 A
• TIG Lift welding current: 10 ÷ 180 A
• duty cycle: 60%
• idle voltage: 64 V
• Wire diameter**: 0.8/1.0/1.2 mm
• spool diameters / weight: D200, D300 mm / 5, 15 kg
• feeder: 4-roll, built-in, metal
• Enclosure protection class: IP21S
• Weight: 25 kg
