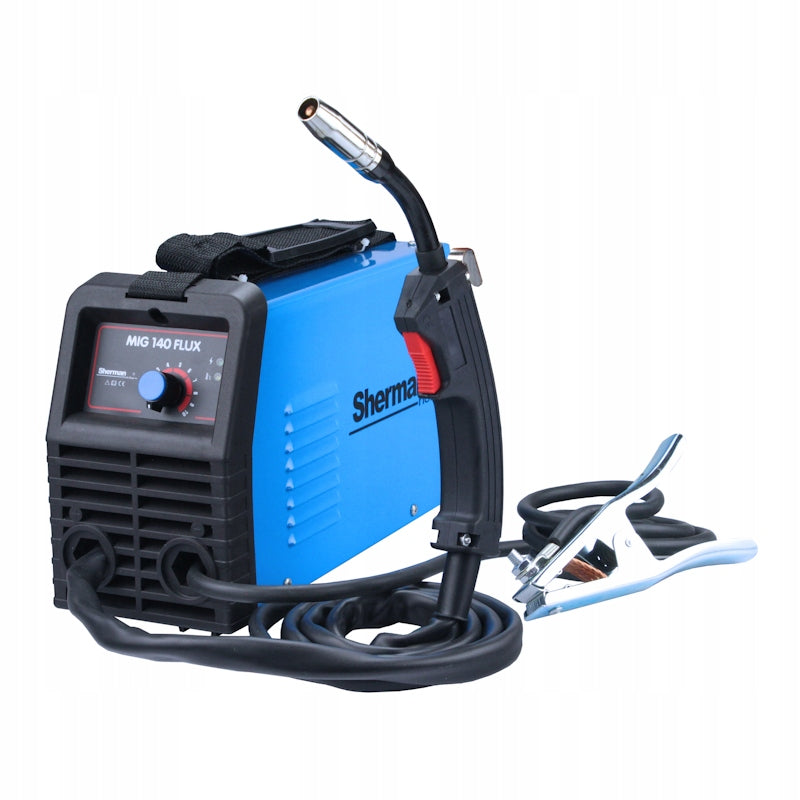

MIG 140 FLUX pusautomatis SHERMAN suvirinimo aparatas be dujų

Trumpai apie prekę

Prekė: MIG 140 FLUX pusautomatis SHERMAN suvirinimo aparatas be dujų. Kategorija: Pusiau automatiniai suvirinimo aparatai.

• Gamintojas: Sherman
• Modelis: Spawarka SHERMAN MIG 140 FLUX HRS1
• Ilgis: 320 mm
• Plotis: 120 mm
• Aukštis: 186 mm

TECHNICAL PARAMETERS

Catalog number 7812681

Supply voltage AC 230V / 50Hz

Methods of welding MIG

IGBT technology

Welding current 100 A

Working cycle 60 %

Maximum current consumption 12 A

Maximum power consumption 2,6 kVA

Welding Current Adjustment Liquid

Reel diameter with wire 100 mm

Weight 4,5 kg

Dimensions (D x SZ x W) 320 x 120 x 186 mm

Features Gas-free welding, 2-roll feeder

SUMMARY OF PRODUCT CHARACTERISTICS

• Single-phase power supply - allows work without the need for access to 3-phase power supply.

• Quick adjustment of welding parameters makes the device very easy to use

• Lightweight and very compact, can be easily transported to the workplace

• Designed for FLUX welding - no need for a shielding gas cylinder

• Maximum welding current 100 A - allows you to perform most of the workshop work

• Technology - IGBT

• Maximum spool with wire: 1 kg (D100)

• Fan-cooled

The MIG 140 FLUX welding machine is designed exclusively for gas-free welding with steel powder self-shielding wire, so there is no need for a gas cylinder. The equipment is recommended mainly for hobby applications and for light, casual workshop work.

The device is extremely easy to use, the wire feed speed is selected automatically. Very small dimensions, low weight and shoulder strap make the welding machine very convenient to transport and store.

The device works with D100 wire spools (1kg).

The set includes an integrated MIG handle and a mass cable with a tick clamp.

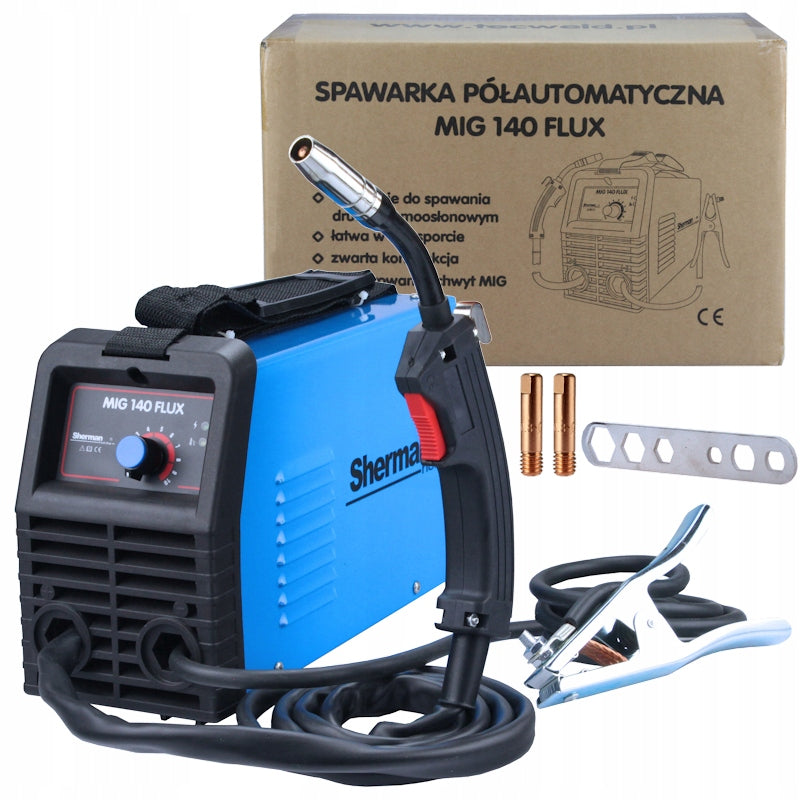

DELIVERY CONTAINS

Semi-automatic welding machine

MIG welding torch TW-14 type Einhell 2 m

2x current tip 0,8

Wrench for burner

Operating instructions

Warranty card

Specifications
