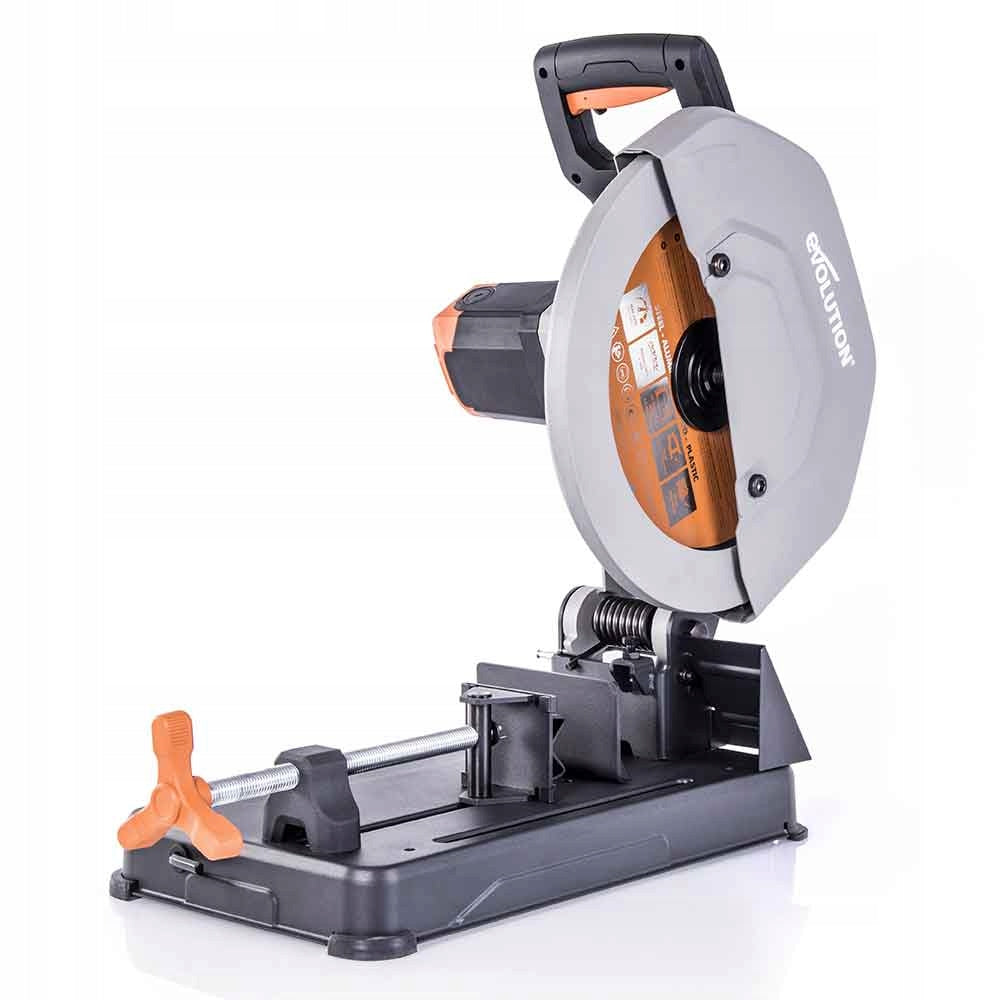

Metalo pjūklas Evolution R355CPS 355 mm su stovu

Trumpai apie prekę

Prekė: Metalo pjūklas Evolution R355CPS 355 mm su stovu. Kategorija: Staliniai pjūklai.

• Gamintojas: Evolution
• Modelis: R355CPS
• Įtampa: 240 V

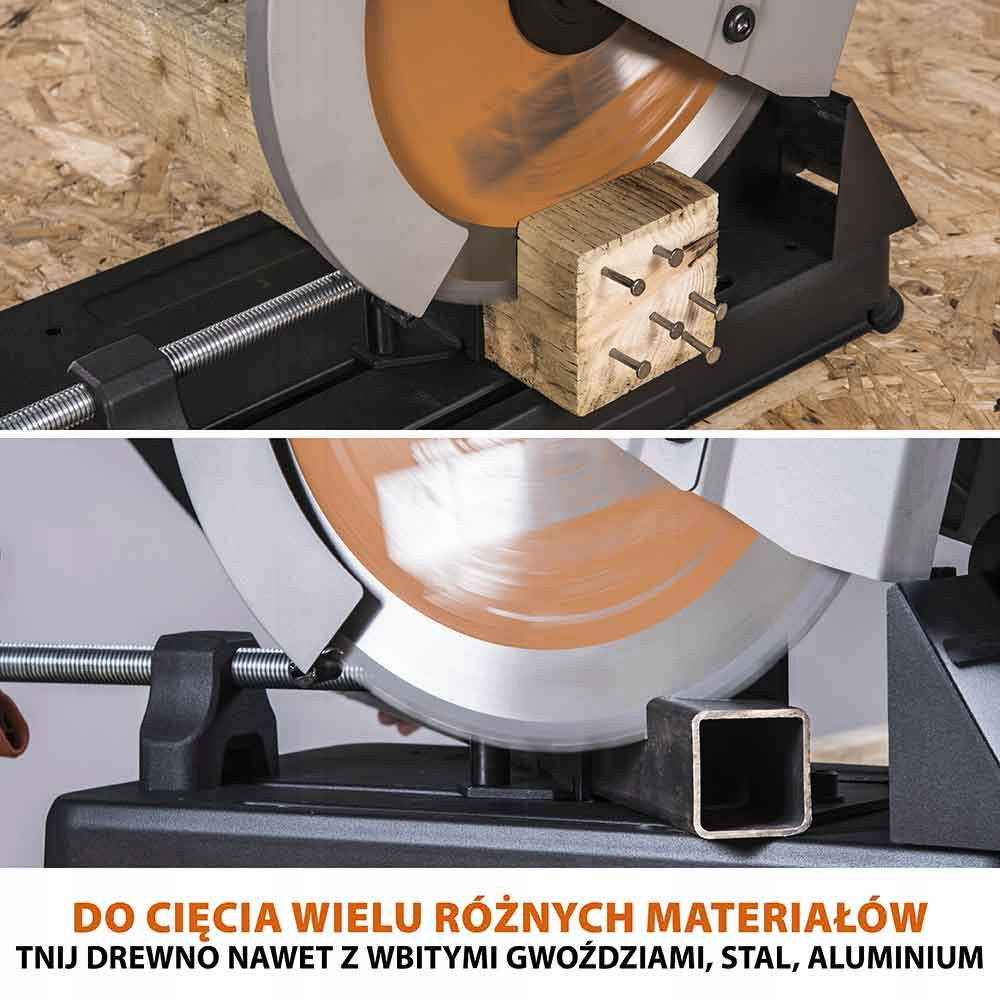

If you work in metal, wood and plastics, the R355CPS is the ideal stand-mounted large disc saw for your workshop. Light enough to easily move from the van to the job site, yet powerful enough to handle cuts of up to 95mm x 180mm under heavy load. The R355CPS is ideal for cutting non-ferrous metals, mild steel, all plastics and wood. It cuts faster and with less heat than a bandsaw, and is safer than abrasive discs

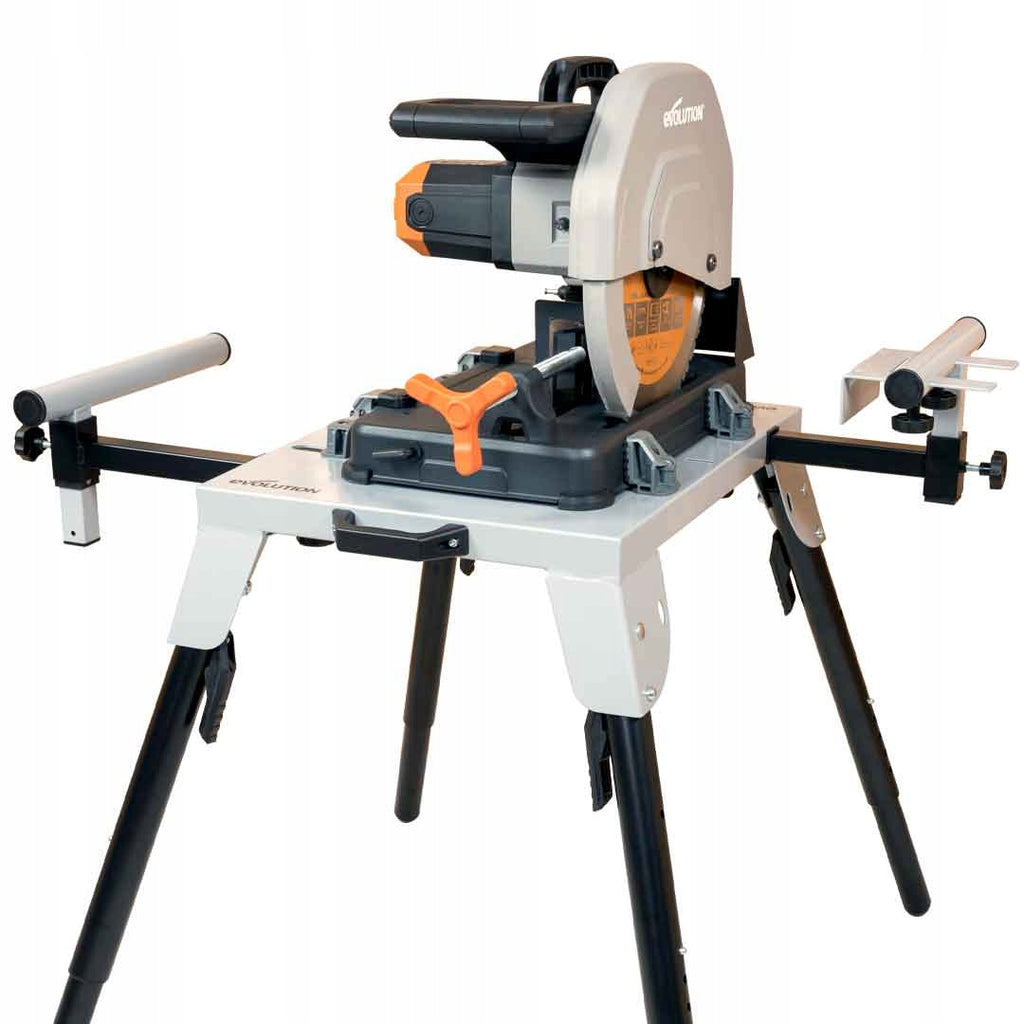

Universal Saw Stand

Do you work on long, heavy steel pipes? Now you can take your saw with you wherever you go, with a strong and durable stand that can handle up to 225kg.

Product Features

• Multi-material cutting technology
• The ideal saw for all applications: one saw, one blade, cuts everything*

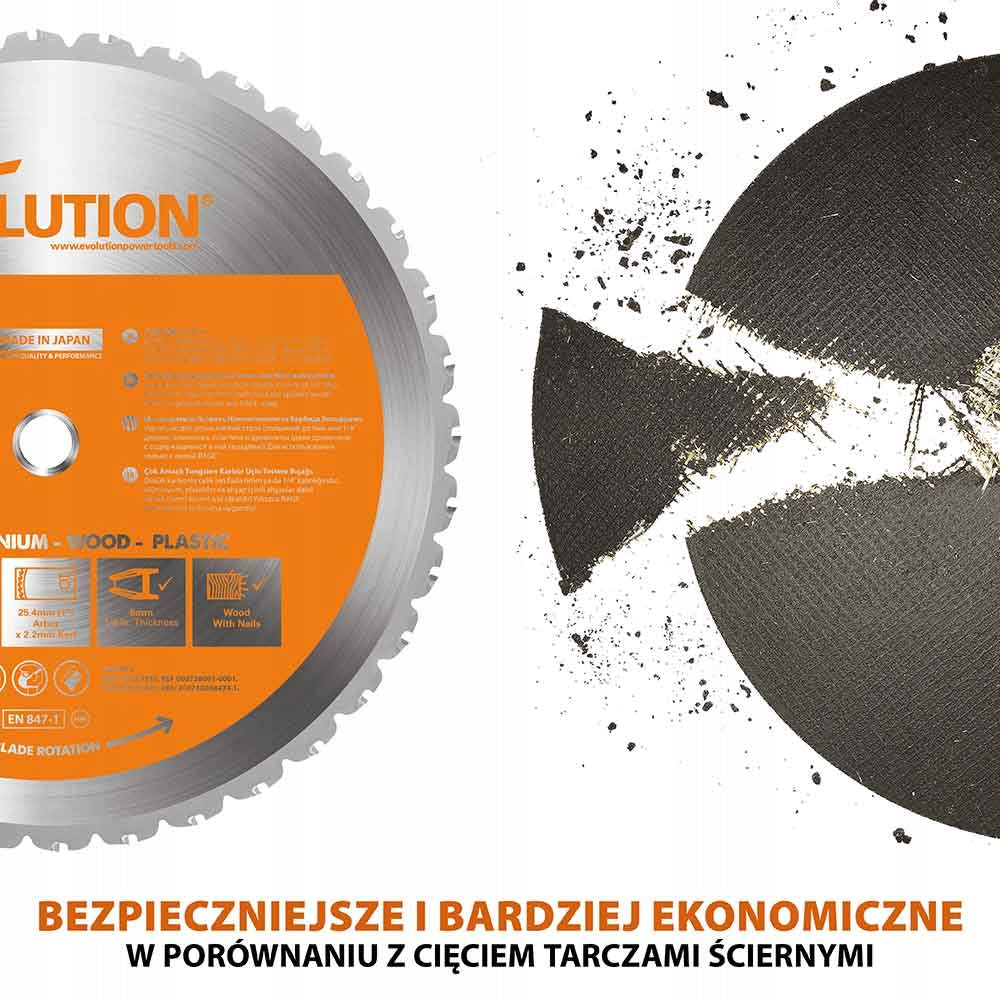

• Faster, safer, more precise and economical than abrasive discs

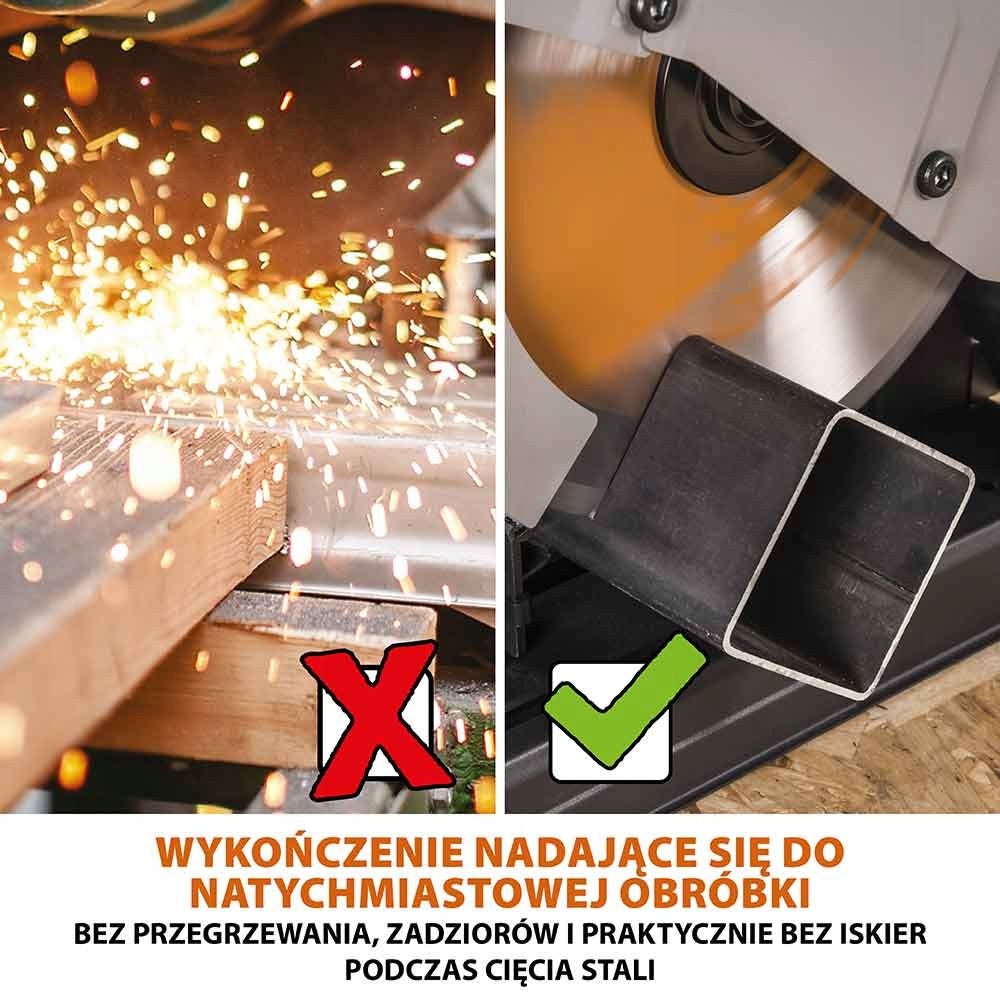

• Clean and smooth cuts every time
• Max. rectangle: 95 x 180 mm
• Max. square: 120 x 120 mm
• Max. circle ø 130 mm
• Quick rotating vice adjustable in seconds
• Allows cutting from 0° to 45°
• Best-in-class product guarantee in terms of quality and performance
• Strong pressed steel base
• Adjustable rubber feet reduce vibrations and increase blade life
• 3-year limited warranty
• 2200 W motor
• High torque gear and blade system, extends motor and blade life

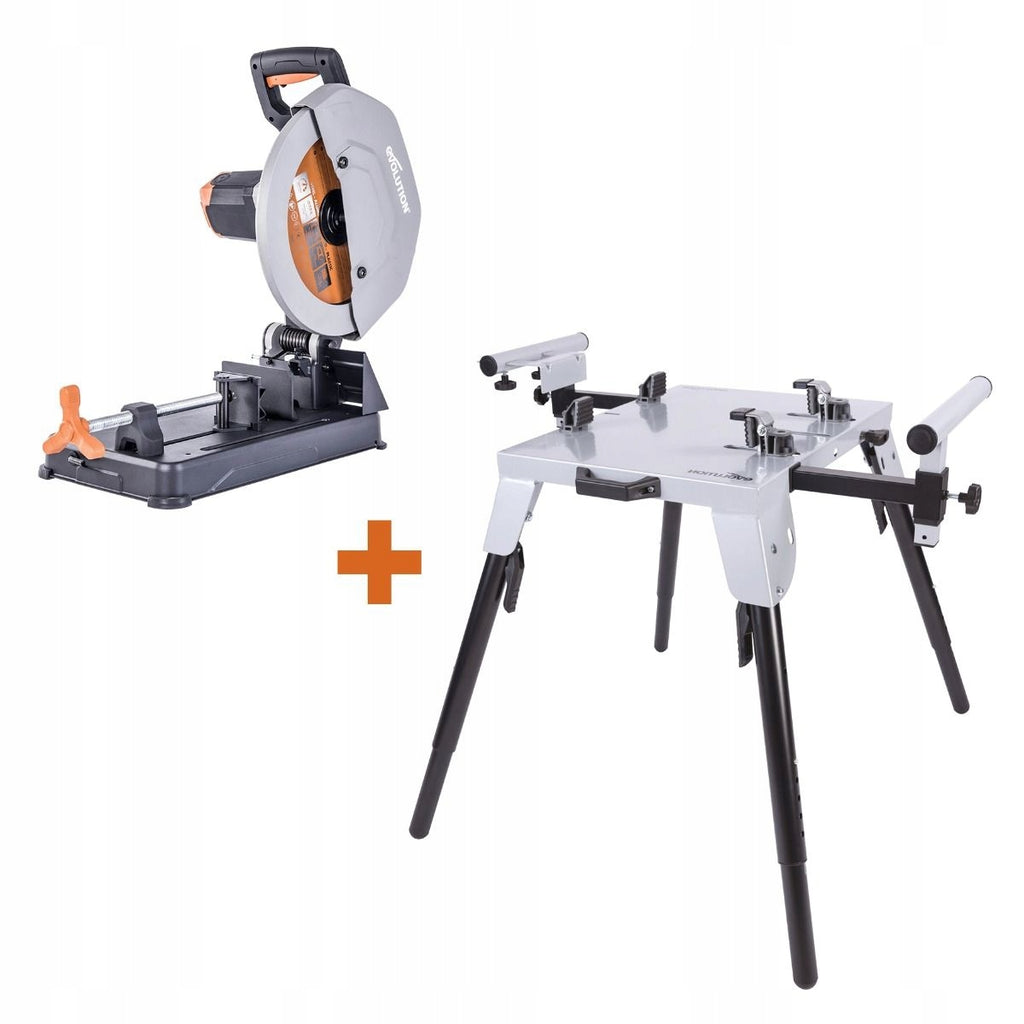

• Universal saw stand
• Universal mounting elements allow you to safely mount most models of cutting machines from leading brands.
• Possibility of individual adjustment of the table height thanks to adjustable legs with a length of 595 - 815 mm.
• Arms on the right and left side allow you to extend the material support area by up to 106 cm.
• Built-in end stop makes repeat cuts faster and safer than ever before.
• Telescopic and foldable legs make it easy to store and carry.
• Robust construction with a load capacity of up to 225 kg.
• Compatible with Evolution RAGE2, EVOSAW355, R355CPS and S355CPS cutting machines. Not compatible with Rage4 185mm Saw

Specification

• Motor (240V 50Hz): 2000W
• Motor (110V 50Hz): 1600W
• No load speed: 1550min-1
• Max mitre: 45°
• Cable length: 2m
• Blade diameter: 355mm
• Number of teeth: 36
• Bore: 25.4mm / 1 inch
• Cut: 2.2mm

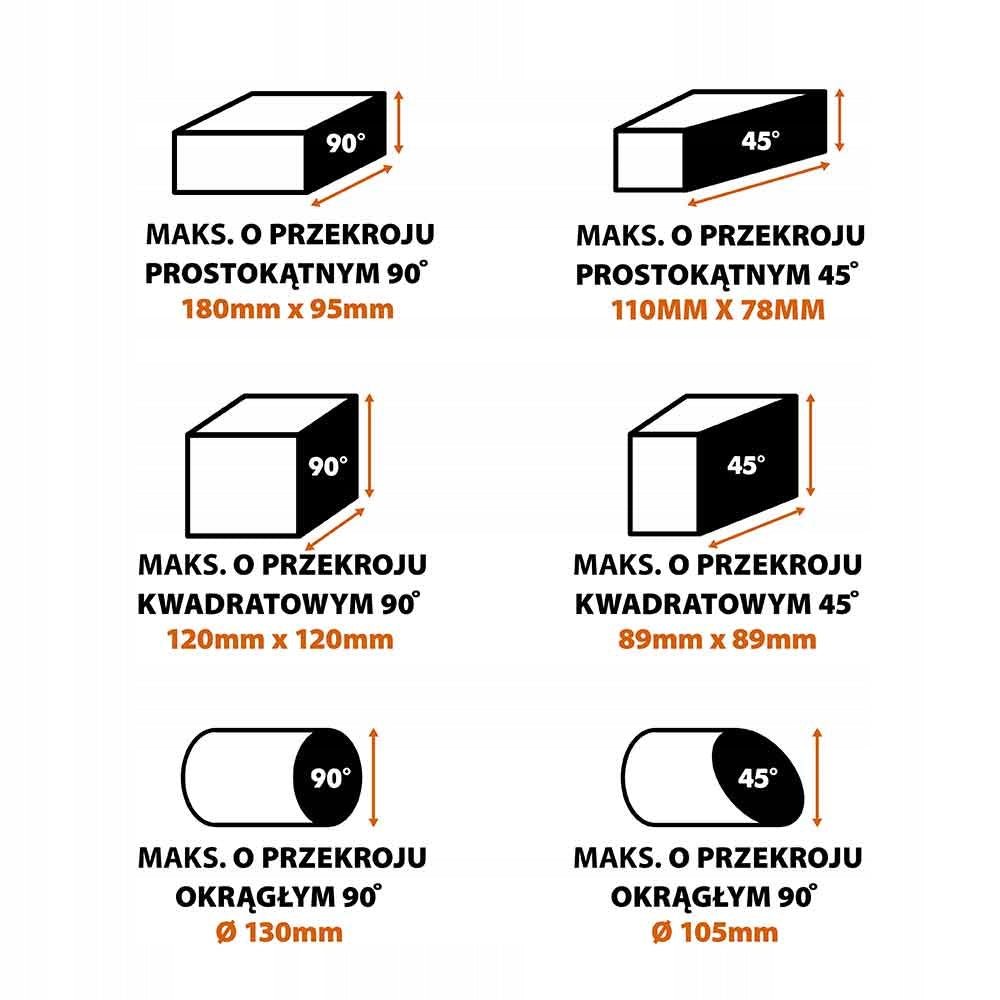

• Max rectangular pipe (0° x 0°) 95 x 180mm
• Max rectangular pipe (0° x 45°) 78 x 110mm
• Max square pipe cutting (0° x 0°) 120 x 120mm
• Max square pipe cutting (0° x 45°) 89 x 89 mm
• Max. cutting capacity round pipe (0° x 0°) Ø 130 mm
• Max. cutting capacity round pipe (0° x 45°) Ø 105 mm
• Mild steel plate - max. thickness 6 mm
• Mild steel box section - max. wall thickness 3 mm
• Min. cut-off length 8 mm
• Packaging dimensions: 470 x 575 x 374 mm
• Product dimensions: 410 x 530 x 310 mm
• Product weight: 21.5 kg
• Weight with packaging: 23.85 kg
• Sound pressure level LPA: 100.5 dB(A) K=3 dB(A)
• Sound power level LWA: 97.3 dB(A) K=3 dB(A)
• Cutting stand with universal
• Table dimensions: 460 x 600 mm
• Min. width of the cutting base: 220 mm
• Max. width of the cutting base: 322 mm
• Table height: 595 mm - 815 mm
• Base surface: 834 x 963 mm
• Max. load: 225 kg
• Product weight: 16 kg

Equipment elements

• R355CPS
• 355 mm TCT blade for various materials (mounted)
• User manual
• 8 mm Allen key (for changing the blade)
• V block
