Medžio skersinio pjūklo lazeris 2200W PM-UK-2200M

Trumpai apie prekę

Prekė: Medžio skersinio pjūklo lazeris 2200W PM-UK-2200M. Kategorija: Kampiniai pjūklai.

• Gamintojas: Powermat
• Modelis: Powermat PM-UK-2200M / PM0874

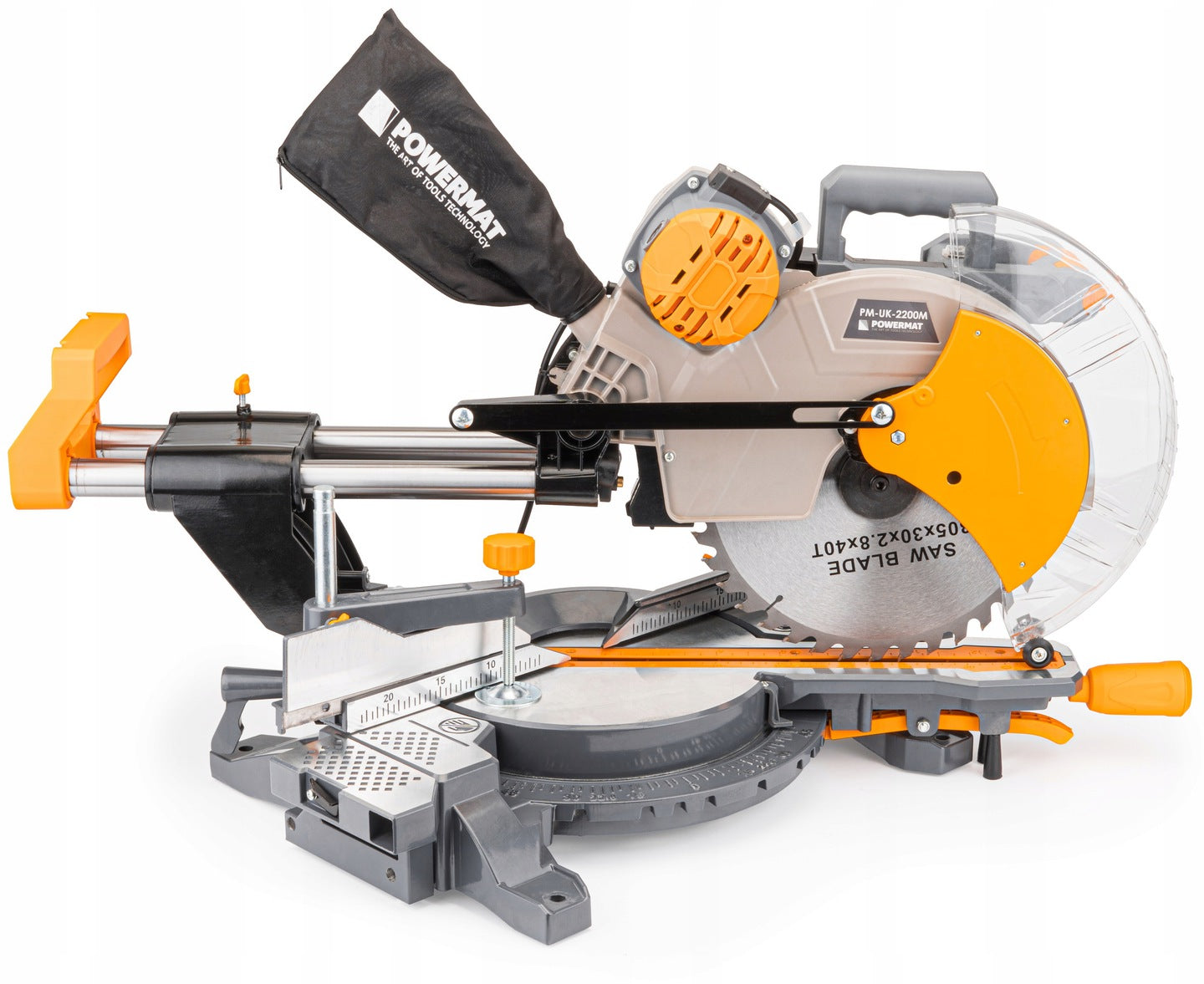

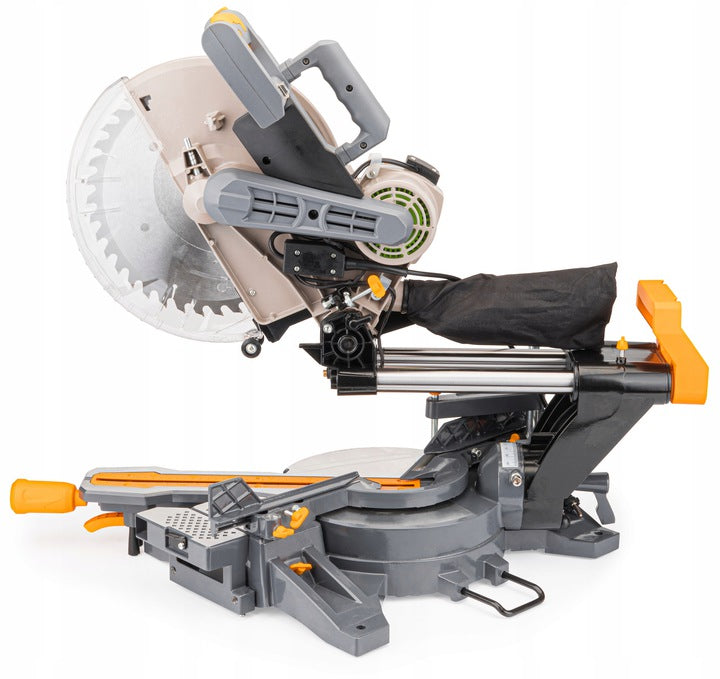

POWERMAT PM-UK-2200M

Miter saw for wood, aluminium and PVC POWERMAT

High power, precise handling and reliability during everyday assembly work.

Engine power: 2200W | Disc: 305 MM | Rotation: 3800 RPM /MIN | Angle adjustment: -45° / 0° / +45° | Cutting: wood, aluminum, PVC | LED lamp + laser pointer

⚙ Technical specification

• Power supply: 230 V / 50 Hz
• Engine power: 2200 W – high torque for demanding cuts
• No-load rotation: 3800 rpm /min – smooth and precise cutting
• Discs as standard: Ø 305 × Ø 30 × 2,8 mm (40T / 60T / 100T)
• Stroke angle: -45° / 0° / +45° (adjustable in both directions)
• Tilt angle: 0° to 45° (slanted cuts with high accuracy)
• Insulation class: II – double user protection
• Sound pressure level Lpa: 95 dB(A)
• Lion Sound Power Level: 108 dB(A)
• Vibration level (K = 1,5 m/s²): 2,5 m/s²
• Weight of the device: 20,8 kg – stable construction for precise cuts
• Length of power cord: 205 cm
• Linear laser: accurate indication of cutting line
• LED backlighting: better visibility of the cutting area
• Maximum cutting length: 25cm
• Overall reach (total): 31cm

✅Equipment

• Miter saw POWERMAT PM-UK-2400M
• Set of spare brushes – longer life of the device
• Mounting keys – necessary for disc replacement and adjustment
• Chip bag – improves the cleanliness of work
• Original packaging – safe transport and storage
• User manual in Polish
• 3 × cutting disc:
• 1 × Ø 305 × 30 × 2,8 mm – 100T (precise, smooth cuts)
• 1 × Ø 305 × 30 × 2,8 mm – 60T (universal use)
• 1 × Ø 305 × 30 × 2,8 mm – 40T – factory-fitted disc

➡ When accuracy from the first cut counts

Curve edges and corrections can stop work. With this 2200W slash, large 305mm dial and laser guidance, you set the material confidently and cut repetitively – without fussing and without wasting time.

➡ Why choose the POWERMAT PM-UK-2200M slash?

• Powerful 2200W motor – reliable, stable operation when cutting wood, aluminum and plastics.
• Large 305 mm disc – clean, precise and deep cuts in one pass.
• Angle adjustment -45° / 0° / +45° – versatility in finishing and assembly work.
• Laser + LED backlight – better visibility of the cutting line and more reliable material setting.
• Stable aluminum base – greater safety and repeatability of work.
• Smooth operation of the guides – convenient cutting of wider elements without losing precision.

PM-UK-2200M is a tool designed for work in the workshop, garage and construction site. It combines high power, precision handling and solid construction, making it suitable for both DIY and professional use.

➡ More precision, more cutting capability

You don’t waste time on corrections and eye-catching cuts. The POWERMAT PM-UK-2200M guides the material stably and evenly, ensuring a clean, repeatable and aesthetically pleasing cut the first time. The power of 2200W and the large disc of 305 mm guarantee a power reserve and deeper cuts.

You work calmly, with full control – without tugging and unwanted shifting of the material. Precise angle adjustment, laser and LED lighting help maintain accuracy even with a series of repetitive cuts.

You save time and energy, and each cut is more reliable and predictable — that’s how a well-designed slash works.

➡ Large cutting range – full freedom of work

The POWERMAT PM-UK-2200M offers a wide cutting range, making it easy to adjust settings to suit your material and type of work – from structural cuts to precise finishing cuts. The large 305 mm disc and powerful 2200 W motor provide a high supply of possibilities.

• 105 × 330 mm — 0° setting × 0°; maximum ground clearance and working width (boards, panels, countertops).
• 60 × 230 mm — 0° × 45° setting; angle cutting while maintaining material stability.
• 35 × 230 mm — 45° × 45° setting; double adjustment for precise cutting and finishing.
• 60 × 230 mm — 45° × 0° setting; high cross-section for angled cuts.

Thanks to the feed guide and setting lock, the material moves stably, and each cut remains even, repeatable and without the need for corrections.

➡ POWERMAT 2200W miter saw – more power, more possibilities

The POWERMAT miter saw with a real power of 2200W is a reliable tool designed for everyday DIY and precise finishing work. It perfectly copes with diagonal and angular cuts, guaranteeing clean, even and aesthetic results.

The POWERMAT is equipped with a double slide rail, which can be quickly and securely locked with a sturdy locking handle. This design provides greater cutting stability and free handling of longer elements.

The tool is designed for versatile use, cutting through hard and soft wood, plastics, and other wood-based materials with precision and ease. High working culture and strong construction guarantee comfort, precision and reliability during every implementation.

➡ Why should you bet on the POWERMAT 2200M slash?

The POWERMAT PM-UK-2200M is a tool for users who expect precise cuts, high stability and reliable operation. The large 305 mm disc gives a significant advantage for elements requiring deep cutting.

• Wide cutting capabilities – the Ø305 mm blade provides deeper, clean and repeatable cross-sections, ideal for boards, squares, panels and structural elements.
• Stable construction – a massive base and a double slide rail guarantee reliable material handling and high repeatability of cuts.
• 2200 W motor – provides power for hard wood, soft wood and plastics.
• Precise angle adjustment - 0 to 45° right and left settings allow for quick and accurate bevel and angle cuts.
• Laser cutting guidance + LED lighting – provide better visibility of the cutting line and more secure material positioning.
• POWERMAT brand – robust construction, availability of parts and reliability in everyday work.

The PM-UK-2200M is the choice for people who need a powerful, specific and precise tool for workshop and assembly tasks.

➡ Cutting height / width

• 105 x 330 mm: Angle | saw tilt: 0° / table settings: 0°
• 60 x 230 mm: Angle | saw tilt: 0° / table settings: 45°
• 35 x 230 mm: Angle | saw tilt: 45° / table setting: 45°
• 60 x 230 mm: Angle | saw tilt: 45° / table settings: 0°

➡ Cutting discs POWERMAT 305 mm – 40T / 60T / 100T

The set of three POWERMAT discs is selected to ensure fast, precise and material-specific cutting. Each of them works well in other tasks – from fast formatting to finishing, extremely smooth cuts.

• Disc 305 mm – 40T Ideal for fast cutting of boards, squares and structural elements. Fewer teeth ensure high efficiency and efficient chip removal.
• Disc 305 mm – 60T Universal application for most workshop work. It provides an even edge and secure handling when cutting wood, boards and wood-based materials.
• Disc 305 mm – 100T Designed for precise finishing cuts. A large number of teeth guarantees a smooth, clean surface without tearing – ideal for moldings, panels and decorative elements.
• Each disc has a mounting hole: 30 mm, which ensures full compatibility with the POWERMAT PM-UK-2200M slash and other devices with the same mount.
• The right thickness: 2,8 mm guarantees stable operation, no “mouse” and reliable handling during cutting.

➡ Functional and stable base

• The base of the slash is made of die-cast aluminum, which provides the structure with high rigidity, resistance to deformation and stability during intensive work.
• The milled surface of the table guarantees the right coefficient of friction, so that the material does not slip and you can maintain full control over the precision of cutting.
• The rotary table with smooth angle adjustment and an inclined head 0 to 45° allows you to make both standard cross-cuts and advanced angled and angular cuts.
• The guide and clamping vise stabilize the material and increase the safety and repeatability of work on wood and plastics.
• Thanks to the use of an appropriate disc, the slash copes with cutting aluminum and plastics, which extends its capabilities in the workshop and during assembly work.

➡ Laser cutting line and LED lighting

The POWERMAT PM-UK-2200M is equipped with a precise laser cutting line indicator and an LED work light, which significantly improve comfort, control and accuracy – especially with a large Ø 305 mm dial.

• Laser cutting indicator – a clear laser line accurately shows where the disc is applied, eliminating guesswork and accelerating material positioning. This helps to achieve greater repeatability of cuts and real time savings.
• LED Lighting - A powerful double LED illuminates the work area, improving the visibility of the cutting line even in low light, in the garage or on the construction site. Thanks to this, the line is perfectly visible regardless of the conditions.
• More control and fewer corrections – the combination of laser and LED allows you to work confidently, calmly and precisely. It reduces errors and makes every cut clean and accurate right the first time.

➡ Vertical clamp

The adjustable vertical clamp in the POWERMAT PM-UK-2200M slash ensures stable immobilization of the material, so that the element does not move during cutting – also when working with feed. The device has two independent mounting places, which allows you to conveniently place the clamp on the left or right side of the table.

• Safe operation without sliding – the clamp precisely presses the material, increasing precision and safety even when cutting at an angle.
• Adjustable table extensions – Sliding, stable elements with folding stops make it easier to work with long boards, panels and slats, improving control over the material being processed.
• Material Stabilization – The stops prevent the element from moving sideways, resulting in even and repeatable cuts on every task.

➡ Ergonomic handle with lock

The POWERMAT PM-UK-2200M miter holder is designed to provide a secure grip, comfort and full control while working. Ergonomic form minimizes hand fatigue, which is especially important for longer series of cuts.

• Transport lock - secures the head during handling, increasing safety and ease of use.
• Stable handling - the handle allows smooth operation of the head even with oblique and double oblique cuts, offering full control of movement.
• Works with a powerful 2200W motor – the handle design allows you to securely hold your device when working with hard wood, panels and other demanding materials.
• Indicator light – placed at the handle increases the comfort of work, informing about the power status.

The designed handle provides comfort, precision and safe control in every phase of cutting.

➡ LED light – greater visibility, greater precision

The built-in dual LED light effectively illuminates the workpiece, providing perfect cutting line visibility and greater accuracy during operation.

• The bright light helps to position the piece exactly where the saw blade should be.
• workshop, garage or field work? LED guarantees a clear cutting line in all conditions.
• Proper lighting reduces the risk of mistakes and improves comfort and pace of work.
• clearly visible material means more reliable, stable and more controlled work.

Thanks to the LED lamp, every cut becomes more accurate, cleaner and easier – even with long-term work.

➡ Extendable worktop – larger workspace

Extendable table extensions increase stability and comfort of work with longer elements. Thanks to them, the processed material lies equally, more confidently and without the risk of tilting, which translates into cleaner and repeatable cuts.

• Greater material support – ideal for boards, panels, slats and wide profiles.
• Smooth sliding makes it easy to quickly adjust the space to the length of the cut element.
• More stable material handling – less vibration and greater precision of each cut.
• Safer work thanks to the reduction of sliding and “falling” of long elements.

The extendable top makes the slash work more confidently even with large formats – you always have full control and stable material support.

➡ Spare set of carbon brushes – 2× pieces included

Each POWERMAT slash is equipped with a set of carbon brushes, which are responsible for the proper transfer of energy to the engine and its stable operation.

Additional 2 carbon brushes included – you always have consumable parts on hand, so you don’t worry about the availability of replacements when it’s time to replace.

Easy and quick replacement – brushes can be replaced on their own, without specialized tools and without visiting the service.

Motor protection against wear and tear – regular brush replacement extends the life of the engine and maintains its full working power.

With spare brushes, you can maintain maximum performance and a long lifespan of your drive system.

➡ Dust extraction system

Clean air in the workshop means not only comfort, but above all protection of your lungs. The POWERMAT has been equipped with an extraction port and a chip bag (included), which effectively reduce the amount of floating dust.

Efficient chip and dust collection – The extraction system captures contaminants generated during cutting, keeping your workplace tidy.

Possibility to connect an industrial vacuum cleaner – for maximum suction efficiency and a perfectly clean workspace.

Thanks to this solution, you work healthier, safer and in much better visibility of the processed material.

➡ Angle guide with lock – precise angle setting

The robust angle guide with clear scale allows you to quickly and accurately set cutting angles. The locking mechanism ensures that the arm remains stable even when working with harder material.

• Easy-to-read graduation – makes it easy to set the right angle without guessing.
• Secure lock – stabilizes the arm, eliminating shifts during cutting.
• Precise handling – thanks to the long guide, the material lies evenly and securely.
• Quick adjustment – ergonomic handle allows you to change the setting in one move.

The guide significantly increases the control and repeatability of cuts, especially at more demanding angles.

➡ 0 – 45° inclined head – precise angled cuts

The tilt of the head in the range of 0 to 45° allows you to quickly set the angle for oblique, finishing and decorative cuts. The large, easy-to-read scale allows you to accurately adjust the position without guessing.

• Easy to read graduation – easy angle reading even in low light.
• Precise adjustment – smooth settings ensure a perfect fit for the task.
• Stable locking – a strong mechanism keeps the head in the desired position.
• Greater finish accuracy – ideal for moldings, panels and decorative elements.

Angle adjustment ensures that each cut is even, repeatable and matched to the material.

A tool you can count on in your daily work

The combination of power, precise adjustments and convenient solutions, such as a laser or a stable guide, gives you the confidence of clean results without unnecessary corrections.

It is a choice that simply allows you to work calmer and more confidently with any material.

FAQ – Frequently Asked Questions

What materials does the POWERMAT 2200M slash best cope with?

The model works well when cutting wood, panels, slats, structural elements and wood-based materials. With the right disc, it also allows you to cut aluminum and plastics.

Does the slash have a feed function?

Yes – the model has a double slide rail, which increases the cutting range and allows precise handling of even wider elements. The mechanism works smoothly and stably throughout the movement.

Can I cut at an angle and at a bevel?

Of course. The beveler offers angle adjustment of the table and an inclined head 0 to 45°, which allows you to perform both transverse and bevel cuts and double bevels.

What is laser and LED lighting used for?

The laser pointer shows the exact location of the disc application, making the material setting quick and reliable. The dual LED improves the visibility of the cutting line in darkened areas, resulting in greater control and accuracy.

Are there discs in the set and what are their parameters?

Yes — you get 3 cutting discs: for fast cuts (40T), universal (60T) and precise (100T). All have a diameter of 305 mm and a mounting hole of 30 mm.

Does the slash have a depth limiter?

The model has disc adjustment functions and stable fastenings that allow you to precisely set the cutting level – ideal for repetitive work.

What are the dimensions and weight of the device?

The bevel weighs approx. 20,8 kg, which ensures stability of work, and at the same time allows you to maintain mobility on the assembly.

Are the table extensions adjustable?

Yes – extendable tabletop extensions increase the workspace and stabilize longer elements, which improves comfort and safety at work.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	Powermat
Parametry	Manufacturer code	Powermat PM-UK-2200M / PM0874
Parametry	EAN (GTIN)	5902565278724
Parametry	Series	PM-UK-2200M / PM0874
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
Parametry	Maximum power	2200 W
Parametry	Power supply	mains
Parametry	Rotational speed	3800 rpm
Parametry	Saw bore diameter	30 mm
Parametry	Battery voltage	230 V
Parametry	Additional features	laser pointer for cutting line,lighting,feed
Parametry	Disc diameter	305 mm
Parametry	Cutting depth at 45 degrees	60 mm
Parametry	Cutting depth at 90 degrees	105 mm
Parametry	Cutting width at 90 degrees	330 mm
Parametry	Cutting width at 45 degrees	230 mm
Parametry	Device weight	20.8 kg
Parametry	Product weight with unit packaging	23 kg
