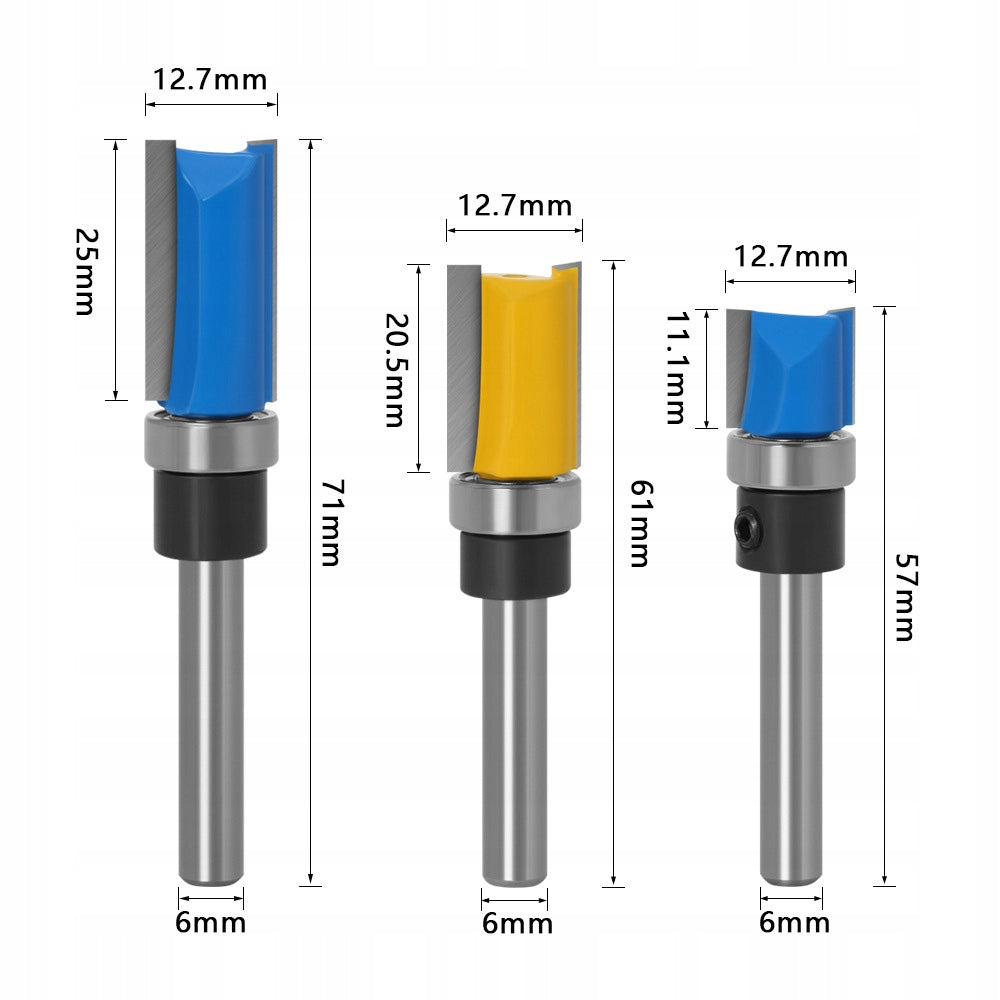

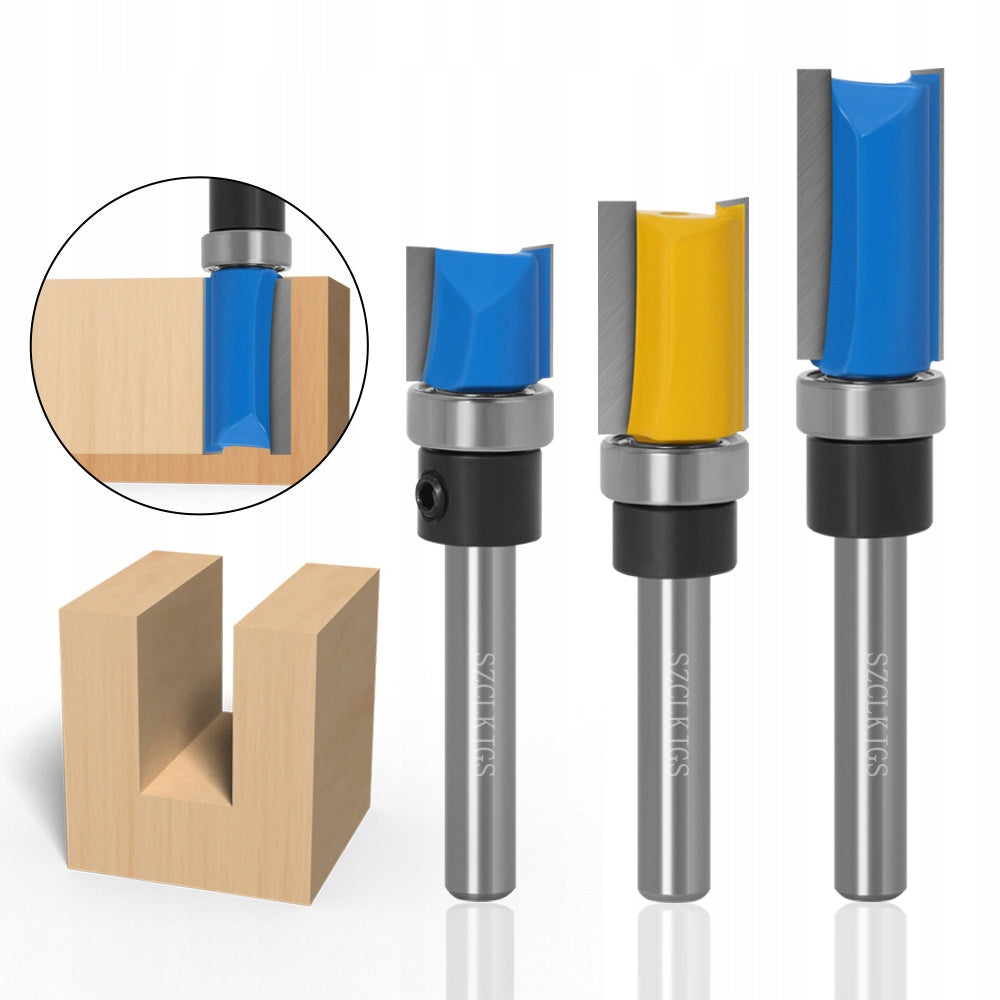

Medžio apdirbimo frezų rinkinys 6mm su guoliais, 3 vnt.

Trumpai apie prekę

Prekė: Medžio apdirbimo frezų rinkinys 6mm su guoliais, 3 vnt.. Kategorija: Pjaustytuvai.

• Gamintojas: HETRFLY
• Modelis: I100170

High quality tungsten steel alloy, special High-Tech grinding process, blade strength, high hardness, sharp and wear-resistant, higher performance.

Edge cutting cutter, with double-edged blade and replaceable ball bearing, smooth operation, excellent rotational gear, for edge milling, precision ground, creates a smooth cutting surface.

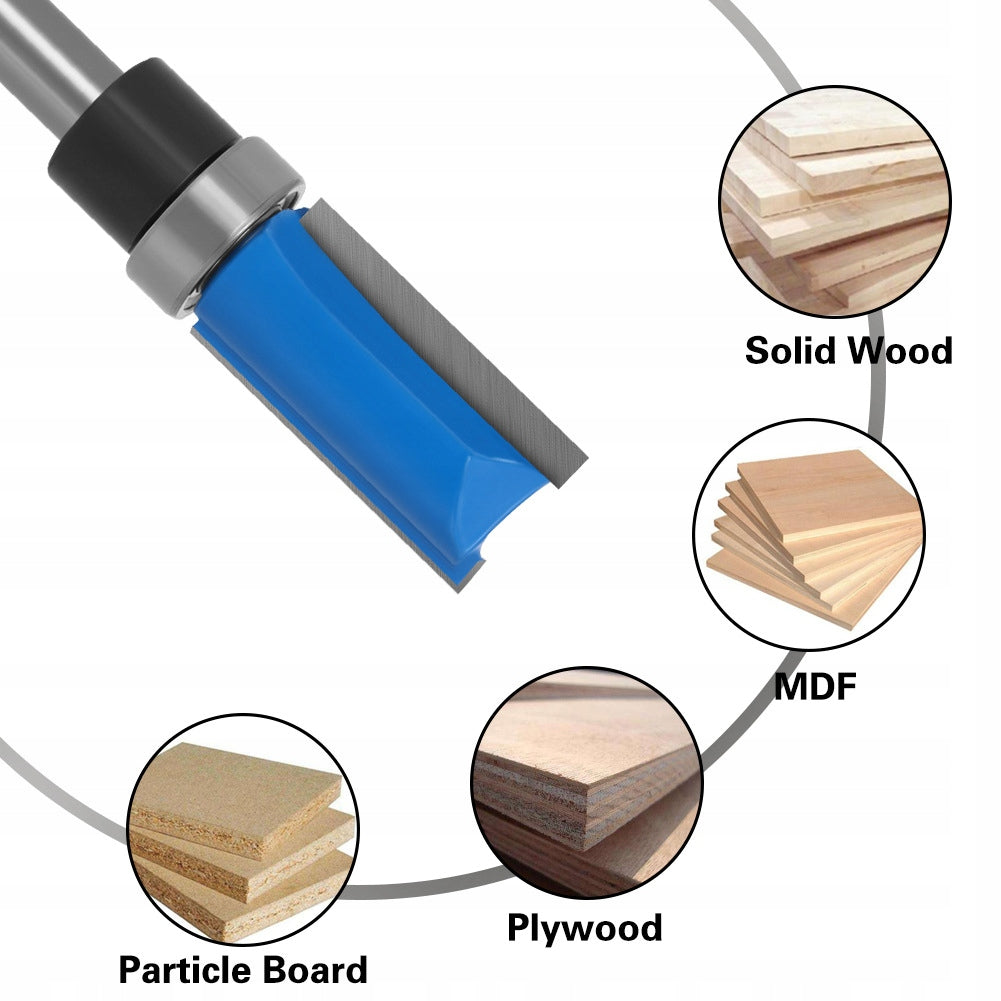

Suitable for cutting many composite materials, such as solid wood, hardwood, softwood, MDF, chipboard, solid wood plywood.

Application on CNC and other automatic milling machines. Such as woodworking machine, engraving machine, trimming machine, CNC manual milling machine, table milling machine, etc.

Product Features:

YG8 alloy knife head, 45# carbon steel knife body, plastic spray surface, good wear resistance, long service life.

The cross-cutting cutter includes a closed ball bearing for smooth operation and accurate cuts for laminates and stencil work, for cutting, three-dimensional playing angle, slots, trimming, edge and groove processing.

Edge cutter is suitable for all kinds of pruning and engraving machines, cuts plywood, chipboard, hard wood, MDF, soft wood and other compact panels.

Tip:

1. When using cutters, wear protective equipment during construction to avoid injury.

2. Suitable for all manual high-spindle milling machines and table milling machines with 6mm clamping sleeve, can not be used in electric drills and drills.

Hint:

1. Slight dimensional discrepancies of manual measurement. Thank you for your understanding.

2. Monitors are not calibrated the same, the color of the item displayed in the photos may be slightly different from the actual product. Please consider the original as standard.

3. During the installation of the chisel, the entire shank must be clamped. When milling, the rotation speed should not be too high. Multiple milling, also on site. When opening the holes, wear good protection to avoid eye damage caused by chips.

Note to buyer

Cutting diameter or height: less than 25 mm -- Maximum speed/min: 24000, Maximum feed speed/min: 5000.

Cutting diameter or height: less than 25,1-35 mm -- Maximum speed/min: 18000, Maximum feed speed/min: 4000.

Cutting diameter or height: less than 35,1-50 mm -- Maximum speed/min: 16000, Maximum feed speed/min: 3500.

Cutting diameter or height: less than 50,1-60 mm -- Maximum speed/min: 14000, Maximum feed speed/min: 3000.

Cutting diameter or height: less than 60,1-80 mm -- Maximum speed/min: 12000, Maximum feed speed/min: 2500.

Cutting diameter or height: above 80 mm -- Maximum speed/min: 10000, Maximum feed speed (mm/min): 2000.

Note: Most commonly used machine speeds:

Edge milling machine: 10000 – 30000 rpm /min

Bakelite Milling Machine:

1. speed 9000 rpm. /min

2. speed 12000 rpm. /min

3. speed 15000 rpm. /min

4. speed 19000 rpm. /min

5. speed 23000 rpm. /min

Vertical engraving machine: Low speed 12000 rpm /min

High speed 24000 rpm /min

Automatic engraving machine: Variable frequency up to 18000 rpm /min

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	HETRFLY
Parametry	Cutter type	frontal
Parametry	Shank diameter	6mm
Parametry	Material of manufacture	carbon steel
Parametry	Number of pieces	3 pcs
Parametry	Manufacturer code	I100170
Parametry	EAN (GTIN)	6977631514463
Parametry	Packaging status	original
Parametry	Purpose	wood,fresh wood,branches,MDF,drywall,chipboard
