Medienos tekinimo staklės VFR713 2200 W

Trumpai apie prekę

Prekė: Medienos tekinimo staklės VFR713 2200 W. Kategorija: Frezos.

• Gamintojas: Vander
• Modelis: VFR713
• Įtampa: 230 V

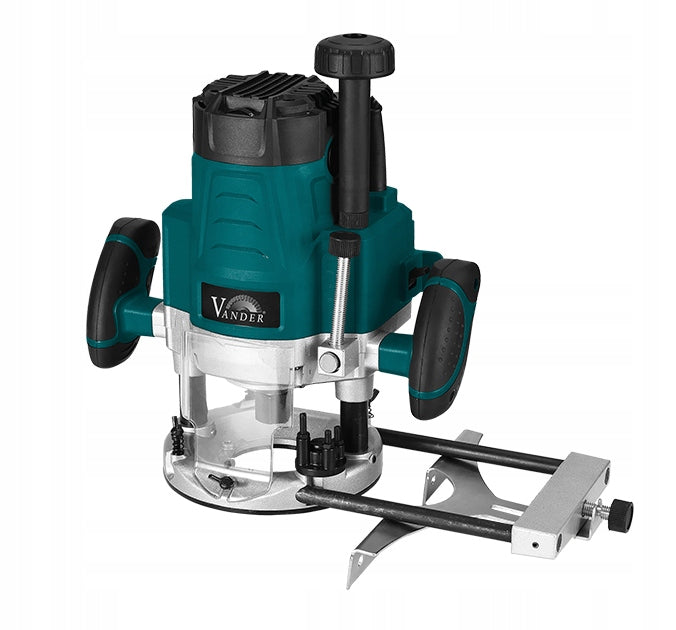

Wood milling machine VANDER VFR713

High-spindle milling machine for DIYers who value the quality and reliability of the VANDER brand, is designed for milling wood and wood-based materials and, after using appropriate cutters, light building materials and plastics. End mills with a properly selected shape can be made edge milling, groove milling, profile milling or groove cutting.

The main advantages of the milling machine:

✅ powerful and durable 2200 W motor

✅ smooth adjustment of rotational speed allowing for proper use of the milling machine for the material on which we work

✅ possibility of connection of dust extraction device

✅ setting the milling depth every 0.1 mm

✅ lock at 3 different milling depths

✅ side guide and handle 8 i 12 mm included

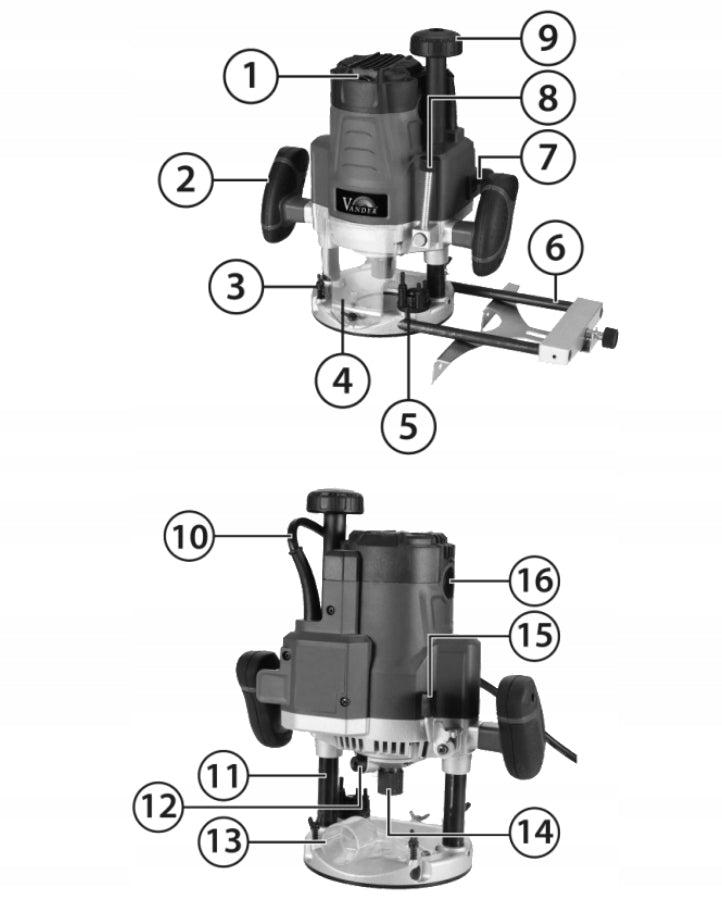

Technical description of the device:

• 1. Rotation regulator
• 2. Working handle
• 3. Parallel Guide Lock Screws
• 4. Dust cover
• 5. Step bumper
• 6. Parallel guide
• 7. On/off switch
• 8. Depth limiter
• 9. Precision depth setting knob
• 10. Power cord
• 11. Device feed columns
• 12. Spindle lock
• 13. Dust cover with nozzle for connecting suction
• 14. Spindle with clamping nut
• 15. Feed lock
• 16. Carbon Brush Nut

Technical data:

• Power supply voltage / frequency: 230V~/ 50 Hz
• Power: 2200 W
• Rotary speed: 9000 - 22000 rpm
• Tool holder size: 8 / 12 mm
• Maximum cutter stroke: 70 mm
• Invented weight: 5,7 kg

Equipment:

• Tool holder 8mm - 1 pc.
• Tool holder 12mm - 1 pc.
• Flat wrench for handle - 1 pc.
• Set of screws and nuts - 1 set.
• Carbon brushes - 1 set.
• Parallel guide roller - 1 pc.
