Medicininis ir biostimuliacinis 808 nm infraraudonųjų spindulių Biolaser 1

Trumpai apie prekę

Prekė: Medicininis ir biostimuliacinis 808 nm infraraudonųjų spindulių Biolaser 1. Kategorija: Fotono terapijos prietaisai.

• Gamintojas: no brand
• Modelis: AM06

The BIOLASER 1 is a modern medical and biostimulation laser, working in infrared light.

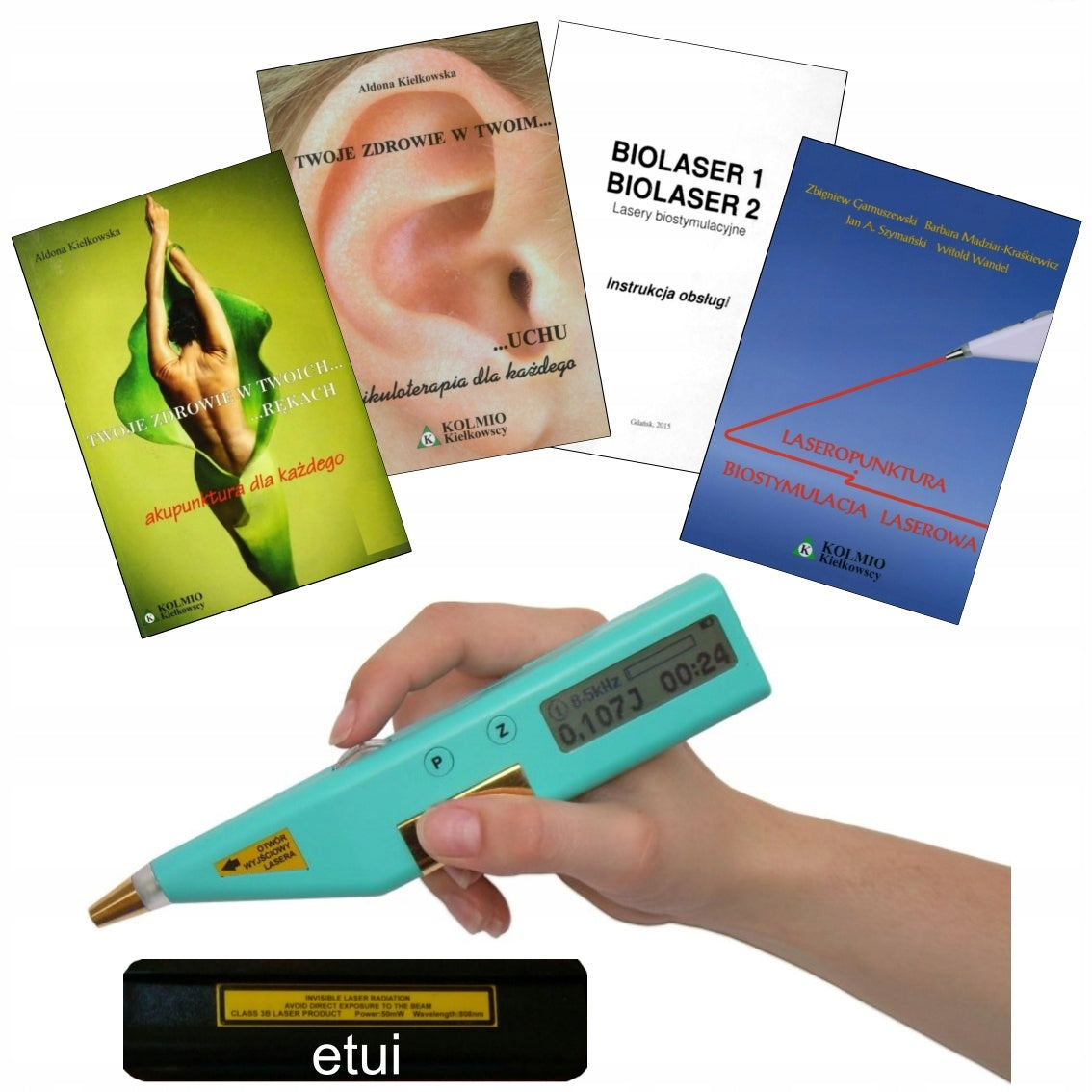

The set includes:

• Biolaser 1
• Etui with optical power meter
• Battery charging power supply
• Books:

-"Your health in your hands"

-"Your health in your ear"

-"Laseropuncture and laser biostimulation"

BIOLASER is a modern medical and biostimulation laser, working in infrared light.

The device is equipped with an intelligent acupuncture point detector, which does not require any adjustment.

The detector "learns" the skin and thus flawlessly locates points.

Basic applications of BIOLASER: acupuncture, dermatology and cosmetics.

The laser display presents information:

• work programme,
• laser light energy supplied,
• stimulation time,
• acupuncture point detector level,
• battery status.

Technical data:

The BIOLASER 1 and BIOLSER 2 stimulation lasers are low-power lasers operating in red and infrared light. They are characterized by high ergonomics of work, clear and handy arrangement of indicators and regulators.

Lasers are made in microprocessor technology, all their parameters are set with high precision and stability.

BIOLASER 1 BIOLASER 2

Wavelength: 790 or 808 nm 635 nm

Optical power: 5 mW and 50 mW 5 mW

Work programmes:

1 Modulation 8500 Hz

2 Modulation 2500 Hz

3 Modulation 10 Hz

4 Continuous emission

Power Supply: 700mAh Li-Ion Battery

Working time (program 4): 7 hours

Display: 132 x 32 pixels

BIOLASER 1 and BIOLASER 2 - comparison

The BIOLASER 1 and BIOLASER 2 stimulation lasers are devices built according to identical design assumptions. From the technical side, they differ only in the actuator - a laser diode. BIOLASER 1 emits infrared radiation with a wavelength of 790 nm or 808 nm, while BIOLASER 2 emits red radiation with a length of 635 nm.

The wavelength of light is of great therapeutic importance. Infrared radiation penetrates the skin more easily, while red radiation is absorbed more through the skin. The following diagram illustrates the absorption of laser light by biological tissue:

The BIOLASER 2 emits red light, which has less penetration through the skin, i.e. it is rather suitable for surface activities - all radiation energy is absorbed by the top layers of the skin. Infrared laser BIOLASER 1 emits radiation penetrating deeper, so it works better in the treatment of inflammation, joint or bone pain, etc. Red and infrared lasers have similar applications, except that there is a shift of the maximum effect - red by approx. 30% better heals the surface, infrared by approx. 30% better cures depth.

Additional information

Do doctors and patients need glasses?

Glasses are not necessary. Protect the eyes of the doctor and the patient, but it is enough to handle the laser carefully. Details are provided on pages 4 and 5 of the instruction manual provided with the device.

What is the maximum absorption energy in children?

In young children, the dose is usually given half that of adults, i.e. for example, the recommended dose for biostimulation is for adults from 0,05 J/cm2 to 8 J/cm2 - for children it will be from 0,05 J/cm2 to 4 J/cm2. Another example - typical irradiation of the acupuncture point in adults with a 5mW laser takes 20 seconds - for children it will be 10 seconds.

MANUFACTURER'S WARRANTY 3 YEARS.

ATTENTION! We provide you with the possibility of buying in installments thanks to the PayU payment option.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	no brand
Parametry	EAN (GTIN)	40640646450494
Parametry	Manufacturer code	AM06
Parametry	Batteries included	yes
